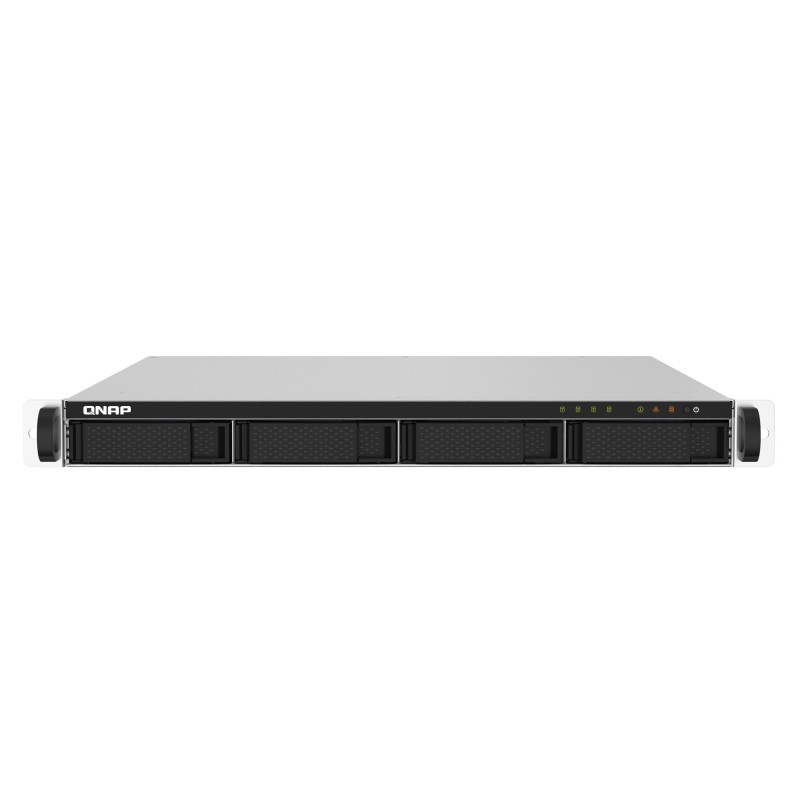

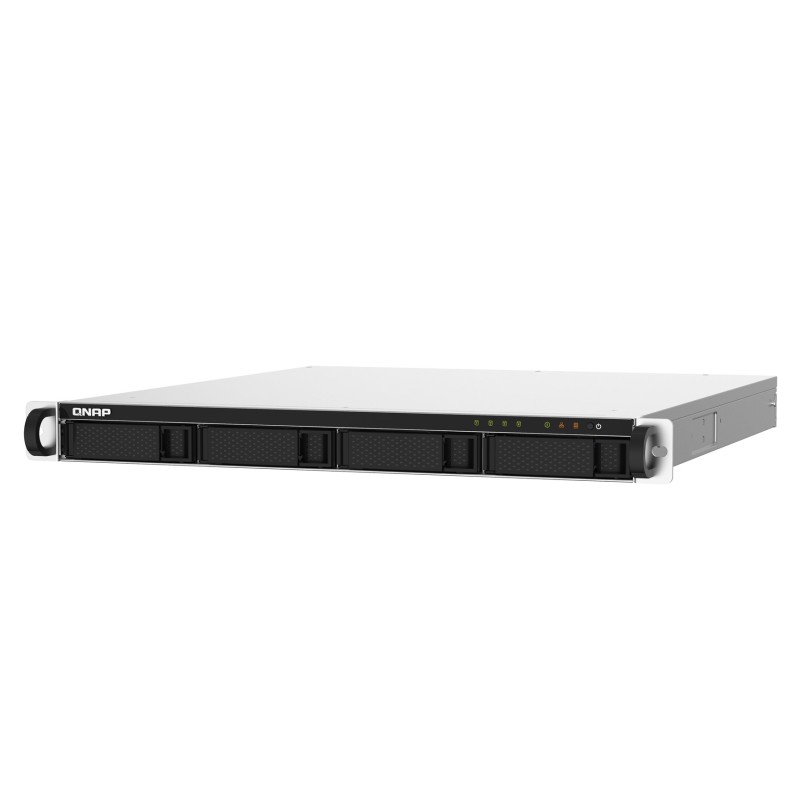

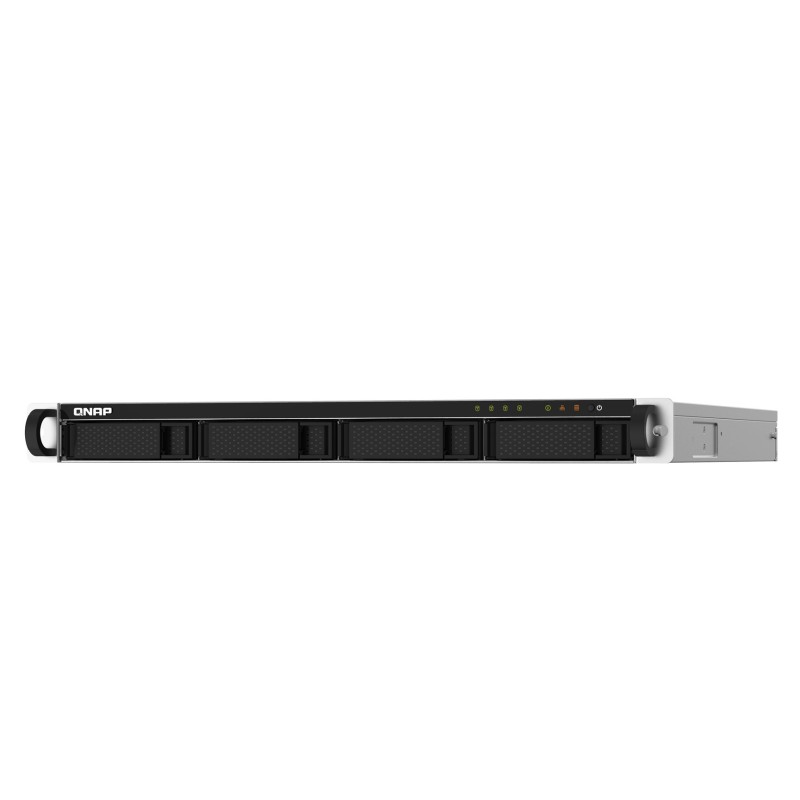

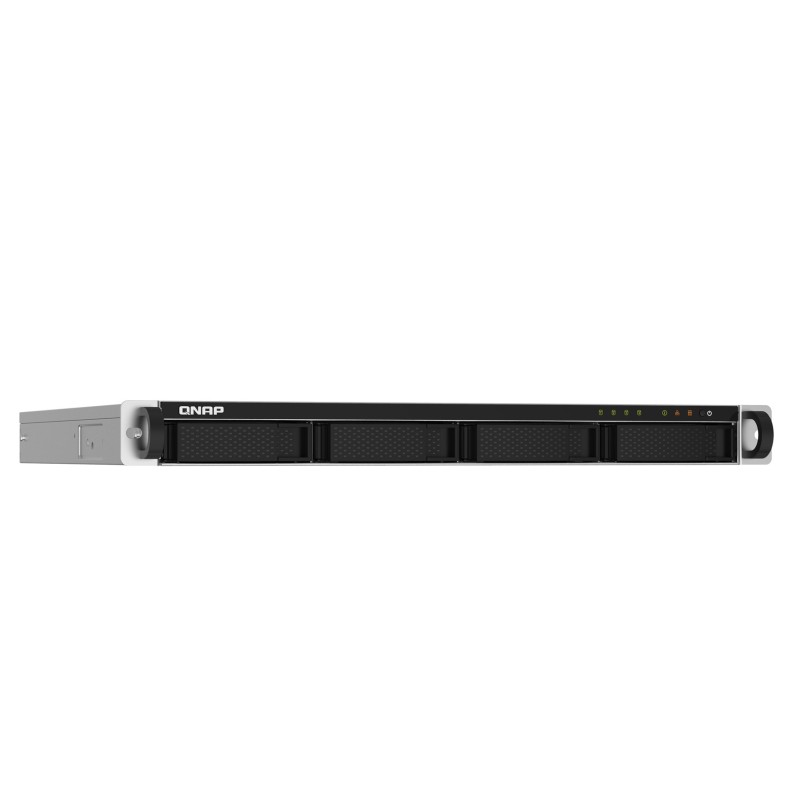

QNAP TS-432PXU NAS Rack (1U) Ethernet LAN Black Alpine AL-324

Περιγραφή

Processor

Processor model: Alpine AL-324

Processor family: Annapurna Labs

Processor cores: 4

Processor frequency: 1.7 GHz

Processor manufacturer: Annapurna Labs

Memory

Maximum RAM supported: 16 GB

Internal memory: 2 GB

Memory slots: 1

Internal memory type: DDR4

Flash memory: 512 MB

Memory form factor: UDIMM

Design

Cooling type: Active

Chassis type: Rack (1U)

Fan diameter: 4 cm

Number of fans: 2 fan(s)

Product colour: Black

LED indicators: Status, LAN, HDD

Power

Power supply location: Built-in

Fan voltage: 12 V

AC input voltage: 100 - 240 V

Power consumption (typical): 39.558 W

Number of power supply units: 1

Power supply unit (PSU) capacity: 250 W

Operational conditions

Operating relative humidity (H-H): 5 - 95%

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Height: 44 mm

Depth: 499 mm

Weight: 6.53 kg

Package weight: 9.53 kg

Width: 439 mm

Network

Ethernet LAN data rates: 10000 Mbit/s, 2500 Mbit/s, 1000 Mbit/s, 100

Ethernet LAN: Yes

Supported network protocols: PPTP, L2TP/IPSec, OpenVPN, QBelt

Link aggregation: Yes

iSCSI support: Yes

WLAN adapter supported: Yes

DHCP client: Yes

Jumbo frames support: Yes

Load balancing system: Yes

Wake-on-LAN ready: Yes

DHCP server: Yes

Ethernet LAN data rate supported (max): 10000 Mbit/s

Performance

S.M.A.R.T. support: Yes

Noise level: 38 dB

USB copy function: Yes

System log: Yes

On/off switch: Yes

Reset button: Yes

Hot spare: Yes

Universal Plug and Play (UPnP): Yes

Buzzer: Yes

Snapshot: Yes

Built-in FTP server: Yes

Backup features: Cloud, iSCSI LUN

Type: NAS

Backup function: Yes

Multilingual support: Yes

Security algorithms: SSH, 256-bit AES, SSL/TLS, HTTPS, FIPS 140-2

Browser supported: Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome

Web-based management: Yes

Access Control List (ACL): Yes

Device class: Small & Medium Business

Share folder: CIFS/SMB

Packaging content

Number of screws: 28

Cables included: AC, LAN (RJ-45)

Software

Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.13 High Sierra, Mac OS X 10.15 Catalina

Windows operating systems supported: Windows 8, Windows 10, Windows 7

Server operating systems supported: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2008 R2

Operating system installed: QNAP Turbo System

Operating system version: 5.0.0

Linux operating systems supported: Yes

Storage

Storage drives installed: No

Bad block scan: Yes

RAID levels: 1, 10, JBOD, 6, 0, 5

Number of storage drives supported: 4

Online RAID migration: Yes

Online RAID expansion: Yes

Supported file systems: ext4, FAT32, HFS+, ext3, NTFS

Supported storage drive interfaces: Serial ATA II, Serial ATA III

RAID support: Yes

Hot-swap drive bays: Yes

Installed storage drive type: No

RAID rebuild: Yes

Supported storage drive types: HDD & SSD

Storage drive sizes supported: 2.5, 3.5

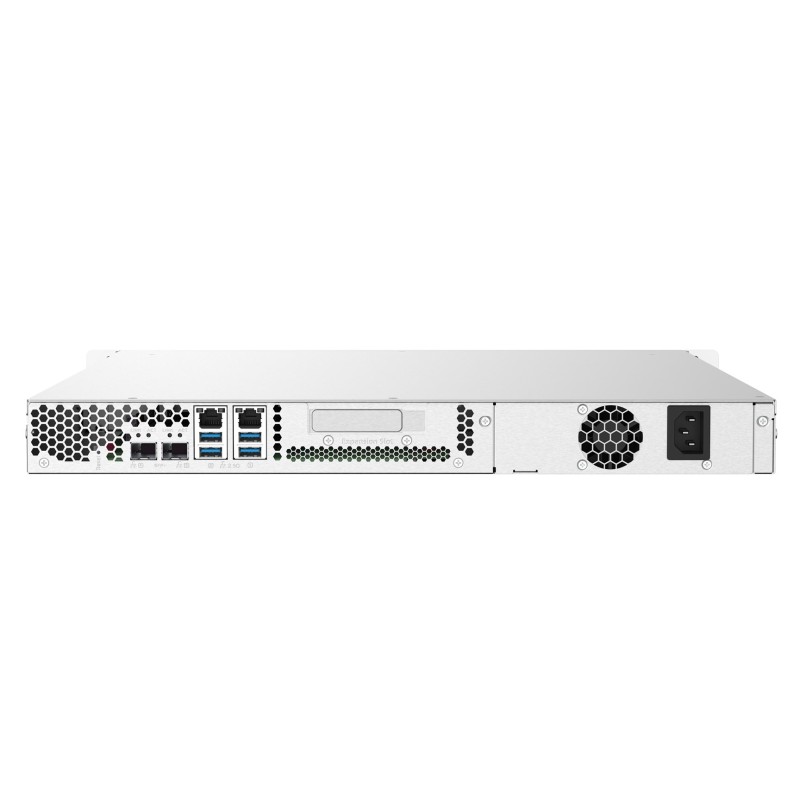

Ports & interfaces

Fiber ports quantity: 2

Ethernet LAN (RJ-45) ports: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB port: Yes

Fiber optic connector: SFP+

Logistics data

Harmonized System (HS) code: 84714100
