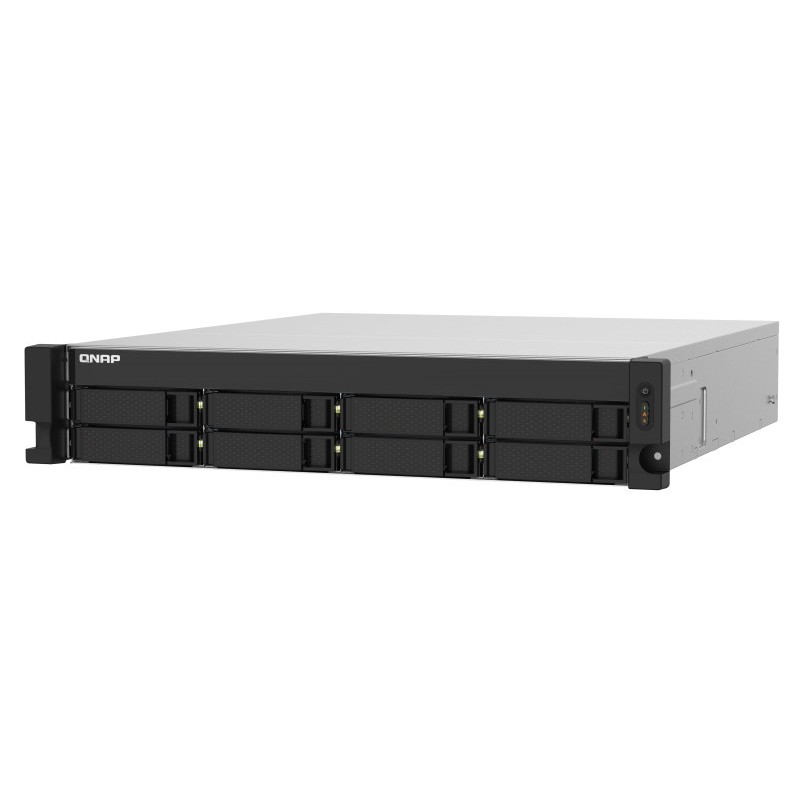

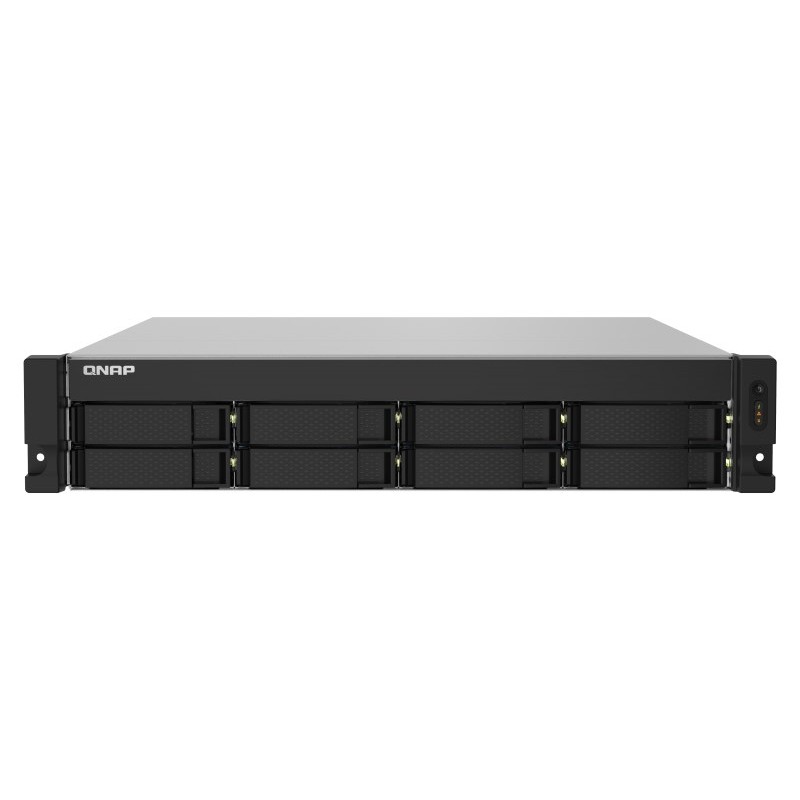

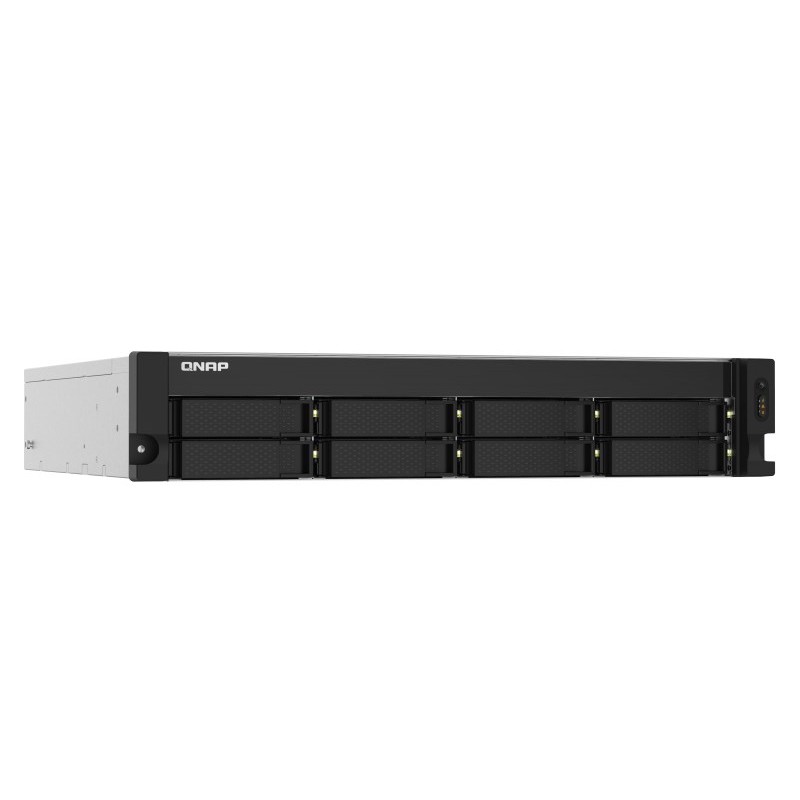

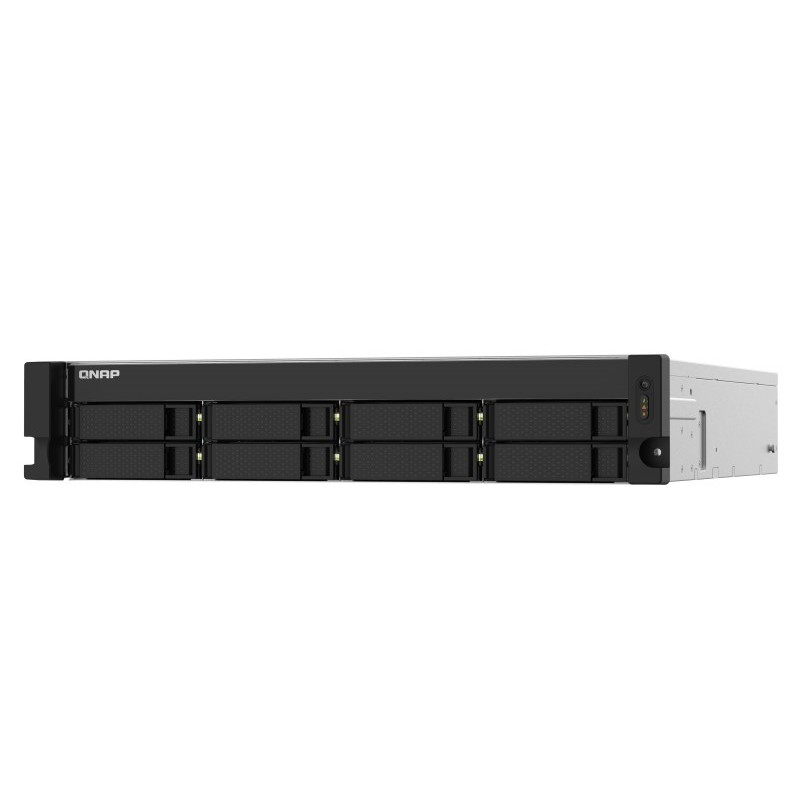

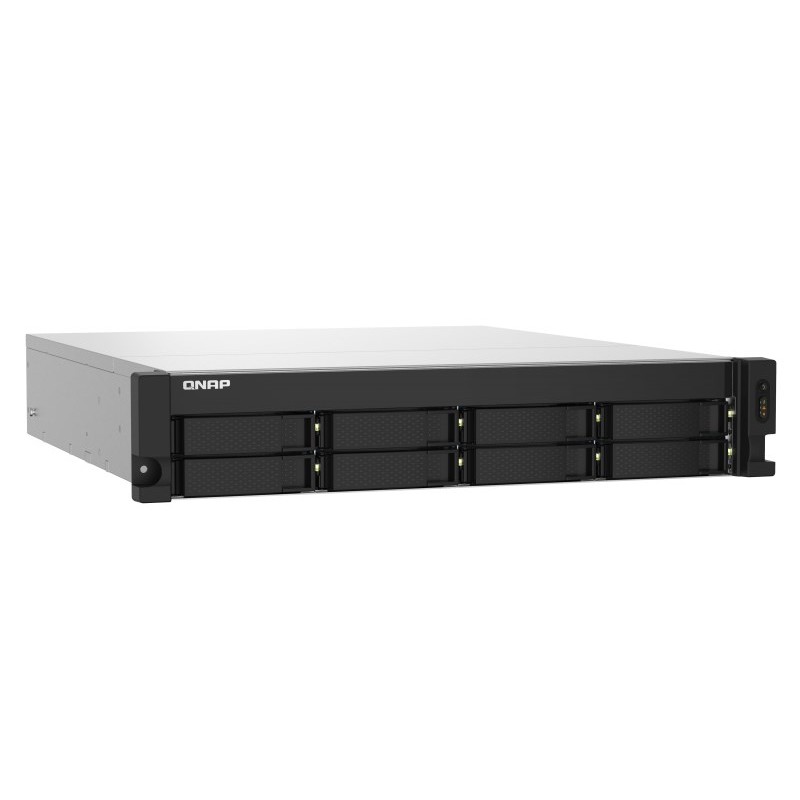

QNAP TS-832PXU-RP NAS Rack (2U) Ethernet LAN Black AL324

Περιγραφή

Processor

Processor frequency: 1.7 GHz

Processor manufacturer: Annapurna Labs

Processor model: AL324

Processor family: Annapurna Labs

Processor cores: 4

Memory

Memory form factor: UDIMM

Flash memory: 512 MB

Internal memory: 4 GB

Maximum RAM supported: 16 GB

Internal memory type: DDR4

Memory slots: 1

Design

Product colour: Black

Cooling type: Active

LED indicators: Status, LAN, HDD

Chassis type: Rack (2U)

Number of fans: 2 fan(s)

Fan diameter: 7 cm

Power

AC input voltage: 100 - 240 V

Fan voltage: 12 V

Power consumption (typical): 69.191 W

Power supply location: Built-in

Number of power supply units: 2

Power supply unit (PSU) capacity: 250 W

Operational conditions

Operating relative humidity (H-H): 5 - 95%

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Weight: 10.9 kg

Width: 482 mm

Depth: 534 mm

Height: 89 mm

Network

Ethernet LAN data rate supported (max): 10000 Mbit/s

Wake-on-LAN ready: Yes

WLAN adapter supported: Yes

iSCSI support: Yes

DHCP client: Yes

Ethernet LAN data rates: 10000 Mbit/s, 100, 1000 Mbit/s, 2500 Mbit/s

Supported network protocols: PPTP, L2TP/IPSec, OpenVPN, QBelt

Ethernet LAN: Yes

DHCP server: Yes

Load balancing system: Yes

Link aggregation: Yes

Jumbo frames support: Yes

Performance

Multilingual support: Yes

Reset button: Yes

Hot spare: Yes

Universal Plug and Play (UPnP): Yes

On/off switch: Yes

USB copy function: Yes

Web-based management: Yes

Security algorithms: HTTPS, FIPS 140-2, 256-bit AES, SSL/TLS, SSH

Type: NAS

Browser supported: Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome

Built-in FTP server: Yes

Access Control List (ACL): Yes

Backup function: Yes

Buzzer: Yes

Noise level: 30.6 dB

System log: Yes

S.M.A.R.T. support: Yes

Backup features: iSCSI LUN, Cloud

Snapshot: Yes

Share folder: CIFS/SMB

Device class: Small & Medium Business

Packaging content

Number of screws: 56

Cables included: LAN (RJ-45), AC

Software

Server operating systems supported: Windows Server 2019, Windows Server 2012 R2, Windows Server 2016, Windows Server 2012, Windows Server 2008 R2

Windows operating systems supported: Windows 7, Windows 8, Windows 10

Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.14 Mojave, Mac OS X 10.10 Yosemite, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.15 Catalina

Linux operating systems supported: Yes

Operating system version: 5.0.0

Operating system installed: QNAP Turbo System

Storage

Installed storage drive type: No

RAID support: Yes

RAID levels: 10, 0, JBOD, 1, 6, 5

Supported file systems: ext4, HFS+, FAT32, ext3, NTFS

Supported storage drive interfaces: Serial ATA II, Serial ATA III

Supported storage drive types: HDD & SSD

RAID rebuild: Yes

Storage drive interface: Serial ATA III

Storage drives installed: No

Bad block scan: Yes

Storage drive sizes supported: 2.5, 3.5

Online RAID expansion: Yes

Online RAID migration: Yes

Number of storage drives supported: 8

Hot-swap drive bays: Yes

Ports & interfaces

Fiber optic connector: SFP+

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Fiber ports quantity: 2

Ethernet LAN (RJ-45) ports: 2

Concurrent connections: 700

USB port: Yes

Logistics data

Harmonized System (HS) code: 84714100

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asustor AS1102TL NAS/storage server Mini Tower Realtek RTD1619B 1 GB DDR4 0 TB ADM Black

ProcessorProcessor cores: 4Processor frequency: 1.7 GHzProcessor model: RTD1619BProcessor family: RealtekProcessor manufacturer: RealtekMemoryInternal..

201,78€

Χωρίς ΦΠΑ:162,72€

Asustor AS1202T NAS/storage server Tower Realtek 1 GB DDR4 0 TB ADM Black

ProcessorProcessor family: RealtekProcessor cores: 4Processor frequency: 1.7 GHzProcessor manufacturer: RealtekMemoryInternal memory: 1 GBFlash memory..

242,80€

Χωρίς ΦΠΑ:195,81€

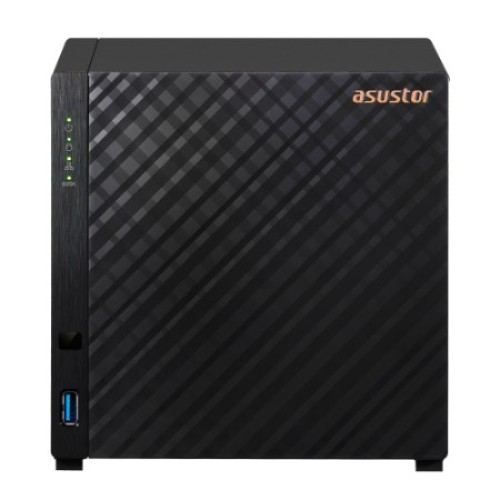

Asustor AS1204T NAS Tower Realtek RTD1619B 1 GB DDR4 0 TB ADM Black

ProcessorProcessor model: RTD1619BProcessor cores: 4Processor family: RealtekProcessor frequency: 1.7 GHzProcessor manufacturer: RealtekMemoryInternal..

334,44€

Χωρίς ΦΠΑ:269,71€

Asustor AS6512RD NAS Rack (2U) Intel Atom® C3538 8 GB DDR4 0 TB ADM Black

ProcessorCPU configuration (max): 1Processor frequency: 2.1 GHzProcessor model: C3538Processor family: Intel Atom®Processor cores: 4Conflict-Free proc..

3.005,19€

Χωρίς ΦΠΑ:2.423,54€

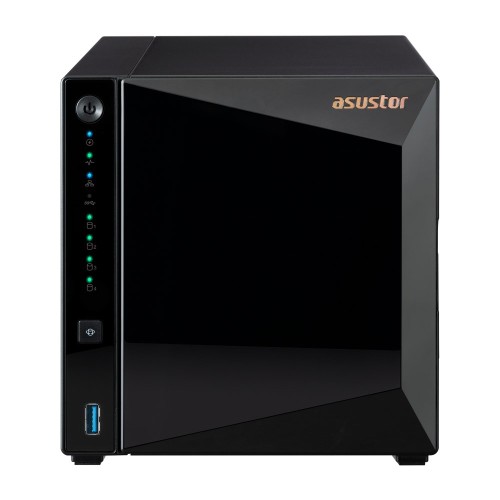

Asustor DRIVESTOR 4 Pro Gen2 AS3304T V2 NAS Realtek RTD1619B 2 GB DDR4 ADM Black
