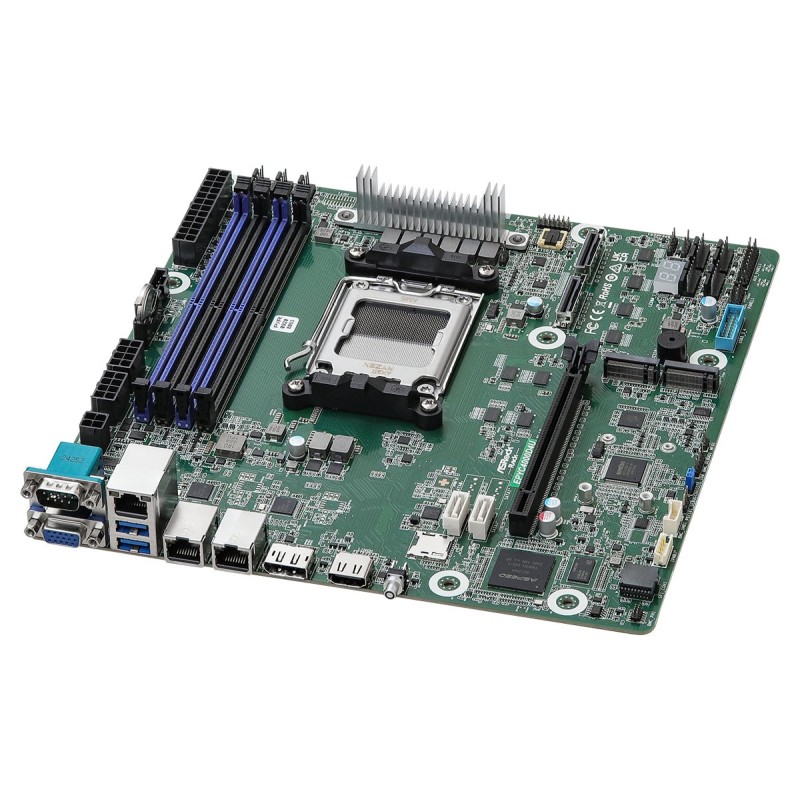

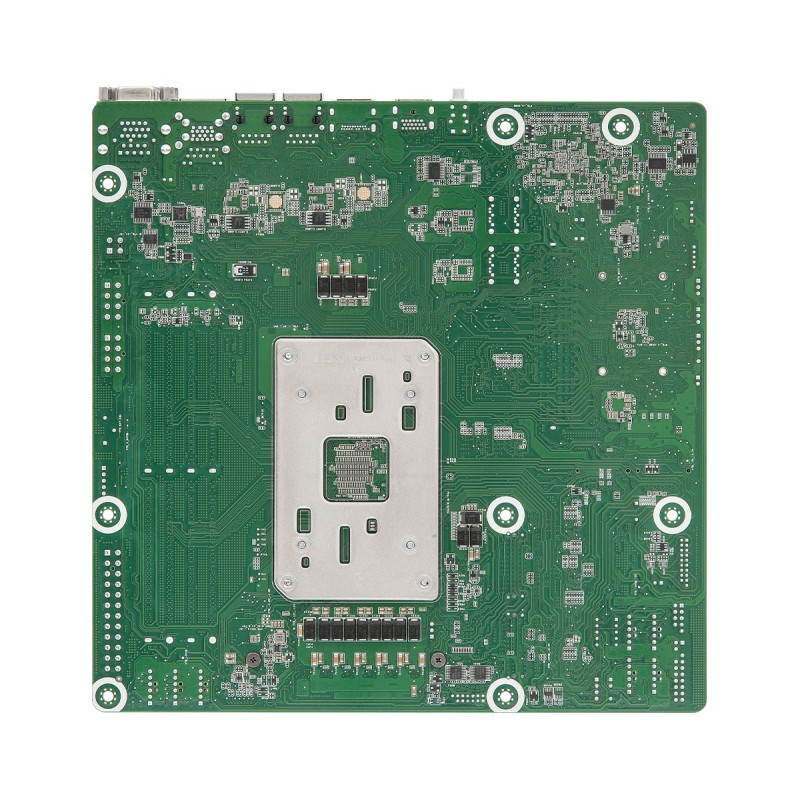

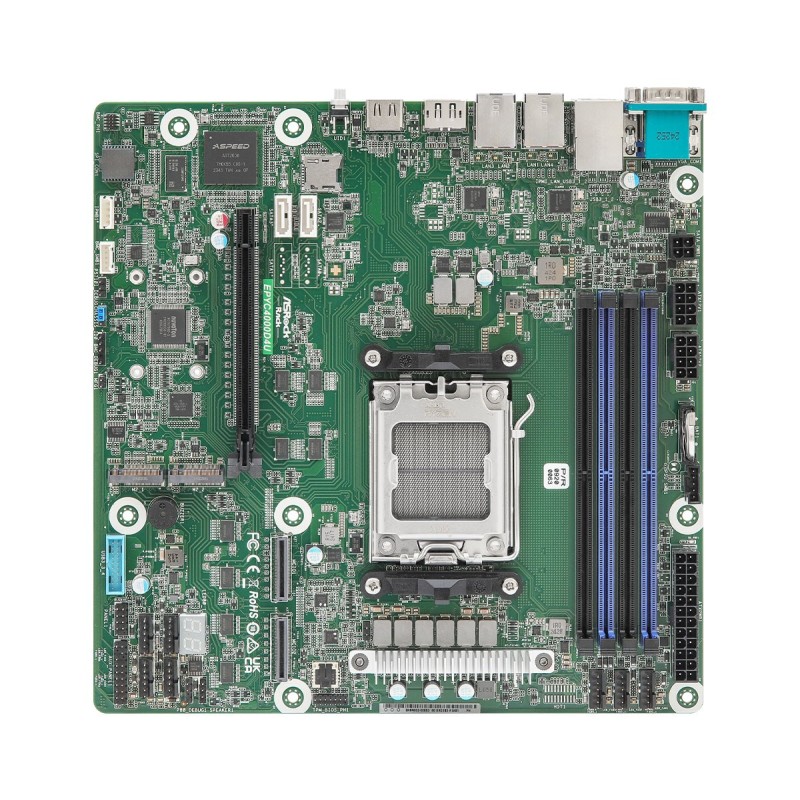

Asrock EPYC4000D4U motherboard KNOLL3 X300 Socket AM5 micro ATX

Περιγραφή

Processor

Compatible processor series: AMD EPYC 4004, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Processor manufacturer: AMD

Maximum number of SMP processors: 1

Processor socket: Socket AM5

Graphics

On-board graphics card: Yes

Graphics card: AST2600

Graphics card family: ASPEED

Features

Motherboard chipset: KNOLL3 X300

Component for: Server

Motherboard chipset family: AMD

Motherboard form factor: micro ATX

Memory

Supported memory clock speeds: 3600, 5600 MHz

Maximum internal memory: 48 GB

Memory voltage: 1.1 V

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Memory slot pin count: 288

Number of memory slots: 4

ECC сompatibility: ECC & Non-ECC

Operational conditions

Operating temperature (T-T): 10 - 35 °C

Operating relative humidity (H-H): 20 - 90%

Storage temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

LAN controller: Intel I210

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Internal I/O

Number of SATA III connectors: 2

TPM connector: Yes

ATX Power connector (24-pin): Yes

BIOS

BIOS memory size: 256 Mbit

ACPI version: 6.4

BIOS type: UEFI AMI

System Management BIOS (SMBIOS) version: 3.5

Storage controllers

Supported storage drive interfaces: SATA III

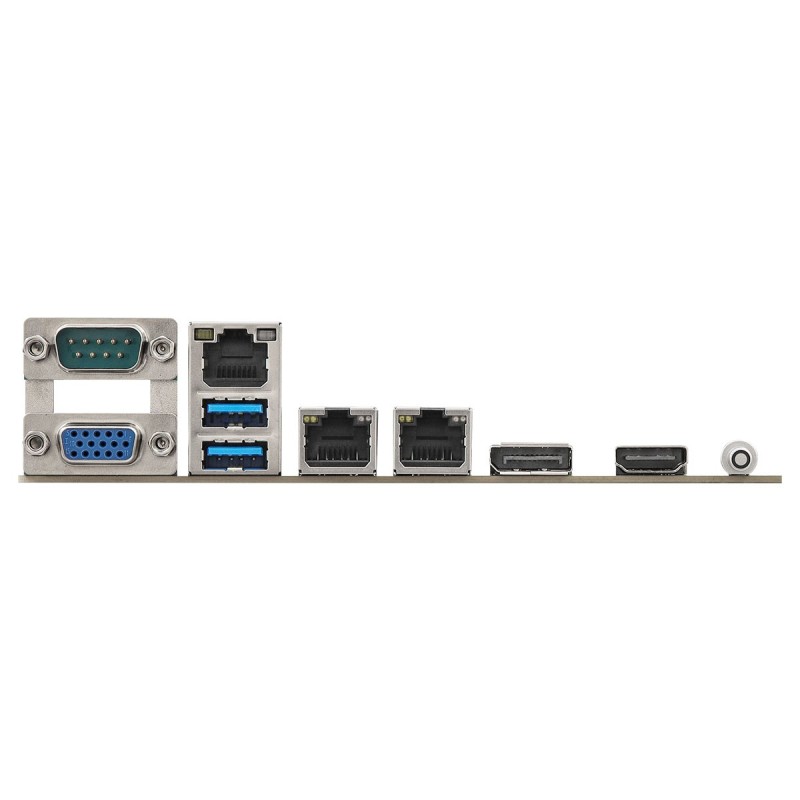

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 2

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

IPMI LAN (RJ-45) port: Yes

Serial ports quantity: 1

VGA (D-Sub) ports quantity: 1

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1
