Gigabyte UD850GM 850W PG5 V2 (GP-UD850GM PG5 V2) - power supply, black

Περιγραφή

Design

Cooling type: Active

On/off switch: Yes

Product colour: Black

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Power

Combined power (+12V): 850 W

Power protection features: Short circuit, Over voltage, Under voltage, Over current, Over power, Overheating

AC input voltage: 100 - 240 V

Combined power (+5V): 105 W

Combined power (+3.3V): 105 W

AC input frequency: 50/60 Hz

Max output current (+3.3V): 20 A

Efficiency: 90%

Input current: 12 - 6 A

Power factor: 0.9

Power Factor Correction (PFC) type: Active

Combined power (+5Vsb): 15 W

Combined power (-12V): 3.6 W

Max output current (+5V): 20 A

Hold time: 16 ms

Total power: 850 W

Max output current (+12V): 70.8 A

Max output current (+5Vsb): 3 A

Max output current (-12V): 0.3 A

Weight & dimensions

Width: 150 mm

Height: 86 mm

Depth: 140 mm

Weight: 2.4 kg

Performance

Purpose: PC

Mean time between failures (MTBF): 100000 h

Bearing technology: HYB

80 PLUS certification: 80 PLUS Gold

Power supply unit (PSU) form factor: ATX

ATX version: 3.1

Packaging data

Package weight: 2.56 kg

Package type: Box

Package height: 211 mm

Package width: 618 mm

Package depth: 269 mm

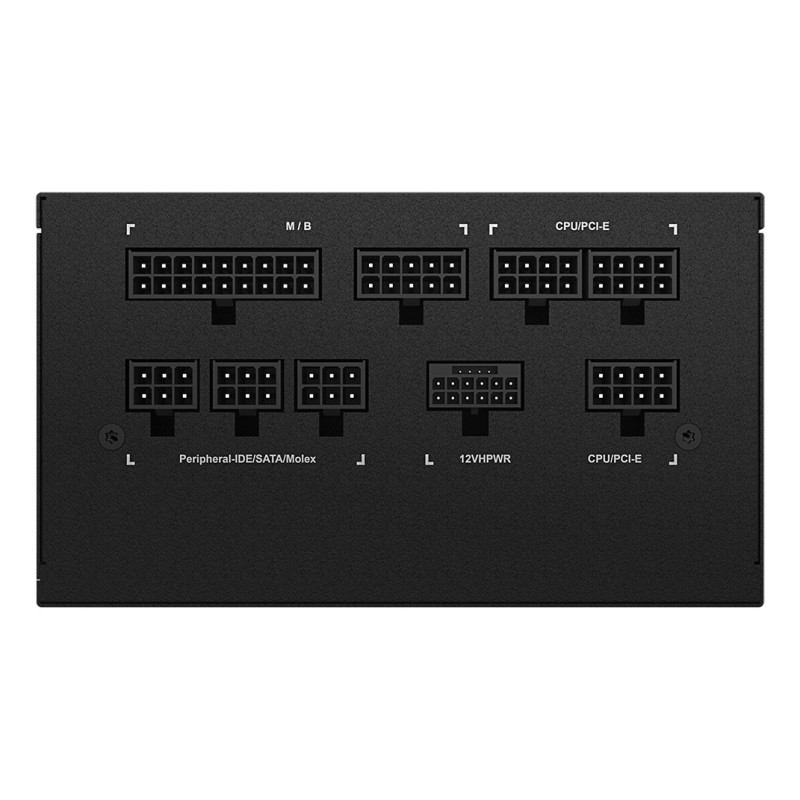

Ports & interfaces

PCI Express power connectors (16-pin): 1

Number of EPS connectors: 2

SATA power cable length: 150, 600

Peripheral (Molex) power cable length: 150, 500 mm

Motherboard power cable length: 61 cm

CPU power cable length: 60 cm

Floppy drive power connector: 1

Cabling type: Fully-Modular

Number of SATA power connectors: 8

Peripheral (Molex) power connectors (4-pin): 3

CPU power connector (4+4 pin): Yes

PCI Express connector: Yes

PCI Express power connectors (6+2 pin): 4

PCI Express power cable length: 70 cm

Motherboard power connector: 20+4 pin ATX

Logistics data

Warranty period: 10 year(s)
