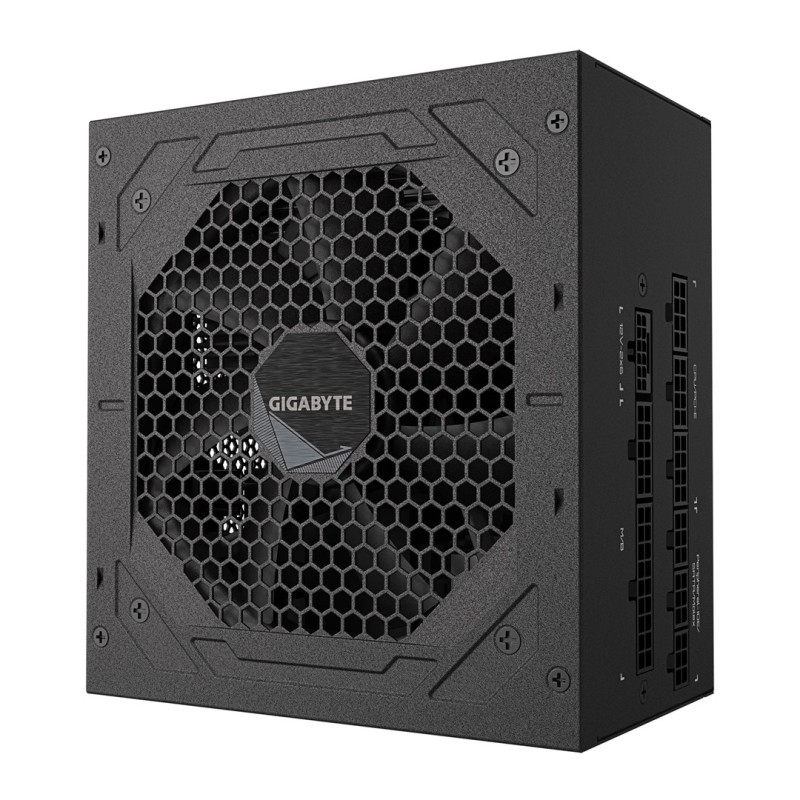

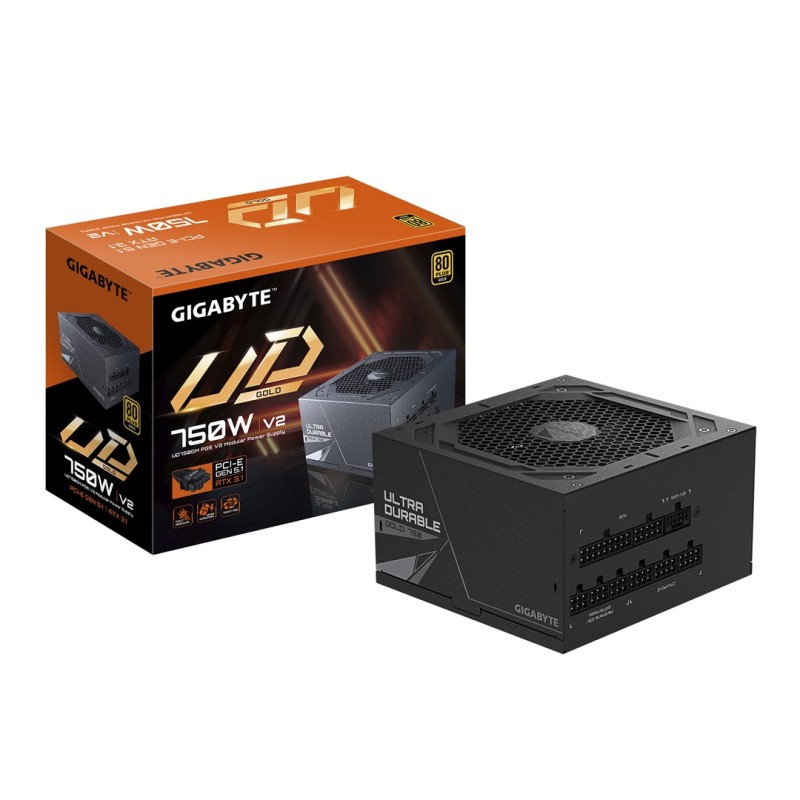

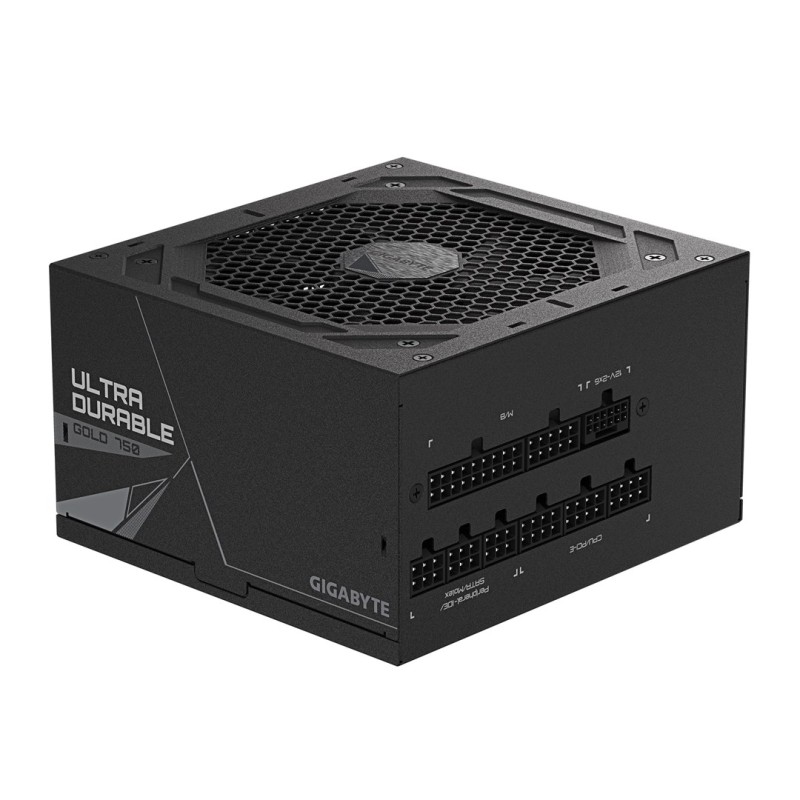

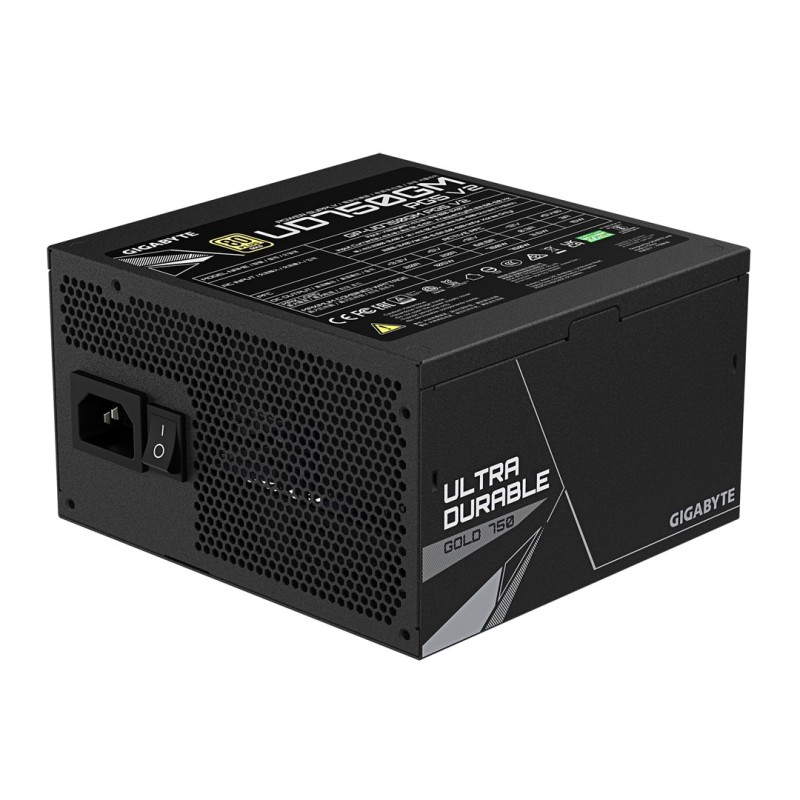

Gigabyte UD750GM 750W PG5 V2 power supply (GP-UD750GM PG5 V2)

Περιγραφή

Design

On/off switch: Yes

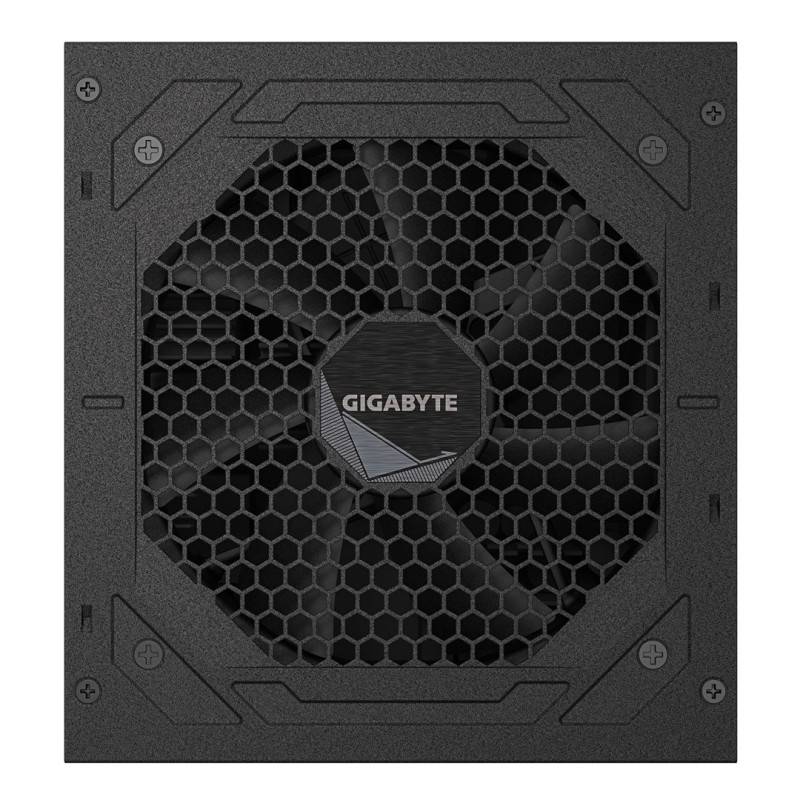

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Cooling type: Active

Product colour: Black

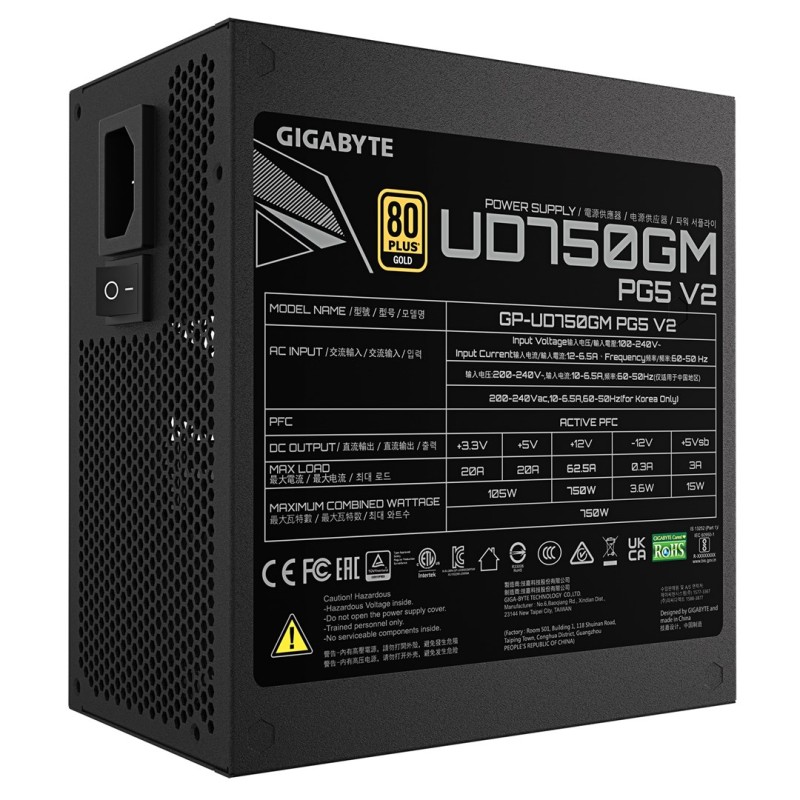

Power

Max output current (+12V): 62.5 A

Power Factor Correction (PFC) type: Active

Combined power (+3.3V): 105 W

Max output current (+5Vsb): 3 A

Max output current (+5V): 20 A

Combined power (+5Vsb): 15 W

Max output current (-12V): 0.3 A

Combined power (-12V): 3.6 W

Combined power (+12V): 750 W

Total power: 750 W

Max output current (+3.3V): 20 A

Hold time: 16 ms

Combined power (+5V): 105 W

Power protection features: OVP, OTP, OPP, SCP, UVP, OCP

Efficiency: 90%

Power factor: 0.9

AC input voltage: 100 - 240 V

Input current: 15 - 6.5 A

AC input frequency: 50/60 Hz

Weight & dimensions

Height: 86 mm

Depth: 140 mm

Width: 150 mm

Performance

Purpose: PC

Mean time between failures (MTBF): 100000 h

Power supply unit (PSU) form factor: ATX

80 PLUS certification: 80 PLUS Gold

ATX version: 3.1

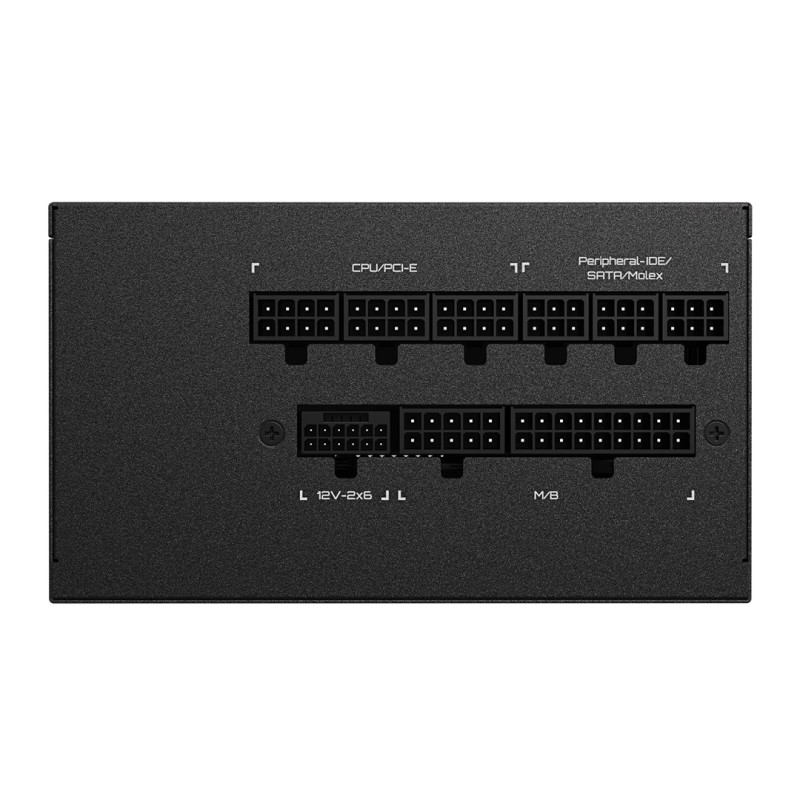

Ports & interfaces

Number of SATA power connectors: 8

Motherboard power cable length: 61 cm

Cabling type: Fully-Modular

PCI Express power connectors (6+2 pin): 4

PCI Express connector: Yes

CPU power connector (4+4 pin): Yes

Motherboard power connector: 20+4 pin ATX

Number of EPS connectors: 2

PCI Express power connectors (12+4 pin) cable length: 700 mm

PCI Express power connectors (12+4 pin): 1
