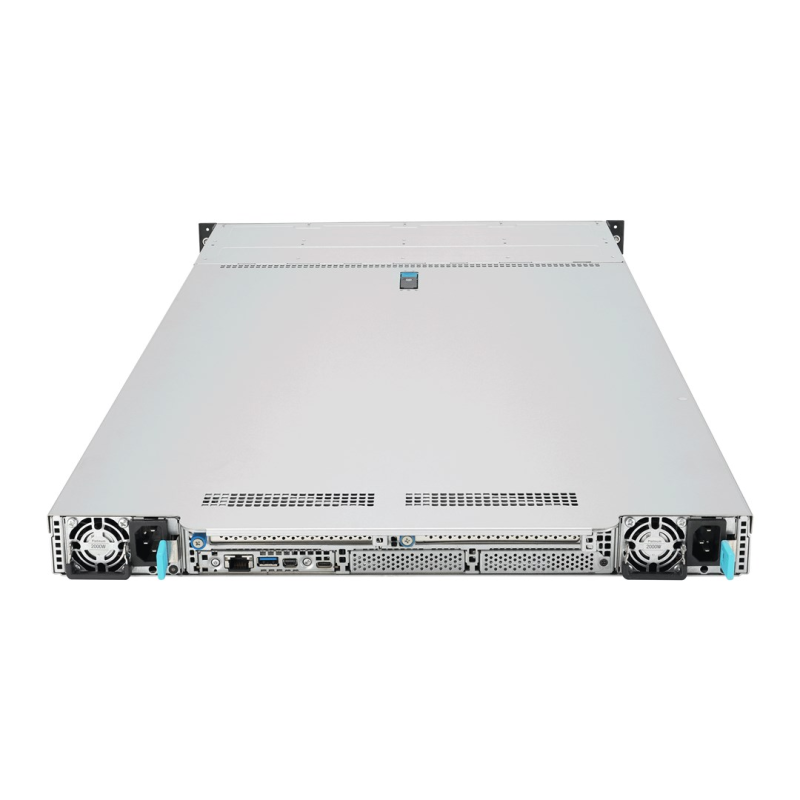

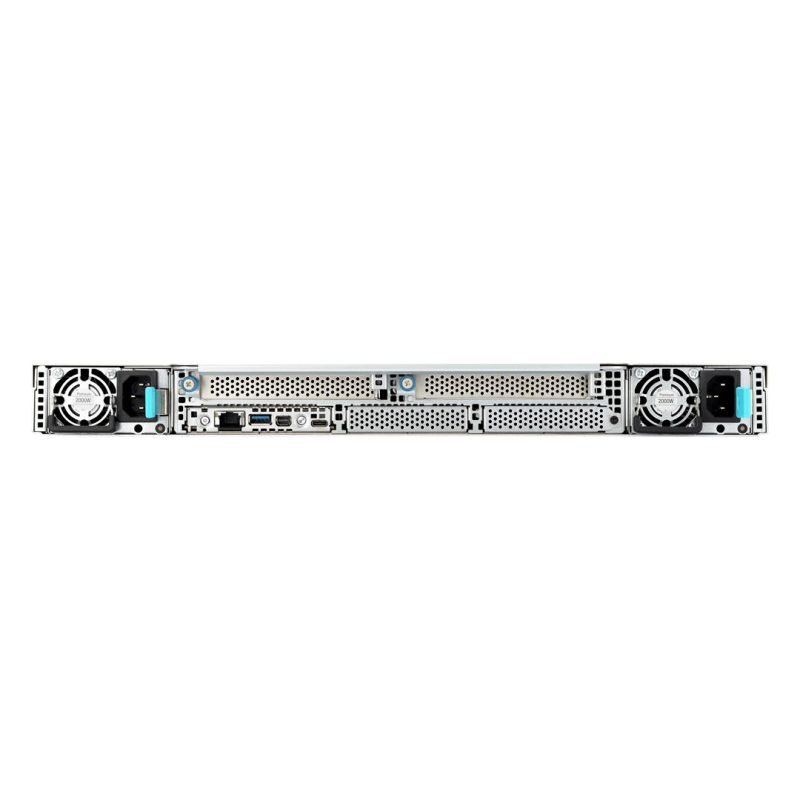

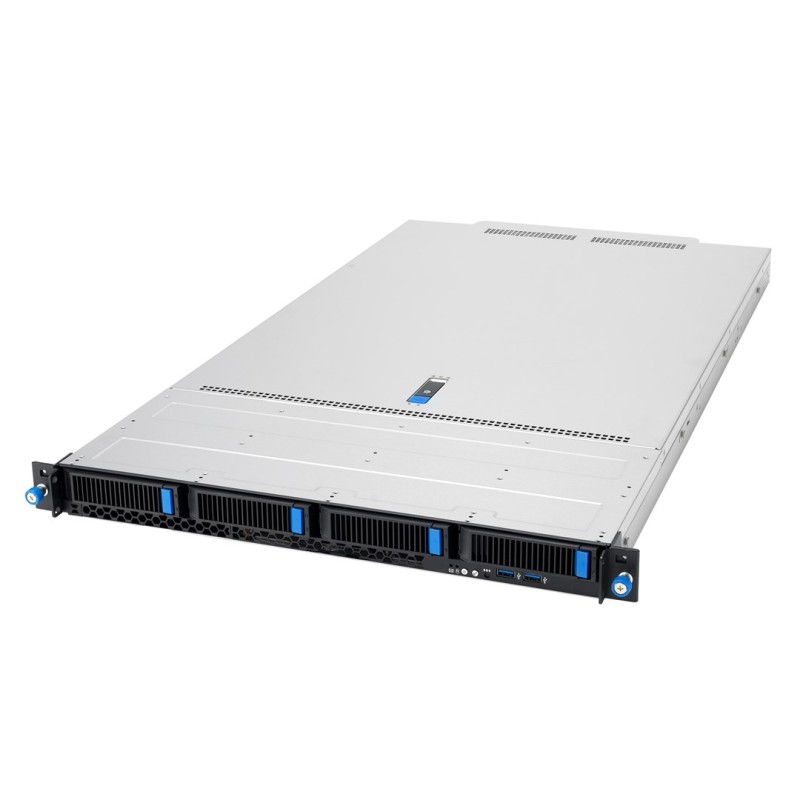

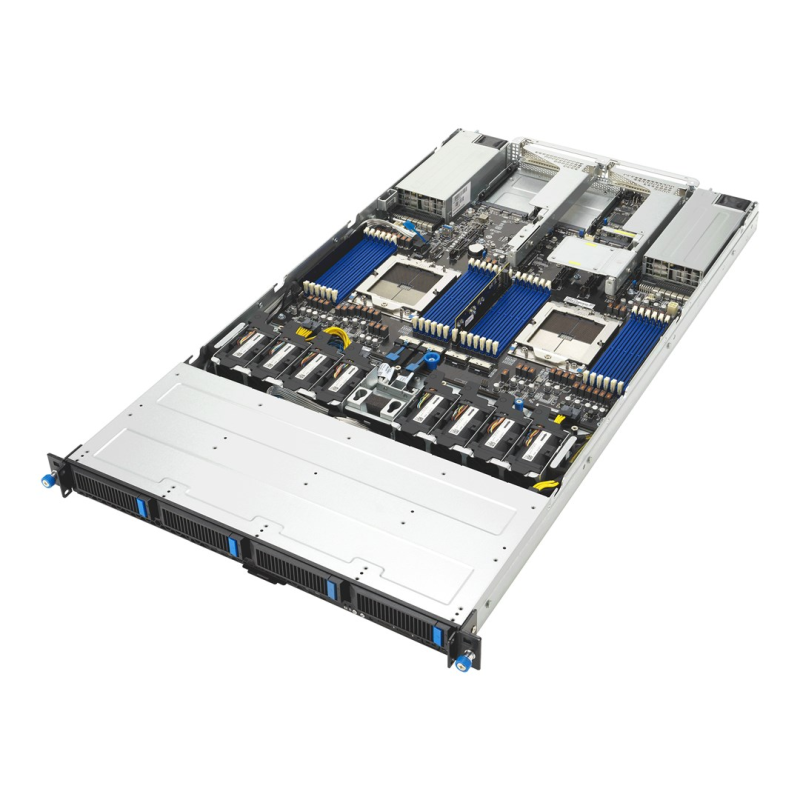

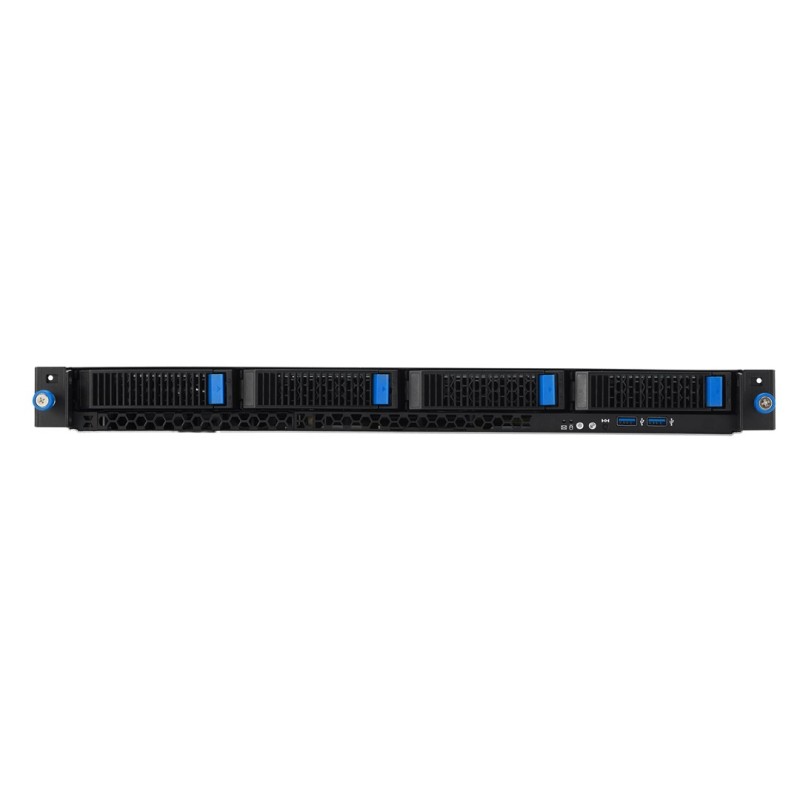

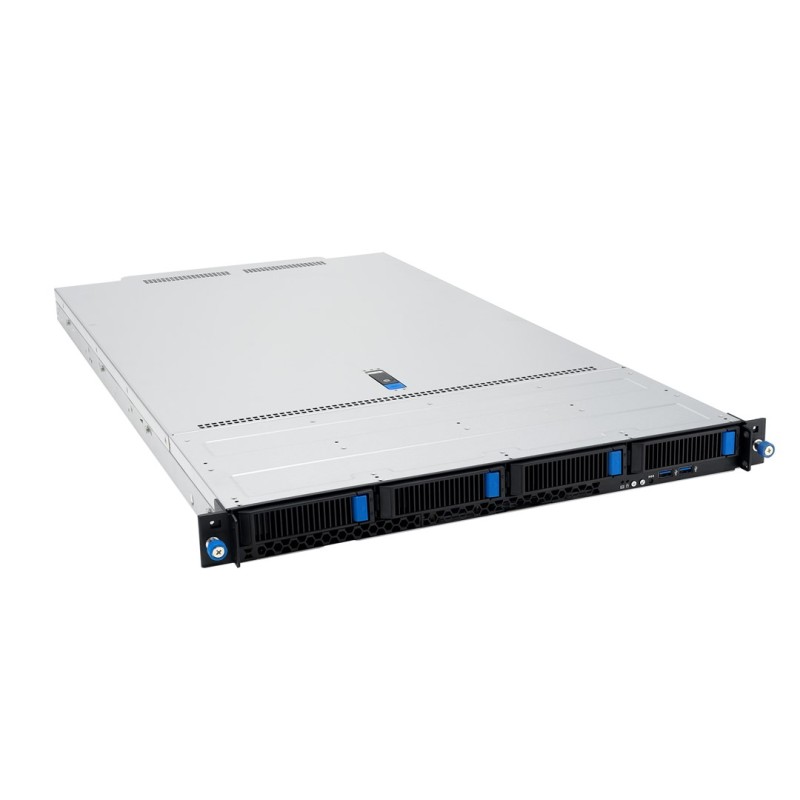

Asus Rack Platform (1U) AMD RS700A-E13-RS4U

Περιγραφή

Processor

Number of processors supported: 2

Processor socket: Socket SP5

Supported processors: AMD EPYC 9005

Graphics

On-board graphics card memory: 64 MB

On-board graphics card model: Aspeed AST2600

Features

Integrated BMC with IPMI: Yes

Trusted Platform Module (TPM) version: 2.0

Trusted Platform Module (TPM): Yes

Memory

Supported memory types: DDR5-SDRAM

Number of DIMM slots: 24

Supported DIMM module capacities: 64GB, 32GB, 128GB, 96GB

Maximum RDIMM memory: 3.07 TB

Supported RDIMM clock speeds: 5600, 6400 MHz

Design

Number of fans: 8 fan(s)

Chassis type: Rack (1U)

LED indicators: Yes

Power

Power supply: 2000 W

Number of main power supplies: 2

80 PLUS certification: 80 PLUS Titanium

Input current: 12A / 10A

AC input frequency: 50/60 Hz

AC input voltage: 100 - 127/220 - 240 V

Operational conditions

Storage relative humidity (H-H): 20 - 90%

Storage temperature (T-T): -40 - 60 °C

Operating temperature (T-T): 10 - 35 °C

Weight & dimensions

Width: 821,7 mm

Height: 43.2 mm

Depth: 483 mm

Weight: 13.8 kg

Network

Ethernet LAN: Yes

Packaging data

Package weight: 16.7 kg

Expansion slots

PCI Express x16 (Gen 5.x) slots: 2

Number of OCP3.0 ports: 2

PCI Express slots version: 5.0

Storage

Hot-swap HDD bays: Yes

Number of storage drives supported: 4

Number of 3.5" bays: 4

Storage drive sizes supported: 3.5, 2.5

Number of 2.5"/3.5" bays : 4

Supported storage drive types: HDD & SSD

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Mini DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1
