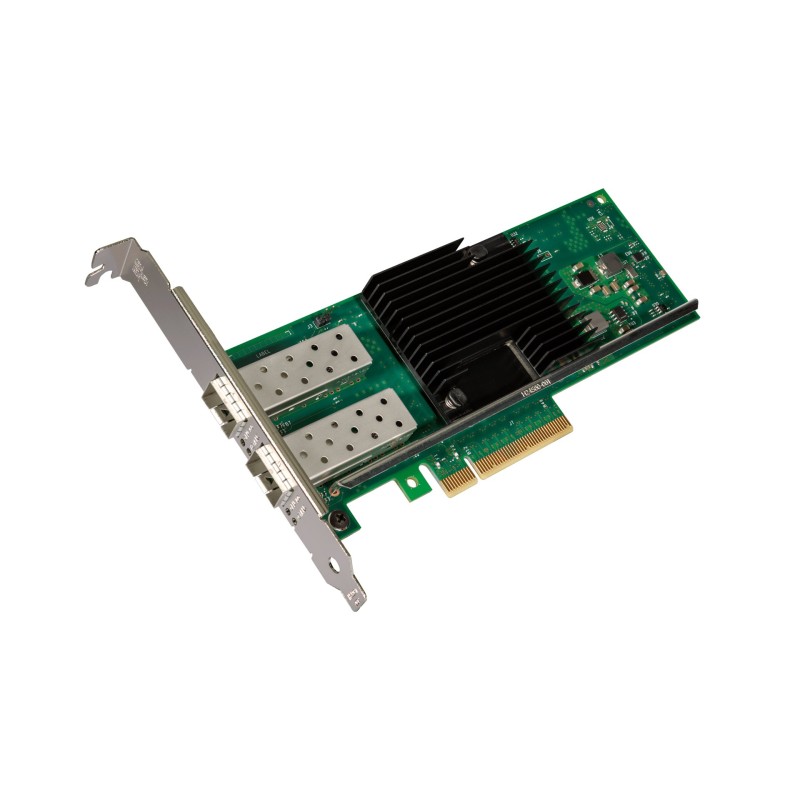

Intel X710DA2 network card Internal Fiber 10000 Mbit/s

Περιγραφή

Design

Chipset: X710-AM2

Product colour: Black, Green

LED indicators: Yes

Internal: Yes

Power

Power consumption (typical): 4.5 W

Operational conditions

Storage temperature (T-T): -40 - 70 °C

Storage relative humidity (H-H): 35 - 90%

Operating temperature (T-T): 0 - 55 °C

Weight & dimensions

Width: 68.6 mm

Depth: 167.1 mm

Network

Fiber ethernet cabling technology: 10GBASE-LR, 10GBASE-SR

Maximum operating distance: 10 m

LAN controller: Intel® X710

Supported network protocols: TCP, UDP, IP

Networking standards: IEEE 802.3ad, IEEE 802.1Q, IEEE 802.3, IEEE 802.1p, IEEE 802.1as

Maximum data transfer rate: 10000 Mbit/s

VLAN tagging: Yes

Ethernet LAN data rates: 10, 1000 Mbit/s

Ethernet LAN: Yes

System requirements

Linux operating systems supported: RedHat EL Linux 6.0

Other operating systems supported: FreeBSD

Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2

Ports & interfaces

Fiber optic connector: SFP+

PCI version: 3.0

PCI Card form factor: Full-height (low-profile)

Interface: Fiber

Connectivity technology: Wired

Ethernet LAN (RJ-45) ports: 2

Host interface: PCI Express

Fiber ports quantity: 2

Other features

Product codename: Fortville

Number of VLANs: 4096

Product series: 700 Series Network Adapters (up to 40GbE)

Flow control support: Yes

Controller type: Intel® Ethernet Controller X710

Management protocols: PXE, SNMP, RMON

Product family: Intel 10 Gigabit server adapter

Market segment: Server

Export Control Classification Number (ECCN): 5A991

Cabling type: SFP+ Direct Attached Twinaxial Cabling up to 10m

Target market: Artificial Intelligence, High Performance Computing

Intel Virtualization Technology for Connectivity (VT-c): Yes

Product type: Network Interface Card

Interface type: PCIe v3.0 (8.0 GT/s)

Last change: 64826824

Intel Trusted Execution Technology: No

Intel® Virtualization Technology (Intel® VT): VT-c

Cable type: SFP+ Direct Attached Twinaxial Cabling up to 10m

Processor family: 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)

Embedded options available: No

Bracket height: Low-Profile (LP) / Full-Height (FH)

Status: Launched

Launch date: Q4'14

Commodity Classification Automated Tracking System (CCATS): NA

Logistics data

Harmonized System (HS) code: 85176990
