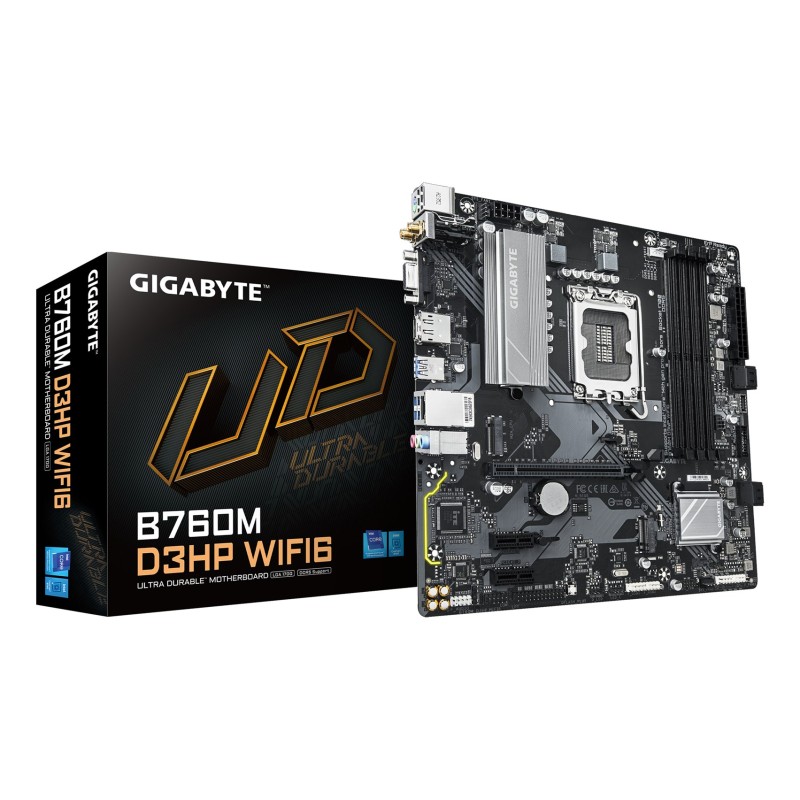

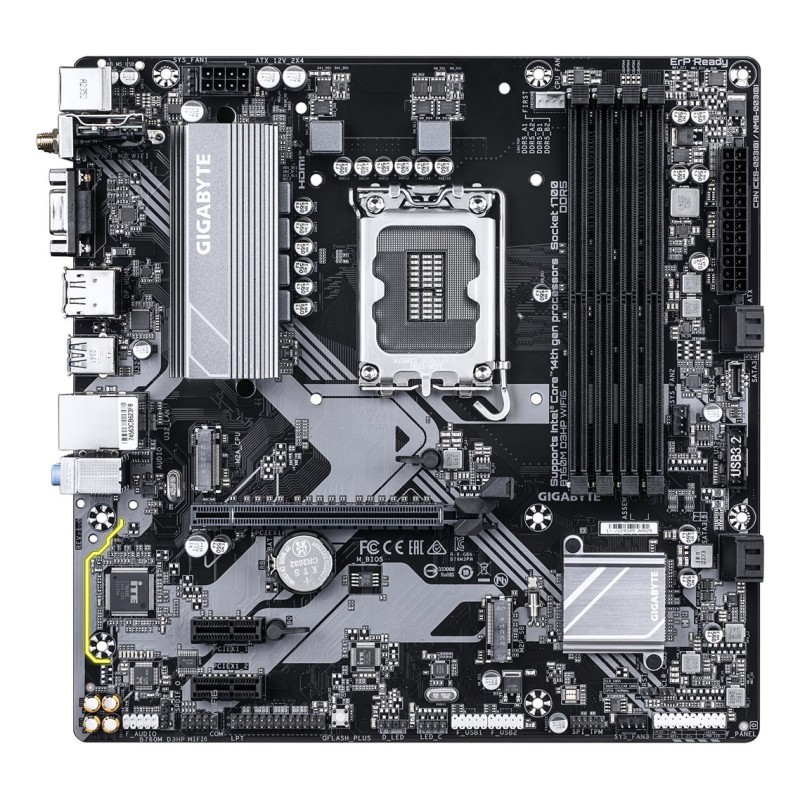

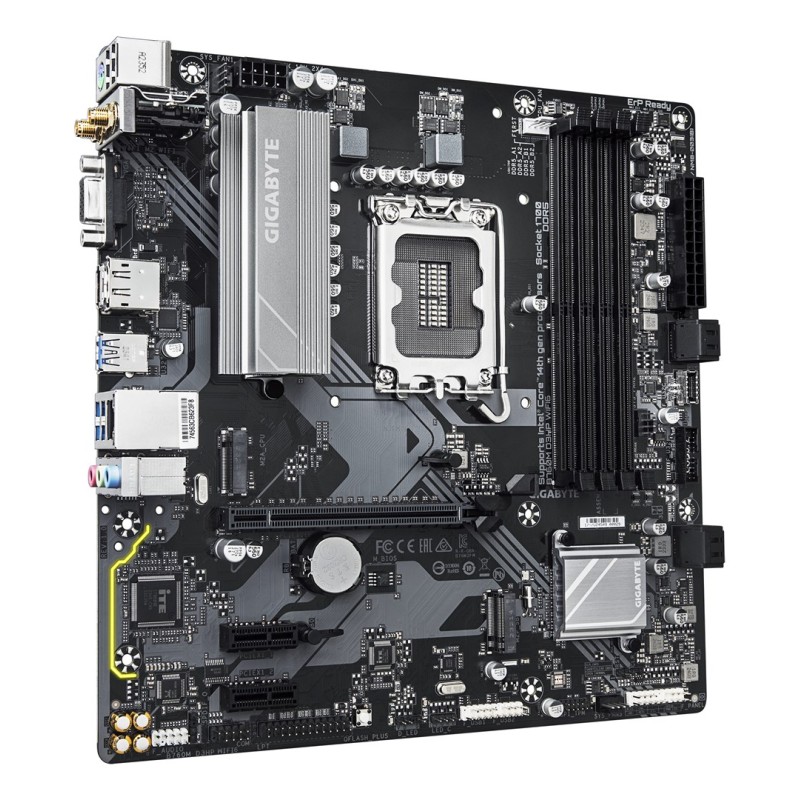

GIGABYTE B760M D3HP WIFI6 Motherboard - Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Compatible processor series: Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i9 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel® Celeron®, Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 12th Gen, Intel Core i7 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen

Processor manufacturer: Intel

Supported processor sockets: LGA 1700

Processor socket: LGA 1700

Graphics

HDCP: Yes

Maximum resolution: 4096 x 2304 pixels

DirectX version: 12.0

Parallel processing technology support: Not supported

Features

Motherboard form factor: micro ATX

Motherboard chipset: Intel B760 Express

Product colour: Grey, Black

PC health monitoring: Fan, Water cooling, Voltage, Temperature

Audio chip: Realtek ALC897

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Power source type: ATX

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Cooling type: Passive

Memory

Maximum internal memory per slot: 48 GB

ECC сompatibility: ECC & Non-ECC

Supported memory clock speeds: 5200, 4400, 4800, 5600

Maximum internal memory: 192 GB

Unbuffered memory: Yes

Supported memory clock speed (max): 5600 MHz

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Memory channels: Dual-channel

Weight & dimensions

Depth: 244 mm

Height: 35 mm

Width: 244 mm

Network

Bluetooth: Yes

LAN controller: Realtek RTL8111H

Wi-Fi standards: 802.11ac, 802.11a, Wi-Fi 6 (802.11ax), 802.11 b/g/n

WLAN controller model: Realtek RTL8851BE

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Bluetooth version: 5.3

Ethernet LAN: Yes

Wi-Fi: Yes

Ethernet interface type: Gigabit Ethernet

Internal I/O

Number of RGB LED pin headers: 2

Number of CPU fan connectors: 1

Number of EPS power connectors (8-pin): 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Front panel audio connector: Yes

Number of SATA III connectors: 4

USB 2.0 connectors: 2

S/PDIF out connector: Yes

Number of chassis fan connectors: 3

RGB LED pin header: Yes

ATX Power connector (24-pin): Yes

12V power connector: Yes

Parallel connector: Yes

CPU fan connector: Yes

Serial port headers: 1

EPS power connector (8-pin): Yes

TPM connector: Yes

Front panel connector: Yes

BIOS

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

BIOS type: UEFI AMI

Packaging data

Package weight: 1.2 kg

Package height: 54 mm

Package depth: 265 mm

Package width: 265 mm

Packaging content

Screws included: Yes

Antenna included: Yes

Batteries included: Yes

Storage controllers

RAID support: Yes

Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

RAID levels: 1, 0, 10, 5

Number of storage drives supported: 3

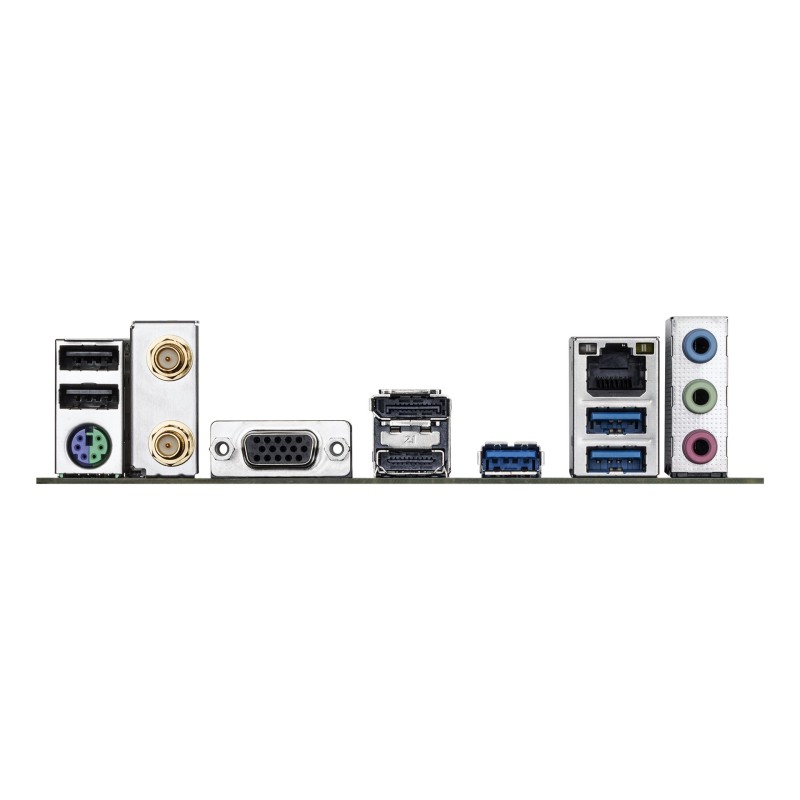

Rear panel I/O ports

DisplayPort version: 1.2

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Microphone in: Yes

VGA (D-Sub) ports quantity: 1

WiFi-AP antenna jack: 2

USB 2.0 ports quantity: 2

Line-in: Yes

HDMI ports quantity: 1

PS/2 ports quantity: 1

Headphone outputs: 1

HDMI version: 2.1

Expansion slots

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 2280

1st M.2 largest key size: 2280

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

Battery

Battery weight: 3 g

Number of battery cells: 1

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Lithium weight per battery: 0.07 g

Other features

Weight: 1.11 kg

Logistics data

Products per shipping (inner) case: 1 pc(s)
