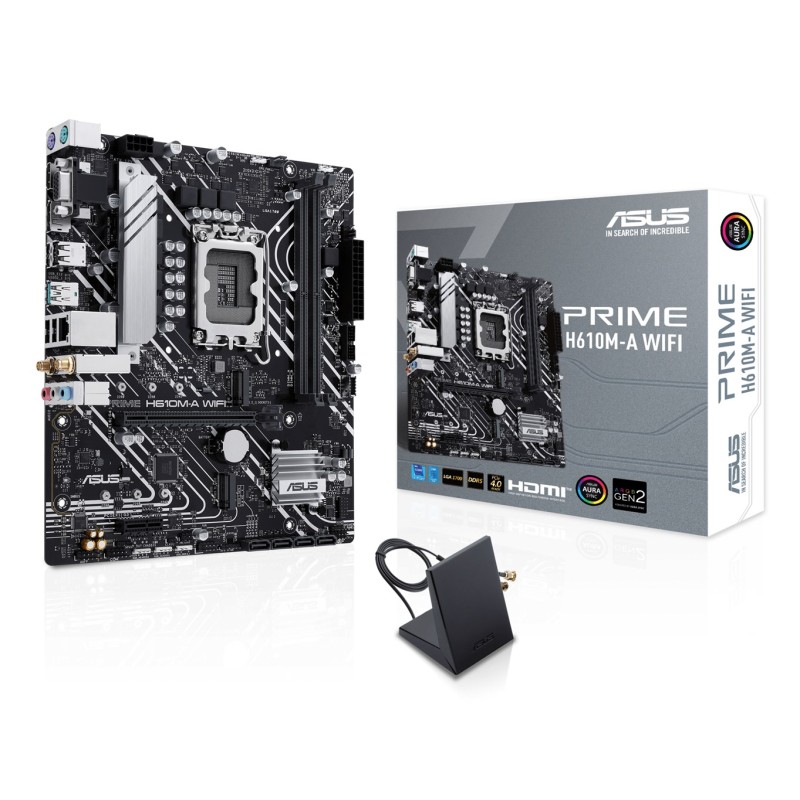

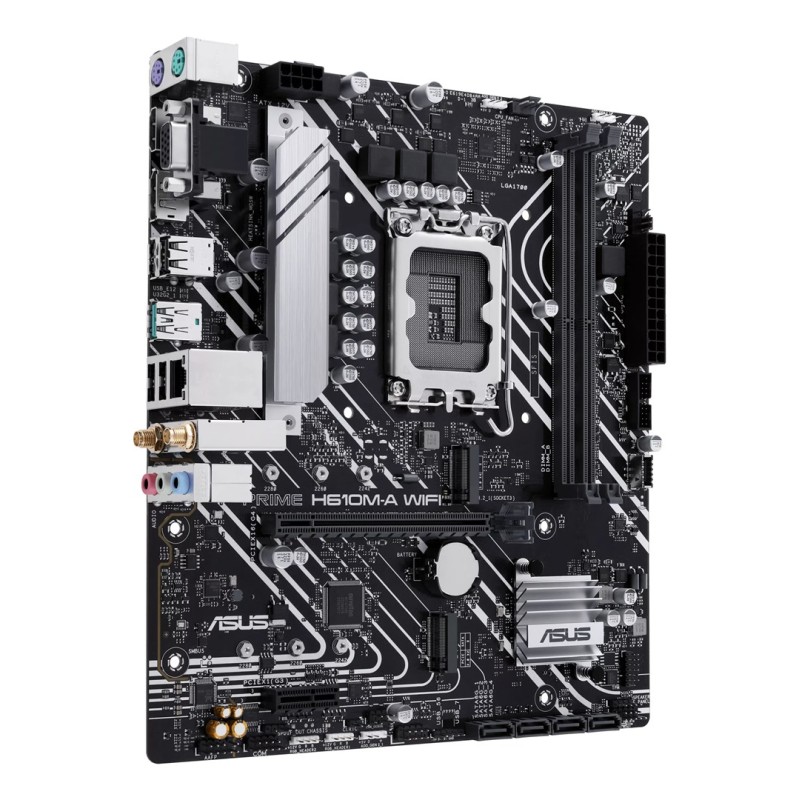

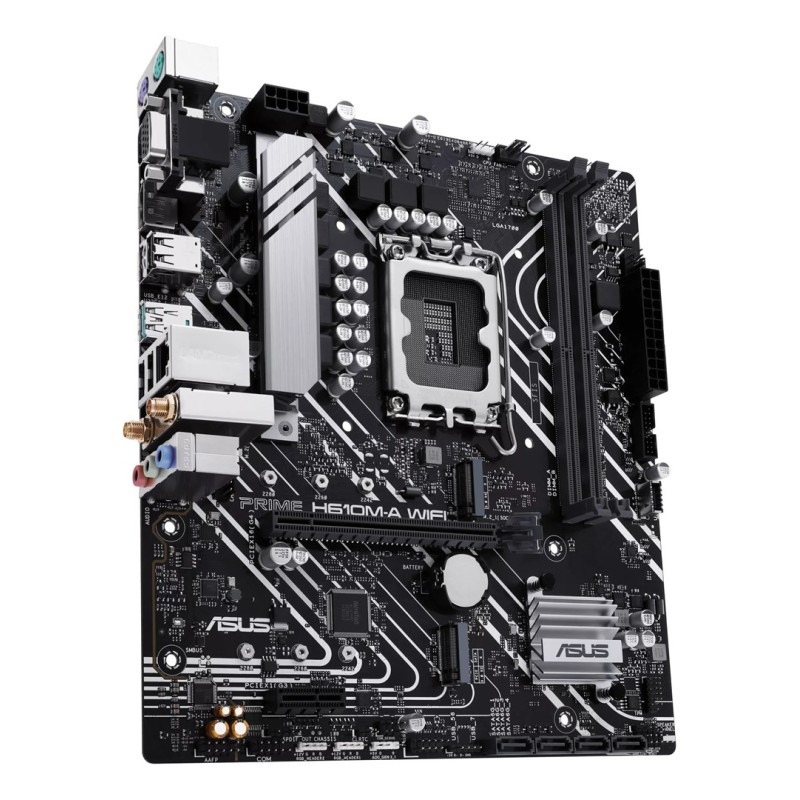

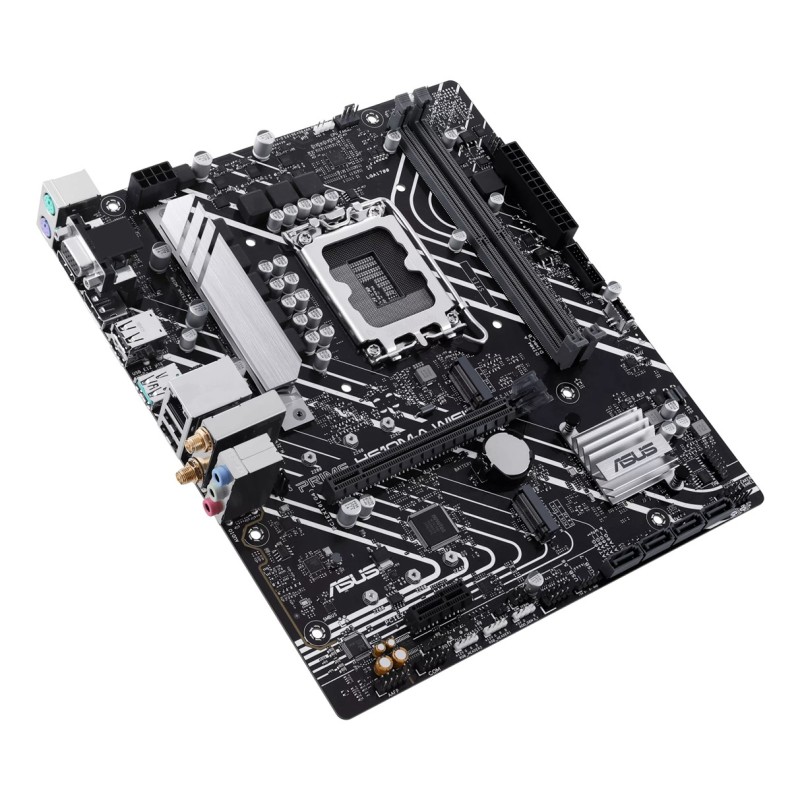

ASUS PRIME H610M-A WIFI Intel H610 LGA 1700 micro ATX

Περιγραφή

Processor

Processor manufacturer: Intel

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset: Intel H610

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Memory

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Memory channels: Dual-channel

Supported memory clock speed (max): 5600 MHz

Number of memory slots: 2

ECC сompatibility: Non-ECC

Unbuffered memory: Yes

Supported memory clock speeds: 5400, 5200, 5600, 5000, 4800

Maximum internal memory: 96 GB

Weight & dimensions

Width: 244 mm

Depth: 216 mm

Network

Wi-Fi standards: 802.11g, 802.11a, Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac)

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

Wi-Fi: Yes

Bluetooth version: 5.0

Bluetooth: Yes

Internal I/O

12V power connector: Yes

RGB LED pin header: Yes

Audio connector: Yes

Front panel audio connector: Yes

Number of COM connectors: 1

S/PDIF out connector: Yes

Number of chassis fan connectors: 2

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

CPU fan connector: Yes

EPS power connector (8-pin): Yes

TPM connector: Yes

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

BIOS

BIOS type: UEFI AMI

Clear CMOS button: Yes

Packaging data

Package weight: 1.07 kg

Package width: 270 mm

Package depth: 263 mm

Package height: 51.5 mm

Packaging content

Cables included: SATA

Storage controllers

Number of HDDs supported: 4

Number of storage drives supported: 6

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

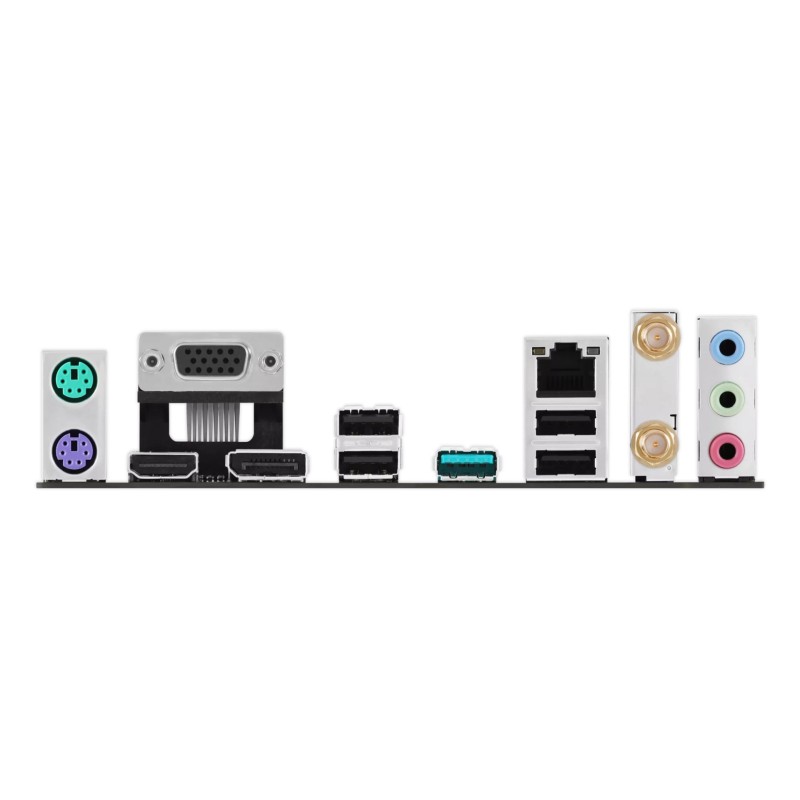

Rear panel I/O ports

HDMI ports quantity: 1

VGA (D-Sub) ports quantity: 1

WiFi-AP antenna jack: 1

HDMI version: 2.1

Headphone outputs: 1

PS/2 ports quantity: 2

Line-in: Yes

Microphone in: Yes

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

DisplayPort version: 1.4

DisplayPorts quantity: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 2
