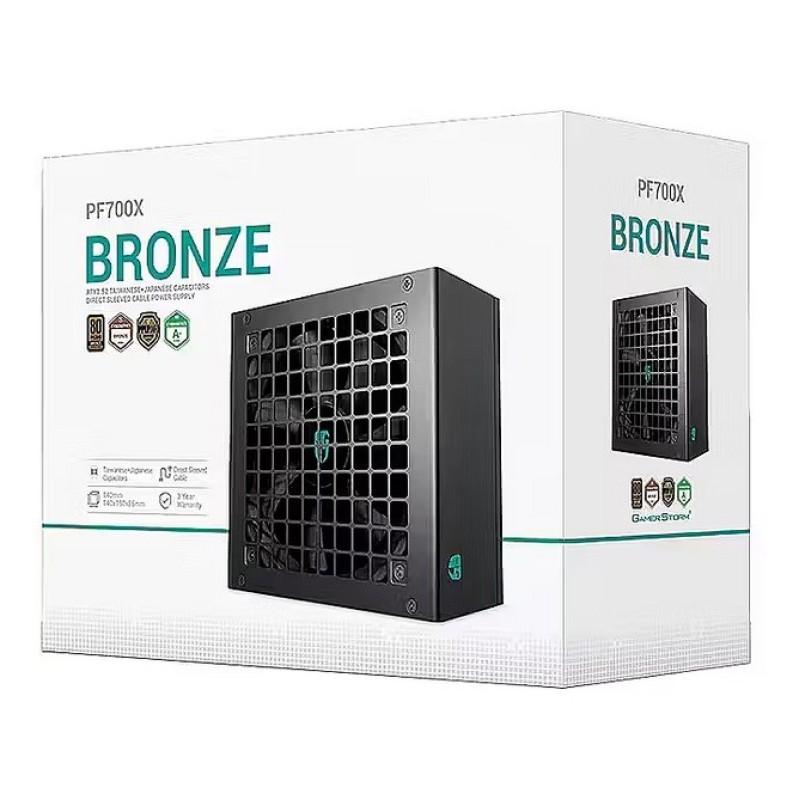

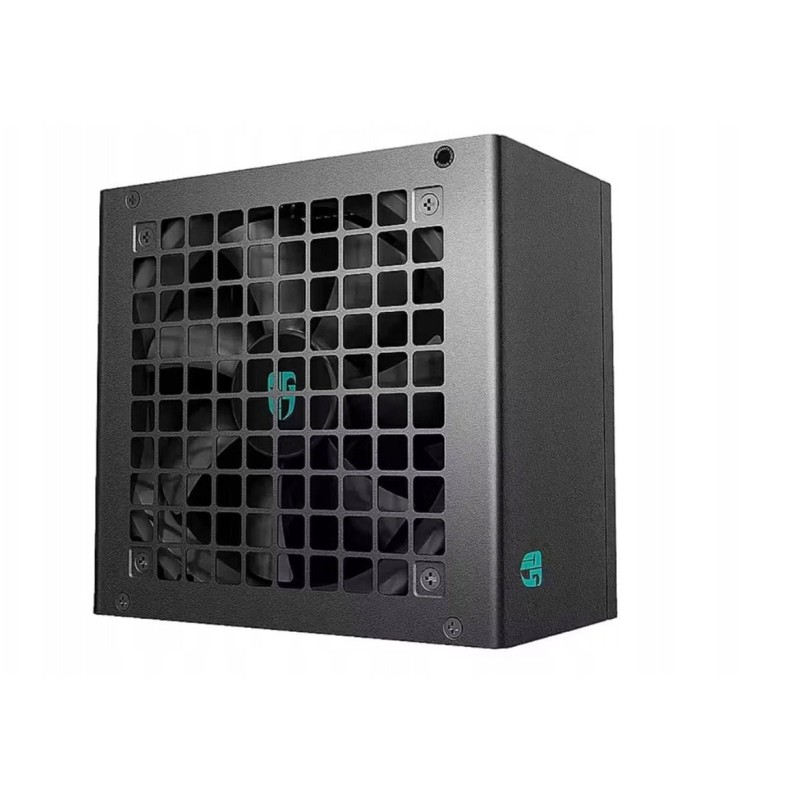

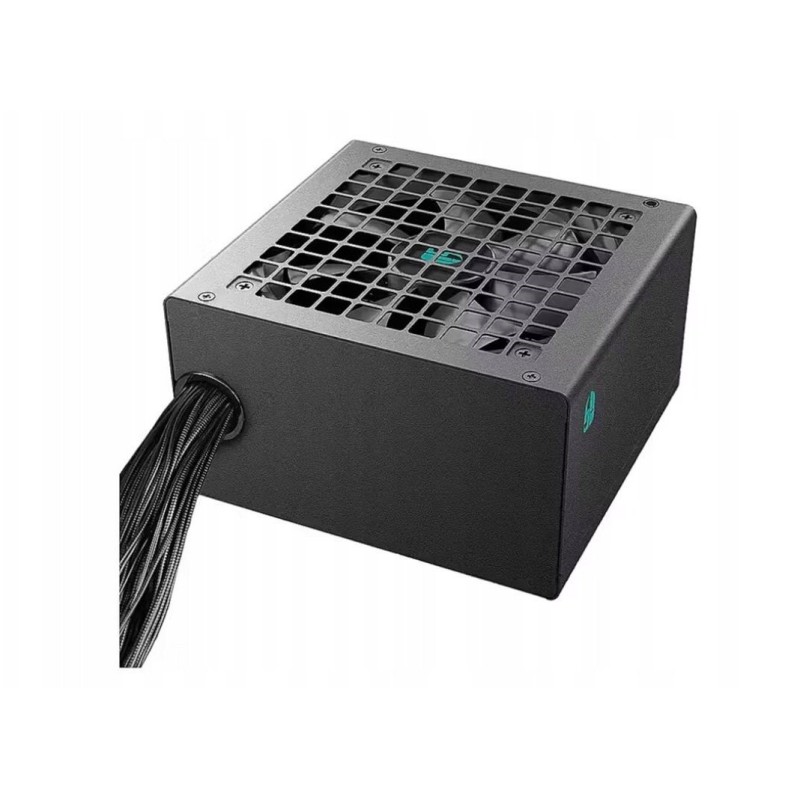

Zasilacz DeepCool PF700X

Περιγραφή

Design

Number of fans: 1 fan(s)

On/off switch: Yes

Fan diameter: 12 cm

Cooling type: Active

Product colour: Black

Fan location: Top

Power

Efficiency: 85%

Max output current (+5V): 20 A

Power protection features: Over voltage, No load operation, Over power, Overheating, Surge protection, Surge & inrush protection (SIP), Under voltage, Over current

Max output current (+12V): 45,5 A

AC input frequency: 50/60 Hz

Combined power (+12V): 546 W

Power Factor Correction (PFC) type: Active

Combined power (+5V): 110 W

AC input voltage: 100 - 240 V

Combined power (-12V): 3.6 W

Combined power (+3.3V): 110 W

Max output current (+3.3V): 20 A

Hold time: 16 ms

Total power: 550 W

Max output current (+5Vsb): 2.5 A

Max output current (-12V): 0.3 A

Power Good signal delay range: 100 - 150 ms

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Depth: 140 mm

Height: 86 mm

Width: 150 mm

Performance

ATX version: 2.4

80 PLUS certification: 80 PLUS Bronze

Mean time between failures (MTBF): 100000 h

Purpose: PC

Power supply unit (PSU) form factor: ATX

Bearing technology: HDB

Packaging data

Package type: Box

Certificates

Compliance certificates: RoHS, WEEE

Ports & interfaces

Motherboard power cable length: 50 cm

Cabling type: Non-Modular

Motherboard power connector: 24-pin ATX
