Supermicro MBD-H13SRA-F AMD TRX50 Socket sTR5 ATX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen Threadripper 1000 Series

Processor socket: Socket sTR5

Processor manufacturer: AMD

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset: AMD TRX50

Audio chip: Realtek ALC888S

Motherboard form factor: ATX

Audio output channels: 5.1 channels

Motherboard chipset family: AMD

Component for: Workstation

Memory

ECC сompatibility: ECC

Supported memory clock speed (max): 5200 MHz

Supported memory clock speeds: 5200

Supported memory module capacities: 1024GB, 128GB, 24GB, 32GB, 16GB, 96GB, 64GB, 256GB, 48GB, 512GB

Number of memory slots: 4

Maximum internal memory: 4 TB

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Memory voltage: 1.1 V

Operational conditions

Storage temperature (T-T): 0 - 50 °C

Operating relative humidity (H-H): 10 - 85%

Storage relative humidity (H-H): 10 - 95%

Operating temperature (T-T): -20 - 60 °C

Weight & dimensions

Depth: 243.8 mm

Width: 304.8 mm

Network

LAN controller: Broadcom BCM5720

Wi-Fi: No

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Internal I/O

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of SATA III connectors: 4

CPU fan connector: Yes

TPM connector: Yes

Number of chassis fan connectors: 7

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

BIOS

BIOS memory size: 32 Mbit

ACPI version: 6.5

System Management BIOS (SMBIOS) version: 3.6

BIOS type: AMI

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 1, 10, 0

RAID support: Yes

Number of HDDs supported: 4

Rear panel I/O ports

USB 3.2 Gen 2x2 Type-C ports quantity: 1

IPMI LAN (RJ-45) port: Yes

COM ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4

VGA (D-Sub) ports quantity: 1

Ethernet LAN (RJ-45) ports: 2

Expansion slots

PCI Express x16 (Gen 5.x) slots: 2

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asrock B650D4U-2L2T/BCM motherboard AMD B650 Express Socket AM5 micro ATX

ProcessorProcessor socket: Socket AM5Processor manufacturer: AMDCompatible processor series: AMD Ryzen™ 5, AMD Ryzen™ 3Maximum number of SMP processor..

545,49€

Χωρίς ΦΠΑ:439,91€

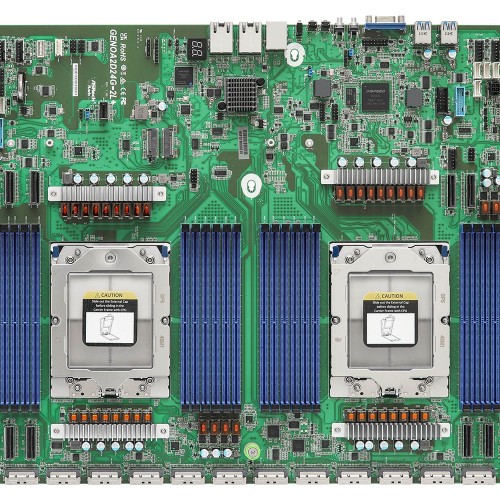

Asrock GENOA2D24G-2L+ motherboard AMD SoC Socket SP5

ProcessorCompatible processor series: AMD EPYCProcessor manufacturer: AMDProcessor socket: Socket SP5Maximum number of SMP processors: 2GraphicsOn-boa..

1.484,31€

Χωρίς ΦΠΑ:1.197,03€

Asrock ROME2D16-2T motherboard LGA 4094 EEB

ProcessorMaximum number of SMP processors: 2Processor socket: LGA 4094Compatible processor series: AMD EPYC 7003Processor manufacturer: AMDGraphicsGra..

853,20€

Χωρίς ΦΠΑ:688,06€

Asrock ROMED8-2T motherboard LGA 4094 ATX

Technical detailsCompliance certificates: RoHSSustainability certificates: RoHSProcessorProcessor manufacturer: AMDProcessor socket: LGA 4094Maximum n..

783,27€

Χωρίς ΦΠΑ:631,67€

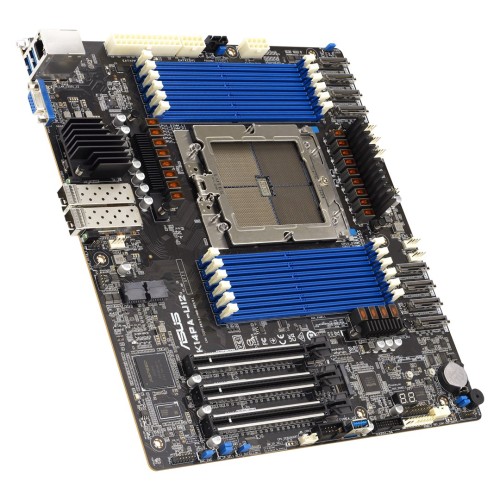

ASUS K14PA-U12/ASMB11 Socket SP5 SSI CEB
