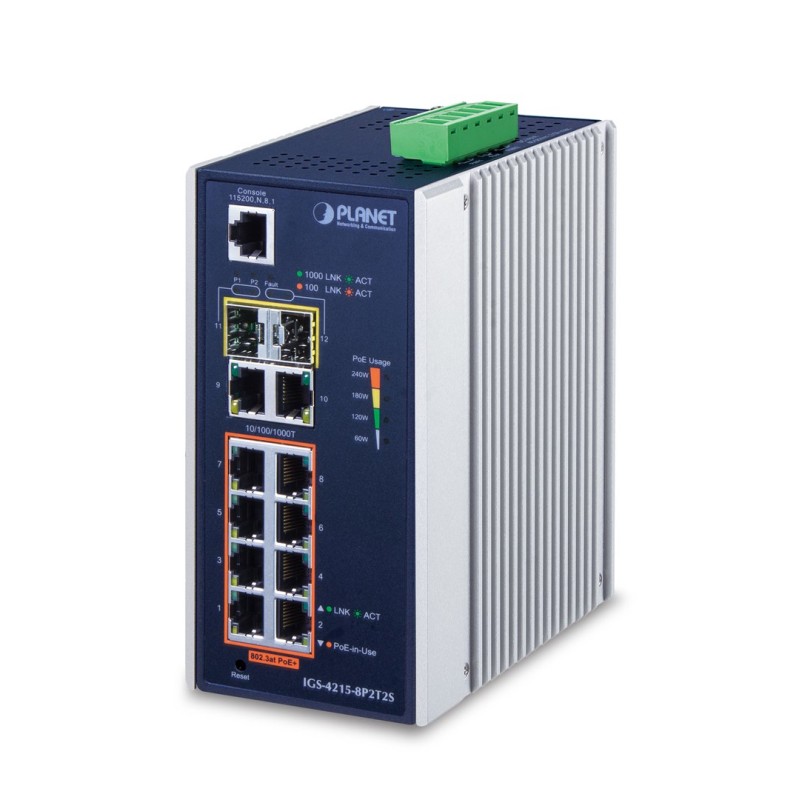

PLANET IGS-4215-8P2T2S network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Silver

Περιγραφή

Design

Wall mountable: Yes

LED indicators: Link, Activity, System, PoE, Power

Reset button: Yes

International Protection (IP) code: IP30

Product colour: Silver, Blue

Housing material: Aluminium

DIN rail mounting: Yes

Power

Surge protection: Yes

Power consumption (max): 242 W

DC input voltage: 48 - 56 V

Surge protection voltage: 6 kV

Security

DHCP features: DHCP snooping

Loop protection: Yes

Access Control List (ACL): Yes

Security algorithms: SNMPv3, SSL/TLS, SSH, SNMP

Authentication type: IEEE 802.1x, RADIUS

Operational conditions

Operating relative humidity (H-H): 5 - 95%

Storage temperature (T-T): -40 - 85 °C

Storage relative humidity (H-H): 5 - 95%

Operating temperature (T-T): -40 - 75 °C

Management features

Switch layer: L2/L4

Switch type: Managed

Web-based management: Yes

Quality of Service (QoS) support: Yes

ARP inspection: Yes

Weight & dimensions

Width: 76.8 mm

Weight: 1.04 kg

Depth: 107.3 mm

Height: 152 mm

Network

Spanning tree protocol: Yes

Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T, 10BASE-T

Virtual LAN features: Protocol-based VLAN, Tagged VLAN, Private VLAN

VLAN support: Yes

Link aggregation: Yes

Port mirroring: Yes

10G support: No

Full duplex: Yes

Number of VLANs: 4094

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.1ab, IEEE 802.3at, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1D, IEEE 802.3z, IEEE 802.1x, IEEE 802.3af, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1w

Auto MDI/MDI-X: Yes

Half duplex: Yes

Ports & interfaces

Console port: RJ-45

Basic switching RJ-45 Ethernet ports quantity: 10

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Fiber optic connector: SFP

SFP module slots quantity: 2

Other features

Terminal block port: Yes

Logistics data

Harmonized System (HS) code: 85176990

Data transmission

Packet buffer memory: 4.1 MB

Switching capacity: 24 Gbit/s

Store-and-forward: Yes

MAC address table: 8000 entries

Throughput: 17.85 Mpps

Jumbo frames support: Yes

Jumbo frames: 10000

Number of queues: 8

Power over Ethernet (PoE)

Power over Ethernet plus (PoE+) ports quantity: 8

Power over Ethernet (PoE) power per port: 36 W

Power over Ethernet (PoE): Yes

Total Power over Ethernet (PoE) budget: 240 W

Multicast features

Multicast support: Yes

Optical fiber

Fiber ethernet cabling technology: 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX
