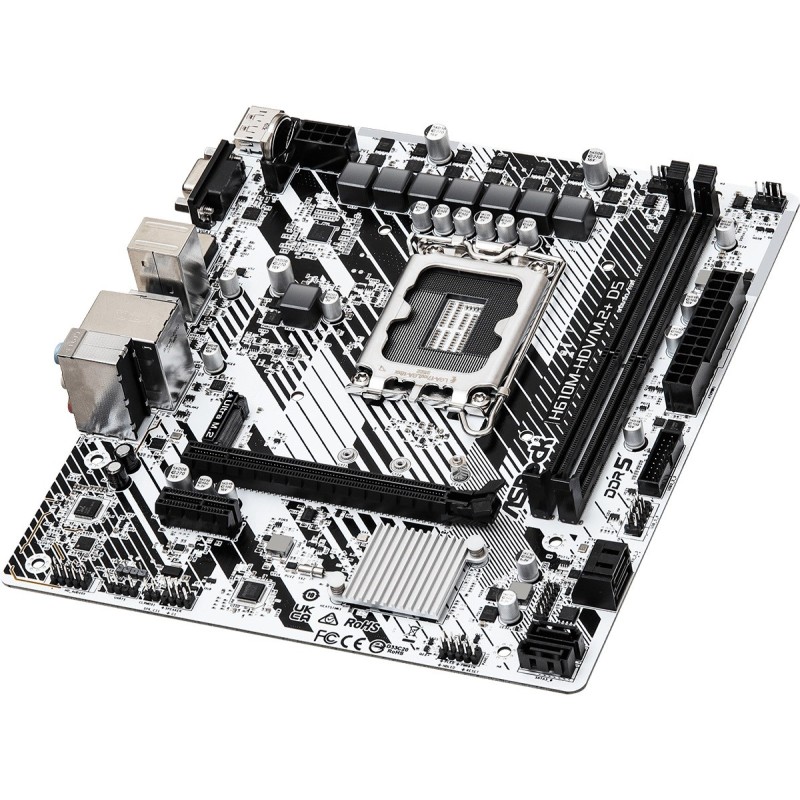

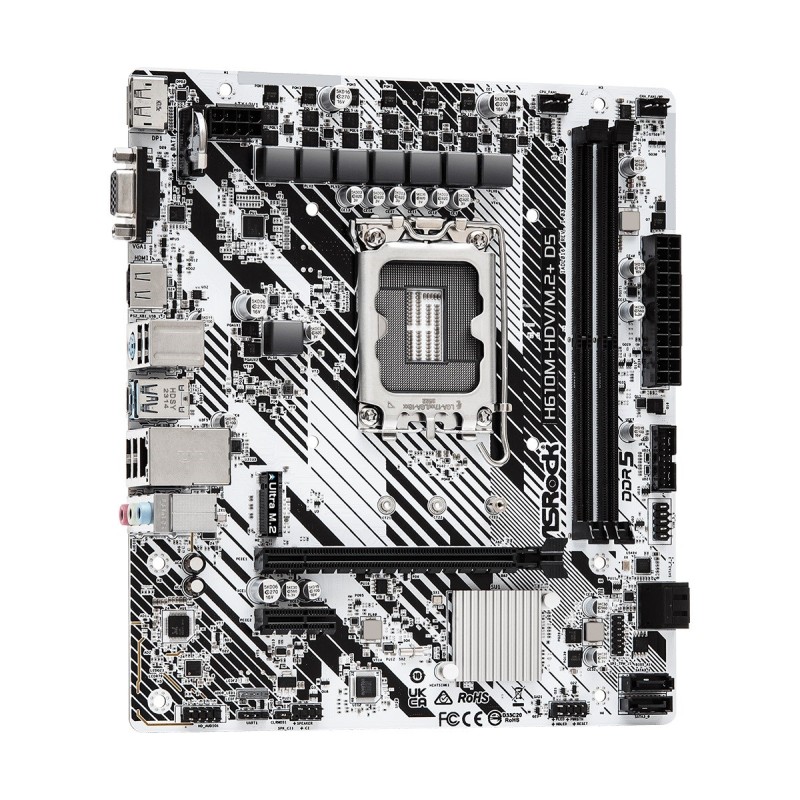

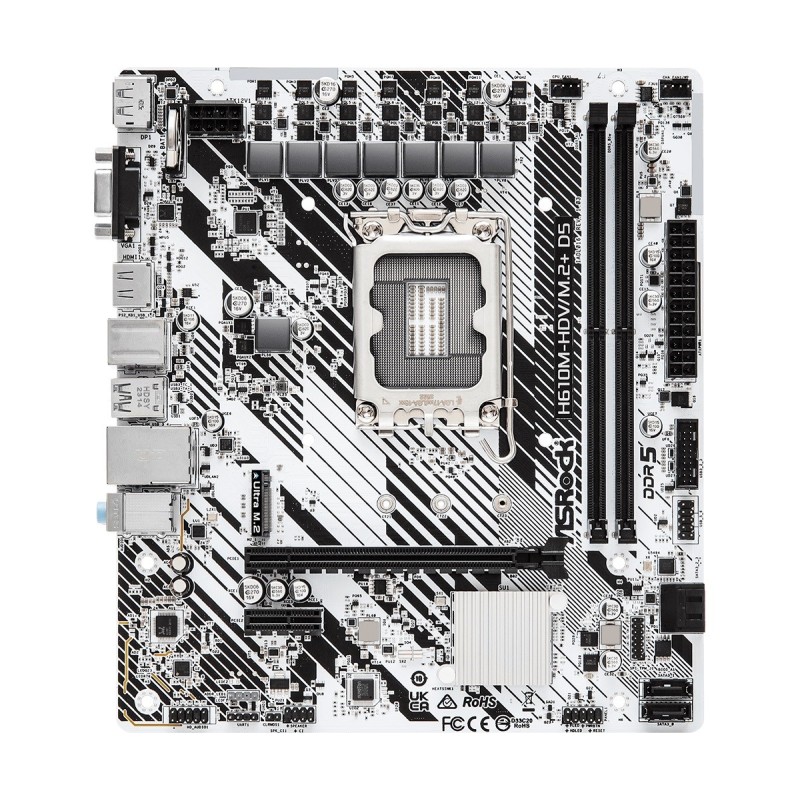

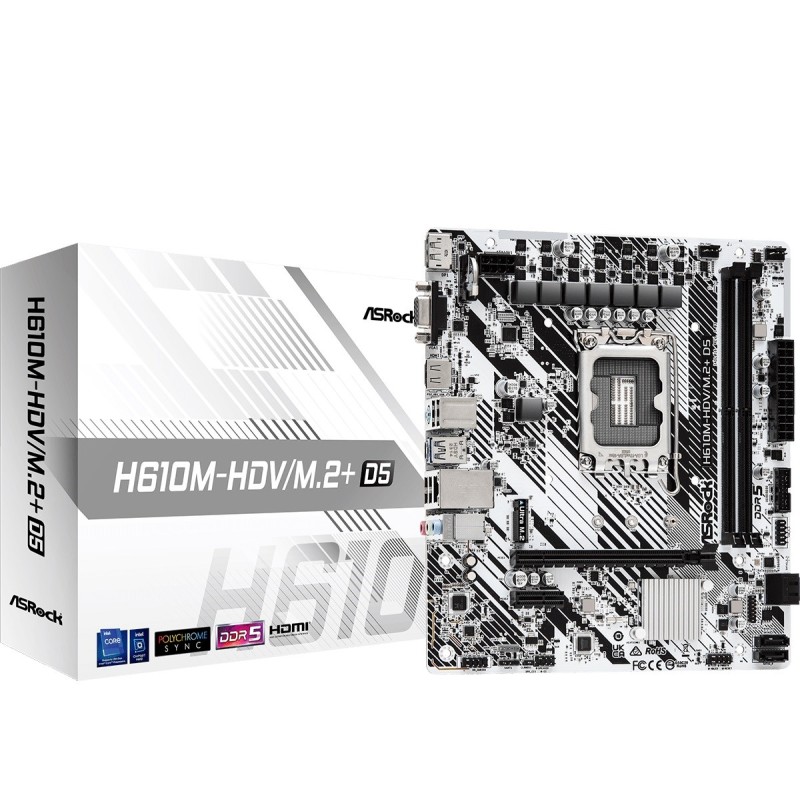

Asrock H610M-HDV/M.2+ D5 Intel H610 LGA 1700 micro ATX

Περιγραφή

Processor

Maximum number of SMP processors: 1

Compatible processor series: Intel® Pentium®, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9

Processor socket: LGA 1700

Processor manufacturer: Intel

Graphics

HDCP: Yes

Parallel processing technology support: Not supported

Maximum resolution: 7680 x 4320 pixels

Features

PC health monitoring: Fan, CPU, Voltage, Temperature

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Audio chip: Realtek ALC897

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

Motherboard chipset: Intel H610

Memory

Number of memory slots: 2

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Memory channels: Dual-channel

Maximum internal memory: 96 GB

Supported memory clock speeds: 5600

Unbuffered memory: Yes

Weight & dimensions

Depth: 193 mm

Width: 220 mm

Network

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wake-on-LAN ready: Yes

Wi-Fi: No

LAN controller: Realtek 8111H

Internal I/O

RGB LED pin header: Yes

12V power connector: Yes

Number of SATA III connectors: 4

ATX Power connector (24-pin): Yes

Chassis intrusion connector: Yes

TPM connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of chassis fan connectors: 1

CPU fan connector: Yes

USB 2.0 connectors: 1

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Storage controllers

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID support: No

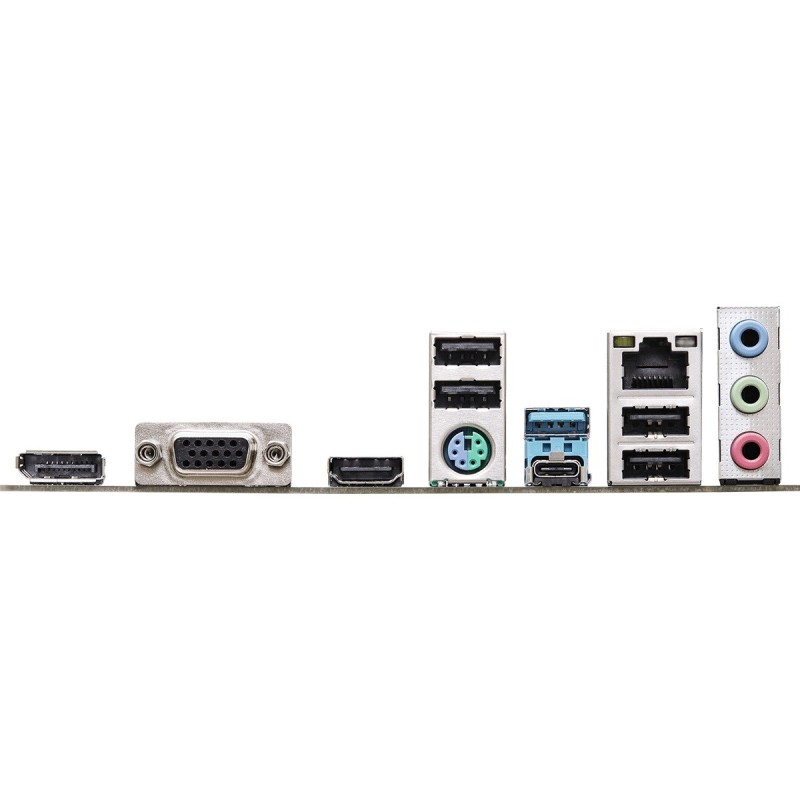

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

PS/2 ports quantity: 1

DisplayPorts quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

USB 2.0 ports quantity: 4

HDMI ports quantity: 1

VGA (D-Sub) ports quantity: 1

HDMI version: 2.1

DisplayPort version: 1.4

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 1

Safety warning

Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
