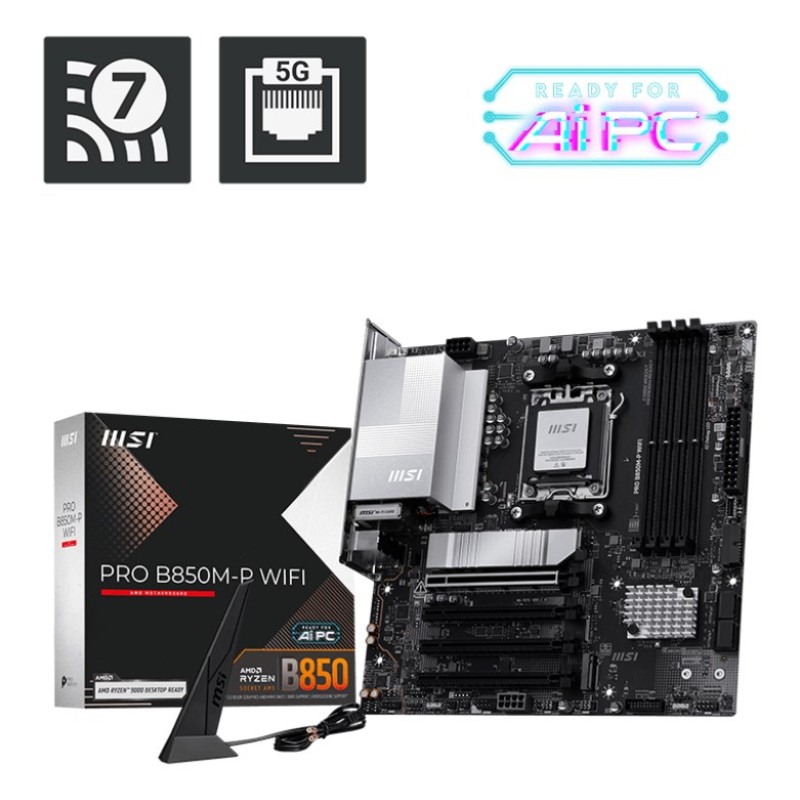

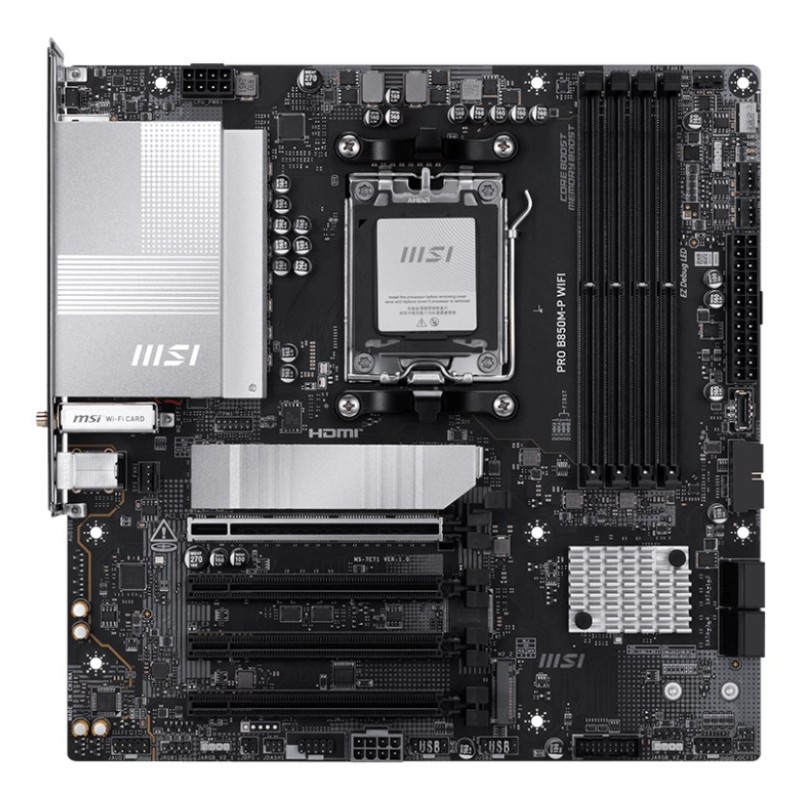

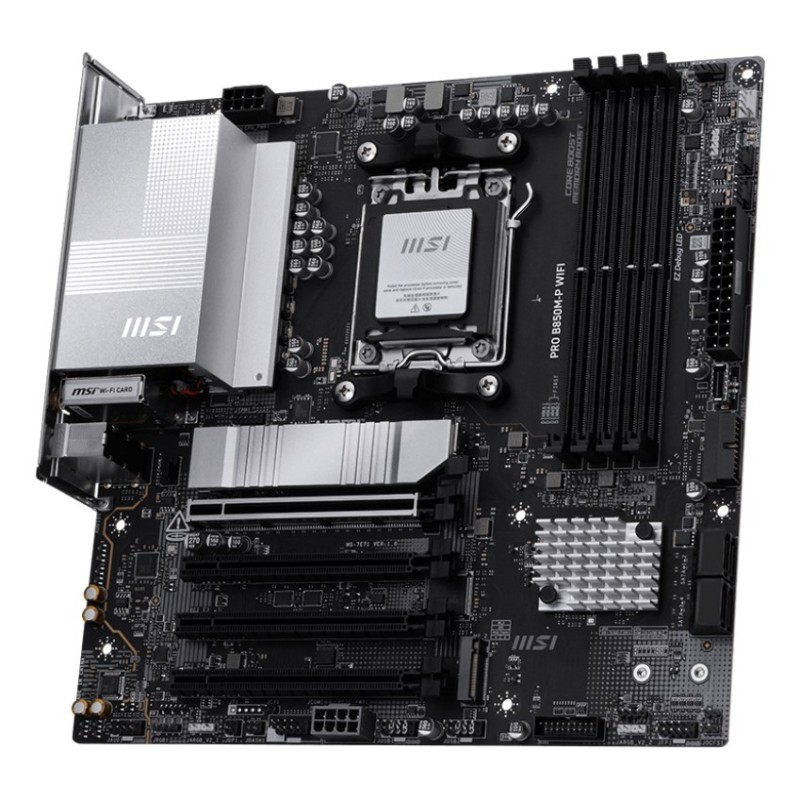

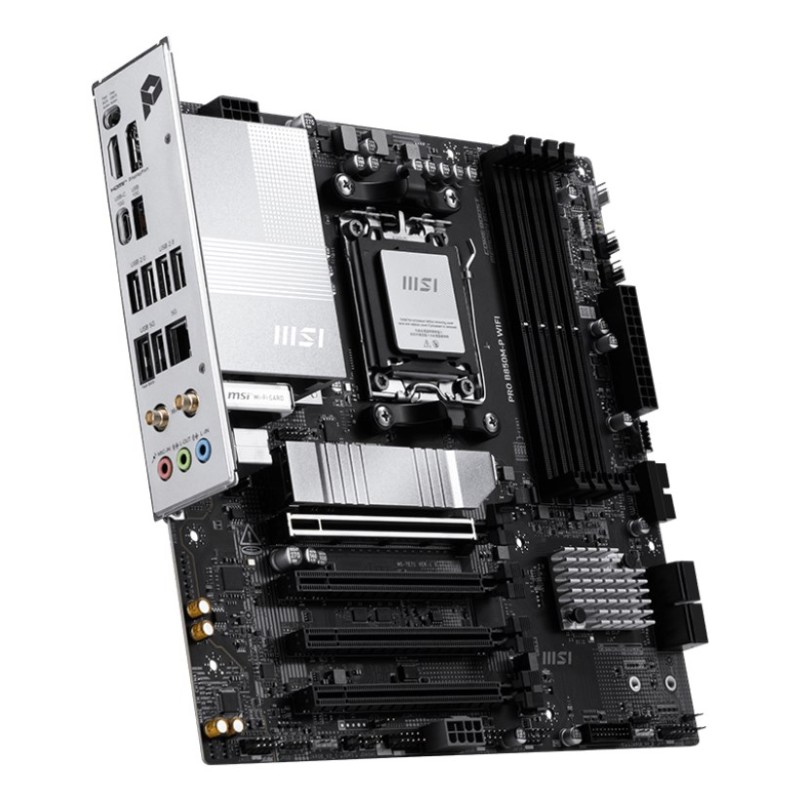

MSI PRO B850M-P WIFI AMD B850 Socket AM5 micro ATX

Περιγραφή

Processor

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Processor socket: Socket AM5

Graphics

On-board graphics card: No

Features

Motherboard chipset: AMD B850

Windows operating systems supported: Windows 11 x64

Motherboard chipset family: AMD

Motherboard form factor: micro ATX

Product colour: Black

Audio output channels: 7.1 channels

Audio chip: Realtek ALC897

Memory

ECC сompatibility: Non-ECC

Supported memory clock speeds: 6400, 8200 MHz, 6000

Memory channels: Dual-channel

Maximum internal memory: 256 GB

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Supported memory clock speed (max): 8200 MHz

Weight & dimensions

Depth: 243.8 mm

Width: 243.8 mm

Network

Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax)

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Bluetooth version: 5.4

Ethernet LAN: Yes

Ethernet interface type: 5 Gigabit Ethernet

Wi-Fi: Yes

Internal I/O

Number of RGB LED pin headers: 3

Number of water pump connectors: 1

Number of CPU fan connectors: 2

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Total number of SATA connectors: 4

CPU fan connector: Yes

Front panel connector: Yes

Front panel audio connector: Yes

USB 2.0 connectors: 4

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

RAID support: Yes

RAID levels: 10, 0, 1

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2

Number of storage drives supported: 7

Number of HDDs supported: 4

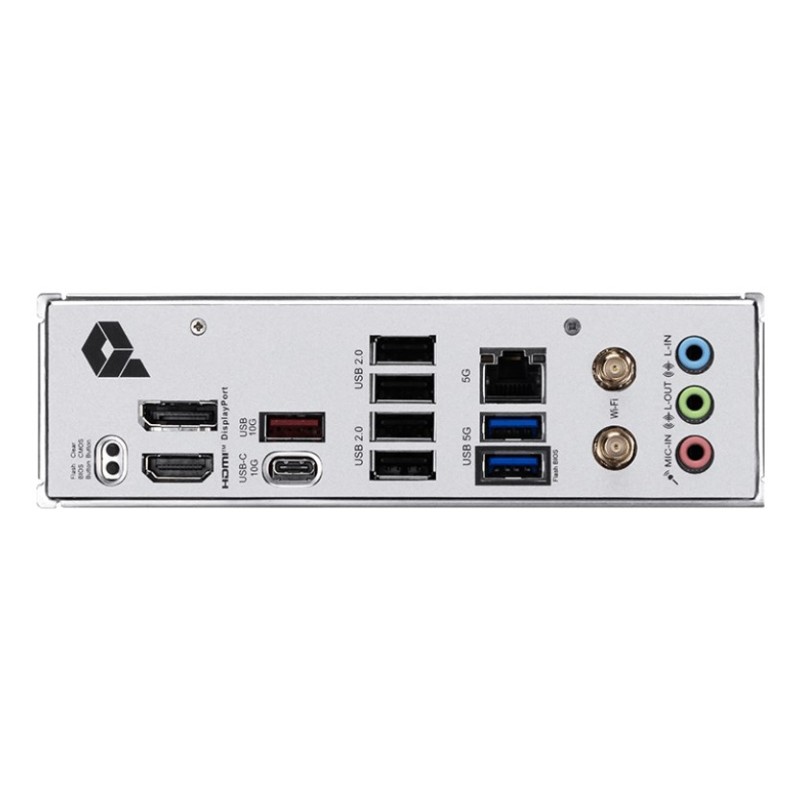

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

HDMI ports quantity: 1

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

Ethernet LAN (RJ-45) ports: 1

Expansion slots

3rd M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 5.0

1st M.2 largest key size: 2280

2nd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

3rd M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 slots: 1

PCI Express x4 slots: 1

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1
