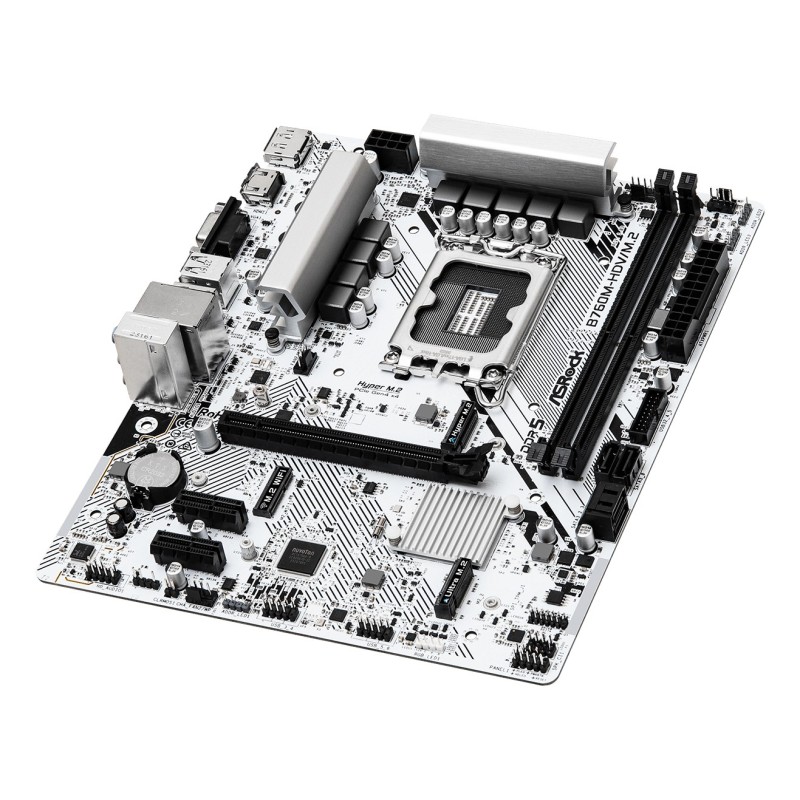

Asrock B760M-HDV/M.2 motherboard Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Compatible processor series: Intel Core i9 13th Gen, Intel Core i7 13th Gen, Intel Core i7 12th Gen, Intel Core i5 12th Gen, Intel Core i3 13th Gen, Intel Core i9 14th Gen, Intel Core i3 12th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen

Processor manufacturer: Intel

Processor socket: LGA 1700

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset: Intel B760

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Motherboard form factor: micro ATX

Audio output channels: 7.1 channels

Audio chip: Realtek ALC897

Motherboard chipset family: Intel

Memory

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Memory channels: Dual-channel

Number of memory slots: 2

Unbuffered memory: Yes

Maximum internal memory: 96 GB

ECC сompatibility: Non-ECC

Weight & dimensions

Depth: 201 mm

Width: 244 mm

Network

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Dragon RTL8125BG

Internal I/O

Front panel audio connector: Yes

TPM connector: Yes

CPU fan connector: Yes

Number of SATA III connectors: 4

RGB LED pin header: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 2.0 connectors: 2

ATX Power connector (24-pin): Yes

BIOS

BIOS type: EFI AMI

Packaging content

Screws included: Yes

Cables included: SATA

Storage controllers

RAID levels: 10, 1, 0, 5

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

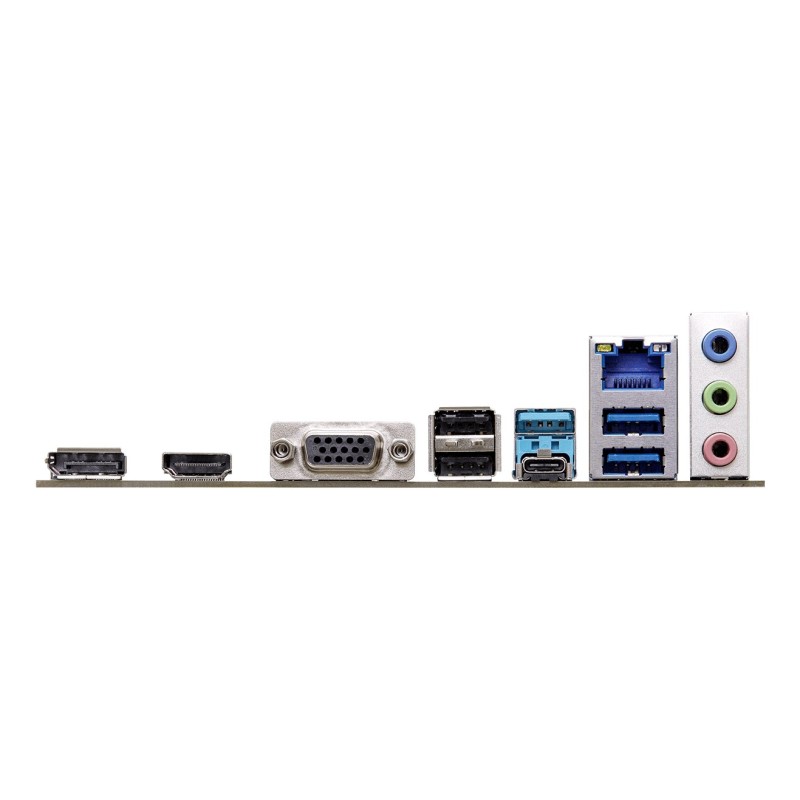

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Microphone in: Yes

DisplayPorts quantity: 1

DisplayPort version: 1.4

Line-in: Yes

HDMI ports quantity: 1

VGA (D-Sub) ports quantity: 1

USB 2.0 ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

Number of M.2 (M) slots: 1
