Płyta główna MSI PRO B650-A WIFI

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Processor socket: Socket AM5

Features

Motherboard chipset family: AMD

Motherboard chipset: AMD B650

Audio chip: Realtek ALC4080

PC health monitoring: Fan

Motherboard form factor: ATX

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64

Memory

Supported memory clock speeds: 6800, 5800, 5400, 5600, 7200, 7400, 7000, 4800, 6200, 5000, 5200, 6400, 6600, 6000, 7600

Supported memory clock speed (max): 7600 MHz

Maximum internal memory: 256 GB

ECC сompatibility: Non-ECC

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Weight & dimensions

Depth: 304.8 mm

Width: 243.8 mm

Network

LAN controller: Realtek RTL8125B

Bluetooth: Yes

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi standards: 802.11g, 802.11 ax, 802.11b, 802.11n, 802.11a, Wi-Fi 6E (802.11ax), 802.11 ac

Bluetooth version: 5.3

Wi-Fi: Yes

Internal I/O

USB 2.0 connectors: 4

Front panel audio connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Front panel connector: Yes

Storage controllers

RAID levels: 0, 10, 1

Supported storage drive interfaces: M.2, SATA

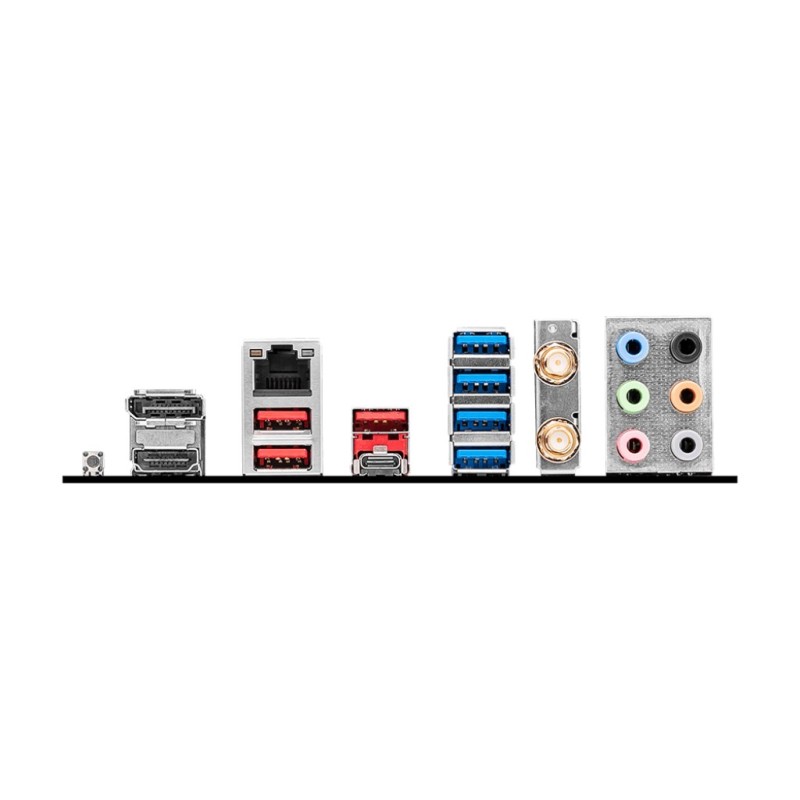

Rear panel I/O ports

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

HDMI ports quantity: 1

Line-in: Yes

Headphone outputs: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Expansion slots

PCI Express x16 (Gen 3.x) slots: 2

Number of M.2 (M) slots: 3

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
