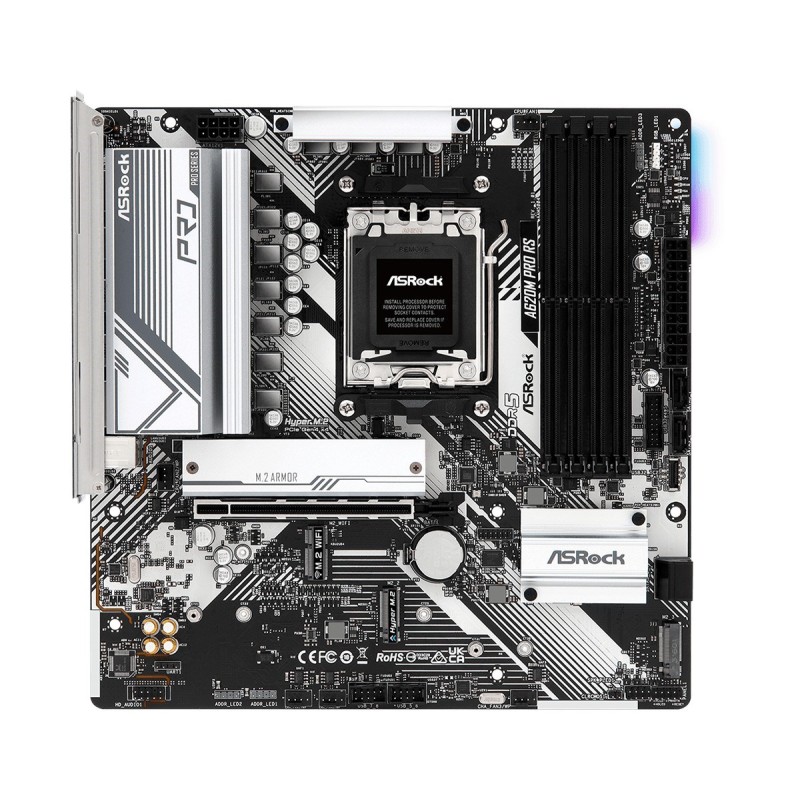

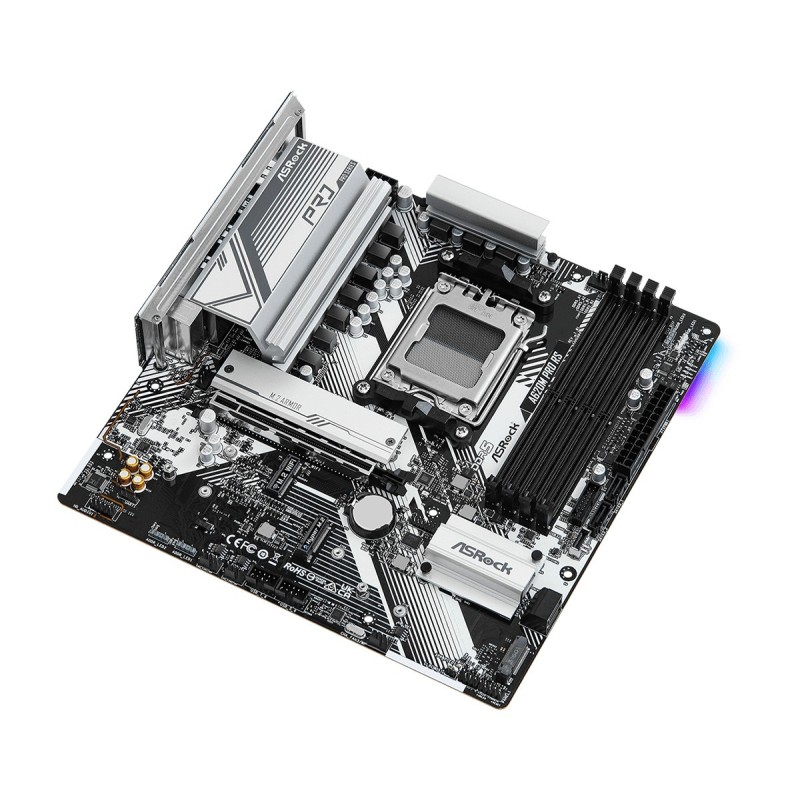

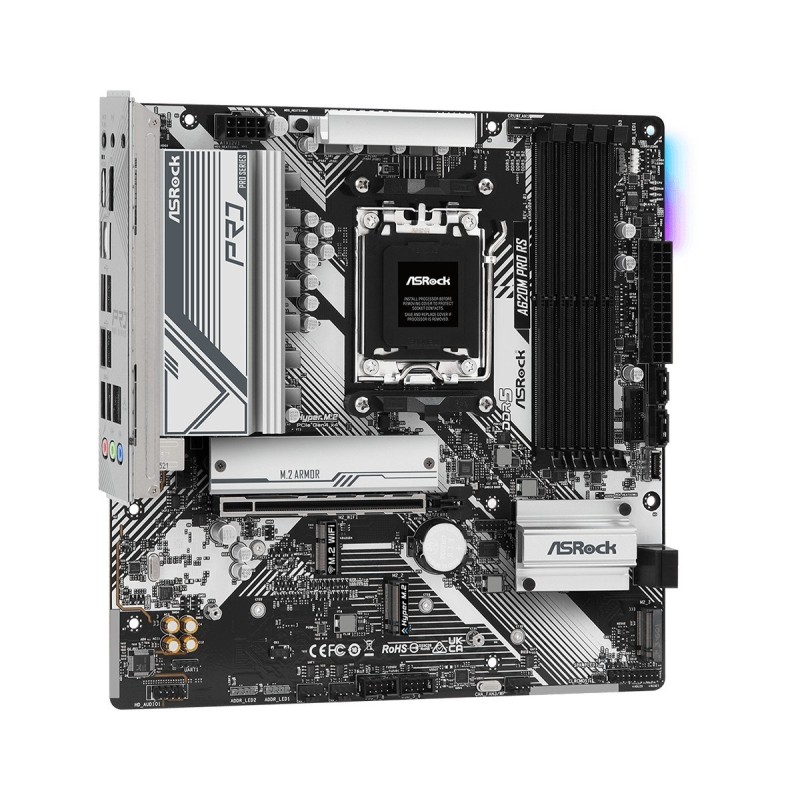

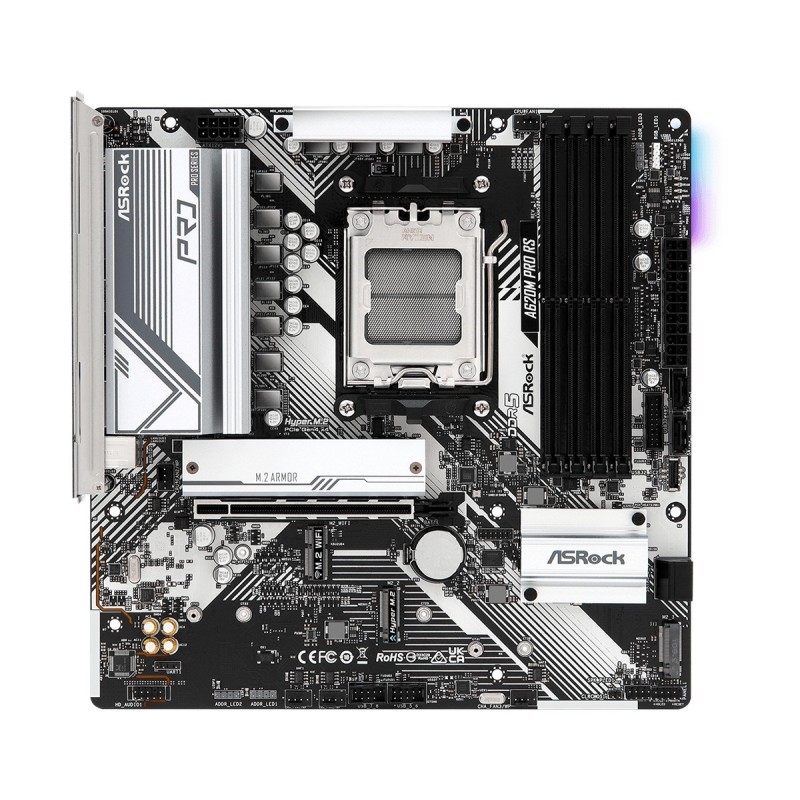

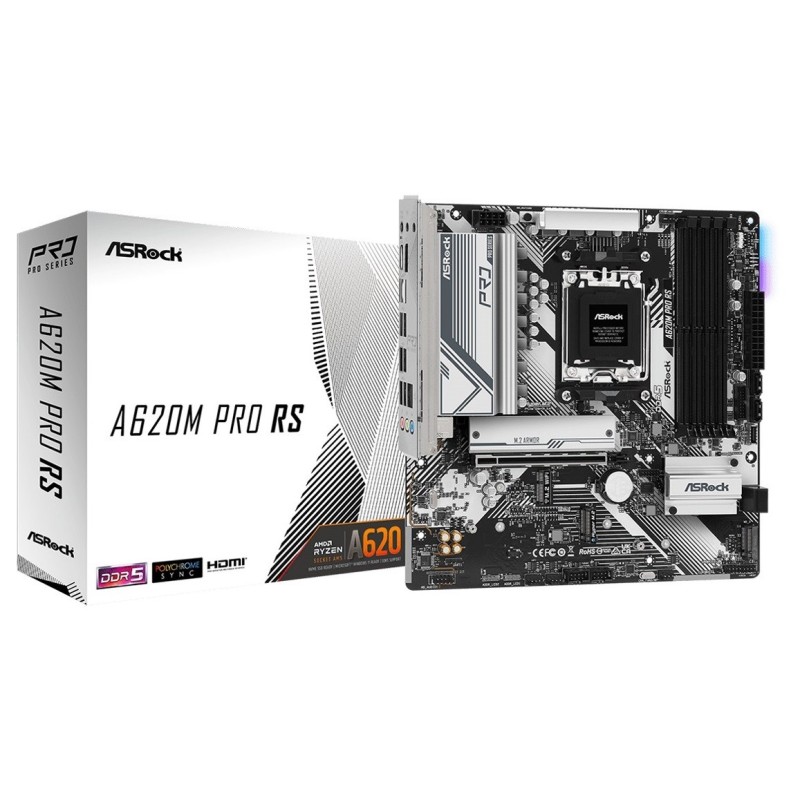

Asrock A620M Pro RS motherboard

Περιγραφή

Processor

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 9 7th Gen

Processor socket: Socket AM5

Graphics

Graphics card: AMD RDNA 2

Graphics card family: AMD

On-board graphics card: Yes

Features

Motherboard chipset: AMD A620

Motherboard chipset family: AMD

Motherboard form factor: micro ATX

Windows operating systems supported: Windows 11, Windows 10

Audio output channels: 7.1 channels

Memory

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Memory slots type: DIMM

Weight & dimensions

Depth: 244 mm

Width: 244 mm

Network

Wi-Fi: No

Bluetooth: No

Ethernet LAN: Yes

LAN controller: Realtek 8111H

Ethernet interface type: Gigabit Ethernet

Internal I/O

Number of SATA III connectors: 4

RGB LED pin header: Yes

CPU fan connector: Yes

Power fan connector: Yes

TPM connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 4

BIOS

BIOS type: UEFI AMI

Storage controllers

RAID levels: 10, 1, 0

Supported storage drive interfaces: M.2, SATA

Supported storage drive types: HDD & SSD

RAID support: Yes

Number of HDDs supported: 4

Number of storage drives supported: 3

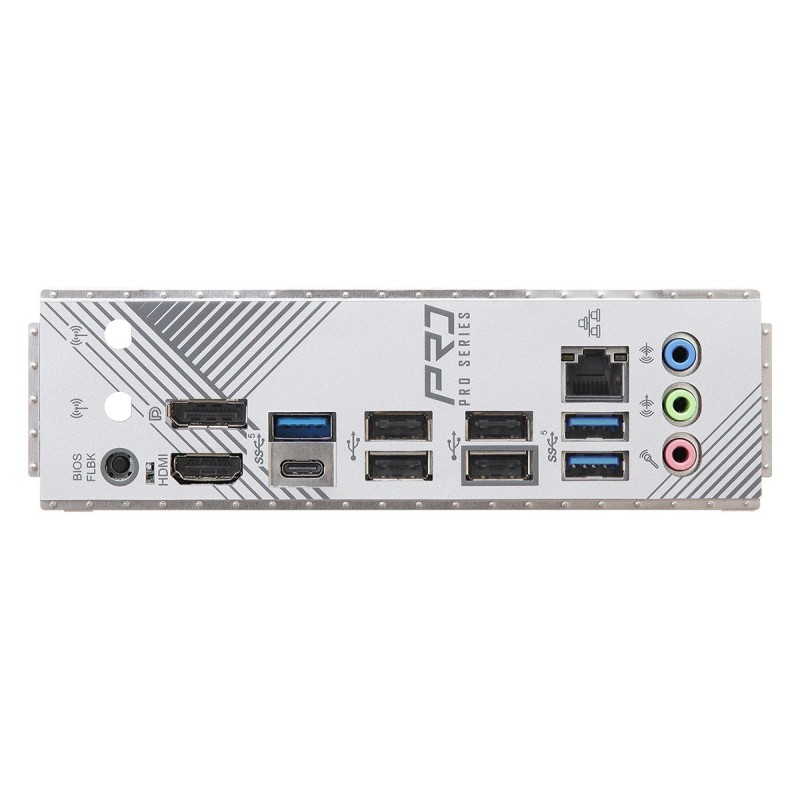

Rear panel I/O ports

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

DisplayPort version: 1.4

HDMI version: 2.1

USB 2.0 ports quantity: 4

Microphone in: Yes

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 3

Headphone outputs: 1

Line-in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 3
