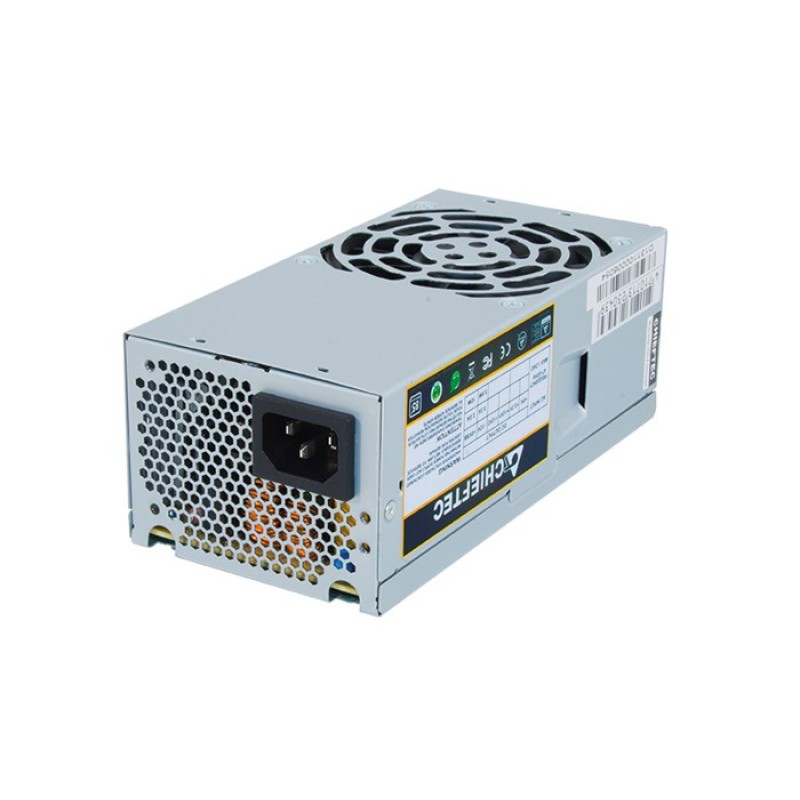

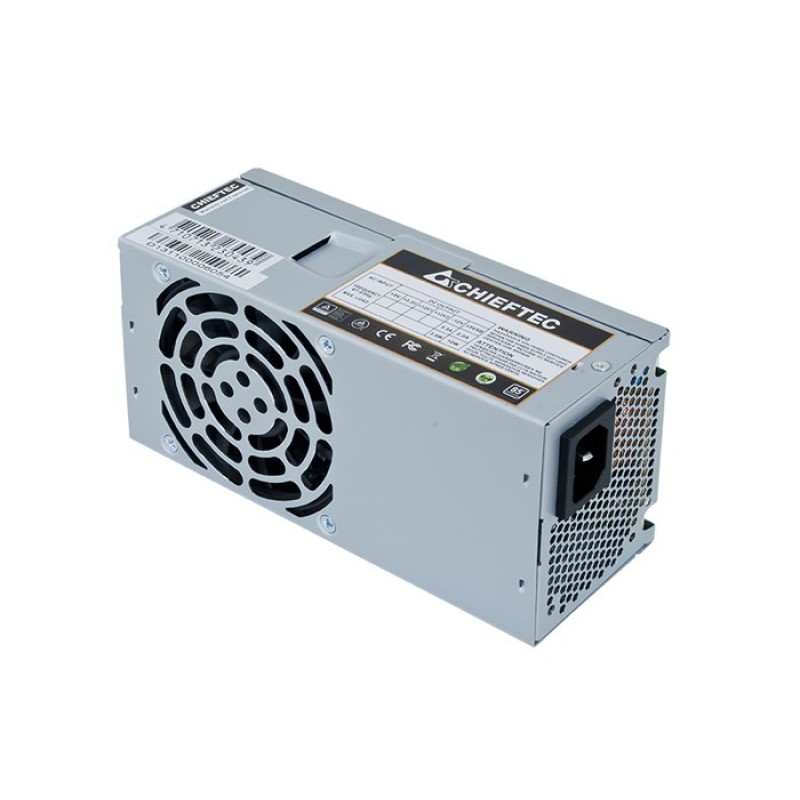

Chieftec Smart 300W power supply unit 20+4 pin ATX TFX Grey

Περιγραφή

Technical details

Sustainability certificates: RoHS

Design

Cooling type: Active

Product colour: Grey

Fan diameter: 8 cm

Number of fans: 1 fan(s)

Power

Combined power (+5Vsb): 10 W

Max output current (+5V): 15 A

Power protection features: Overload, Overheating, Short circuit, Over voltage, Under voltage

Combined power (+5V): 95 W

Max output current (+12V2): 15 A

Max output current (+5Vsb): 2 A

Combined power (-12V): 3.6 W

Power Factor Correction (PFC) type: Active

AC input frequency: 47 - 63 Hz

Total power: 300 W

Power factor: 0.9

Max output current (-12V): 0.3 A

Combined power (+3.3V): 95 W

Input current: 6.3 A

Max output current (+12V1): 14 A

Max output current (+3.3V): 16 A

AC input voltage: 115 - 230 V

Weight & dimensions

Weight: 1.07 kg

Width: 85 mm

Depth: 175 mm

Height: 65 mm

Performance

Power supply unit (PSU) form factor: TFX

Purpose: PC/Server

80 PLUS certification: 80 PLUS Bronze

ATX version: 2.3

Packaging data

Package weight: 1.13 kg

Ports & interfaces

Floppy disk drive cable length: 15 cm

Motherboard power cable length: 30 cm

Peripheral (Molex) power cable length: 150, 350 mm

Number of SATA power connectors: 4

Floppy drive power connector: 1

EPS power connector (4+4 pin): Yes

SATA power cable length: 150, 350 mm

CPU power cable length: 35 cm

Peripheral (Molex) power connectors (4-pin): 2

Motherboard power connector: 20+4 pin ATX

Cabling type: Non-Modular

Logistics data

Harmonized System (HS) code: 84733020
