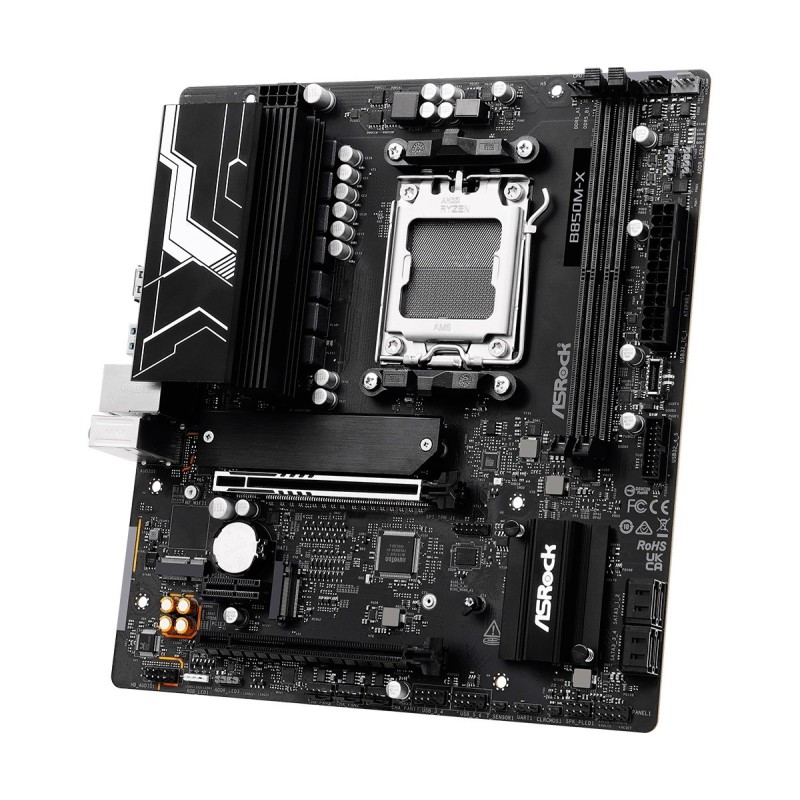

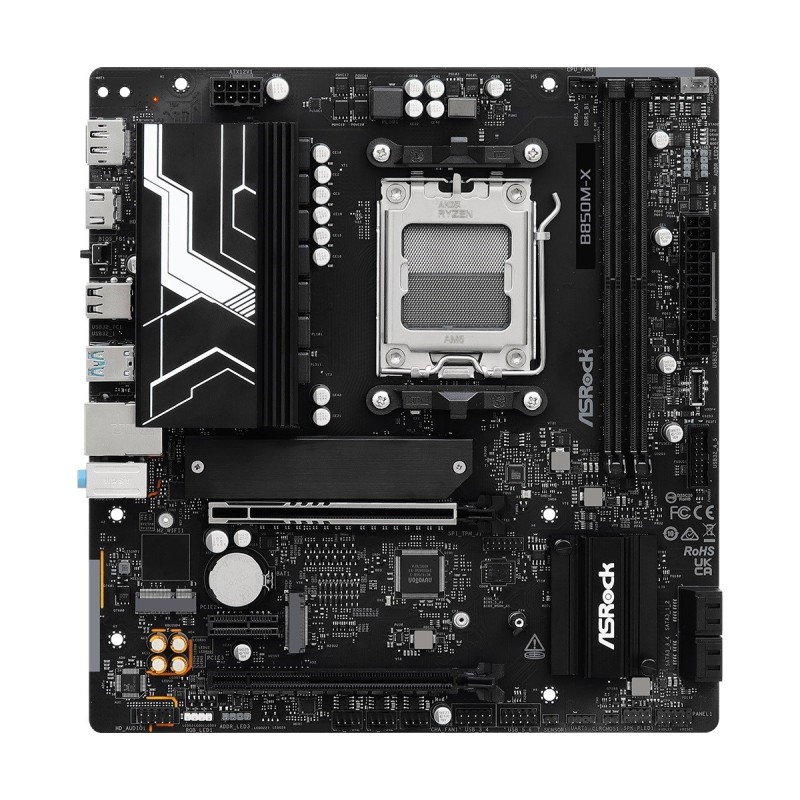

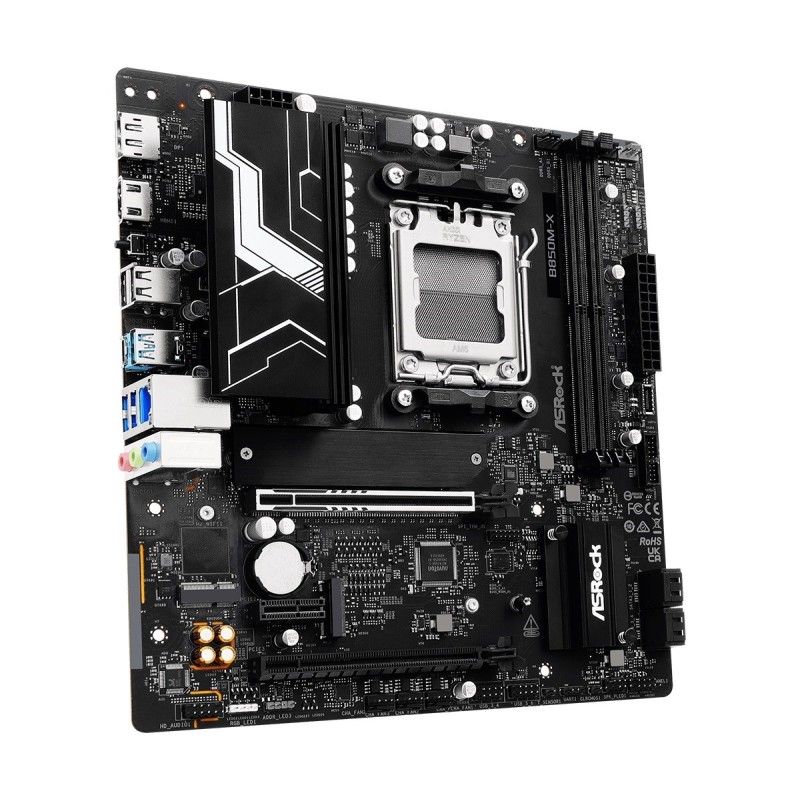

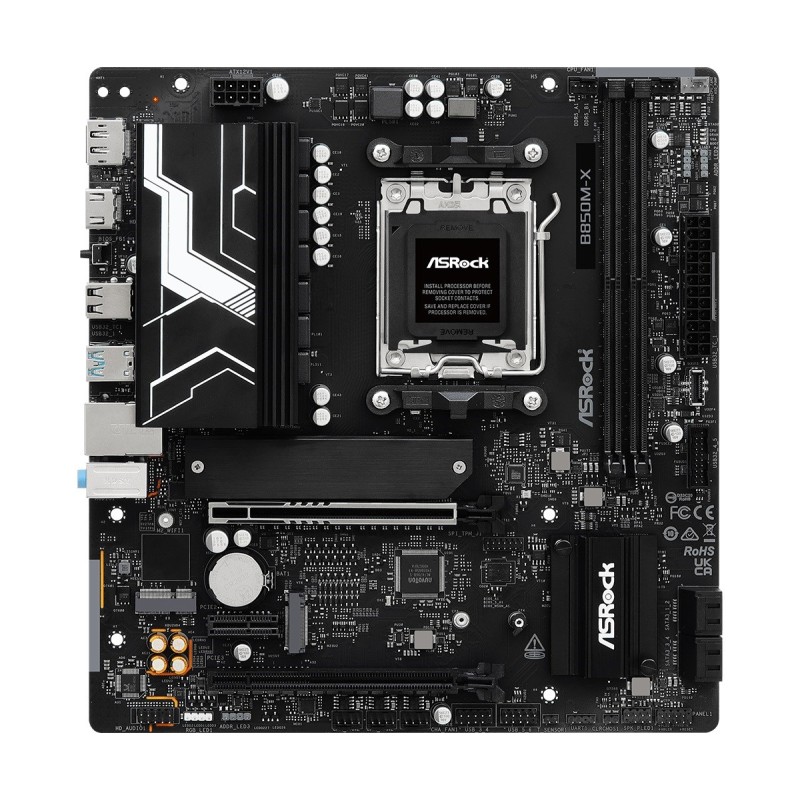

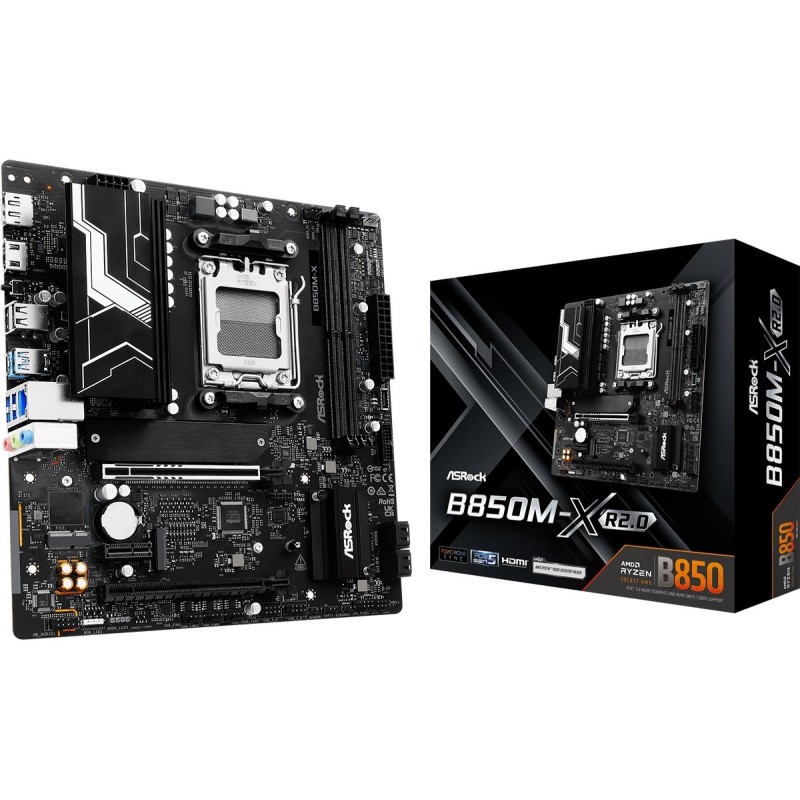

Płyta główna Asrock B850M-X R2.0

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Graphics

Maximum resolution: 3840 x 2160 pixels

Parallel processing technology support: Not supported

HDCP: Yes

Features

Audio output channels: 7.1 channels

Product colour: Black

Audio chip: Realtek ALC897

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Motherboard chipset: AMD B850

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Memory

Maximum internal memory: 128 GB

Supported memory types: DDR5-SDRAM

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 2

Memory channels: Dual-channel

Memory slots type: DIMM

Weight & dimensions

Depth: 226 mm

Width: 244 mm

Network

LAN controller: Dragon RTL8125BG

Ethernet interface type: 2.5 Gigabit Ethernet

Mobile network connection: No

Wi-Fi: No

Ethernet LAN: Yes

Internal I/O

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 2

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

CPU fan connector: Yes

Front panel audio connector: Yes

12V power connector: Yes

USB Type-C ports quantity: 1

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

TPM connector: Yes

Number of chassis fan connectors: 3

EPS power connector (8-pin): Yes

RGB LED pin header: Yes

Number of EPS power connectors (8-pin): 1

BIOS

BIOS type: UEFI AMI

Packaging content

Screws included: Yes

Cables included: SATA

Storage controllers

RAID support: Yes

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

RAID levels: 10, 0, 1

Supported storage drive types: HDD & SSD

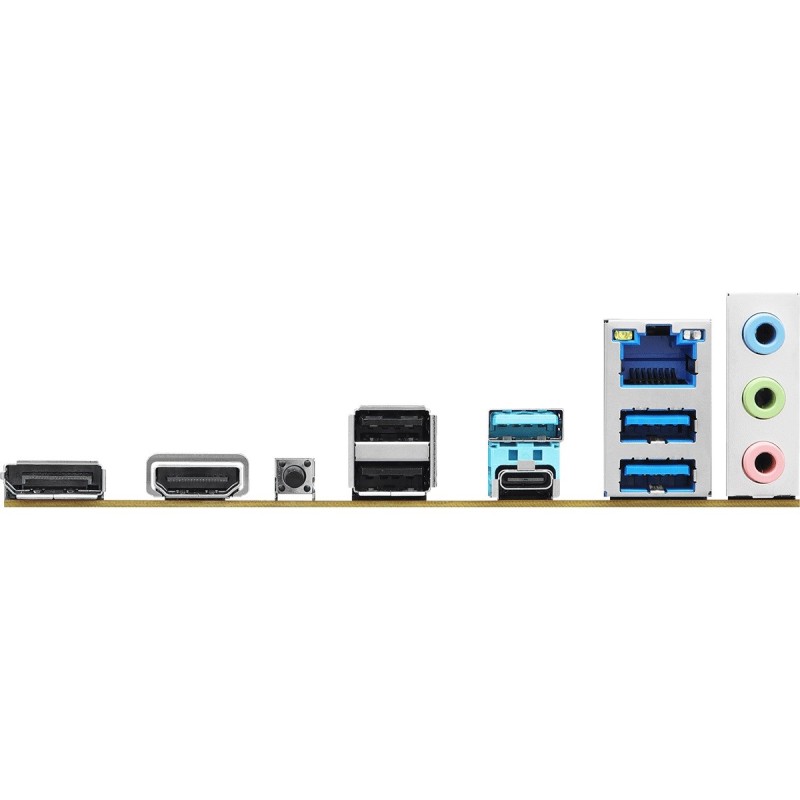

Rear panel I/O ports

DisplayPort version: 1.4

USB 2.0 ports quantity: 2

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

Line-in: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

HDMI version: 2.1

Microphone in: Yes

Audio output: 3.5 mm

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

Expansion slots

Number of M.2 (M) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (E) slots: 1

2nd M.2 largest key size: 2280

1st M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

PCI Express x1 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

2nd M.2 highest PCI Express generation: 4.0

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asrock A620AM PRO RS WIFI motherboard

ProcessorCompatible processor series: AMD Ryzen 9000 Series, AMD Ryzen™ 8000 Series, AMD Ryzen 7000 SeriesProcessor manufacturer: AMDProcessor socket:..

120,50€

Χωρίς ΦΠΑ:97,18€

Asrock A620AM PRO-A motherboard

ProcessorCompatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen™ 8000 SeriesProcessor manufacturer: AMDProcessor socket:..

100,20€

Χωρίς ΦΠΑ:80,81€

Asrock B650 PG Lightning AMD B650 Socket AM5 ATX

ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM5GraphicsHDCP: YesGraphics card family: AMDOn-board graphics card: YesGraphics card: AM..

158,56€

Χωρίς ΦΠΑ:127,87€

Asrock B650 Pro RS AMD B650 Socket AM5 ATX

ProcessorCompatible processor series: AMD Ryzen 7000 SeriesProcessor socket: Socket AM5Processor manufacturer: AMDMaximum number of SMP processors: 1F..

170,06€

Χωρίς ΦΠΑ:137,15€

Asrock B650 STEEL LEGEND WIFI motherboard

ProcessorProcessor socket: Socket AM5Compatible processor series: AMD Ryzen 9 7th Gen, AMD Ryzen™ 7, AMD Ryzen™ 5Maximum number of SMP processors: 1Pr..

192,81€

Χωρίς ΦΠΑ:155,49€

Asrock B650I LIGHTNING WIFI motherboard

ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM5Compatible processor series: AMD Ryzen™ 7000 SeriesMaximum number of SMP processors: 1..

168,76€

Χωρίς ΦΠΑ:136,10€

Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX

ProcessorSupported processor sockets: Socket AM5Processor socket: Socket AM5Compatible processor series: AMD Ryzen 7000 SeriesProcessor manufacturer: ..

117,97€

Χωρίς ΦΠΑ:95,13€

Asrock B650M Pro RS AMD B650 Socket AM5 micro ATX

ProcessorProcessor socket: Socket AM5Compatible processor series: AMD Ryzen™ 5, AMD Ryzen™ 7Processor manufacturer: AMDFeaturesMotherboard chipset fam..

145,84€

Χωρίς ΦΠΑ:117,61€

ASRock B650M-H/M.2+ motherboard

ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM5Compatible processor series: AMD Ryzen™ 7FeaturesAudio output channels: 7.1 channelsAu..

93,87€

Χωρίς ΦΠΑ:75,70€

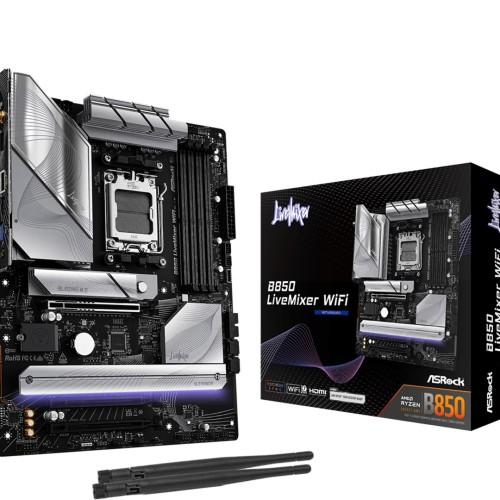

Asrock B850 LiveMixer WiFi AMD B850 Socket AM5 ATX
