Asrock B850 LiveMixer WiFi AMD B850 Socket AM5 ATX

Περιγραφή

Processor

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Graphics

Parallel processing technology support: Not supported

Maximum resolution: 3840 x 2160 pixels

HDCP: Yes

Features

Audio chip: Realtek ALC1220

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Motherboard form factor: ATX

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Product colour: Black

Motherboard chipset: AMD B850

Memory

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Memory channels: Dual-channel

Unbuffered memory: Yes

Maximum internal memory: 256 GB

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Ethernet LAN: Yes

Bluetooth version: 5.4

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: Yes

Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax)

LAN controller: Dragon RTL8125BG

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O

12V power connector: Yes

RGB LED pin header: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

TPM connector: Yes

EPS power connector (8-pin): Yes

USB 2.0 connectors: 2

CPU fan connector: Yes

Number of chassis fan connectors: 3

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 2

USB 3.2 Gen 2x2 connectors: 1

Number of water pump connectors: 1

Number of RGB LED pin headers: 4

Number of CPU fan connectors: 2

Number of EPS power connectors (8-pin): 1

BIOS

BIOS type: UEFI AMI

Packaging content

Antenna included: Yes

Cables included: SATA

Storage controllers

RAID support: Yes

RAID levels: 10, 1, 0

Supported storage drive types: HDD & SSD

Number of storage drives supported: 5

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

Rear panel I/O ports

WiFi-AP antenna jack: 2

Headphone outputs: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Microphone in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

DisplayPorts quantity: 1

USB connector type: USB Type-C, USB Type-A

USB 2.0 ports quantity: 8

Ethernet LAN (RJ-45) ports: 1

S/PDIF out port: Yes

HDMI version: 2.1

HDMI ports quantity: 1

DisplayPort version: 1.4

Expansion slots

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 2

1st M.2 largest key size: 2280

3rd M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 3

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 2280

2nd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asrock A620AM PRO RS WIFI motherboard

ProcessorCompatible processor series: AMD Ryzen 9000 Series, AMD Ryzen™ 8000 Series, AMD Ryzen 7000 SeriesProcessor manufacturer: AMDProcessor socket:..

120,50€

Χωρίς ΦΠΑ:97,18€

Asrock A620AM PRO-A motherboard

ProcessorCompatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen™ 8000 SeriesProcessor manufacturer: AMDProcessor socket:..

100,20€

Χωρίς ΦΠΑ:80,81€

Asrock B650 PG Lightning AMD B650 Socket AM5 ATX

ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM5GraphicsHDCP: YesGraphics card family: AMDOn-board graphics card: YesGraphics card: AM..

158,56€

Χωρίς ΦΠΑ:127,87€

Asrock B650 Pro RS AMD B650 Socket AM5 ATX

ProcessorCompatible processor series: AMD Ryzen 7000 SeriesProcessor socket: Socket AM5Processor manufacturer: AMDMaximum number of SMP processors: 1F..

170,06€

Χωρίς ΦΠΑ:137,15€

Asrock B650 STEEL LEGEND WIFI motherboard

ProcessorProcessor socket: Socket AM5Compatible processor series: AMD Ryzen 9 7th Gen, AMD Ryzen™ 7, AMD Ryzen™ 5Maximum number of SMP processors: 1Pr..

192,81€

Χωρίς ΦΠΑ:155,49€

Asrock B650I LIGHTNING WIFI motherboard

ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM5Compatible processor series: AMD Ryzen™ 7000 SeriesMaximum number of SMP processors: 1..

168,76€

Χωρίς ΦΠΑ:136,10€

Asrock B650M PG Lightning AMD B650 Socket AM5 micro ATX

ProcessorSupported processor sockets: Socket AM5Processor socket: Socket AM5Compatible processor series: AMD Ryzen 7000 SeriesProcessor manufacturer: ..

117,97€

Χωρίς ΦΠΑ:95,13€

Asrock B650M Pro RS AMD B650 Socket AM5 micro ATX

ProcessorProcessor socket: Socket AM5Compatible processor series: AMD Ryzen™ 5, AMD Ryzen™ 7Processor manufacturer: AMDFeaturesMotherboard chipset fam..

145,84€

Χωρίς ΦΠΑ:117,61€

ASRock B650M-H/M.2+ motherboard

ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM5Compatible processor series: AMD Ryzen™ 7FeaturesAudio output channels: 7.1 channelsAu..

93,87€

Χωρίς ΦΠΑ:75,70€

Asrock B850M Pro RS AMD B850 Socket AM5 micro ATX

ProcessorCompatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 SeriesProcessor manufacturer: AMDProcessor socket: ..

157,38€

Χωρίς ΦΠΑ:126,92€

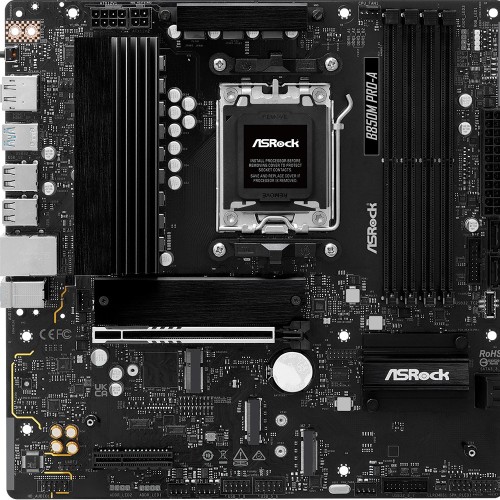

Asrock B850M Pro-A AMD B850 Socket AM5 micro ATX

ProcessorSupported processor sockets: Socket AM5Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 SeriesProces..

142,07€

Χωρίς ΦΠΑ:114,57€

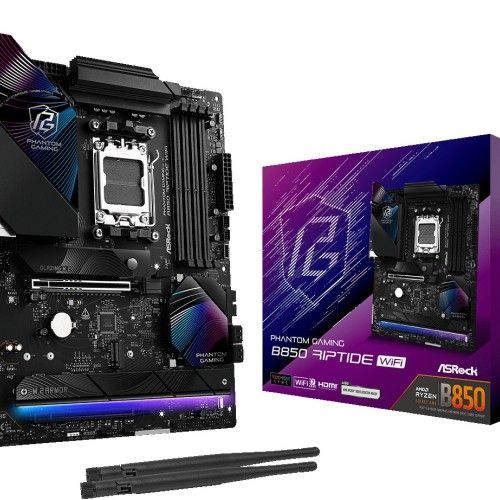

Asrock Phantom Gaming B850 Riptide WiFi AMD B850 Socket AM5 ATX
