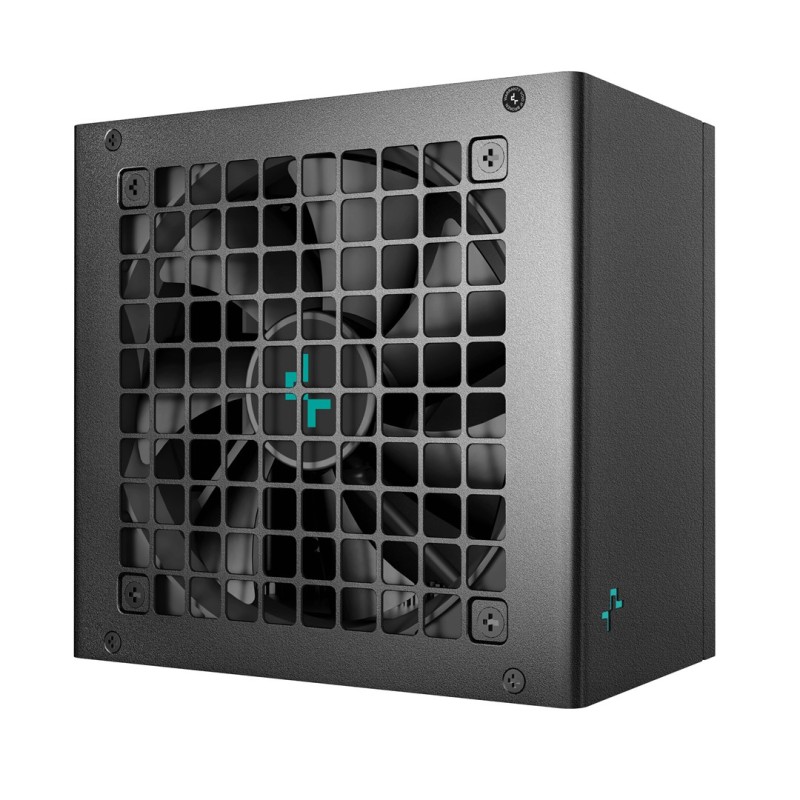

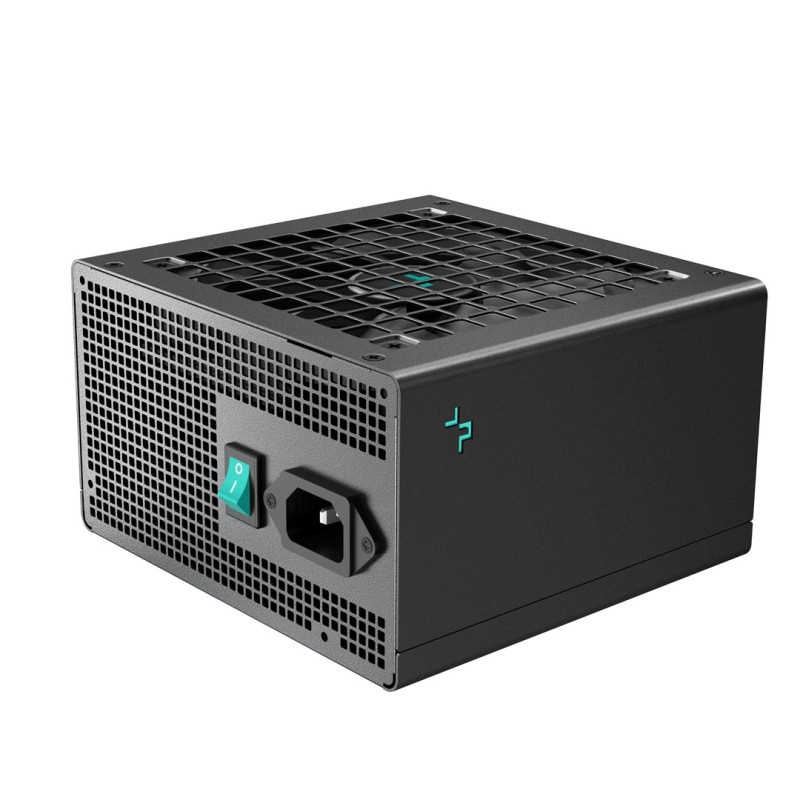

DeepCool PN850M power supply unit 850 W 20+4 pin ATX ATX Black

Περιγραφή

Technical details

Compliance certificates: RoHS, CE, WEEE, RCM, EAC, Federal Communications Commission (FCC), CCC

Sustainability certificates: Triman, ErP

Sustainability compliance: Yes

Design

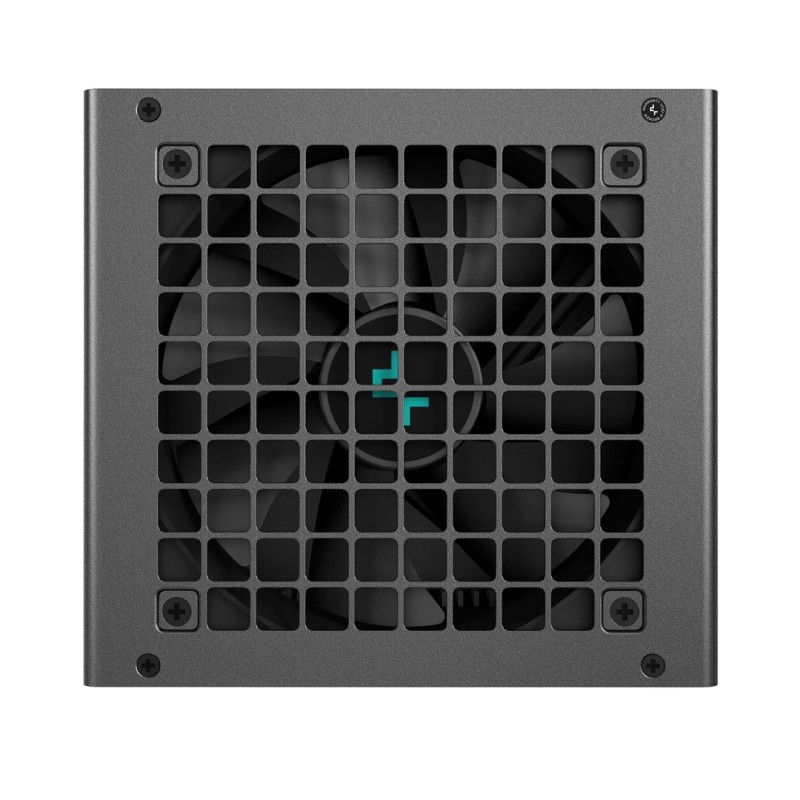

Fan diameter: 12 cm

Fan location: Top

Number of fans: 1 fan(s)

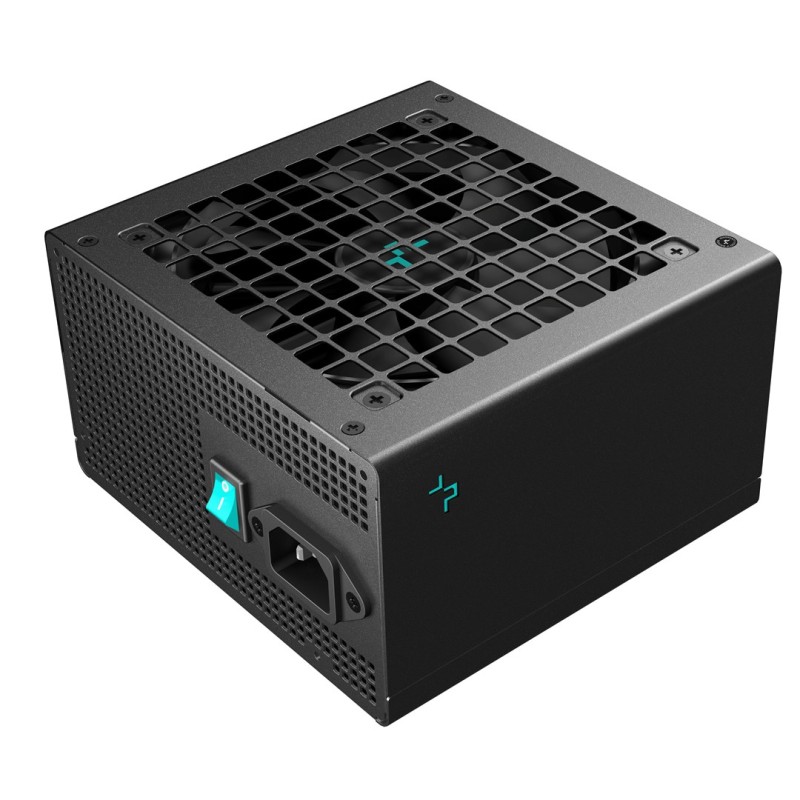

On/off switch: Yes

Cooling type: Active

Product colour: Black

Power

Hold time: 16 ms

Power protection features: No load operation, Over power, Surge & inrush protection (SIP), Overheating, Surge protection, Short circuit, Over voltage, Under voltage

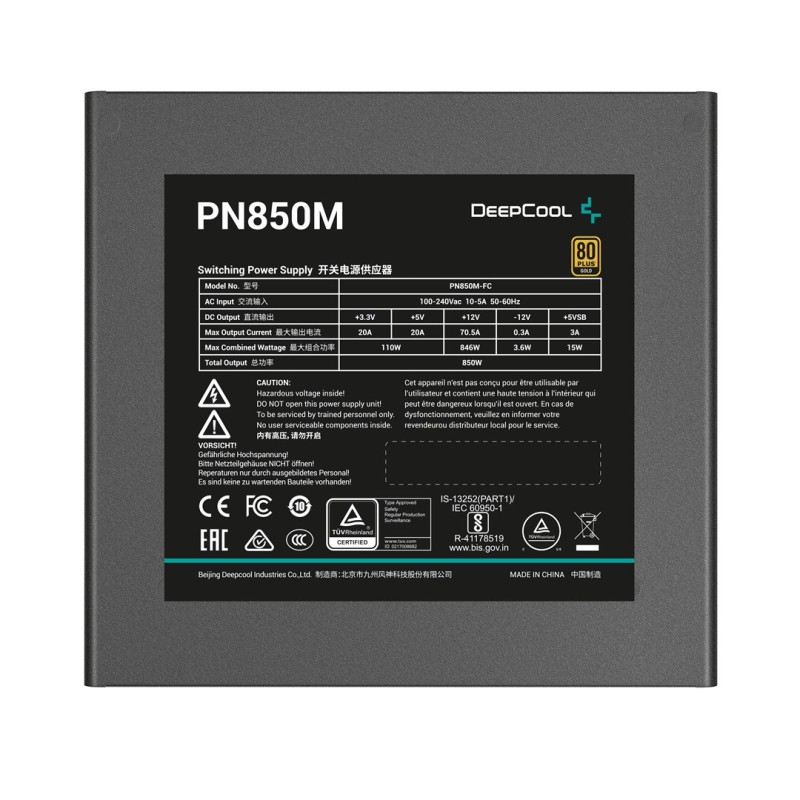

Total power: 850 W

Combined power (-12V): 3.6 W

Efficiency: 90%

Max output current (+12V): 70.5 A

Combined power (+5Vsb): 15 W

Combined power (+5V): 110 W

Max output current (+5V): 20 A

Max output current (-12V): 0.3 A

Max output current (+3.3V): 20 A

Power Good signal delay range: 100 - 150 ms

Combined power (+12V): 846 W

Max output current (+5Vsb): 3 A

Combined power (+3.3V): 110 W

Power Factor Correction (PFC) type: Active

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Input current: 10 - 5 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 150 mm

Height: 86 mm

Depth: 140 mm

Performance

ATX version: 3.1

Mean time between failures (MTBF): 100000 h

Purpose: PC

Bearing technology: FDB

Power supply unit (PSU) form factor: ATX

80 PLUS certification: 80 PLUS Gold

Packaging data

Package type: Box

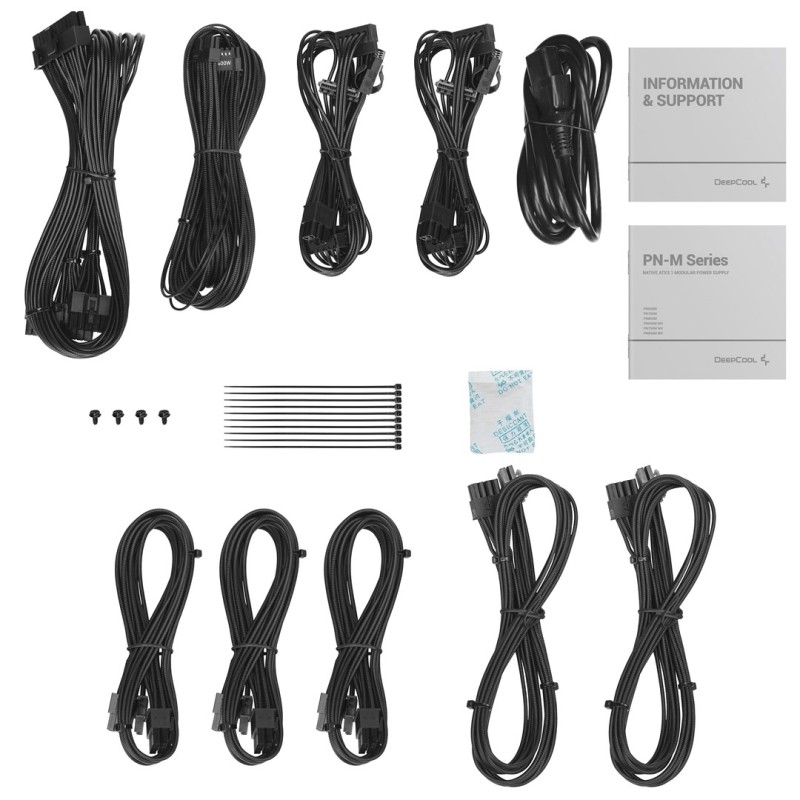

Packaging content

Cable tie(s) included: Yes

Cables included: AC

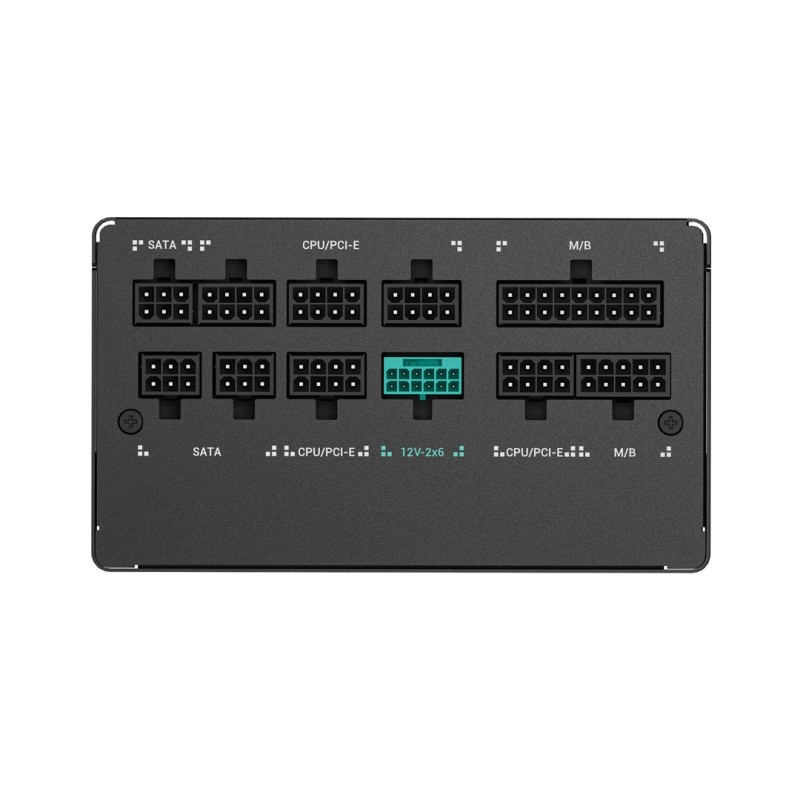

Ports & interfaces

Number of SATA power connectors: 8

SATA power cable length: 550, 450, 650 mm, 750

PCI Express power connectors (6+2 pin): 3

Peripheral (Molex) power cable length: 850 mm

Motherboard power connector: 20+4 pin ATX

CPU power cable length: 70 cm

Motherboard power cable length: 55 cm

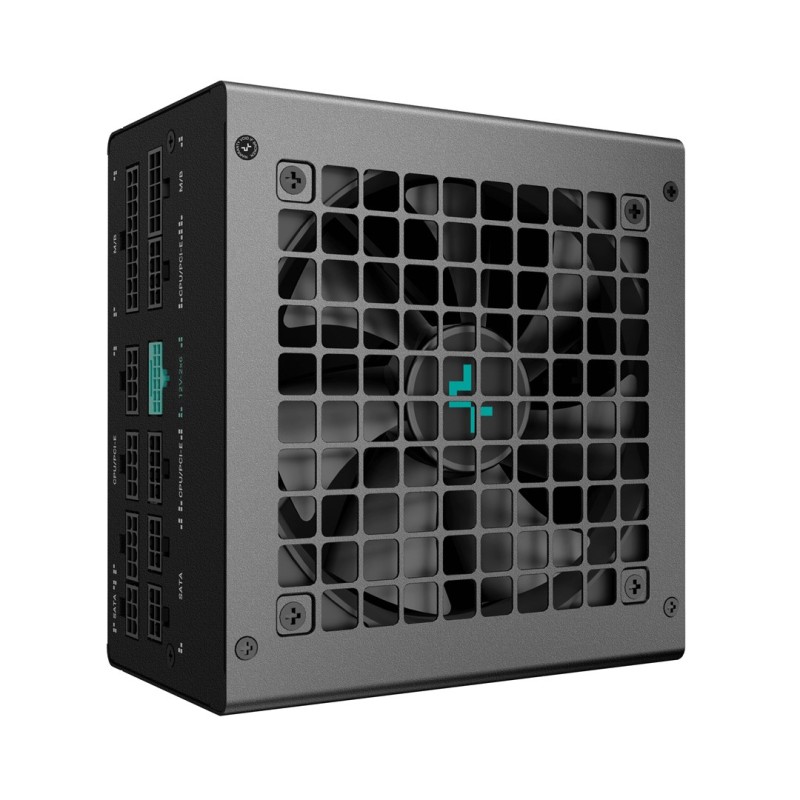

Cabling type: Fully-Modular

ATX power connector (20+4 pin): Yes

CPU power connector (4+4 pin): Yes

Peripheral (Molex) power connectors (4-pin): 2

PCI Express power connectors (16-pin): 1
