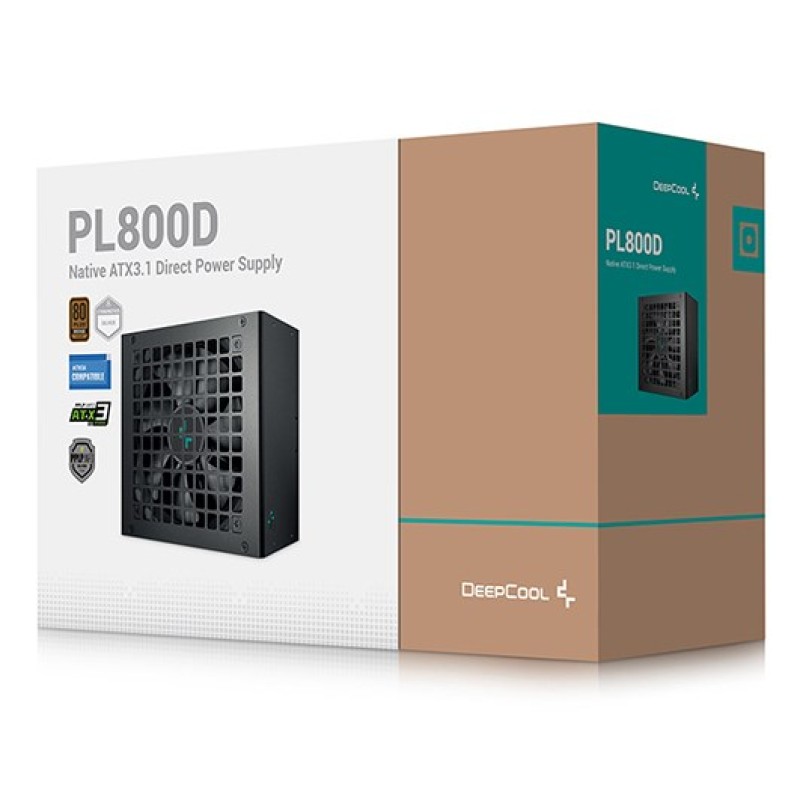

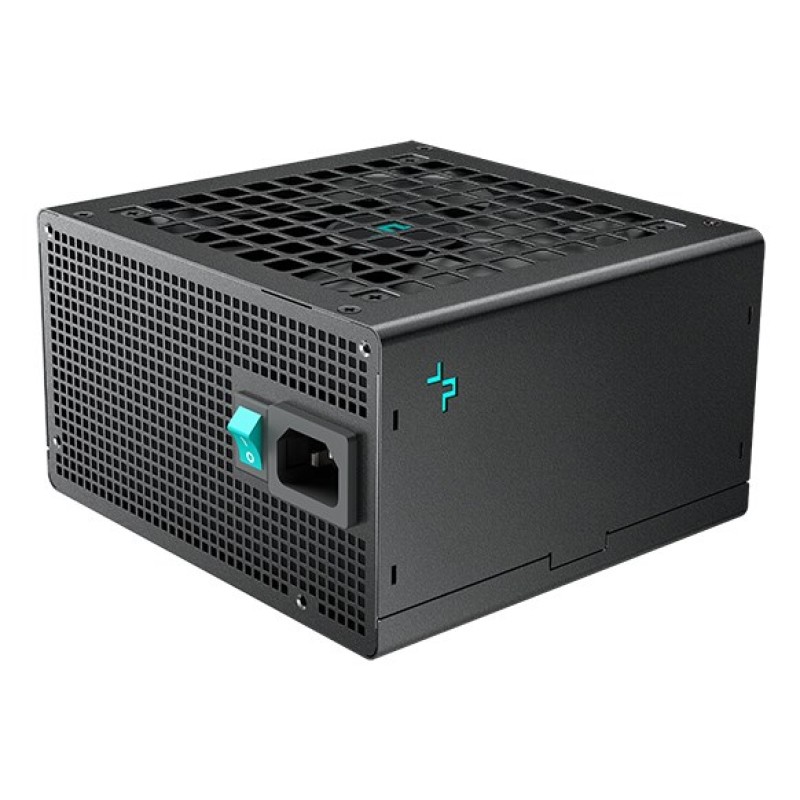

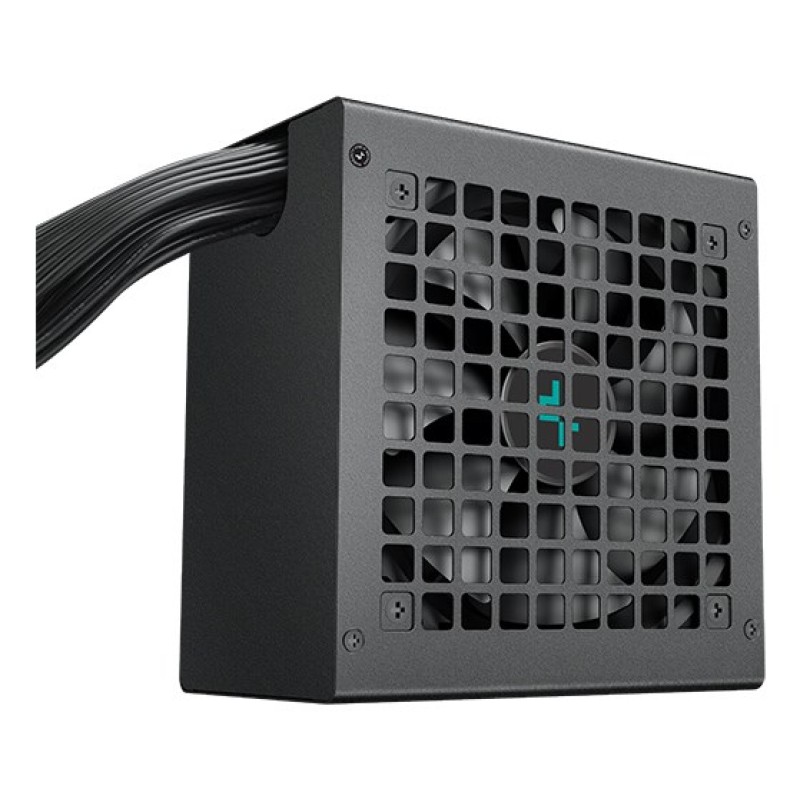

DeepCool PL800D power supply unit 800 W 20+4 pin ATX ATX Black

Περιγραφή

Technical details

Sustainability certificates: ErP, Triman

Sustainability compliance: Yes

Design

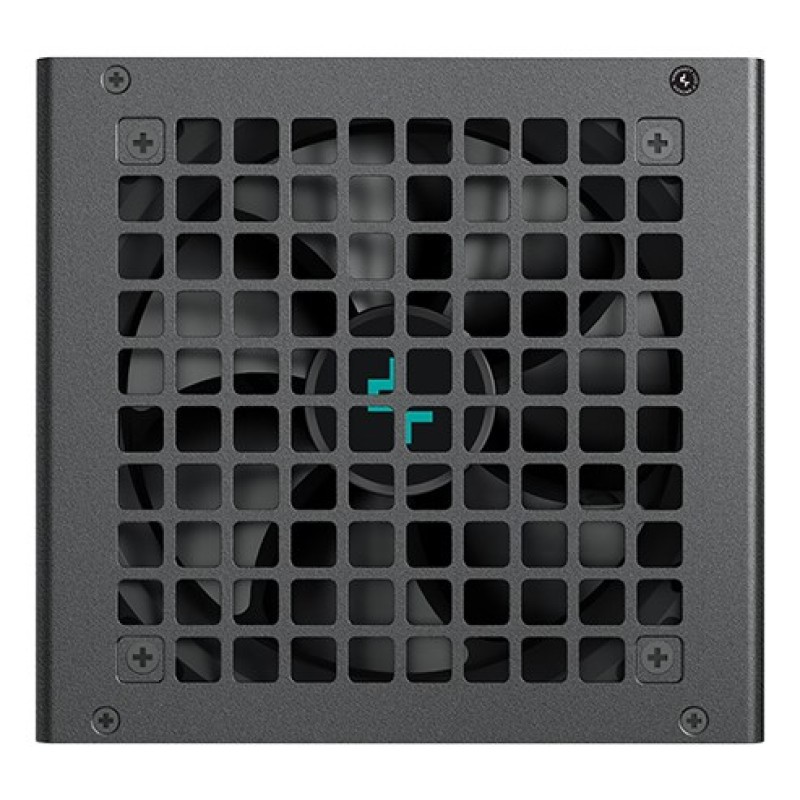

Fan location: Top

Fan diameter: 12 cm

Number of fans: 1 fan(s)

On/off switch: Yes

Cooling type: Active

Product colour: Black

Power

Power protection features: Under voltage, Over current, No load operation, Surge & inrush protection (SIP), Overheating, Surge protection, Over voltage, Over power

Combined power (-12V): 3.6 W

Total power: 800 W

Hold time: 16 ms

Max output current (+12V): 54 A

Max output current (+5V): 20 A

Combined power (+5V): 100 W

Efficiency: 85%

Max output current (+3.3V): 20 A

Combined power (+12V): 648 W

Combined power (+3.3V): 100 W

Max output current (+5Vsb): 3 A

Power Good signal delay range: 100 - 150 ms

Max output current (-12V): 0.3 A

Combined power (+5Vsb): 15 W

Power Factor Correction (PFC) type: Active

AC input frequency: 50/60 Hz

Input current: 9 - 4.5 A

AC input voltage: 100 - 240 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Height: 86 mm

Depth: 140 mm

Width: 150 mm

Performance

80 PLUS certification: 80 PLUS Bronze

Mean time between failures (MTBF): 100000 h

Power supply unit (PSU) form factor: ATX

Purpose: PC

ATX version: 3.0

Bearing technology: HYB

Packaging data

Package type: Box

Certificates

Compliance certificates: WEEE, RoHS

Ports & interfaces

Cabling type: Non-Modular

CPU power connector (4+4 pin): Yes

SATA power cable length: 650, 450 mm, 550 mm

Motherboard power connector: 20+4 pin ATX

PCI Express power connectors (6+2 pin): 3

Number of SATA power connectors: 6

Peripheral (Molex) power connectors (4-pin): 2

ATX power connector (20+4 pin): Yes

Motherboard power cable length: 55 cm

PCI Express power connectors (16-pin): 1
