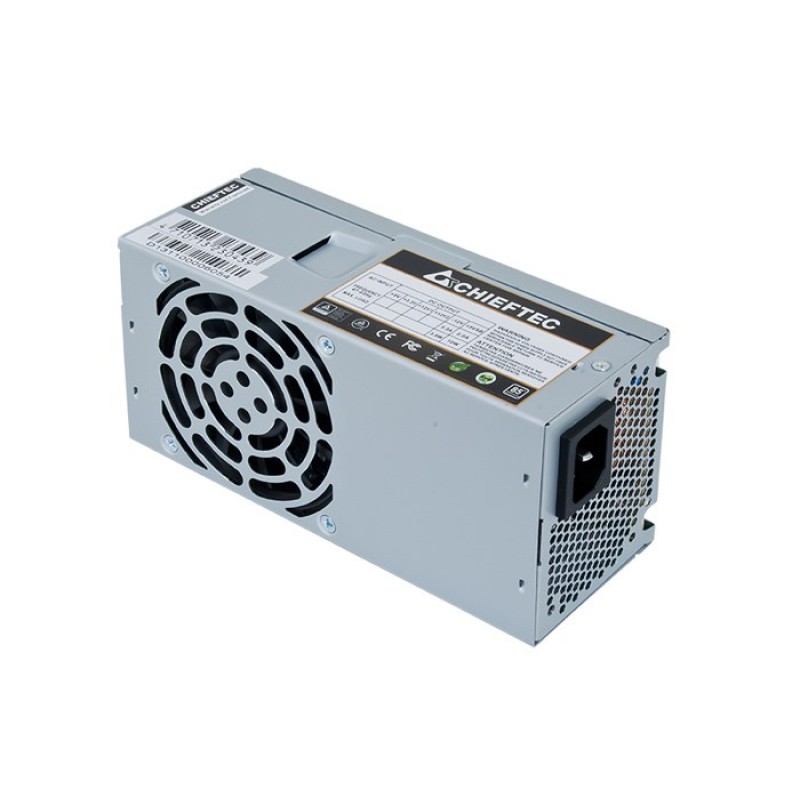

Chieftec GPF-350P power supply unit 350 W 20+4 pin ATX TFX Silver

Περιγραφή

Technical details

Compliance certificates: RoHS

Sustainability certificates: RoHS

Design

Fan diameter: 8 cm

Product colour: Silver

On/off switch: No

Number of fans: 1 fan(s)

Power

Max output current (+12V1): 15 A

AC input frequency: 47 - 63 Hz

Power factor: 0.9

Power protection features: Overload, Short circuit, Over voltage

Total power: 350 W

Efficiency: 85%

Combined power (+12V): 300 W

Combined power (+5Vsb): 10 W

AC input voltage: 115 - 230 V

Max output current (+5Vsb): 2 A

Max output current (+3.3V): 16 A

Max output current (+12V2): 15 A

Power Factor Correction (PFC) type: Active

Combined power (+3.3V): 100 W

Input current: 6.3 A

Combined power (+5V): 100 W

Max output current (-12V): 0.3 A

Max output current (+5V): 16 A

Combined power (-12V): 3.6 W

Weight & dimensions

Width: 86 mm

Height: 65 mm

Depth: 175 mm

Performance

Bearing technology: Sleeve

Power supply unit (PSU) form factor: TFX

ATX version: 2.3

Purpose: PC

Ports & interfaces

Motherboard power connector: 20+4 pin ATX

Cabling type: Non-Modular

Floppy disk drive connector: Yes

CPU P4 connector (4-pin): 1

Peripheral (Molex) power connectors (4-pin): 2

Number of SATA power connectors: 2

Logistics data

Harmonized System (HS) code: 84733020
