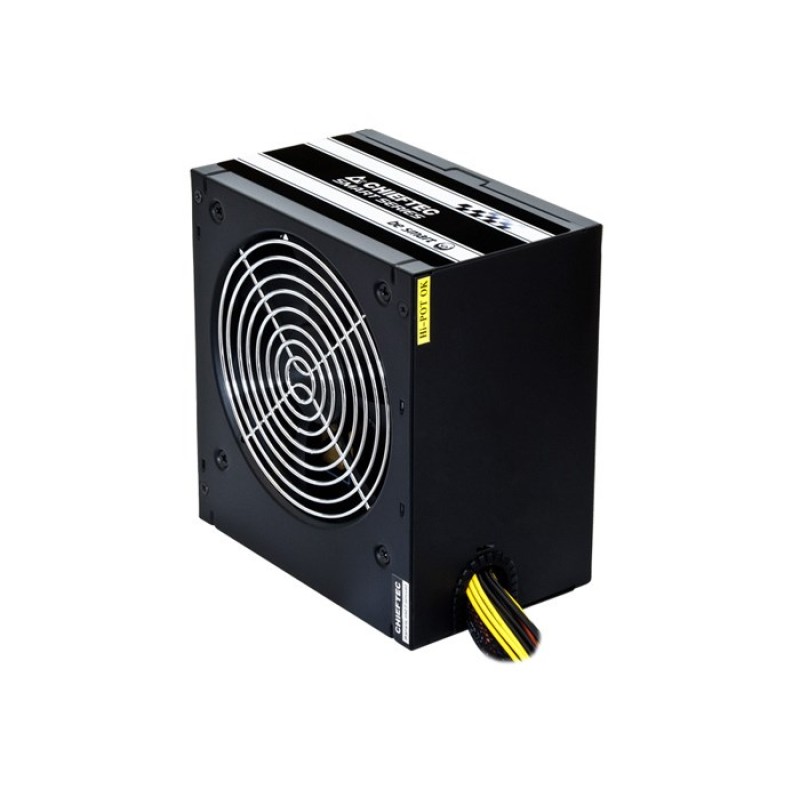

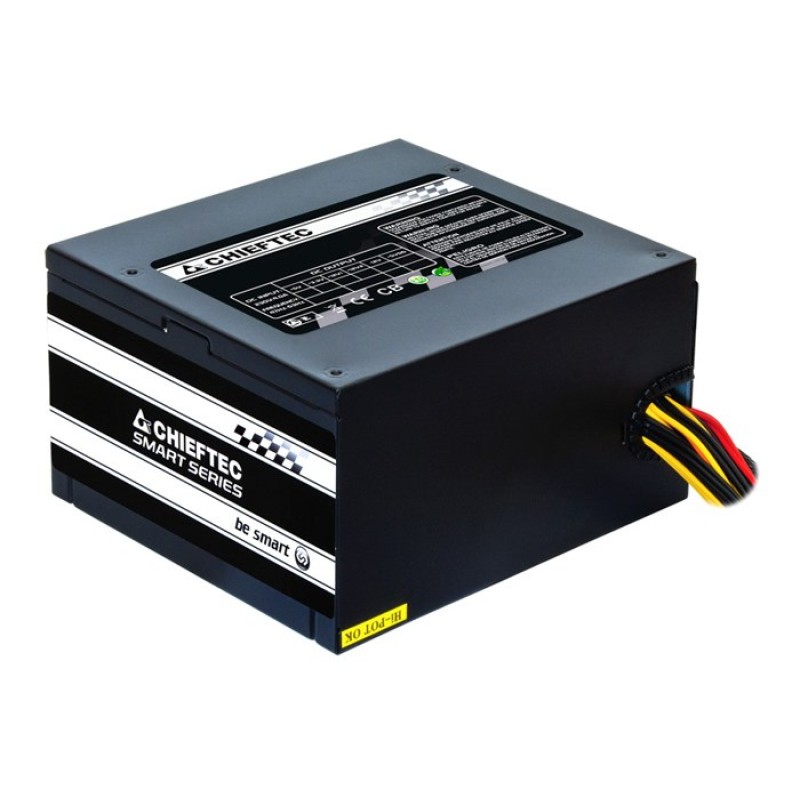

Chieftec Smart GPS-500A8 power supply unit 500 W 20+4 pin ATX ATX Black

Περιγραφή

Design

Fan diameter: 12 cm

Product colour: Black

Cooling type: Active

Power

Power protection features: Overheating, Overload, Short circuit, Over voltage, Under voltage, Over current

AC input frequency: 47 - 63 Hz

Max output current (+12V1): 24 A

Combined power (+12V): 408 W

Efficiency: 80%

Total power: 500 W

Max output current (+12V2): 21 A

AC input voltage: 230 V

Max output current (+5V): 19 A

Max output current (+5Vsb): 3 A

Max output current (-12V): 0.3 A

Max output current (+12V): 12.5 A

Combined power (-12V): 3.6 W

Combined power (+5V): 130 W

Combined power (+3.3V): 130 W

Max output current (+3.3V): 22 A

Weight & dimensions

Depth: 140 mm

Width: 150 mm

Height: 87 mm

Performance

Purpose: PC

Power supply unit (PSU) form factor: ATX

80 PLUS certification: No

ATX version: 2.3

Ports & interfaces

Floppy drive power connector: 1

Peripheral (Molex) power connectors (4-pin): 2

Number of SATA power connectors: 3

PCI Express power connectors (6+2 pin): 1

Cabling type: Non-Modular

Motherboard power connector: 20+4 pin ATX
