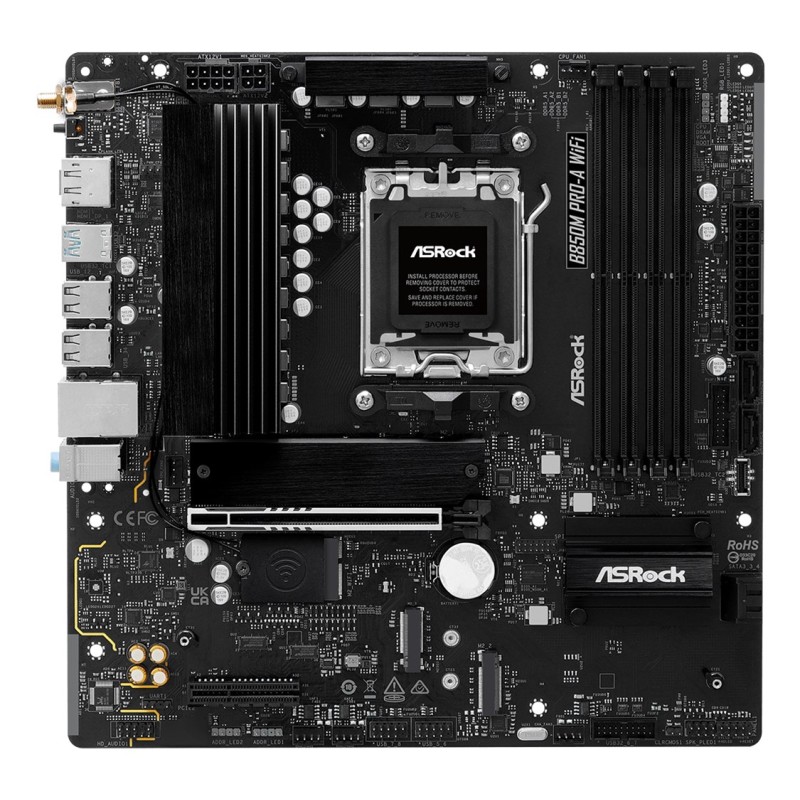

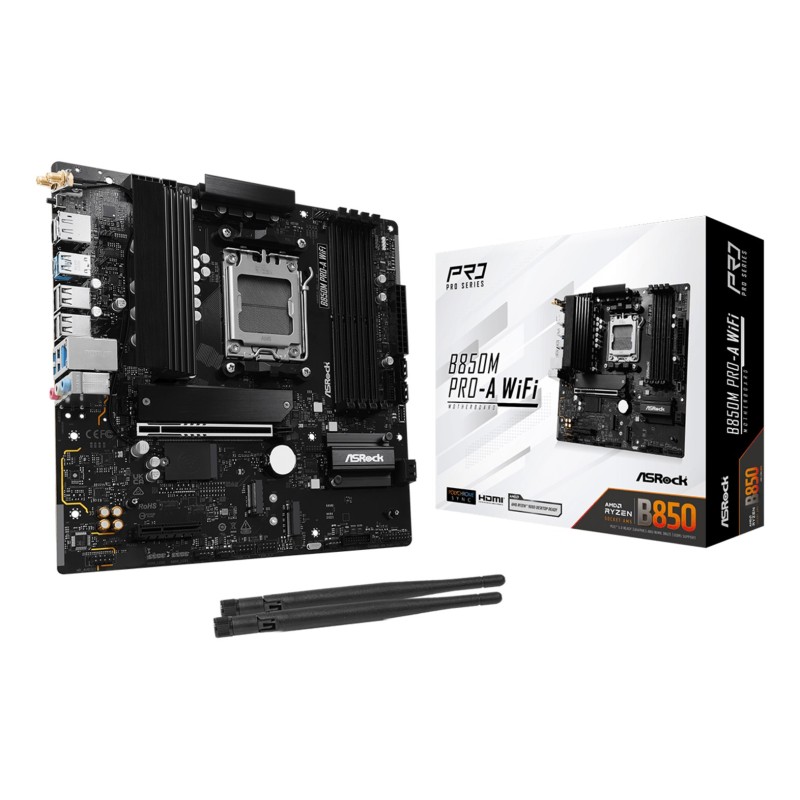

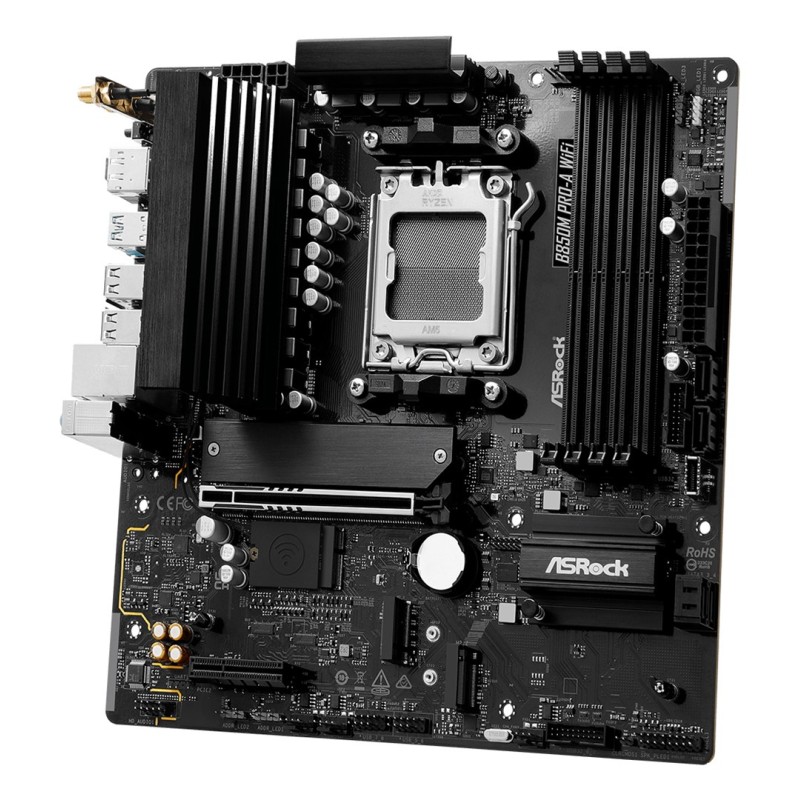

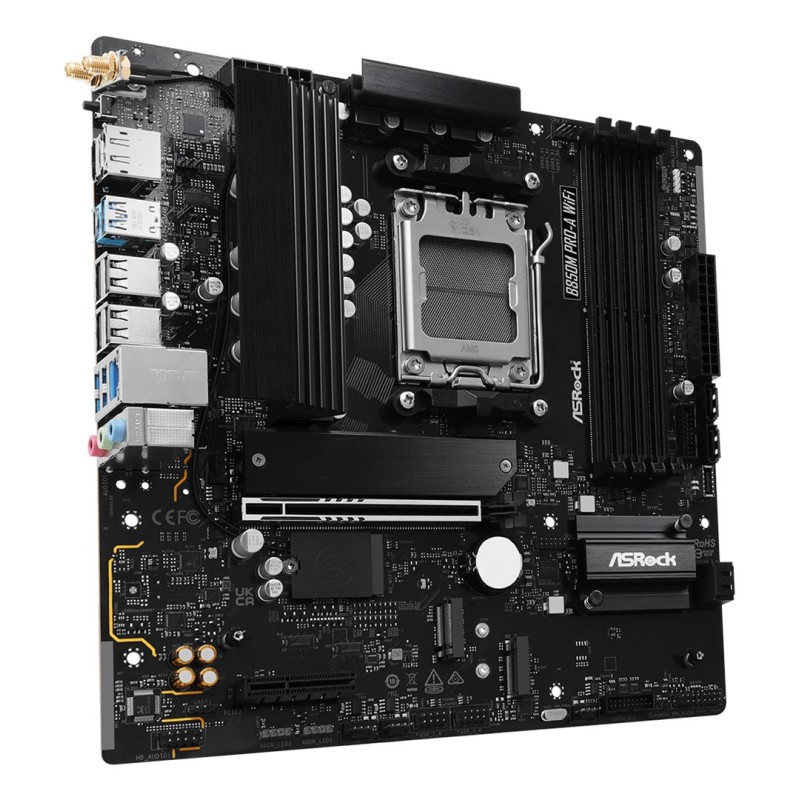

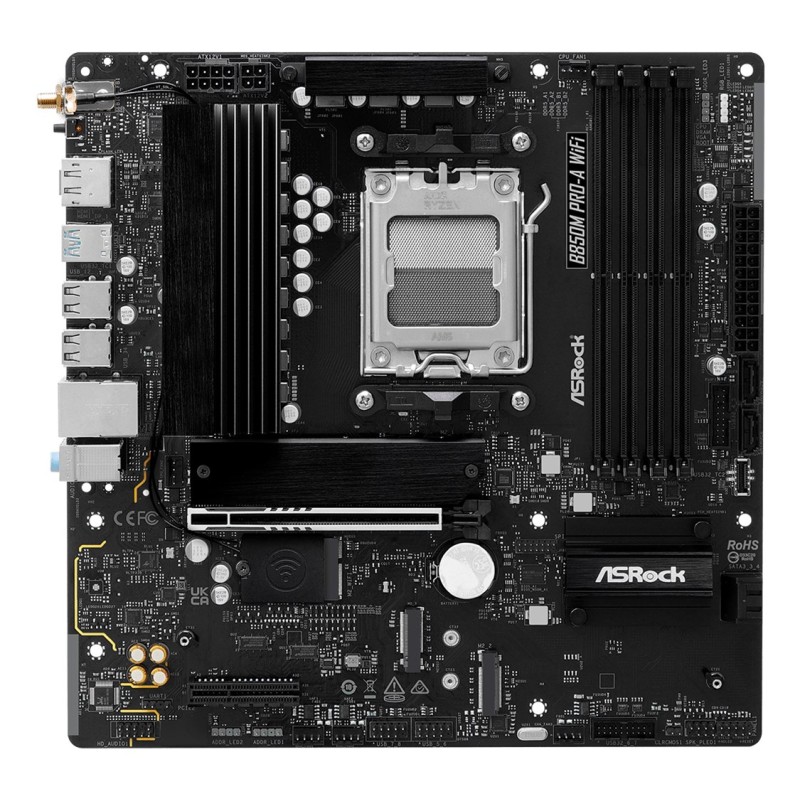

Asrock B850M Pro-A WiFi AMD B850 Socket AM5 micro ATX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Graphics

Parallel processing technology support: Not supported

HDCP: Yes

Maximum resolution: 3840 x 2160 pixels

Features

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Audio chip: Realtek ALC897

Motherboard chipset: AMD B850

Audio output channels: 7.1 channels

Motherboard chipset family: AMD

Product colour: Black

Motherboard form factor: micro ATX

Memory

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Maximum internal memory: 256 GB

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Depth: 244 mm

Width: 244 mm

Network

Wi-Fi standards: 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11b

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.2

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Ethernet LAN: Yes

Bluetooth: Yes

Wi-Fi: Yes

LAN controller: Dragon RTL8125BG

Internal I/O

USB 2.0 connectors: 2

TPM connector: Yes

EPS power connector (8-pin): Yes

CPU fan connector: Yes

Number of SATA III connectors: 4

RGB LED pin header: Yes

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

12V power connector: Yes

Number of chassis fan connectors: 3

Number of EPS power connectors (8-pin): 1

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

BIOS

BIOS type: UEFI AMI

Packaging content

Antenna included: Yes

Cables included: SATA

Storage controllers

Number of storage drives supported: 7

RAID levels: 0, 1, 10

RAID support: Yes

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

Supported storage drive types: HDD & SSD

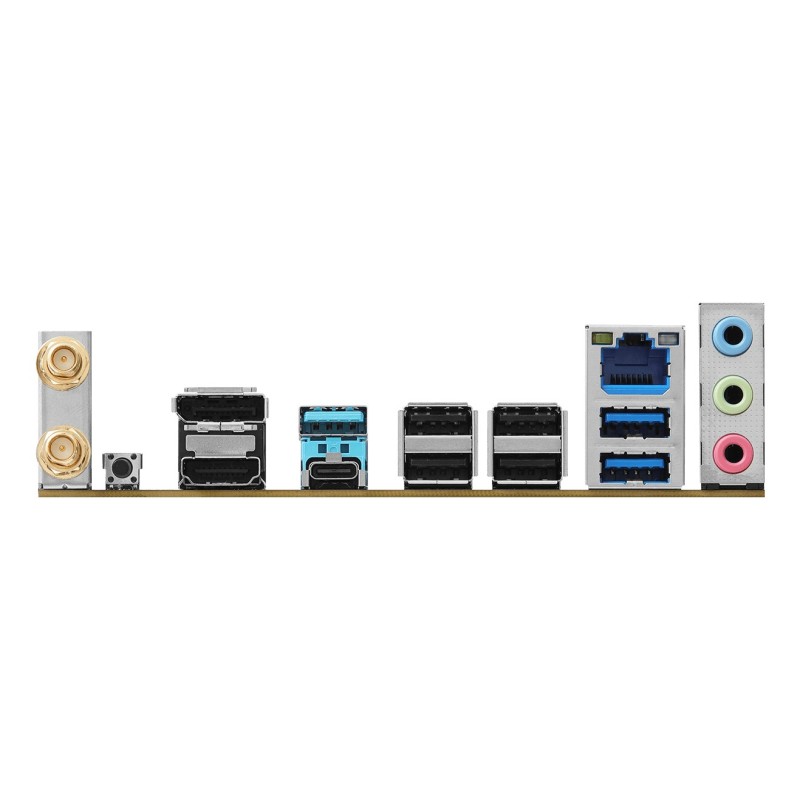

Rear panel I/O ports

DisplayPort version: 1.4

USB connector type: USB Type-C, USB Type-A

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 2.0 ports quantity: 4

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

DisplayPorts quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Headphone outputs: 3

WiFi-AP antenna jack: 2

HDMI version: 2.1

Microphone in: Yes

Line-in: Yes

Expansion slots

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x4 (Gen 4.x) slots: 1

1st M.2 largest key size: 2280

3rd M.2 largest key size: 2280

3rd M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

2nd M.2 highest PCI Express generation: 4.0

Safety warning

Warnings: Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage.
