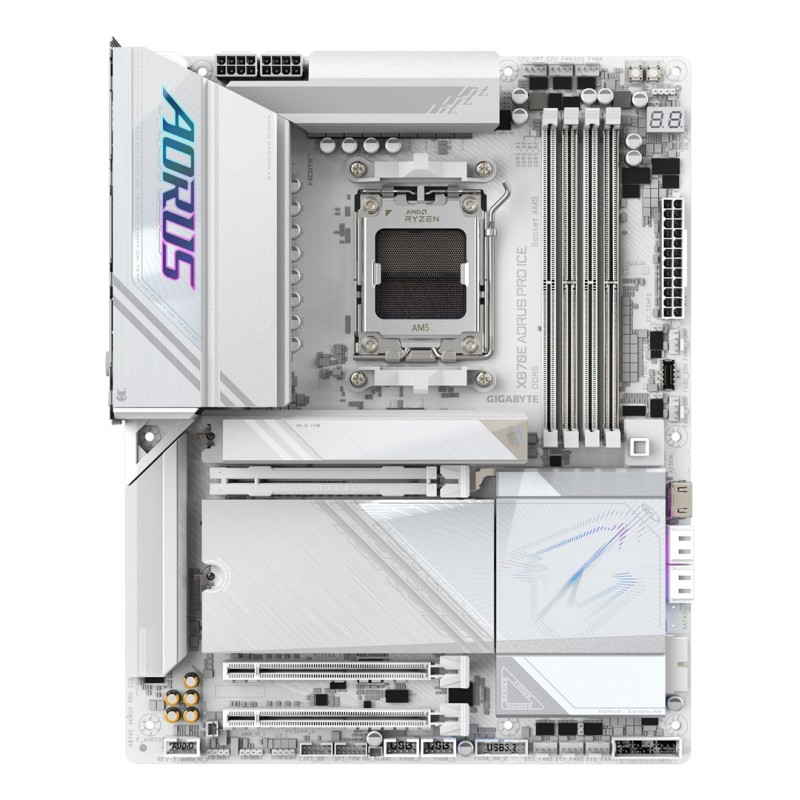

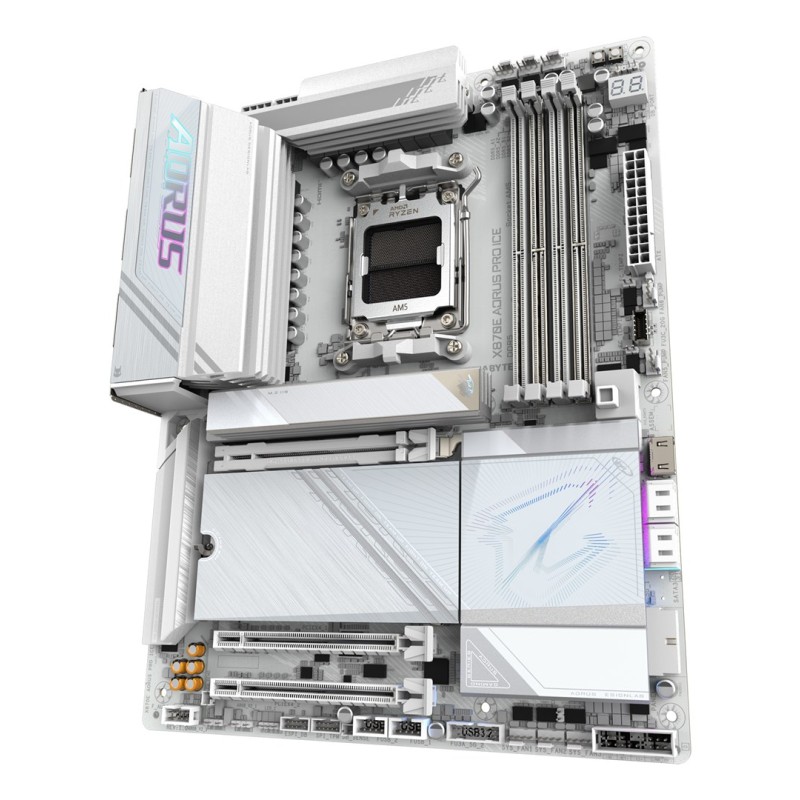

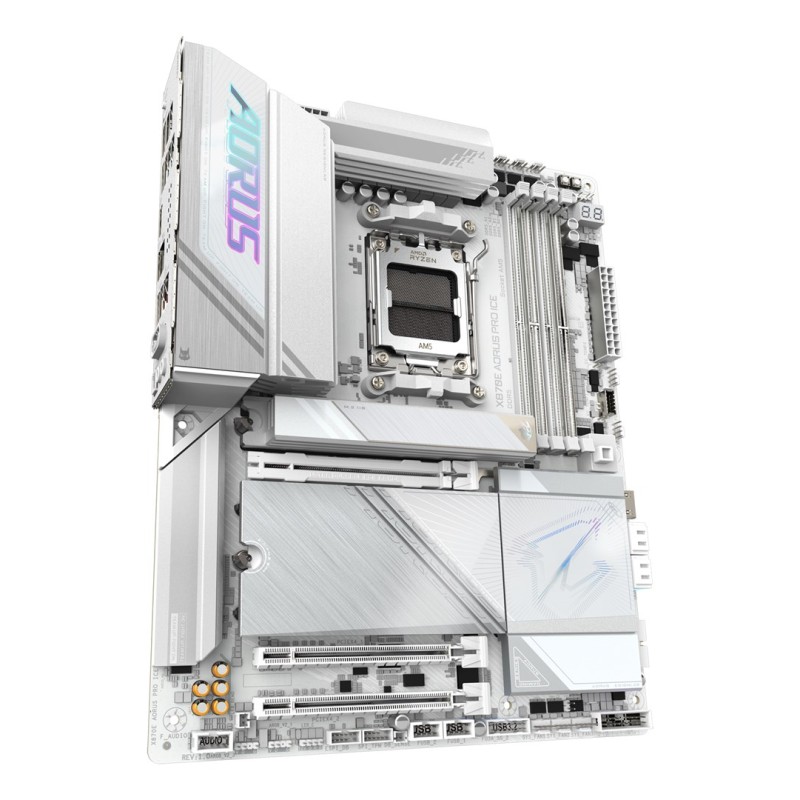

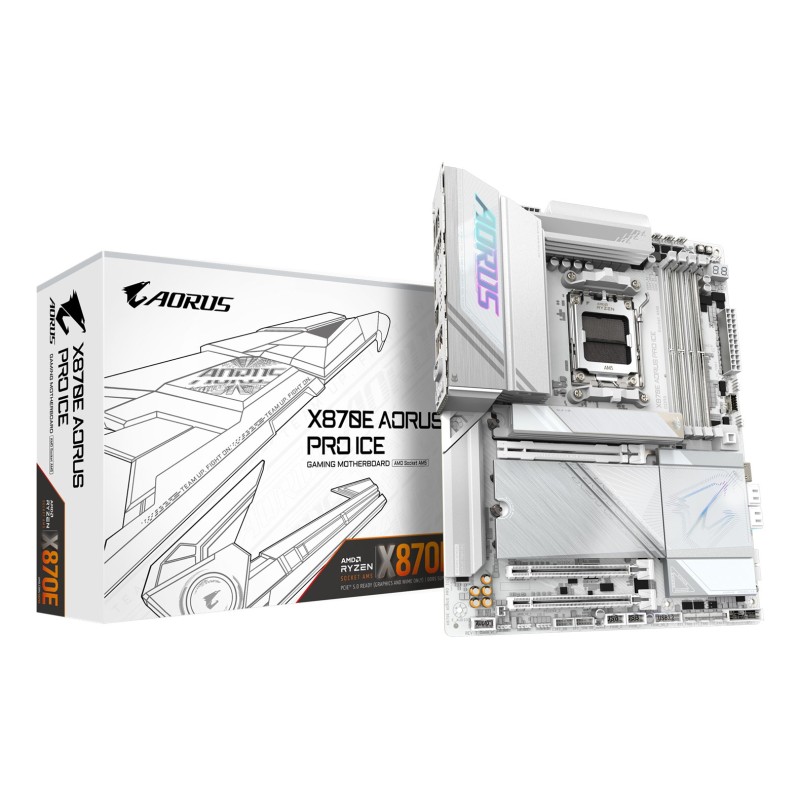

Płyta główna Gigabyte X870E AORUS PRO ICE

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Maximum internal memory supported by processor: 256 GB

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets: Socket AM5

Processor socket: Socket AM5

Graphics

DirectX version: 12.0

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Motherboard chipset: AMD X870E

Motherboard chipset family: AMD

Motherboard form factor: ATX

PC health monitoring: Fan, Temperature, Voltage

Product colour: White

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 11 x64

Audio chip: Realtek ALC1220

Memory

Supported memory clock speed (max): 8200 MHz

Maximum internal memory per slot: 64 GB

ECC сompatibility: Non-ECC

Supported memory clock speeds: 6000, 7600, 7800, 4800, 6400, 4400, 6200, 6600, 5600 MHz, 8000, 6800, 7000, 8200

Maximum internal memory: 256 GB

Memory slots type: DIMM

Unbuffered memory: Yes

Supported memory module capacities: 8GB, 24GB, 12GB, 2GB, 4GB, 32GB, 1GB

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Height: 35 mm

Network

Bluetooth version: 5.3

WLAN controller model: Qualcomm QCNCM865

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Realtek RTL8125

Bluetooth: Yes

Wi-Fi: Yes

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi standards: Wi-Fi 7 (802.11be)

Internal I/O

RGB LED pin header: Yes

Audio connector: Yes

Number of CPU fan connectors: 2

USB 3.2 Gen 2x2 connectors: 1

Number of water pump connectors: 2

Number of RGB LED pin headers: 4

Number of EPS power connectors (8-pin): 2

Number of SATA III connectors: 4

USB 2.0 connectors: 2

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

TPM connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of chassis fan connectors: 6

ATX Power connector (24-pin): Yes

BIOS

Desktop Management Interface (DMI) version: 2.7

Clear CMOS button: Yes

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Packaging data

Package width: 345 mm

Package height: 80 mm

Package depth: 294 mm

Package weight: 2.74 kg

Packaging content

Screws included: Yes

Antenna included: Yes

Batteries included: Yes

Storage controllers

Number of HDDs supported: 4

RAID levels: 0, 10, 1

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

Number of storage drives supported: 8

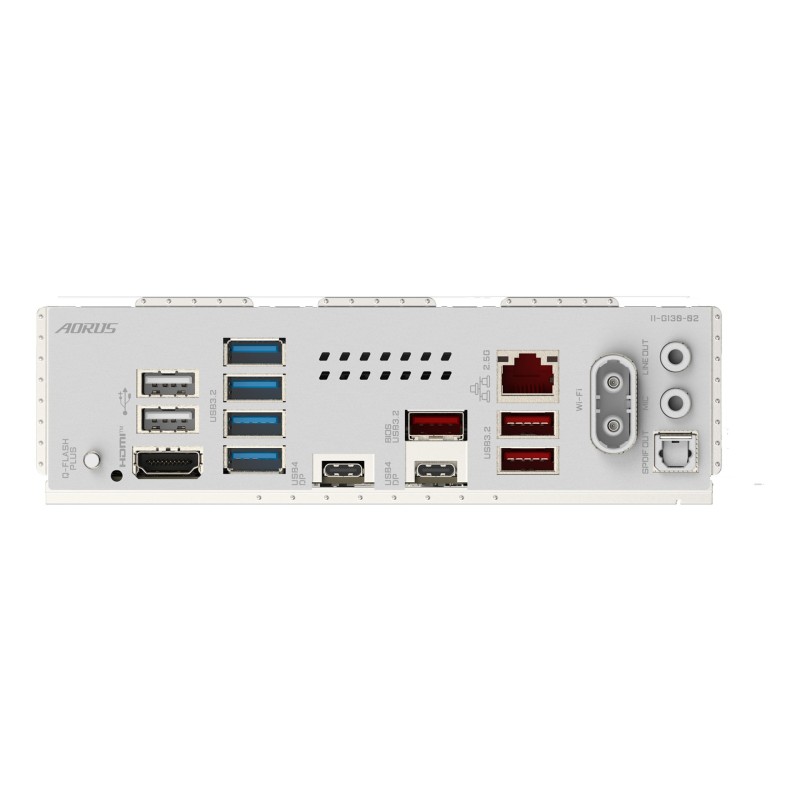

Rear panel I/O ports

WiFi-AP antenna jack: 2

USB4 Gen 2x2 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3

USB 2.0 ports quantity: 2

S/PDIF out port: Yes

HDMI ports quantity: 1

HDMI version: 2.1

Headphone outputs: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

DisplayPort version: 1.4

Microphone in: Yes

Expansion slots

PCI Express x4 slots: 2

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

2nd M.2 highest PCI Express generation: 5.0

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 22110

1st M.2 largest key size: 25110

4th M.2 largest key size: 22110

3rd M.2 largest key size: 22110

3rd M.2 highest PCI Express generation: 5.0

4th M.2 highest PCI Express generation: 4.0

Number of M.2 (M) slots: 4

PCI Express x16 (Gen 3.x) slots: 1

Battery

Battery weight: 3 g

Number of battery cells: 1

Lithium weight per battery: 0.07 g

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Other features

Weight: 2.4 kg

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China
