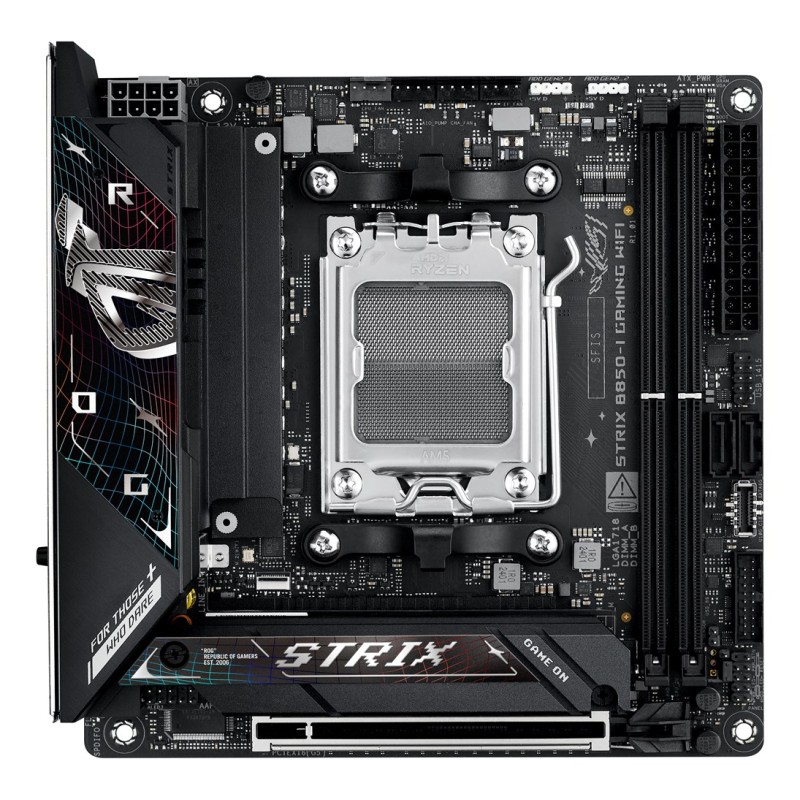

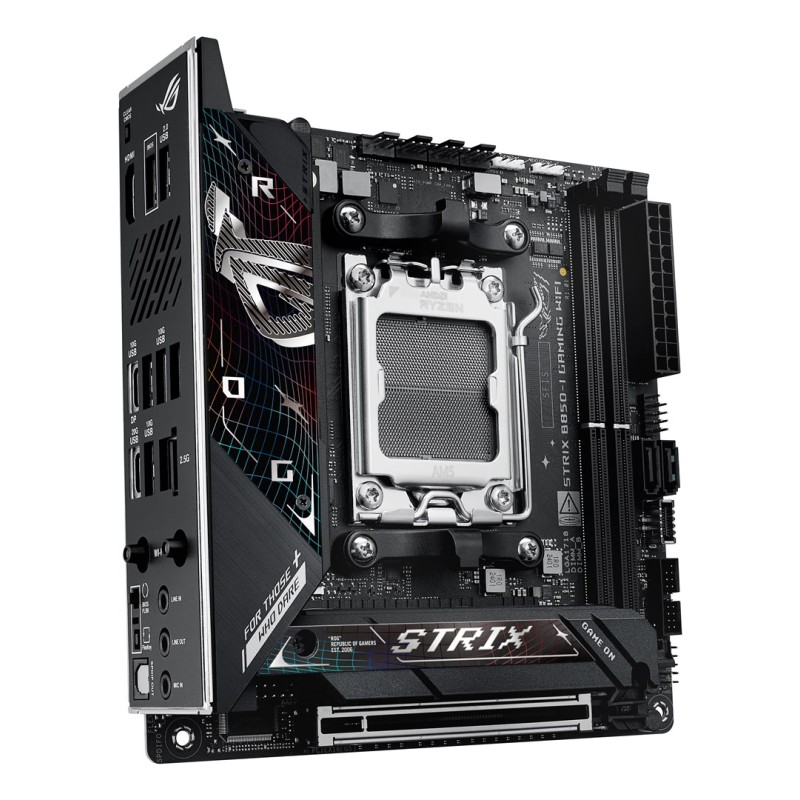

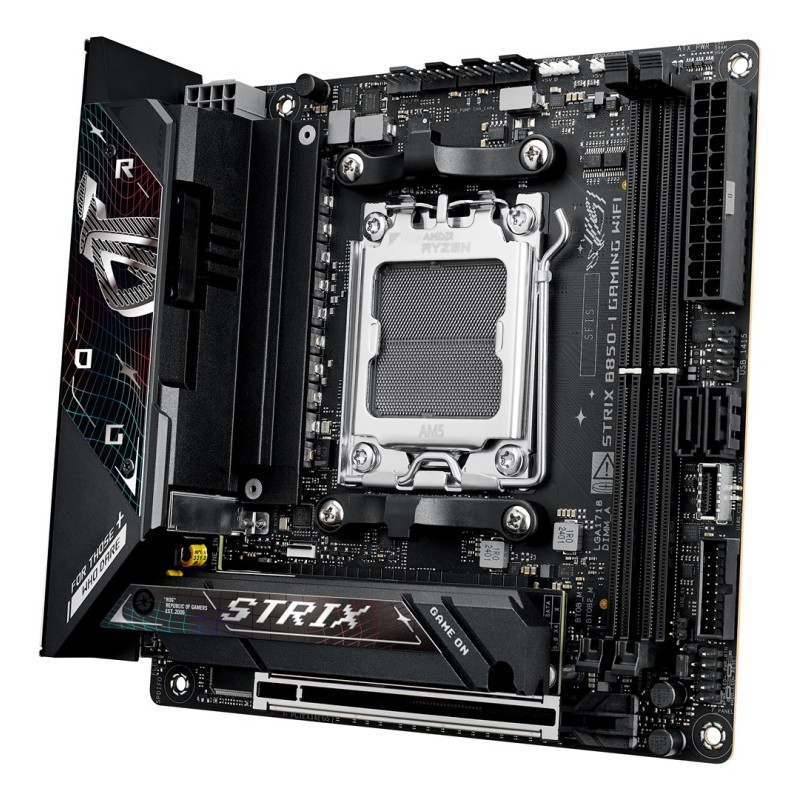

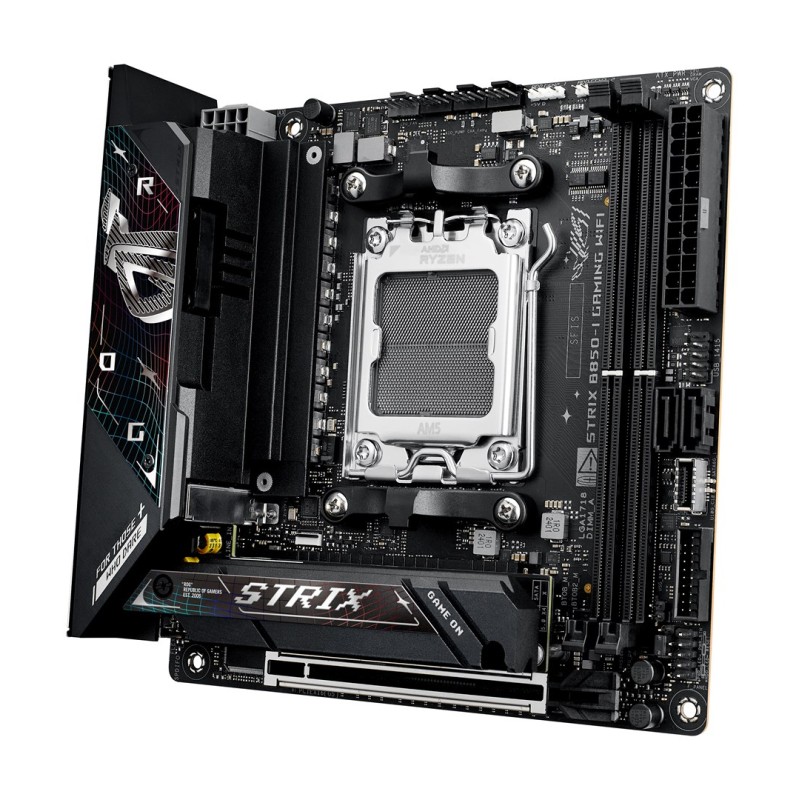

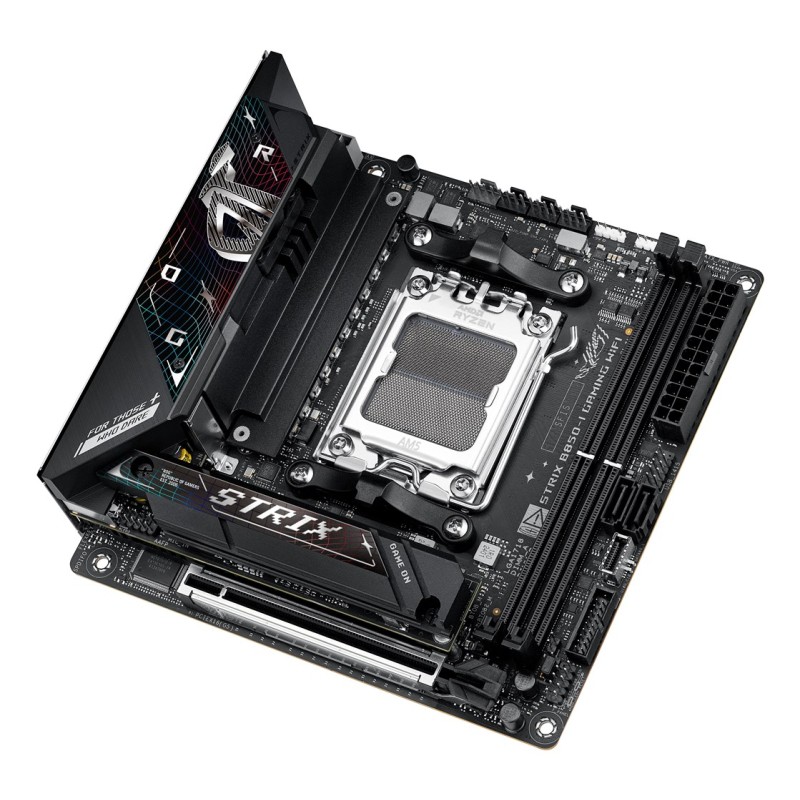

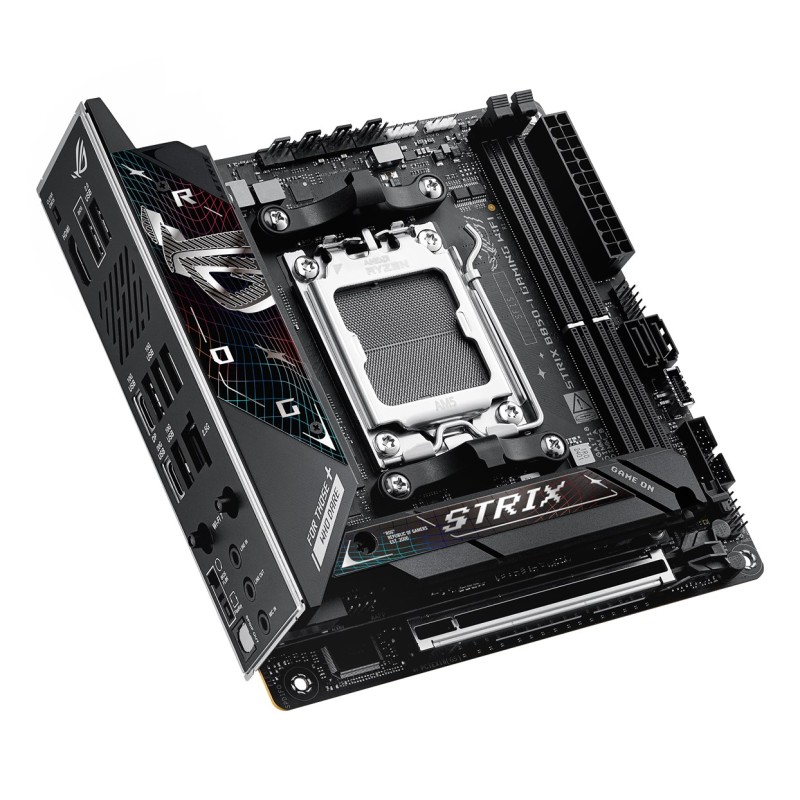

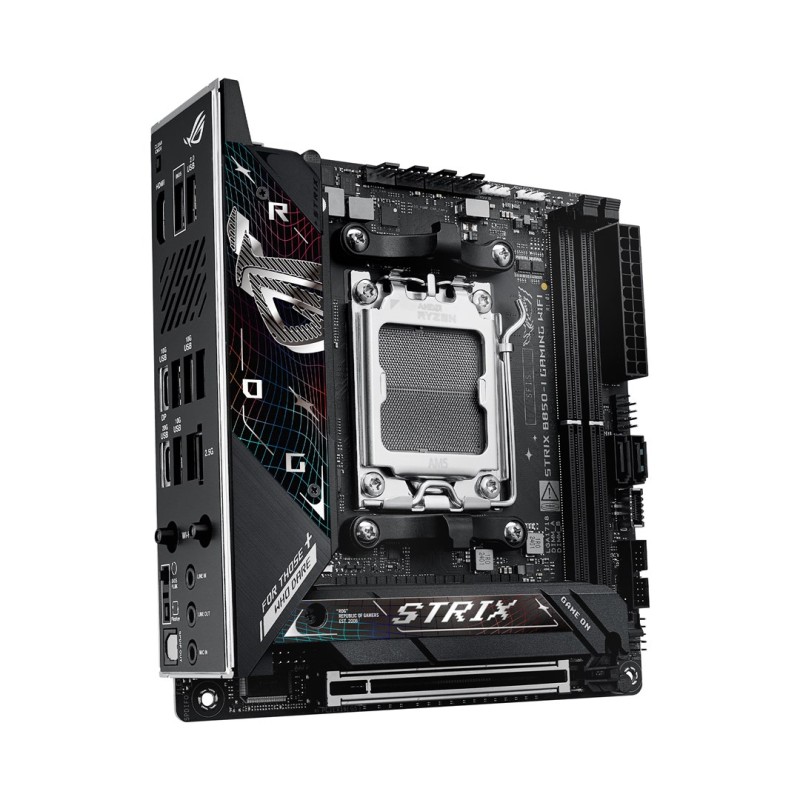

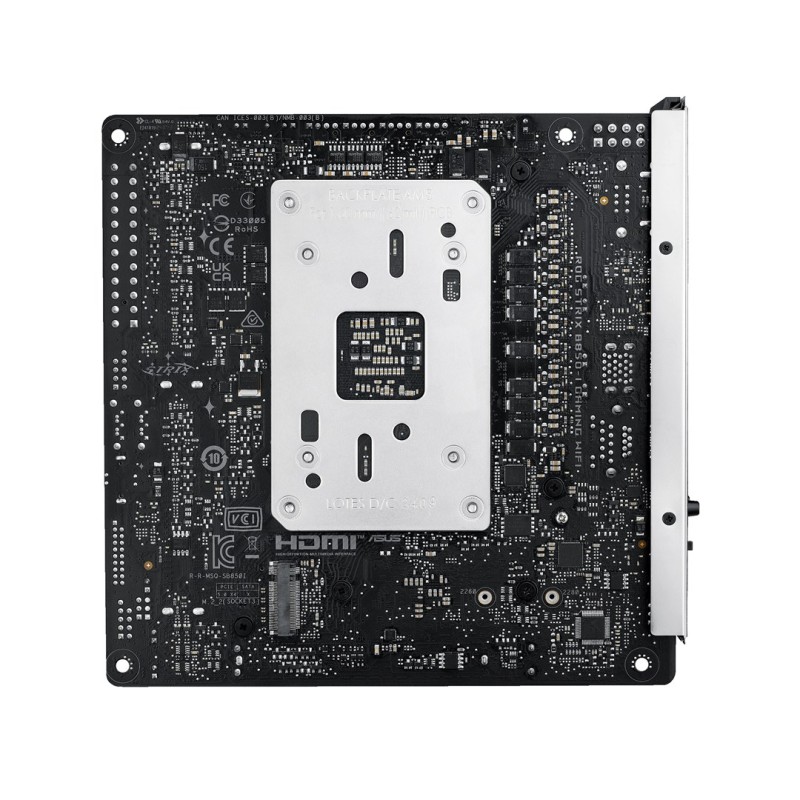

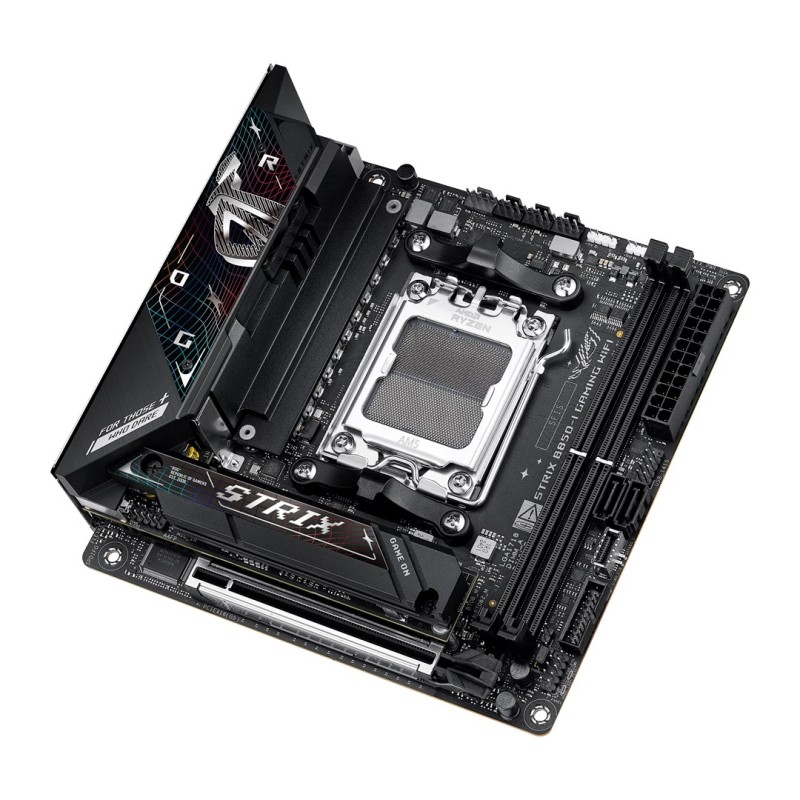

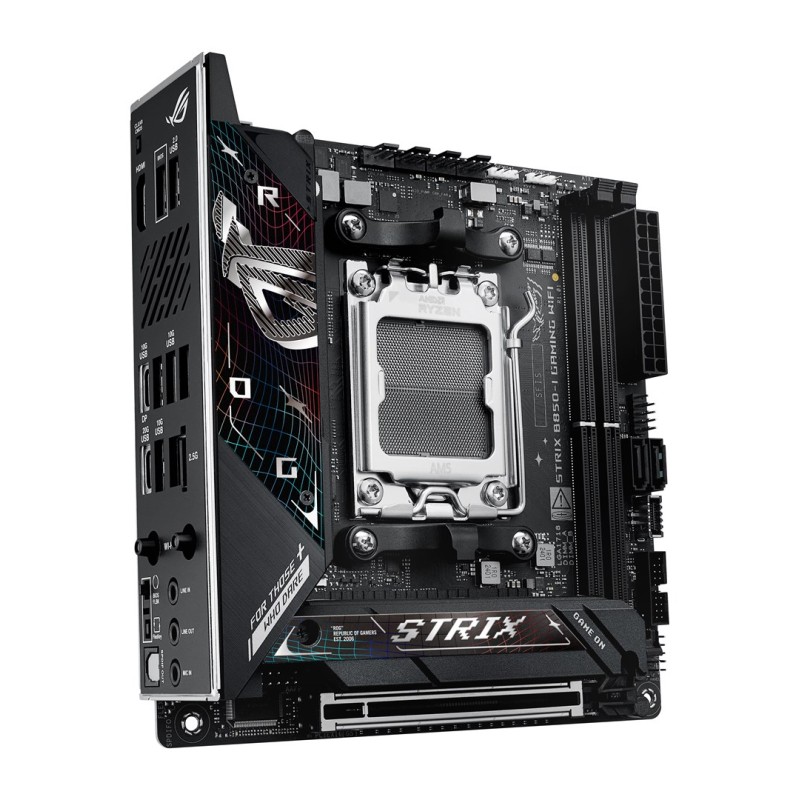

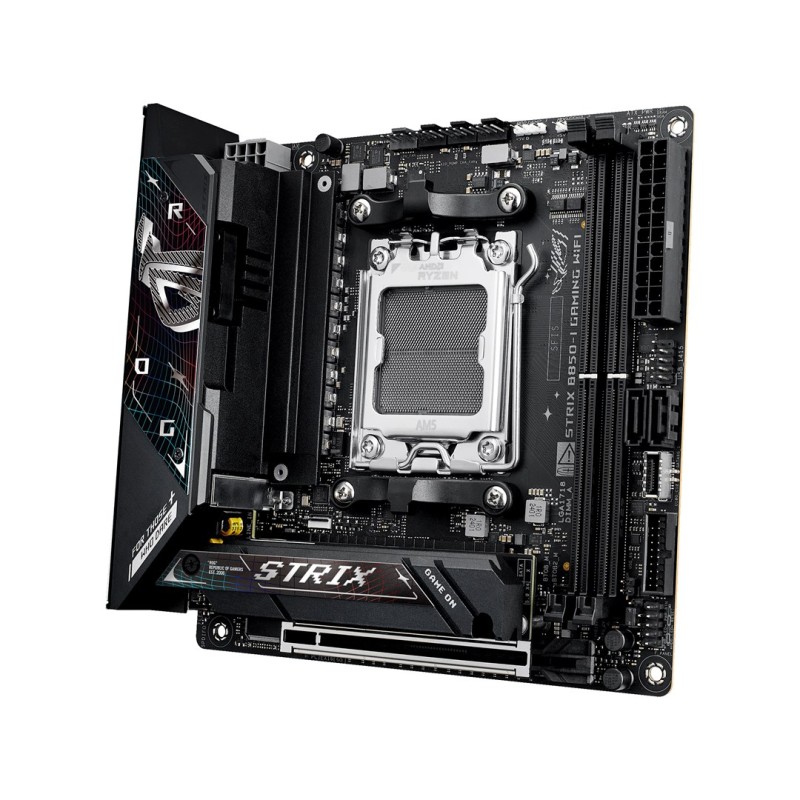

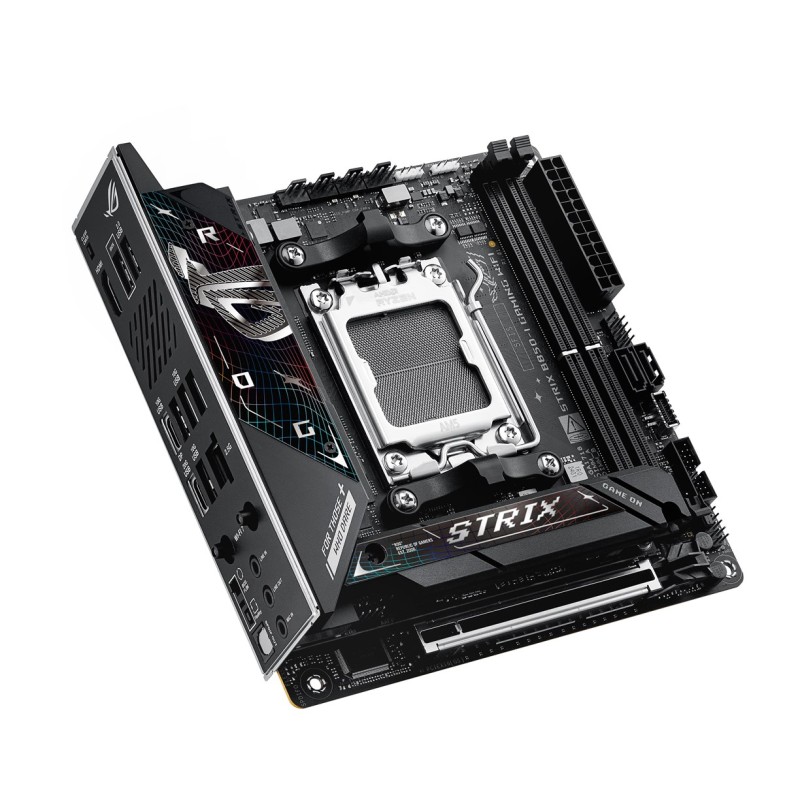

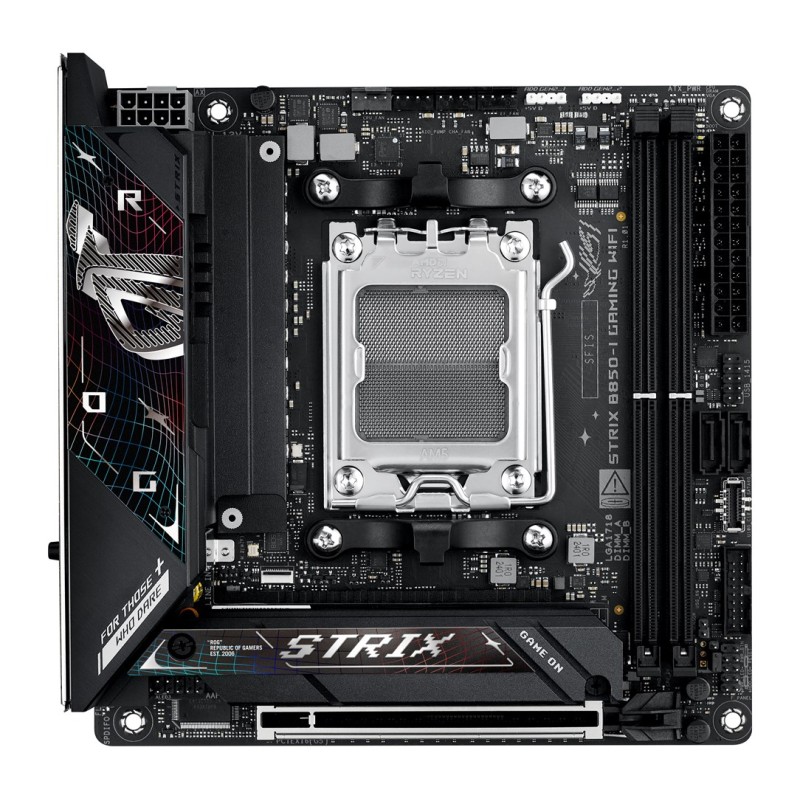

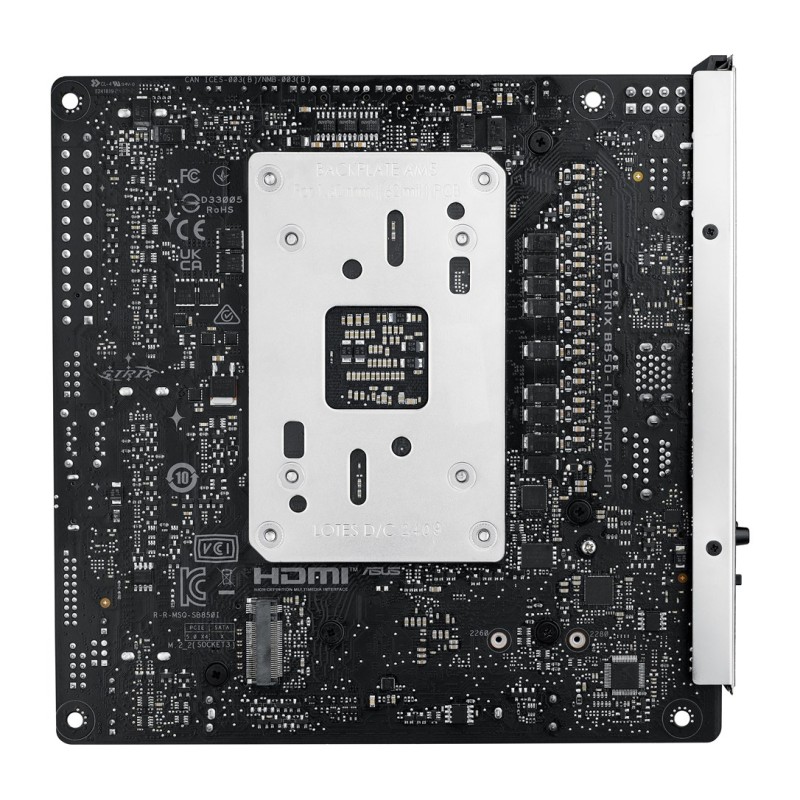

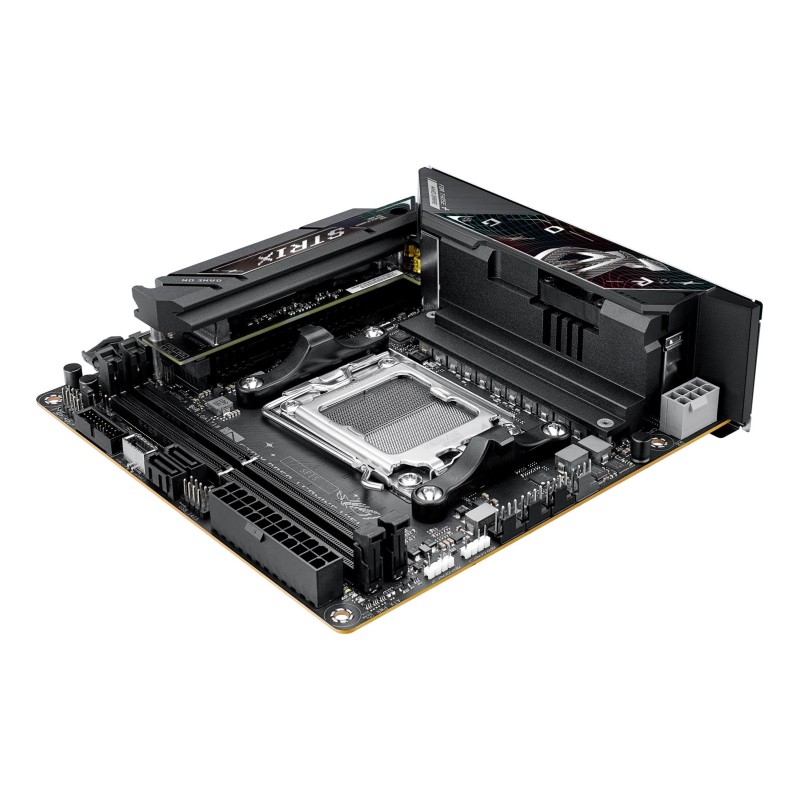

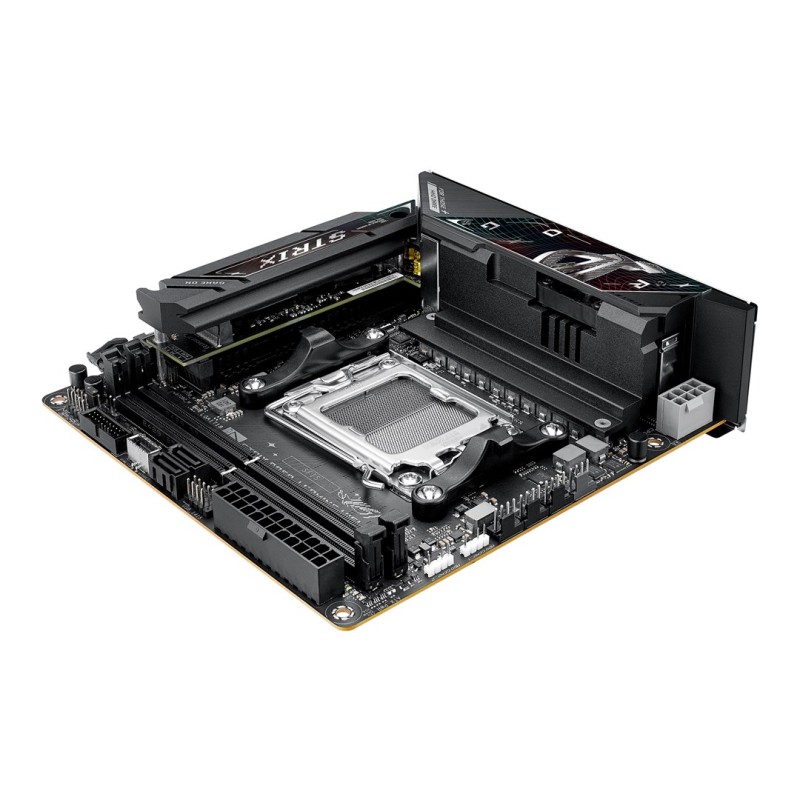

ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX

Περιγραφή

Processor

Compatible processor series: AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series

Processor socket: Socket AM5

Processor manufacturer: AMD

Supported processor sockets: Socket AM5

Graphics

On-board graphics card: No

Maximum resolution: 4096 x 2160 pixels

Parallel processing technology support: Not supported

Features

Motherboard chipset: AMD B850

Audio output channels: 7.1 channels

Motherboard form factor: mini ITX

Audio chip: Realtek ALC4080

Product colour: Black

Power source type: ATX

Motherboard chipset family: AMD

Windows operating systems supported: Windows 11

Memory

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 2

Supported memory clock speed (max): 8400 MHz

ECC сompatibility: ECC & Non-ECC

Maximum internal memory: 96 GB

Unbuffered memory: Yes

Memory channels: Dual-channel

Weight & dimensions

Width: 170 mm

Depth: 170 mm

Network

Bluetooth version: 5.4

Ethernet interface type: 2.5 Gigabit Ethernet

Wi-Fi: Yes

Ethernet LAN: Yes

Wi-Fi standards: Wi-Fi 7 (802.11be)

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Internal I/O

RGB LED pin header: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Number of RGB LED pin headers: 2

Number of CPU fan connectors: 1

Number of EPS power connectors (8-pin): 1

Number of temperature sensor headers: 1

Number of water pump connectors: 1

USB 2.0 connectors: 1

Thunderbolt headers: 1

Front panel audio connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 2

Front panel connector: Yes

Number of chassis fan connectors: 4

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

BIOS

BIOS type: UEFI AMI

Clear CMOS button: Yes

Packaging data

Package height: 94 mm

Package depth: 185 mm

Package weight: 1.06 kg

Package width: 226 mm

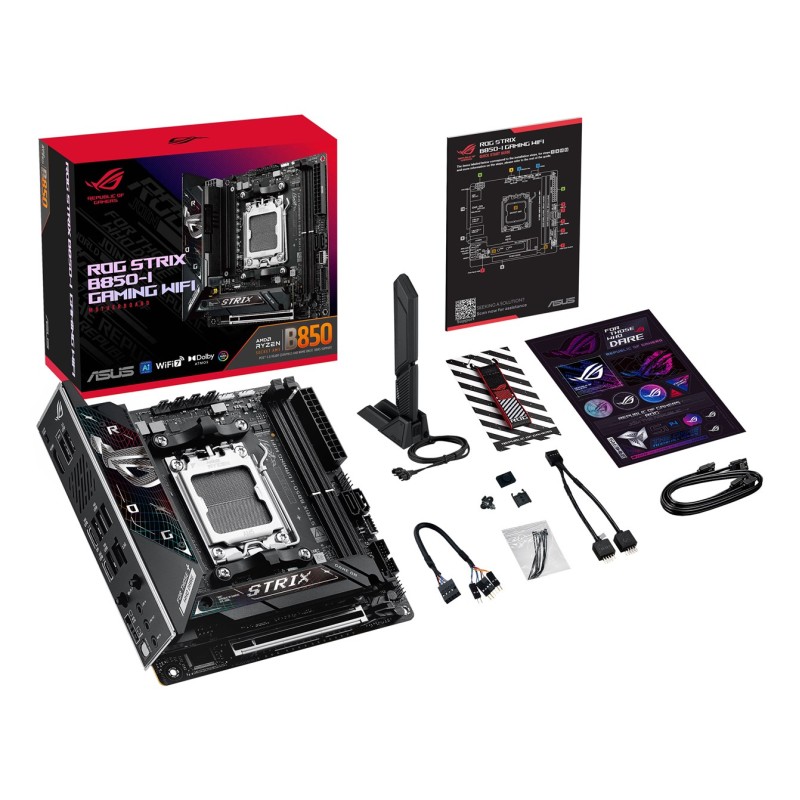

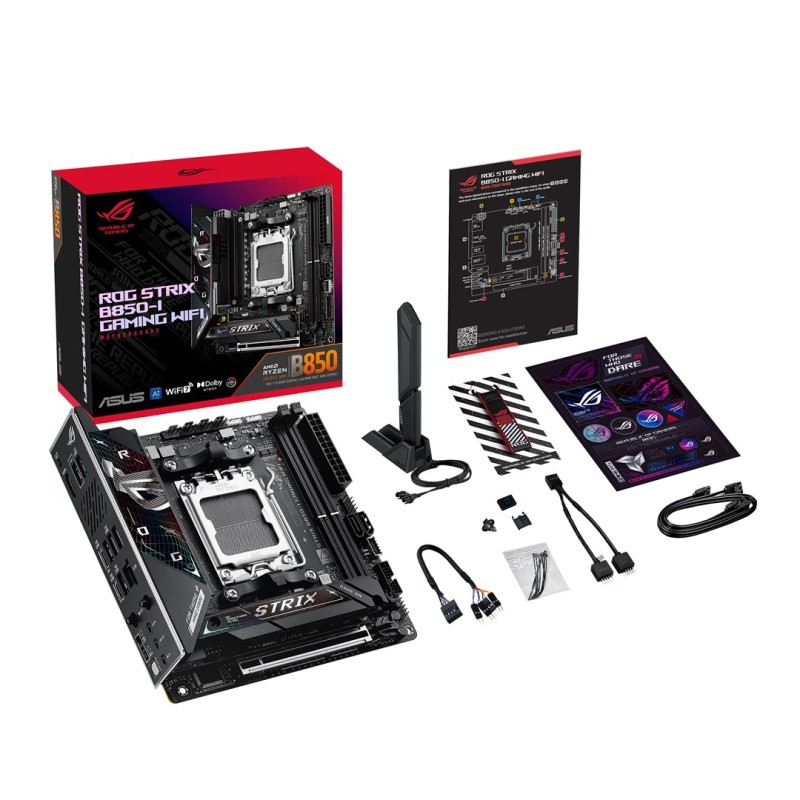

Packaging content

Antenna included: Yes

Cables included: SATA

Storage controllers

Number of HDDs supported: 2

Number of storage drives supported: 4

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

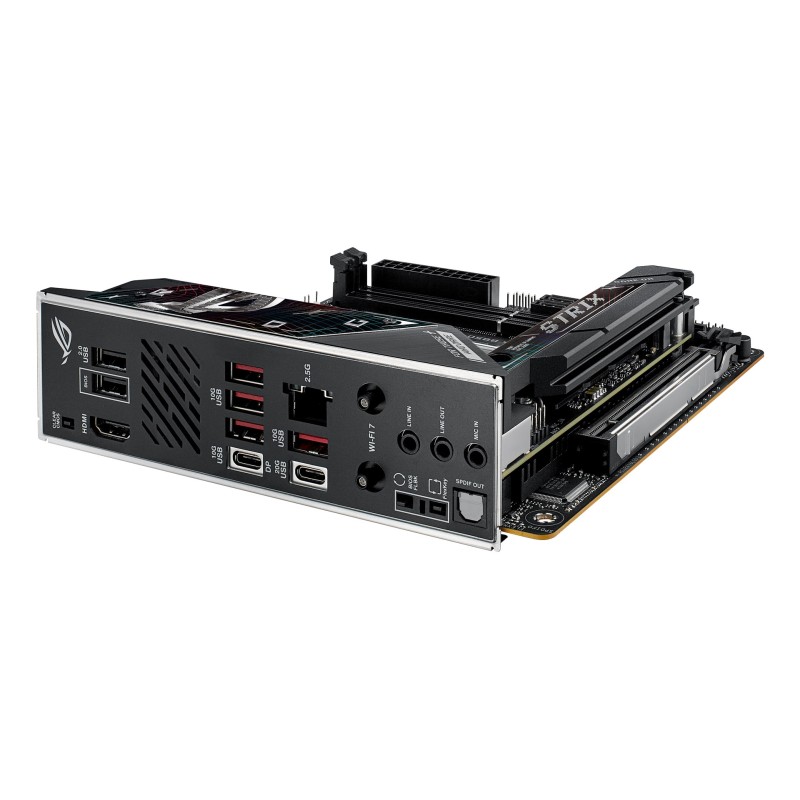

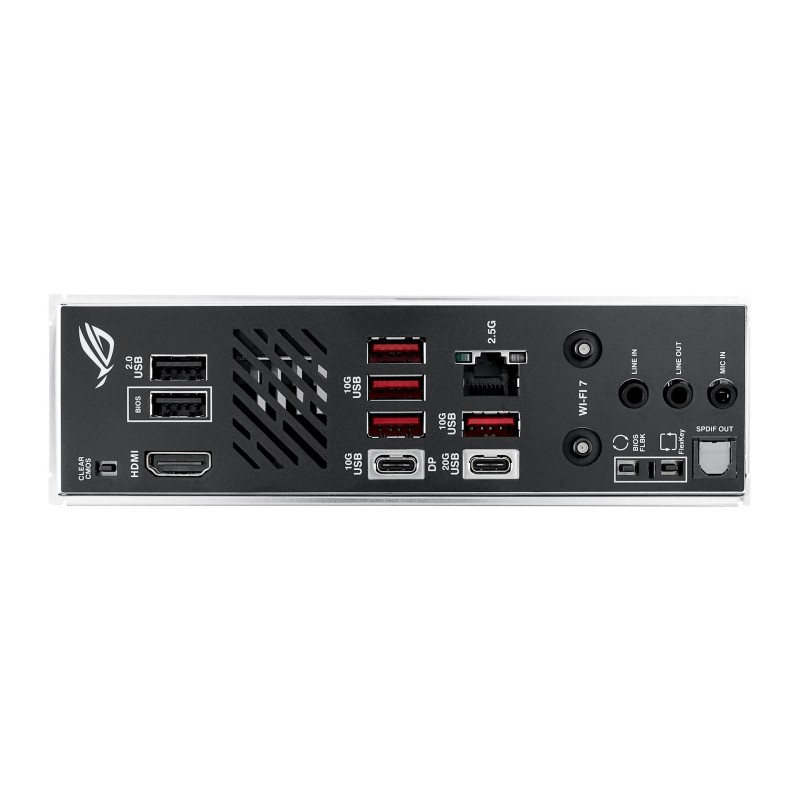

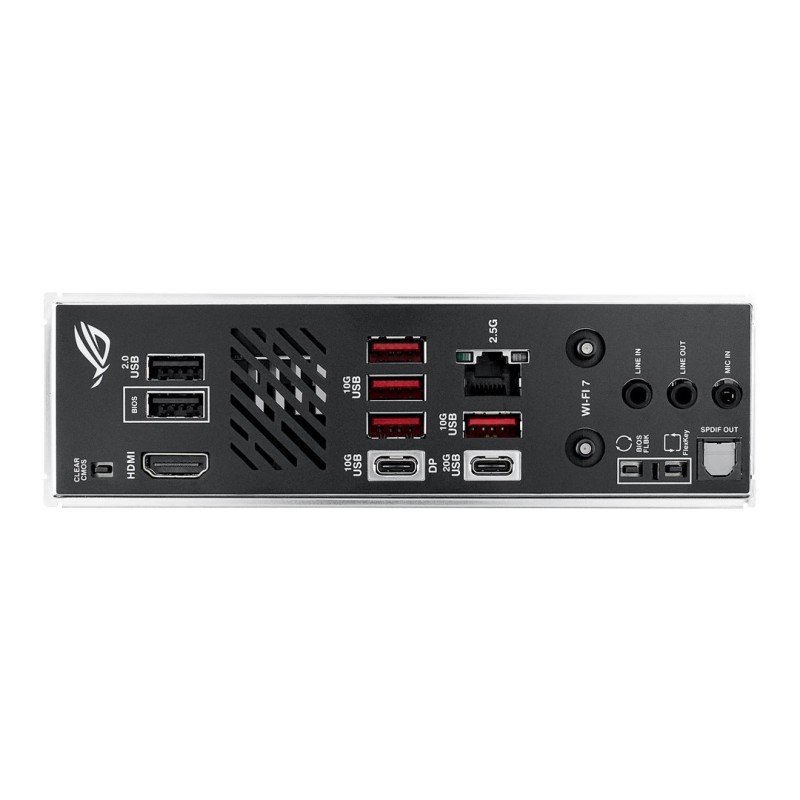

Rear panel I/O ports

WiFi-AP antenna jack: 2

HDMI version: 2.1

Headphone outputs: 1

Line-in: Yes

USB 3.2 Gen 2x2 Type-C ports quantity: 1

S/PDIF out port: Yes

Digital audio optical out: 1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Expansion slots

2nd M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 5.0

PCI Express x16 (Gen 5.x) slots: 1

1st M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

Number of M.2 (M) slots: 2

Other features

Weight: 1.06 kg

Quick installation guide: Yes

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
