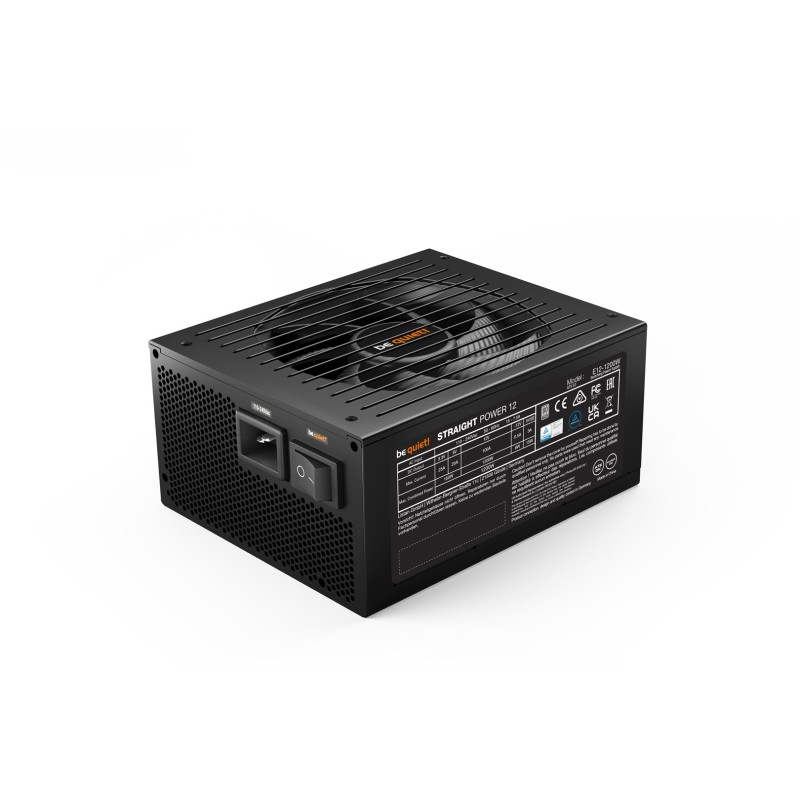

be quiet! Straight Power 12 power supply unit 1200 W 20+4 pin ATX ATX Black

Περιγραφή

Technical details

Sustainability certificates: ENERGY STAR, ErP, Triman

Sustainability compliance: Yes

Warranty period: 10 year(s)

Compliance certificates: UKCA, RoHS, CE, Federal Communications Commission (FCC), WEEE

Design

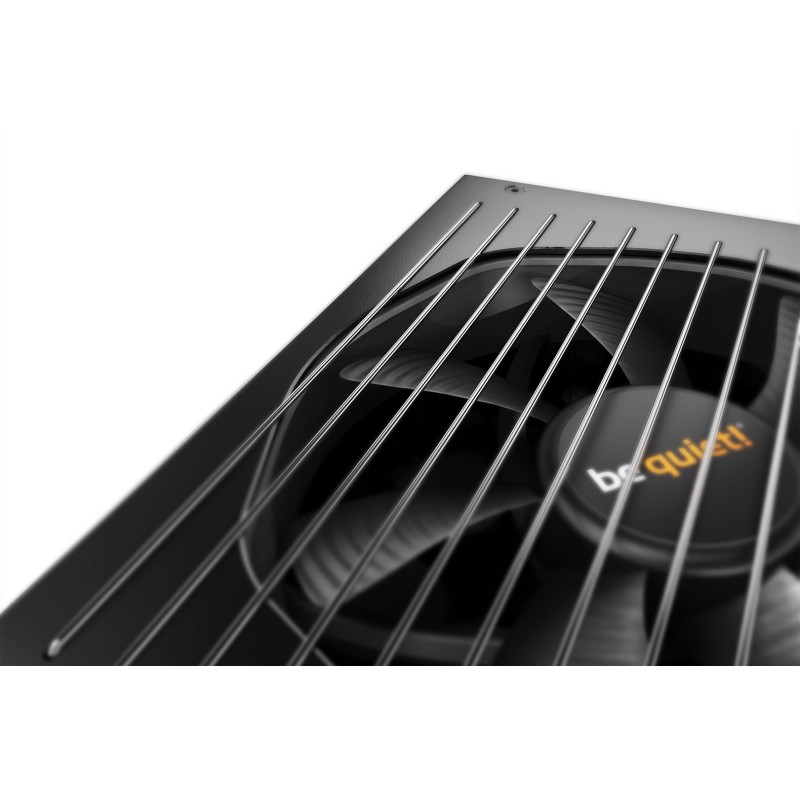

Number of fans: 1 fan(s)

Fan diameter: 13.5 cm

On/off switch: Yes

Cooling type: Active

Fan speed: 0 - 2600 RPM

Product colour: Black

Power

Combined power (+3.3V): 150 W

Peak power: 1270 W

Total power: 1200 W

Max output current (+5Vsb): 3 A

Power protection features: Short circuit, Over voltage, Over power, Under voltage, Over current, Overheating

Max output current (+12V1): 100 A

AC input frequency: 50/60 Hz

Input current: 15/7.5 A

Max output current (+5V): 25 A

AC input voltage: 110 - 240 V

Power factor: 0.99

Efficiency: 92.4%

Combined power (+5V): 150 W

Max output current (+3.3V): 25 A

Max output current (-12V): 0.5 A

Combined power (+12V): 1200 W

Hold time: 23 ms

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Weight: 2.04 kg

Height: 86 mm

Depth: 180 mm

Width: 150 mm

Performance

ATX version: 3.0

EPS version: 2.92

Supported motherboard form factors: ATX, micro ATX, Mini-ATX

Bearing technology: FDB

80 PLUS certification: 80 PLUS Platinum

Mean time between failures (MTBF): 100000 h

Purpose: PC

Noise level: 32.2 dB

Power supply unit (PSU) form factor: ATX

Packaging data

Package height: 102 mm

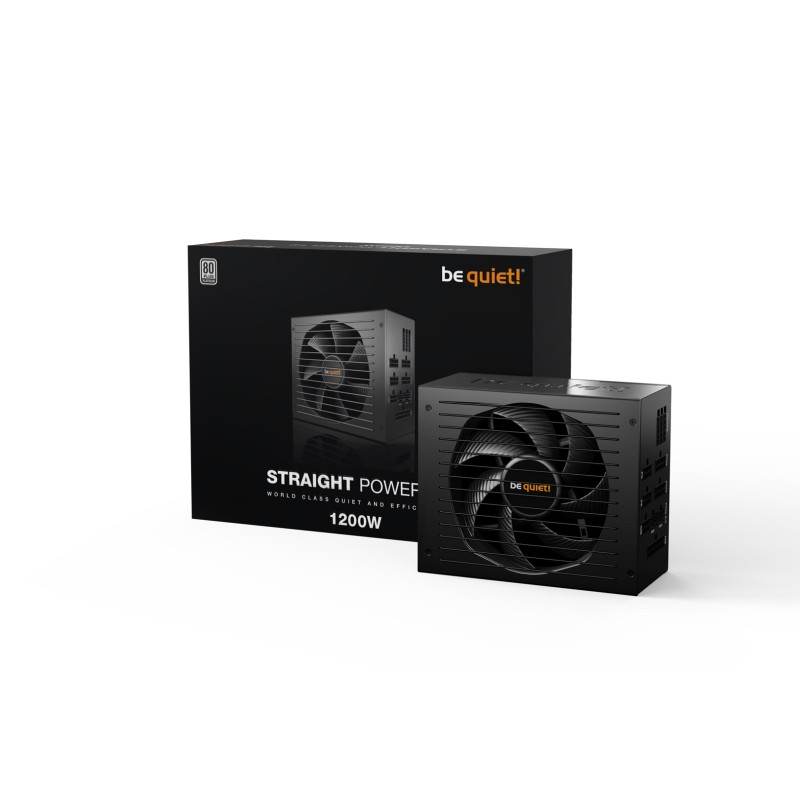

Package type: Box

Package weight: 3.89 kg

Package width: 248 mm

Package depth: 328 mm

Packaging content

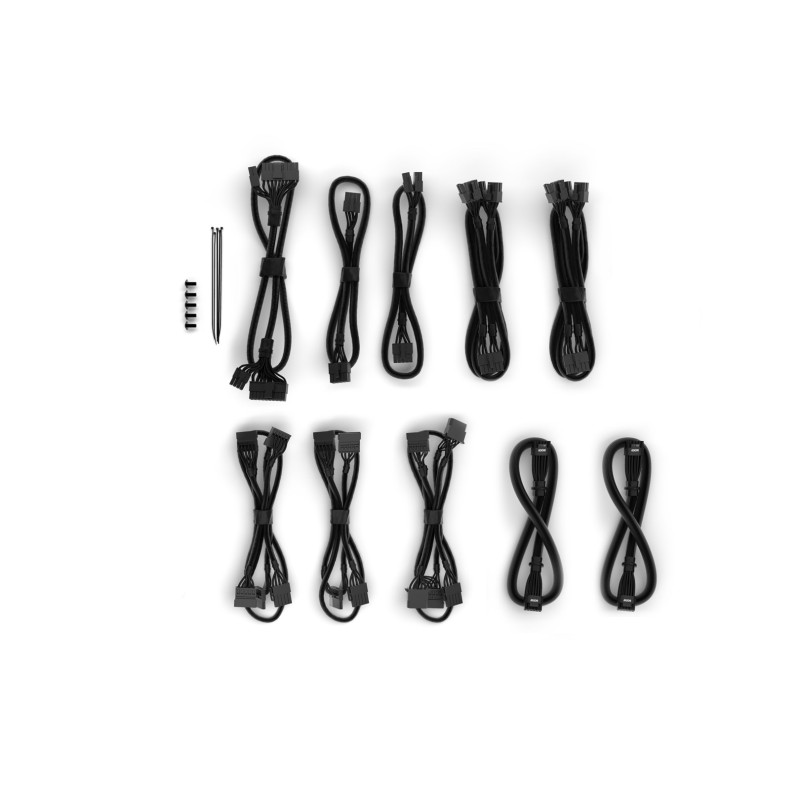

Cables included: CPU, SATA

Cable tie(s) included: Yes

Ports & interfaces

Number of SATA power connectors: 9

EPS power connector (4+4 pin): Yes

Motherboard power cable length: 60 cm

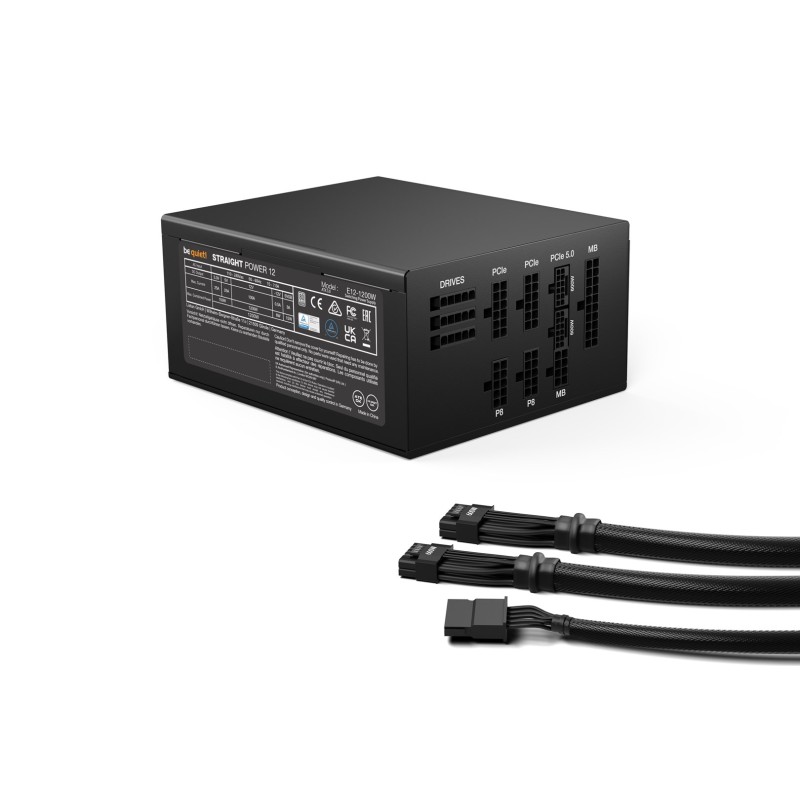

Cabling type: Fully-Modular

Motherboard power connector: 20+4 pin ATX

Peripheral (Molex) power cable length: 1000 mm, 850 mm

PCI Express power connectors (6+2 pin): 4

EPS power connector (8-pin): Yes

CPU power cable length: 70 cm

SATA power cable length: 700, 850, 1000 mm, 550 mm

Number of PATA power connectors: 2

PCI Express power cable length: 60 cm

PCI Express power connectors (16-pin): 2

Logistics data

Shipping (inner) case height: 34.6 cm

Shipping (inner) case length: 44.7 cm

Products per shipping (inner) case: 4 pc(s)

Shipping (inner) case net weight: 17 kg

Shipping (inner) case width: 28.2 cm

Safety warning

Warnings: Do not open the case - risk of electric shock.
