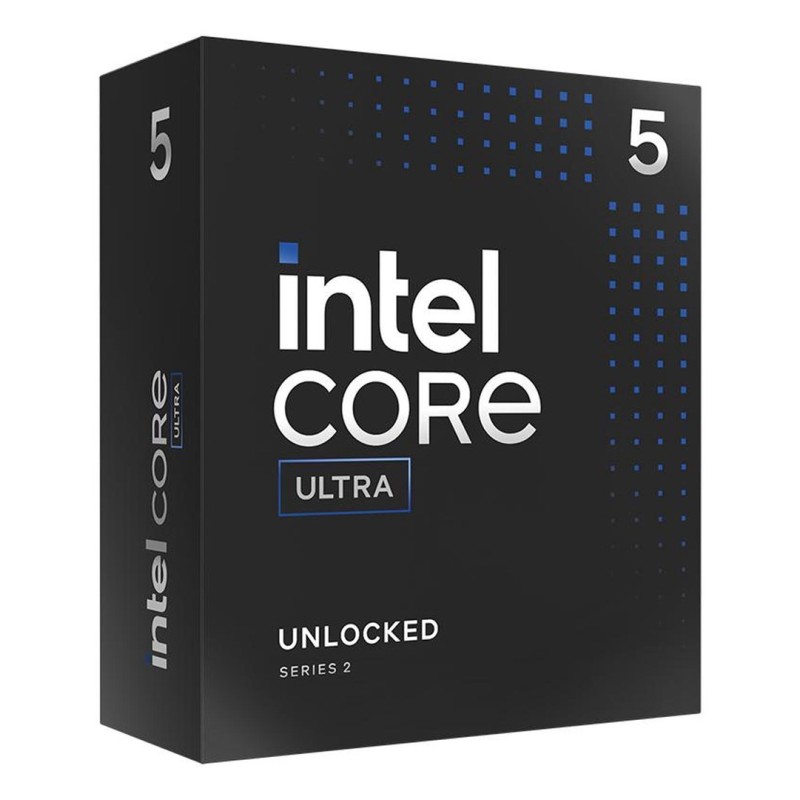

Intel Core Ultra 5 225 processor 20 MB Smart Cache Box

Intel Core Ultra 5 225 processor 20 MB Smart Cache Box
Intel Core Ultra 5 225 processor 20 MB Smart Cache Box
  • Διαθεσιμότητα: 4-10 Ημέρες
  • Brand: Intel
  • EAN: 5032037282352
221,78€
Χωρίς ΦΠΑ: 178,85€

Technical details

  • Status: Launched
  • OpenCL version: 3.0
  • Launch date: Q1'25
  • Processor

  • Processor ARK ID: 241070
  • Processor generation: Intel Core Ultra (Series 2)
  • Processor codename: Arrow Lake
  • Efficient cores: 4
  • Box: Yes
  • Processor threads: 10
  • Processor cache: 20 MB
  • Processor socket: FCLGA1851
  • Processor cores: 10
  • Performance cores: 6
  • Processor manufacturer: Intel
  • Performance-core boost frequency: 4.9 GHz
  • AI software frameworks supported by CPU: OpenVINO, DirectML, ONNX RT, Windows ML, WebNN
  • Maximum turbo power: 121 W
  • Performance-core base frequency: 3.3 GHz
  • Processor cache type: Smart Cache
  • Processor operating modes: 64-bit
  • Processor model: 225
  • Processor base power: 65 W
  • Processor family: Intel Core Ultra 5
  • Maximum number of DMI lanes: 8
  • Graphics

  • On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
  • On-board graphics card dynamic frequency (max): 1800 MHz
  • On-board graphics card base frequency: 300 MHz
  • On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
  • Number of displays supported (on-board graphics): 4
  • Discrete graphics card: No
  • On-board graphics card model: Intel Graphics
  • On-board graphics card OpenGL version: 4.5
  • On-board graphics card: Yes
  • On-board graphics card DirectX version: 12.0
  • Discrete graphics card model: Not available
  • On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
  • On-board graphics card ID: 0x7D67
  • On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
  • Xe-cores: 2
  • Features

  • Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0
  • Idle States: Yes
  • Maximum number of PCI Express lanes: 24
  • Scalability: 1S
  • PCI Express slots version: 4.0, 5.0
  • Direct Media Interface (DMI) Revision: 4.0
  • Embedded options available: Yes
  • Market segment: Desktop
  • Execute Disable Bit: Yes
  • Thermal Monitoring Technologies: Yes
  • Use conditions: PC/Client/Tablet
  • Memory

  • Memory channels: Dual-channel
  • Maximum internal memory supported by processor: 192 GB
  • Memory types supported by processor: DDR5-SDRAM
  • Memory clock speeds supported by processor: 6400 MHz
  • Processor special features

  • Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
  • Intel® Secure Key: Yes
  • Intel® Standard Manageability (ISM): Yes
  • Intel® Quick Sync Video Technology: Yes
  • Intel® AES New Instructions (Intel® AES-NI): Yes
  • Intel® Control-flow Enforcement Technology (CET): Yes
  • Intel VT-x with Extended Page Tables (EPT): Yes
  • Intel® Boot Guard: Yes
  • Intel® Turbo Boost Technology: 2.0
  • Intel® Volume Management Device (VMD): Yes
  • Intel® Thunderbolt 4: Yes
  • Intel® Speed Shift Technology: Yes
  • Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
  • Intel® OS Guard: Yes
  • Intel® Thread Director: Yes
  • Intel 64: Yes
  • Mode-based Execute Control (MBE): Yes
  • Intel Trusted Execution Technology: Yes
  • Intel Virtualization Technology for Directed I/O (VT-d): Yes
  • Intel Virtualization Technology (VT-x): Yes
  • Enhanced Intel SpeedStep Technology: Yes
  • Other features

  • L2 cache: 22528 KB
  • Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
  • Maximum internal memory: 192 GB
  • Safety warning

  • Warnings: Ensure that the CPU is properly mounted in the CPU socket to avoid damage., Do not dispose of the processors in the normal rubbish bin - they require special disposal due to their potential environmental impact.
  • Neural processor unit (NPU)

  • AI software frameworks supported by NPU: Windows ML, WebNN, ONNX RT, DirectML, OpenVINO
  • Neural processor unit (NPU): Intel AI Boost
  • NPU performance up to: 13 TOPs
  • Windows Studio effects support: Yes
  • Sparsity support: Yes
  • GPU performance up to: 4 TOPs
  • Total processor performance up to: 23 TOPs
