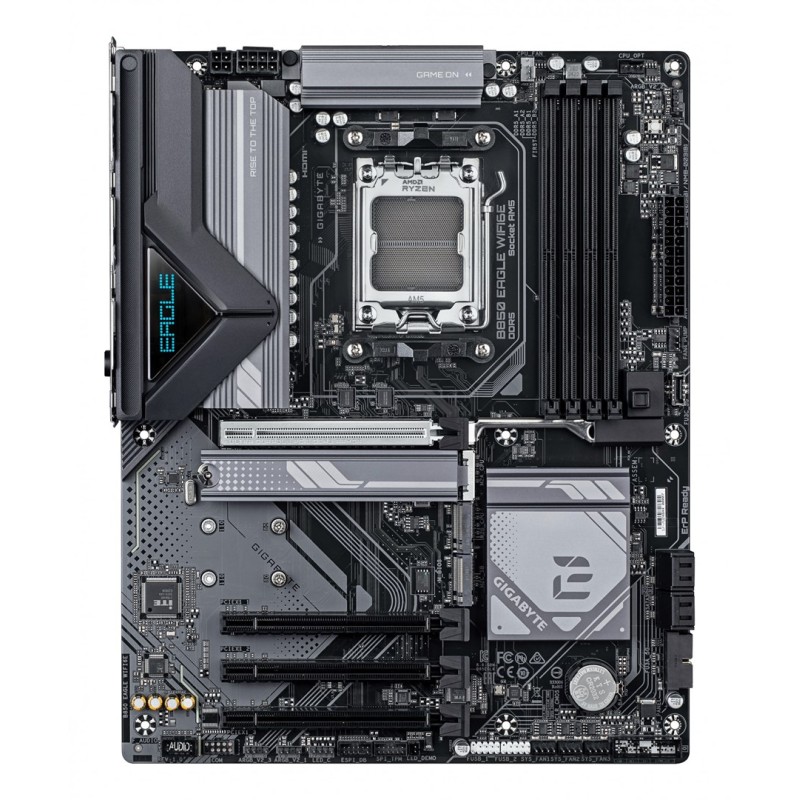

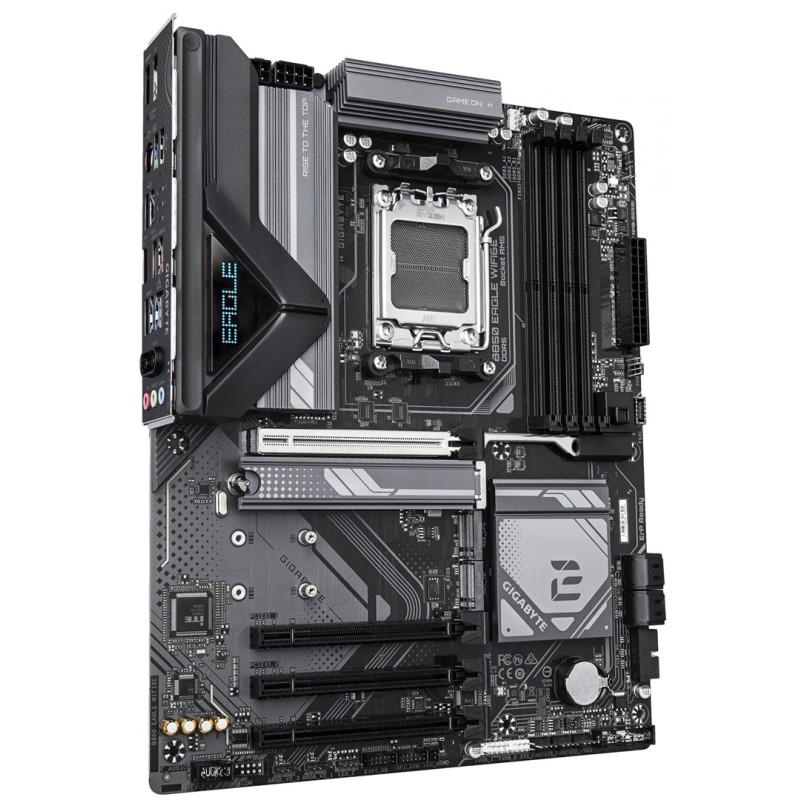

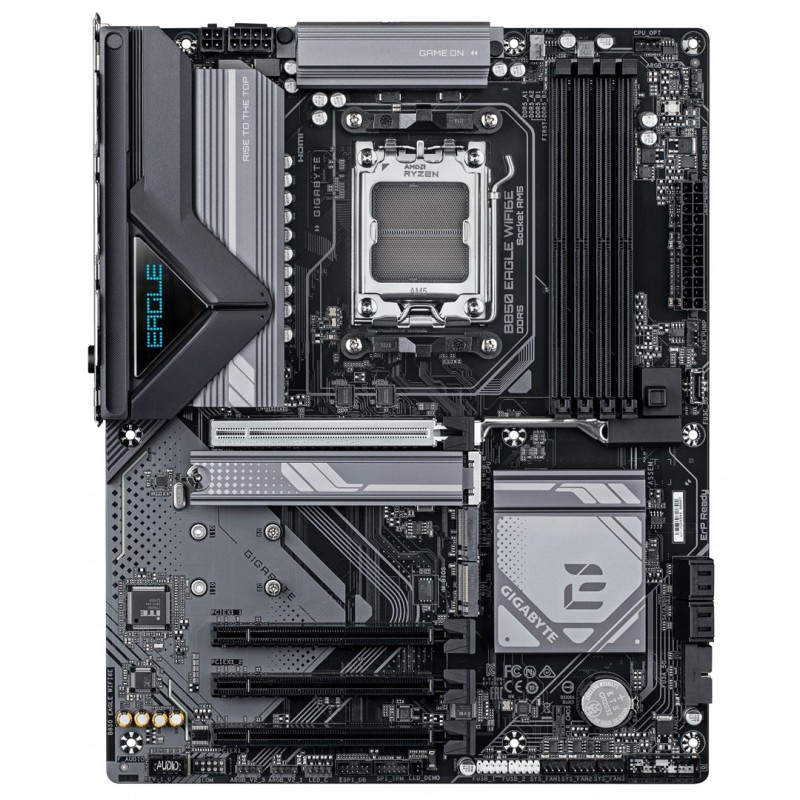

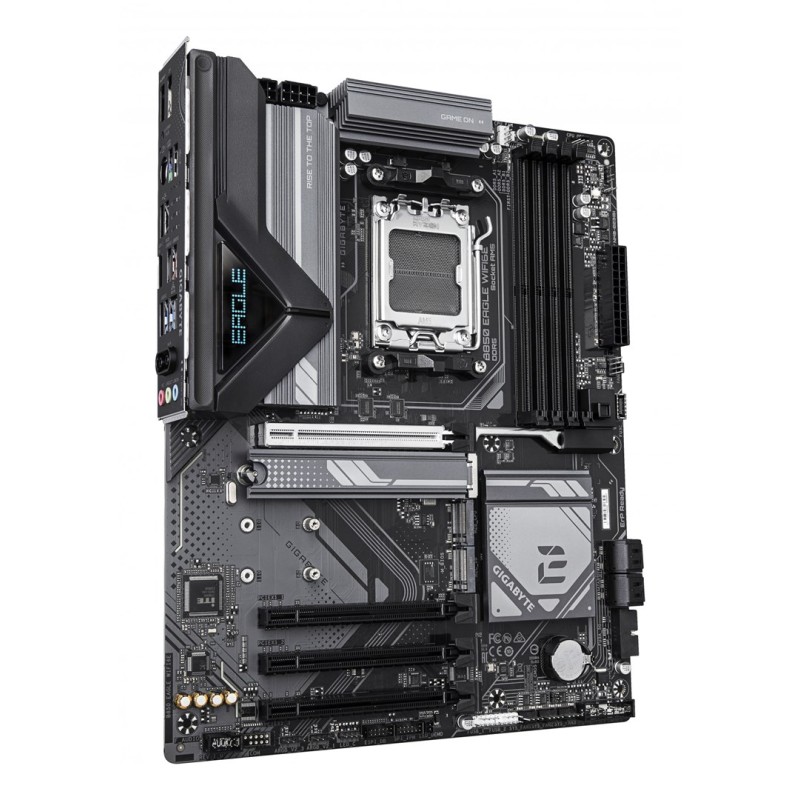

GIGABYTE B850 EAGLE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Graphics

HDCP: Yes

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

DirectX version: 12.0

Features

Power source type: ATX

Windows operating systems supported: Windows 11 x64, Windows 10 x64

PC health monitoring: Water cooling, Voltage, Fan, Temperature

Motherboard form factor: ATX

Motherboard chipset family: AMD

Motherboard chipset: AMD B850

Product colour: Bronze

Audio output channels: 7.1 channels

Memory

Memory slots type: DIMM

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Supported memory clock speed (max): 8200 MHz

Unbuffered memory: Yes

Supported memory clock speeds: 7600, 7800, 7400, 6600, 6400, 7000, 8200, 5600 MHz, 7200, 6000, 4400, 7950, 7900, 8000, 6200, 4800, 6800, 5200, 5800

Maximum internal memory: 256 GB

Maximum internal memory per slot: 64 GB

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 305 mm

Height: 35 mm

Depth: 244 mm

Network

Wi-Fi standards: 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g

WLAN controller model: Realtek RTL8111H

Ethernet interface type: Gigabit Ethernet

Bluetooth version: 5.3

Wi-Fi: Yes

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth: Yes

Internal I/O

Serial port headers: 1

EPS power connector (8-pin): Yes

Total number of SATA connectors: 4

CPU fan connector: Yes

TPM connector: Yes

Front panel audio connector: Yes

Peripheral (Molex) power connectors (4-pin): 1

USB 2.0 connectors: 2

RGB LED pin header: Yes

Number of SATA III connectors: 4

Number of chassis fan connectors: 3

12V power connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

ATX Power connector (24-pin): Yes

Front panel connector: Yes

Number of CPU fan connectors: 2

Number of EPS power connectors (8-pin): 1

Number of water pump connectors: 2

Number of RGB LED pin headers: 4

BIOS

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

Clear CMOS button: Yes

Packaging data

Package height: 80 mm

Package width: 335 mm

Package weight: 1.93 kg

Package depth: 270 mm

Packaging content

Screws included: Yes

Batteries included: Yes

Antenna included: Yes

Storage controllers

RAID levels: 0, 1, 10

Number of HDDs supported: 4

Number of storage drives supported: 7

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

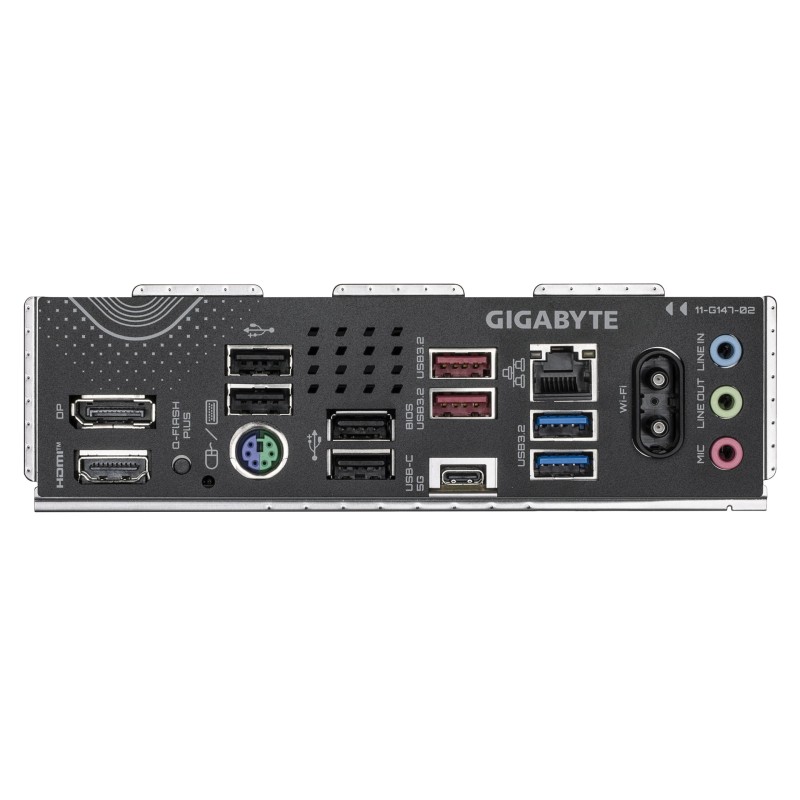

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

DisplayPort version: 2.1

HDMI version: 2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

WiFi-AP antenna jack: 2

Ethernet LAN (RJ-45) ports: 1

DisplayPorts quantity: 1

HDMI ports quantity: 1

Headphone outputs: 1

USB 2.0 ports quantity: 4

Microphone in: Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

Expansion slots

PCI Express x16 (Gen 3.x) slots: 3

PCI Express x16 (Gen 5.x) slots: 1

Number of M.2 (M) slots: 3

1st M.2 largest key size: 25110

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 5.0

3rd M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 22110

3rd M.2 largest key size: 22110

Battery

Battery type: CR2032

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery weight: 3 g

Number of battery cells: 1

Lithium weight per battery: 0.07 g

Other features

Weight: 1.68 kg

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty.
