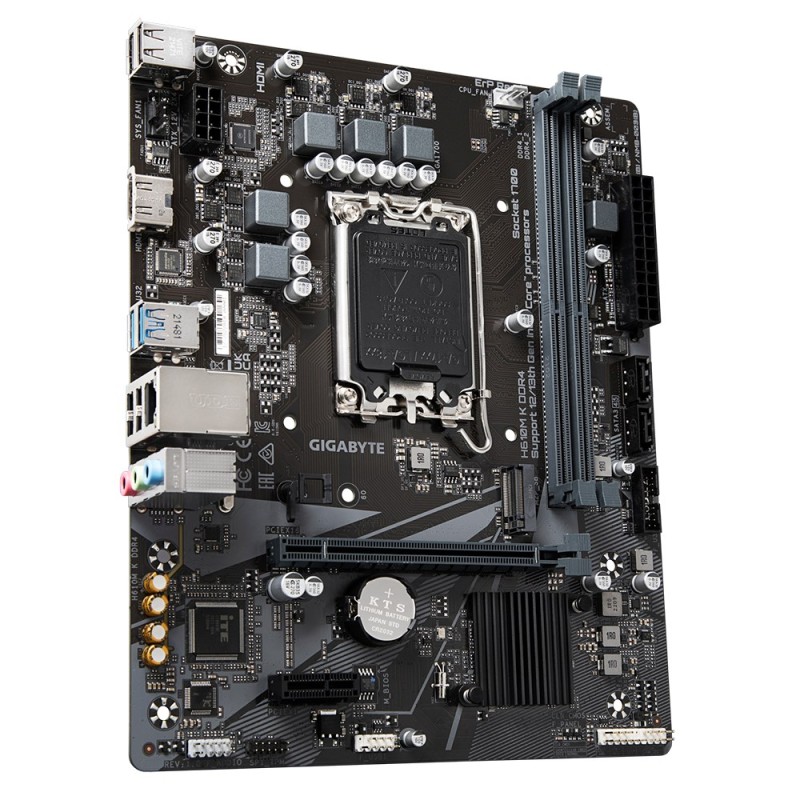

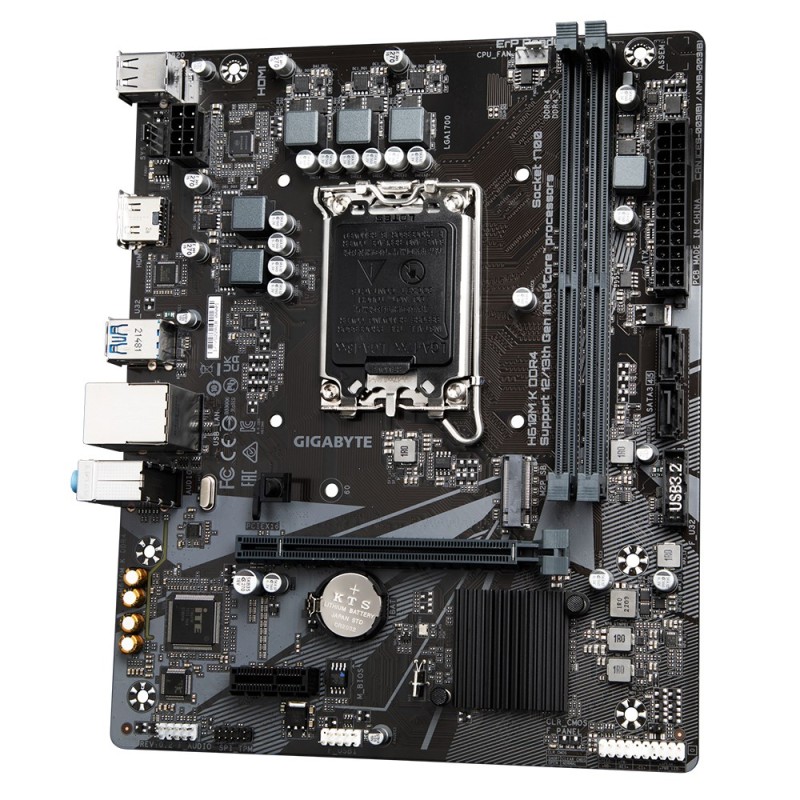

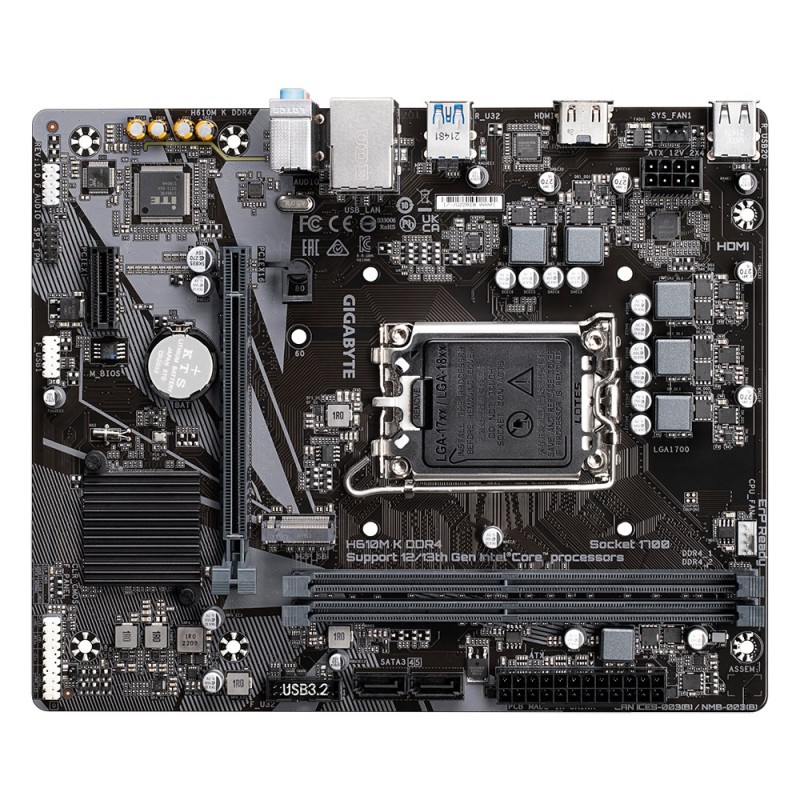

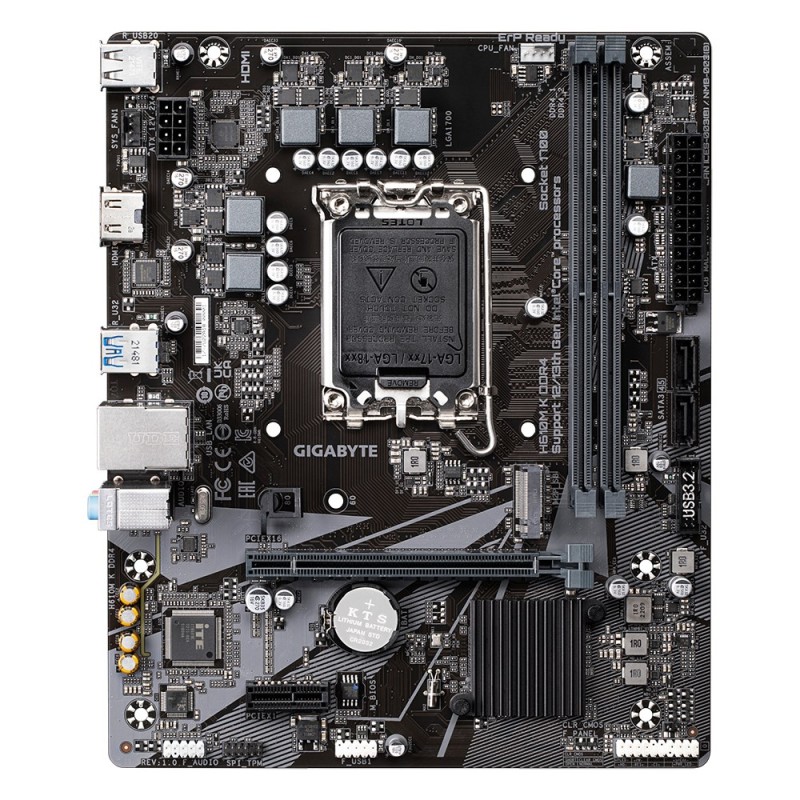

GIGABYTE H610M K DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Maximum number of SMP processors: 1

Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Celeron®, Intel® Core™ i3

Processor manufacturer: Intel

Processor socket: LGA 1700

Graphics

Maximum resolution: 4096 x 2160 pixels

HDCP: Yes

Parallel processing technology support: Not supported

Features

Audio chip: Realtek ALC897

Motherboard chipset family: Intel

Product colour: Bronze

Motherboard chipset: Intel H610 Express

Power source type: ATX

Motherboard form factor: micro ATX

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Audio output channels: 7.1 channels

PC health monitoring: Water cooling, Temperature, Voltage, Fan

Memory

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Maximum RDIMM memory: 64 GB

Number of memory slots: 2

Memory channels: Dual-channel

Supported memory clock speed (max): 3200 MHz

Supported memory clock speeds: 3000, 2133, 3200 MHz, 2666, 2400, 2933

Supported memory module capacities: 2GB, 4GB, 32GB, 1GB, 12GB, 16GB, 8GB

Maximum internal memory: 64 GB

Unbuffered memory: Yes

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Height: 35 mm

Depth: 185 mm

Width: 226 mm

Network

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

LAN controller: Realtek RTL8111H

Internal I/O

Total number of SATA connectors: 2

12V power connector: Yes

Audio connector: Yes

Number of SATA III connectors: 2

TPM connector: Yes

Number of chassis fan connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of EATX power connectors: 1

CPU fan connector: Yes

USB 2.0 connectors: 1

ATX Power connector (24-pin): Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Power fan connector: Yes

Front panel connector: Yes

BIOS

Desktop Management Interface (DMI) version: 2.7

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Clear CMOS button: Yes

Packaging data

Package height: 52 mm

Package weight: 717 g

Package depth: 235 mm

Package width: 265 mm

Packaging content

Batteries included: Yes

Cables included: SATA

Storage controllers

Number of HDDs supported: 2

Number of storage drives supported: 3

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

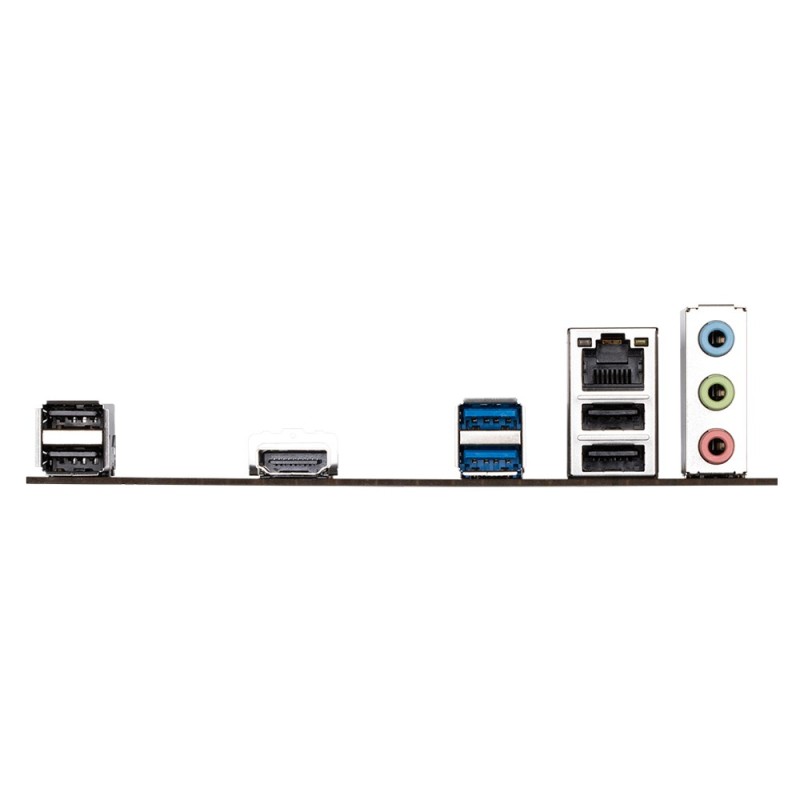

Rear panel I/O ports

HDMI version: 2.1

Microphone in: Yes

Headphone outputs: 1

Line-in: Yes

USB connector type: USB Type-A

USB 2.0 ports quantity: 4

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Battery

Battery weight: 3 g

Number of battery cells: 1

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Lithium weight per battery: 0.07 g

Battery type: CR2032

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
