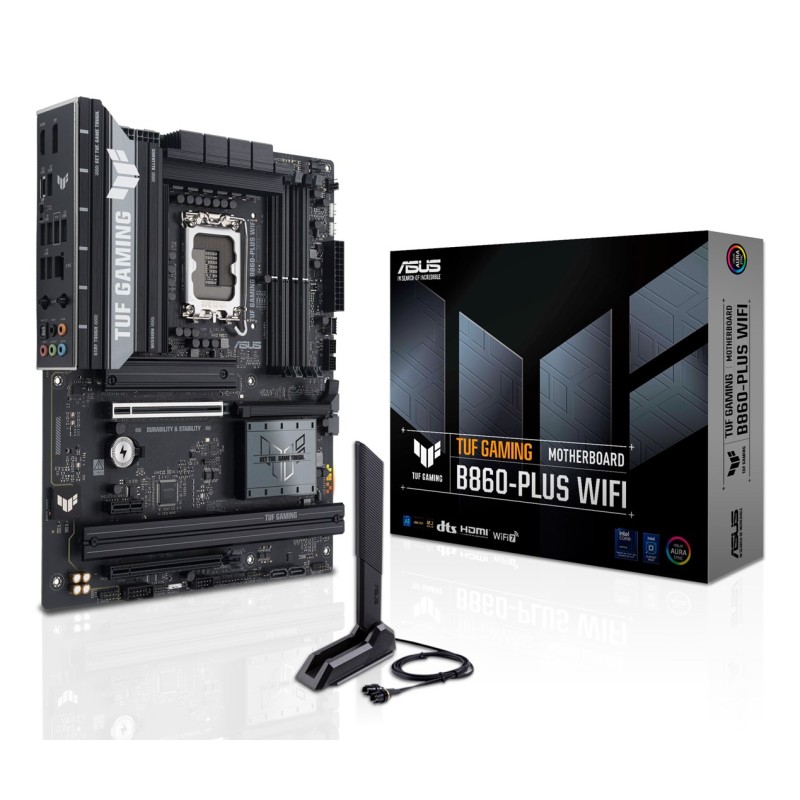

ASUS TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX

Περιγραφή

Processor

Supported processor sockets: LGA 1851

Processor manufacturer: Intel

Compatible processor series: Intel Core Ultra (Series 2)

Processor socket: LGA 1851 (Socket V1)

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Motherboard chipset: Intel B860

Audio output channels: 7.1 channels

Product colour: Black

Motherboard chipset family: Intel

Motherboard form factor: ATX

Windows operating systems supported: Windows 11

Memory

Maximum internal memory: 256 GB

Unbuffered memory: Yes

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Number of memory slots: 4

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Network

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Wi-Fi standards: Wi-Fi 7 (802.11be)

Wi-Fi: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Bluetooth version: 5.4

Internal I/O

Thunderbolt headers: 1

USB 2.0 connectors: 1

S/PDIF out connector: Yes

ATX Power connector (24-pin): Yes

Number of SATA III connectors: 4

Number of chassis fan connectors: 4

CPU fan connector: Yes

Chassis intrusion connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of COM connectors: 1

Front panel audio connector: Yes

Front panel connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

12V power connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging data

Package weight: 2.1 kg

Package width: 353 mm

Package height: 68 mm

Package depth: 273 mm

Packaging content

Cables included: SATA

Antenna included: Yes

Screws included: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

RAID levels: 0, 10, 1, 5

Number of storage drives supported: 7

Number of HDDs supported: 4

Rear panel I/O ports

S/PDIF out port: Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3

DisplayPorts quantity: 1

HDMI ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

USB 2.0 ports quantity: 2

WiFi-AP antenna jack: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

Number of M.2 (M) slots: 3

2nd M.2 highest PCI Express generation: 4.0

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 4.x) slots: 1

3rd M.2 largest key size: 2280

PCI Express x16 (Gen 5.x) slots: 1

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 2280

1st M.2 largest key size: 2280

3rd M.2 highest PCI Express generation: 4.0

Safety warning

Warnings: In case of installation problems, contact a qualified service technician., When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asrock B860 LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) ATX

ProcessorCompatible processor series: Intel Core Ultra (Series 2)Processor manufacturer: IntelSupported processor sockets: LGA 1851Processor socket: L..

198,41€

Χωρίς ΦΠΑ:160,01€

Asrock B860 Pro-A Intel B860 LGA 1851 (Socket V1) ATX

ProcessorProcessor socket: LGA 1851 (Socket V1)Processor manufacturer: IntelGraphicsGraphics card: Intel® UHD GraphicsOn-board graphics card: YesGraph..

133,57€

Χωρίς ΦΠΑ:107,71€

Asrock B860 Steel Legend WiFi Intel B860 LGA 1851 (Socket V1) ATX

ProcessorSupported processor sockets: LGA 1851Processor manufacturer: IntelCompatible processor series: Intel Core Ultra (Series 2)Processor socket: L..

208,83€

Χωρίς ΦΠΑ:168,41€

Asrock B860M LiveMixer WiFi Intel B860 LGA 1851 (Socket V1) micro ATX

ProcessorProcessor manufacturer: IntelProcessor socket: LGA 1851 (Socket V1)GraphicsOn-board graphics card: YesGraphics card family: IntelFeaturesAudi..

175,48€

Χωρίς ΦΠΑ:141,51€

Asrock B860M Pro RS Intel B860 LGA 1851 (Socket V1) micro ATX

ProcessorProcessor socket: LGA 1851 (Socket V1)Processor manufacturer: IntelFeaturesAudio chip: Realtek ALC897Audio output channels: 7.1 channelsMothe..

145,88€

Χωρίς ΦΠΑ:117,65€

ASRock B860M Pro-A WiFi Motherboard

ProcessorSupported processor sockets: LGA 1851Processor manufacturer: IntelProcessor socket: LGA 1851 (Socket V1)FeaturesMotherboard chipset: Intel B8..

133,51€

Χωρίς ΦΠΑ:107,67€

Asrock Phantom Gaming Z890I Nova WiFi Intel Z890 LGA 1851 (Socket V1) mini ITX

ProcessorSupported processor sockets: LGA 1851Compatible processor series: Intel Core Ultra (Series 2)Processor manufacturer: IntelProcessor socket: L..

299,09€

Χωρίς ΦΠΑ:241,20€

ASRock Z890 Pro RS - Motherboard

ProcessorCompatible processor series: Intel Core Ultra (Series 2)Processor socket: LGA 1851 (Socket V1)Processor manufacturer: IntelFeaturesWindows op..

226,39€

Χωρίς ΦΠΑ:182,57€

ASRock Z890 Riptide WiFi Motherboard

ProcessorMaximum number of SMP processors: 1Processor socket: LGA1851Processor manufacturer: IntelCompatible processor series: Intel Core Ultra (Serie..

296,66€

Χωρίς ΦΠΑ:239,24€

ASRock Z890 Steel Legend WiFi - Motherboard

ProcessorProcessor socket: LGA 1851 (Socket V1)Compatible processor series: Intel Core Ultra (Series 2)Processor manufacturer: IntelFeaturesAudio outp..

265,01€

Χωρίς ΦΠΑ:213,72€

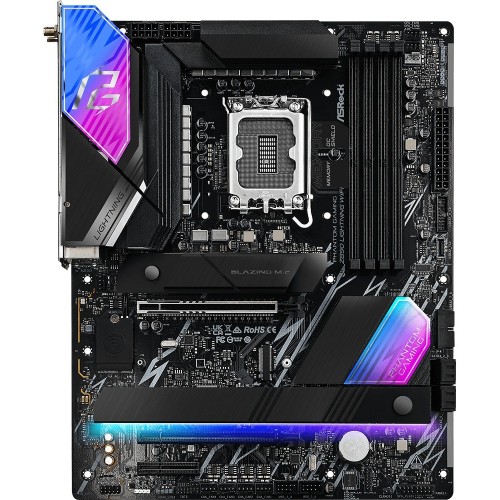

ASRock Z890 Z890 Lightning WiFi Motherboard

ProcessorMaximum number of SMP processors: 1Compatible processor series: Intel Core Ultra (Series 2)Processor socket: LGA1851Processor manufacturer: I..

278,20€

Χωρίς ΦΠΑ:224,35€

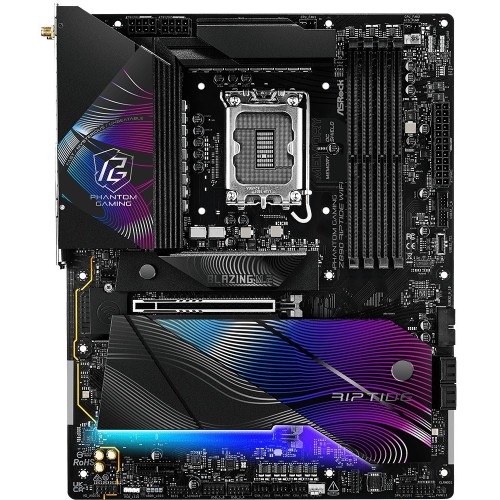

ASRock Z890M Riptide WiFi Motherboard
