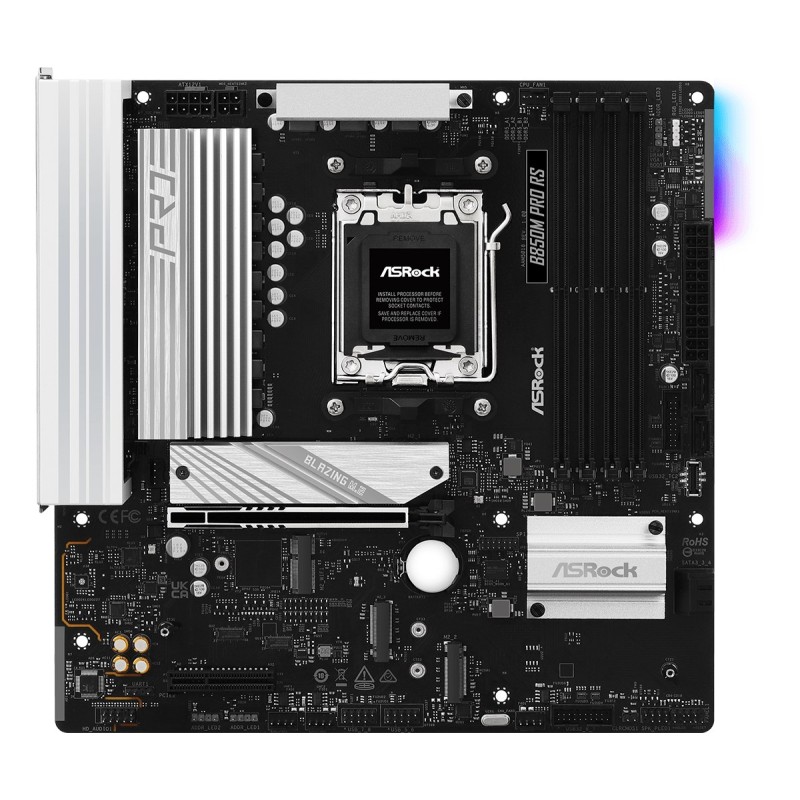

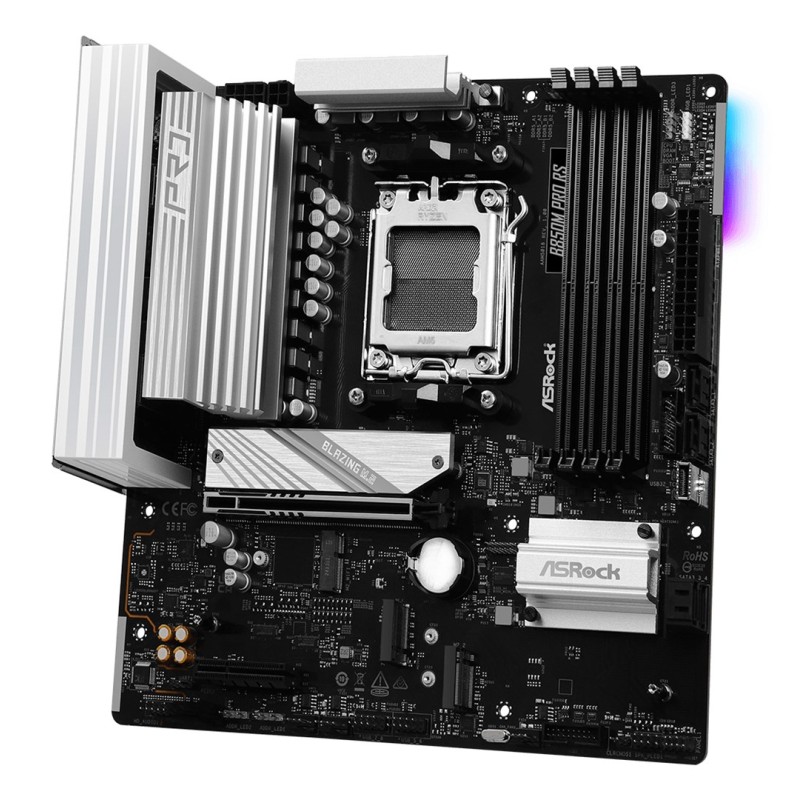

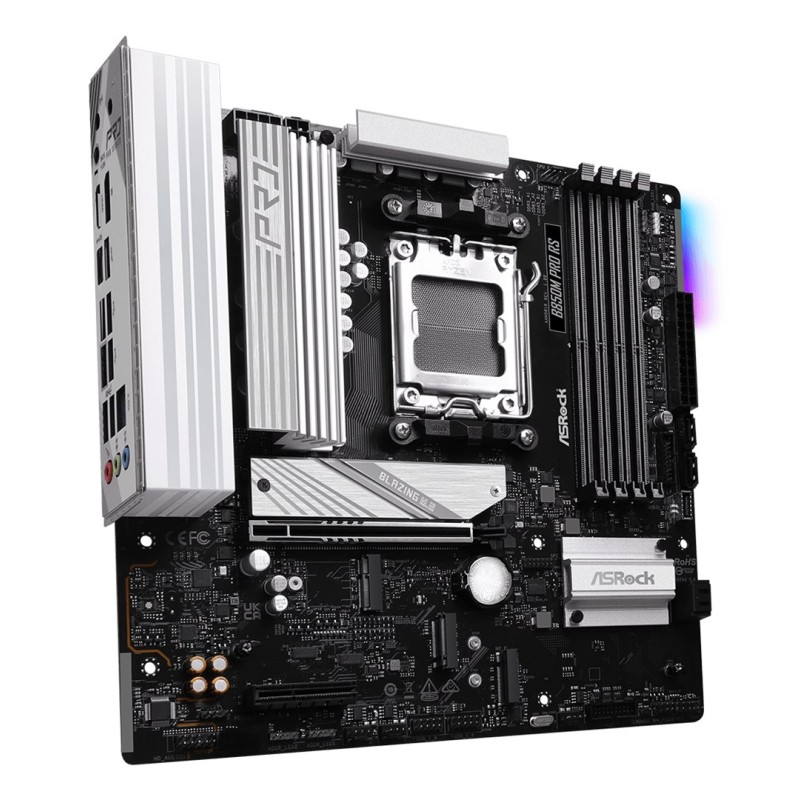

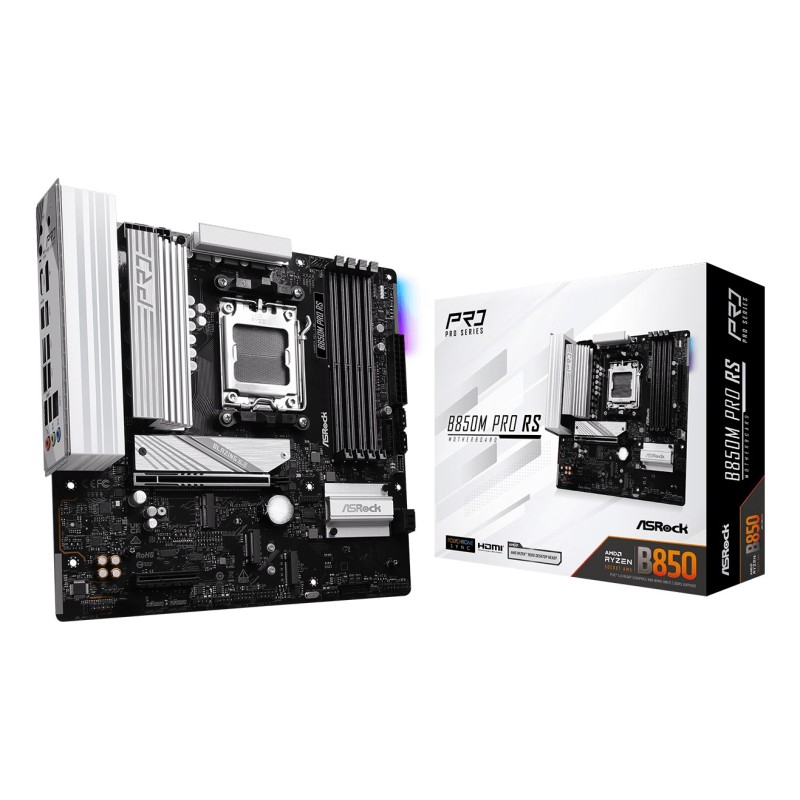

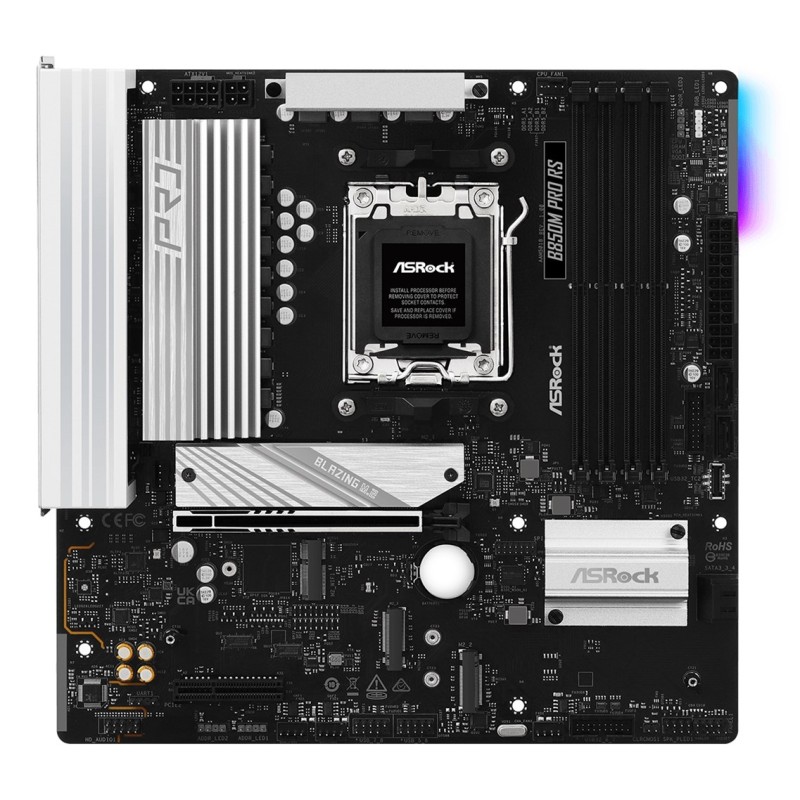

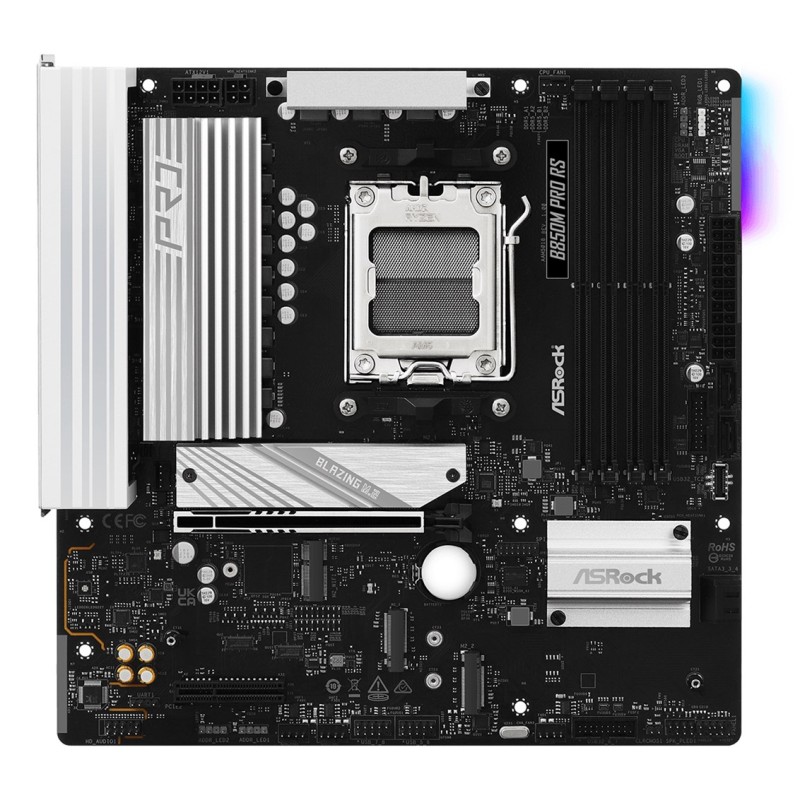

Asrock B850M Pro RS AMD B850 Socket AM5 micro ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series

Processor socket: Socket AM5

Graphics

HDCP: Yes

Maximum resolution: 3840 x 2160 pixels

Parallel processing technology support: Not supported

Features

Audio output channels: 7.1 channels

Product colour: Black

Motherboard chipset: AMD B850

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Audio chip: Realtek ALC897

Memory

ECC сompatibility: ECC & Non-ECC

Memory channels: Dual-channel

Number of memory slots: 4

Memory slots type: DIMM

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Supported memory types: DDR5-SDRAM

Weight & dimensions

Width: 244 mm

Depth: 244 mm

Network

LAN controller: Dragon RTL8125BG

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

Number of EPS power connectors (8-pin): 1

EPS power connector (8-pin): Yes

CPU fan connector: Yes

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

Number of chassis fan connectors: 3

Number of SATA III connectors: 4

RGB LED pin header: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

12V power connector: Yes

USB 2.0 connectors: 2

TPM connector: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Screws included: Yes

Storage controllers

Supported storage drive types: HDD & SSD

RAID levels: 10, 0, 1

Number of storage drives supported: 7

RAID support: Yes

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

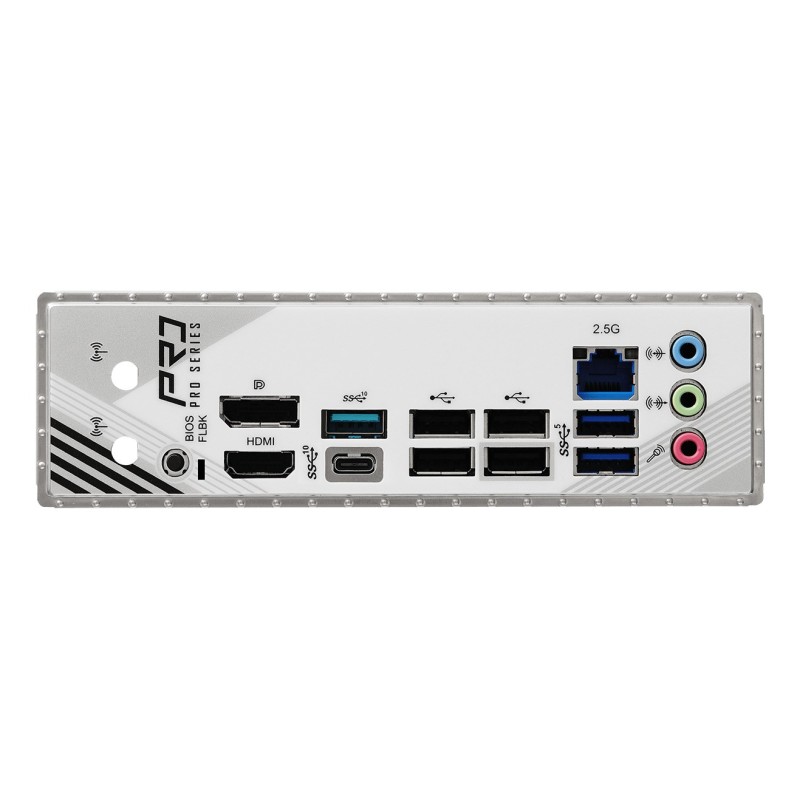

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB connector type: USB Type-C, USB Type-A

Ethernet LAN (RJ-45) ports: 1

Microphone in: Yes

DisplayPort version: 1.4

HDMI ports quantity: 1

USB 2.0 ports quantity: 4

Line-in: Yes

HDMI version: 2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

DisplayPorts quantity: 1

Headphone outputs: 3

Expansion slots

1st M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

1st M.2 highest PCI Express generation: 5.0

2nd M.2 largest key size: 2280

3rd M.2 largest key size: 2280

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 5.x) slots: 1

3rd M.2 highest PCI Express generation: 4.0

PCI Express x4 (Gen 4.x) slots: 1

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
