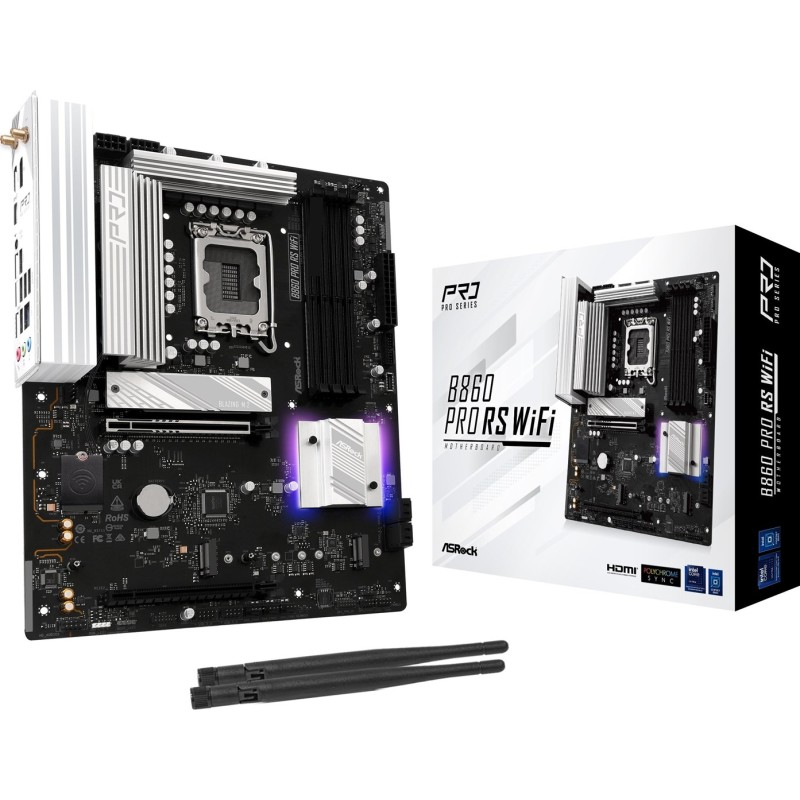

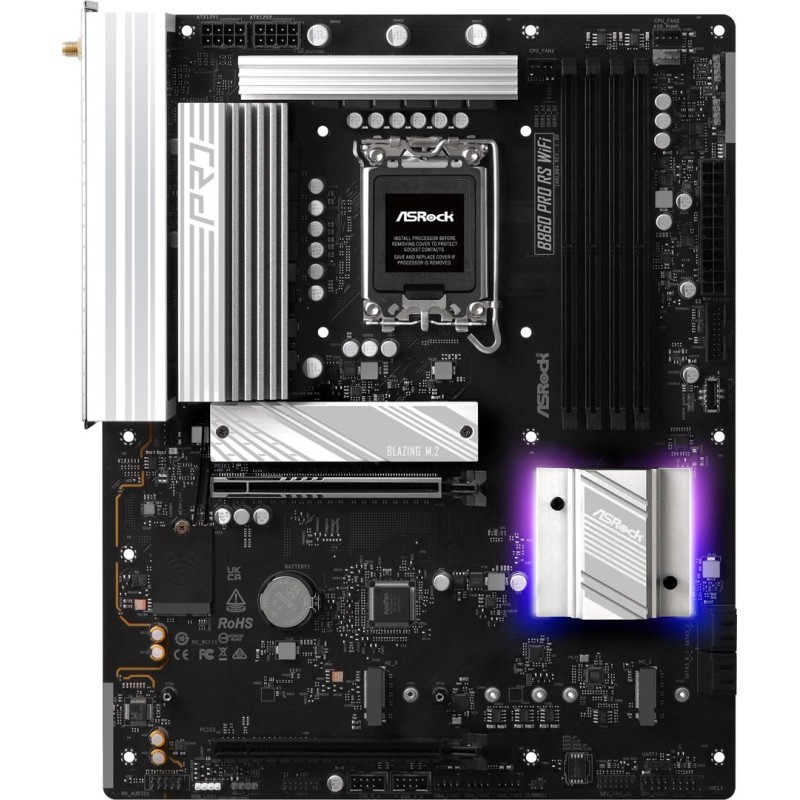

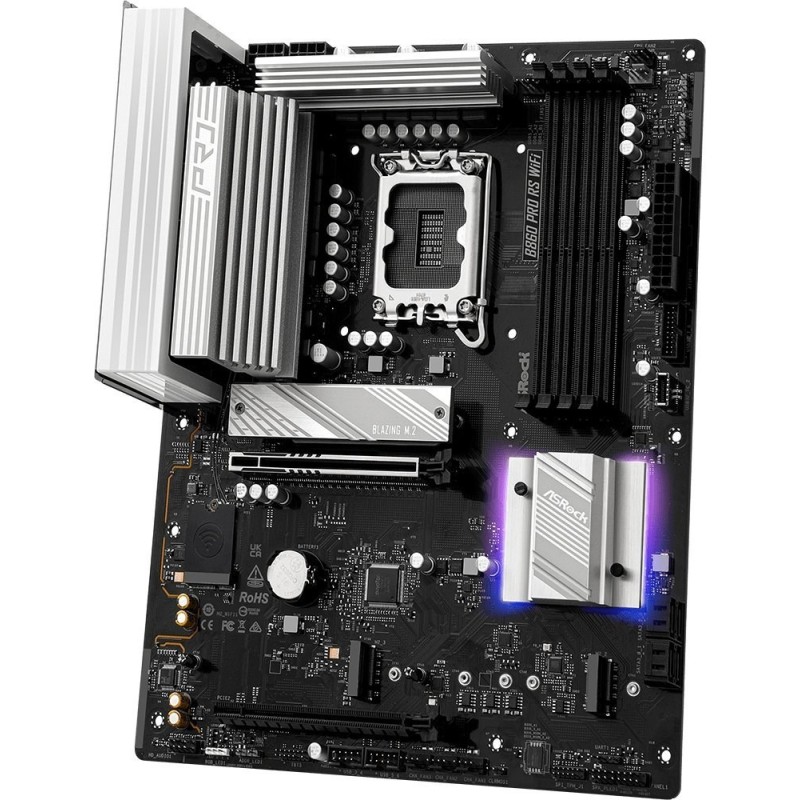

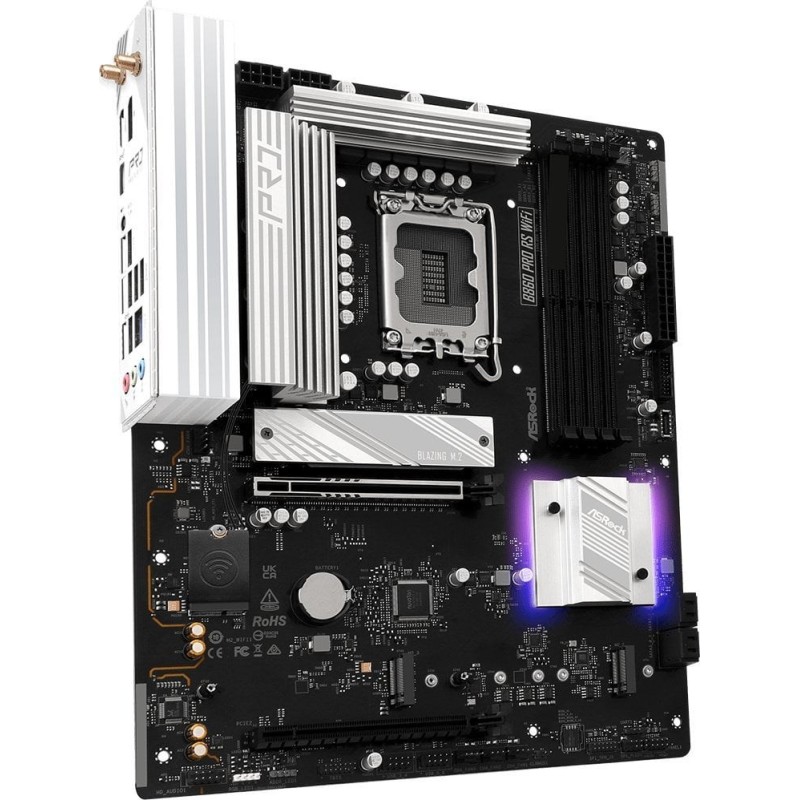

Płyta główna ASRock B860 Pro RS WiFi

Περιγραφή

Processor

Supported processor sockets: LGA 1851

Processor socket: LGA 1851 (Socket V1)

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Graphics

Maximum resolution: 7680 x 4320 pixels

Parallel processing technology support: Not supported

HDCP: Yes

Features

Product colour: White

Audio chip: Realtek ALC1220

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Motherboard form factor: ATX

Motherboard chipset: Intel B860

Windows operating systems supported: Windows 11 x64

Memory

Unbuffered memory: Yes

Maximum internal memory: 256 GB

Memory channels: Dual-channel

ECC сompatibility: Non-ECC

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Number of memory slots: 4

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

LAN controller: Dragon RTL8125BG

Bluetooth: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax)

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.3

Wi-Fi: Yes

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 2

CPU fan connector: Yes

Number of SATA III connectors: 4

Front panel audio connector: Yes

TPM connector: Yes

EPS power connector (8-pin): Yes

Number of chassis fan connectors: 5

USB 3.2 Gen 2x2 connectors: 1

Number of CPU fan connectors: 2

Number of RGB LED pin headers: 1

Number of EPS power connectors (8-pin): 2

Number of water pump connectors: 1

12V power connector: Yes

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Antenna included: Yes

Storage controllers

RAID support: Yes

Supported storage drive types: HDD & SSD

RAID levels: 5, 0, 10, 1

Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III

Number of storage drives supported: 8

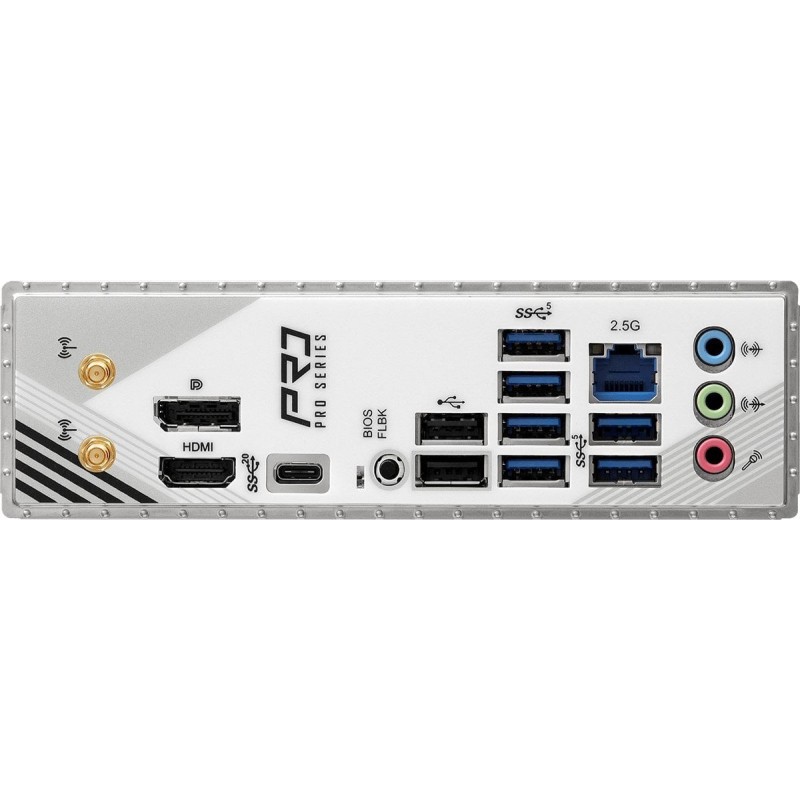

Rear panel I/O ports

USB 2.0 ports quantity: 3

DisplayPort version: 1.4

USB connector type: USB Type-A, USB Type-C

S/PDIF out port: Yes

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

HDMI version: 2.1

Headphone outputs: 1

WiFi-AP antenna jack: 2

Microphone in: Yes

Thunderbolt ports quantity: 1

Expansion slots

Number of M.2 (M) slots: 4

2nd M.2 largest key size: 2280

4th M.2 highest PCI Express generation: 4.0

3rd M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

4th M.2 largest key size: 2280

2nd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 2280

1st M.2 highest PCI Express generation: 5.0

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1
