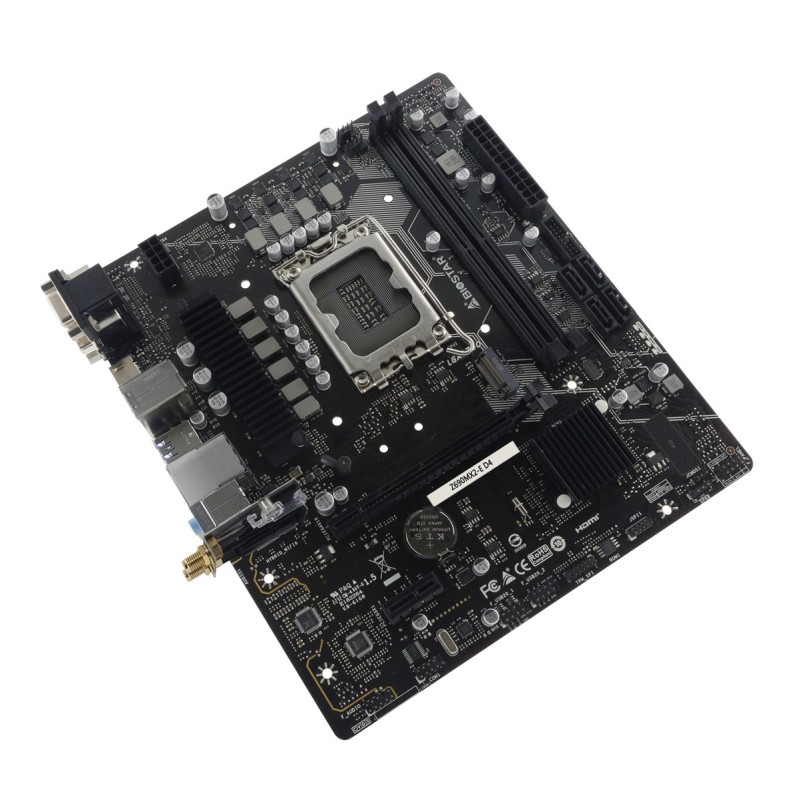

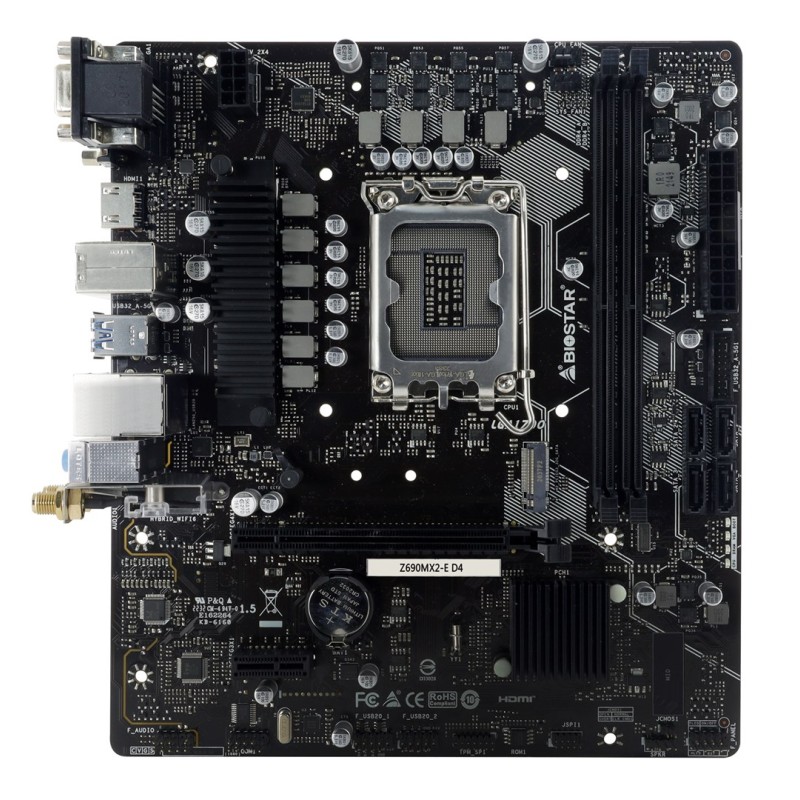

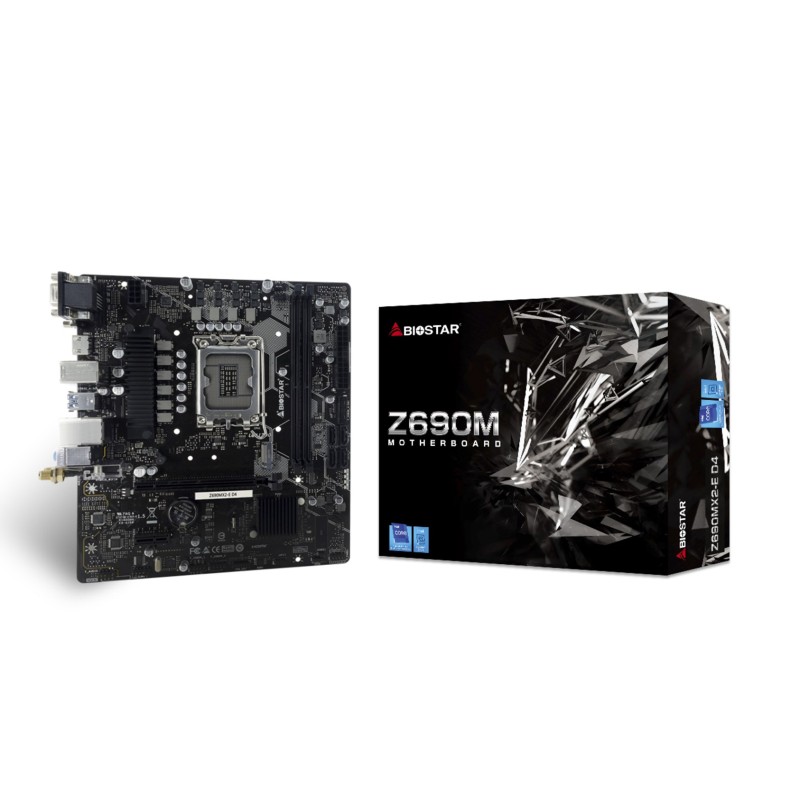

Płyta główna Biostar Z690MX2-E D4

Περιγραφή

Processor

Compatible processor series: Intel Core i9 13th Gen, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i9 14th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i3 12th Gen, Intel Core i7 13th Gen, Intel Core i3 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen

Processor manufacturer: Intel

Processor socket: LGA 1700

Features

PC health monitoring: Fan, CPU, Temperature

Motherboard chipset: Intel Z690

Motherboard form factor: micro ATX

Motherboard chipset family: Intel

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Memory

Supported memory clock speeds: 2133, 3200, 2666, 1866, 2400, 4400, 2933, 3600, 3800, 4000

Number of memory slots: 2

Maximum internal memory: 64 GB

Memory slots type: DIMM

Memory channels: Dual-channel

Supported memory types: DDR4-SDRAM

ECC сompatibility: Non-ECC

Weight & dimensions

Width: 208 mm

Depth: 236 mm

Network

Ethernet LAN: Yes

Wi-Fi: No

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Realtek RTL8125B

Internal I/O

Number of SATA III connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Number of chassis fan connectors: 1

Front panel connector: Yes

CPU fan connector: Yes

TPM connector: Yes

Number of COM connectors: 1

EPS power connector (8-pin): Yes

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 4

BIOS

BIOS type: UEFI

Packaging content

Drivers included: Yes

Cables included: SATA

Storage controllers

Number of HDDs supported: 5

RAID levels: 10, 1, 0, 5

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

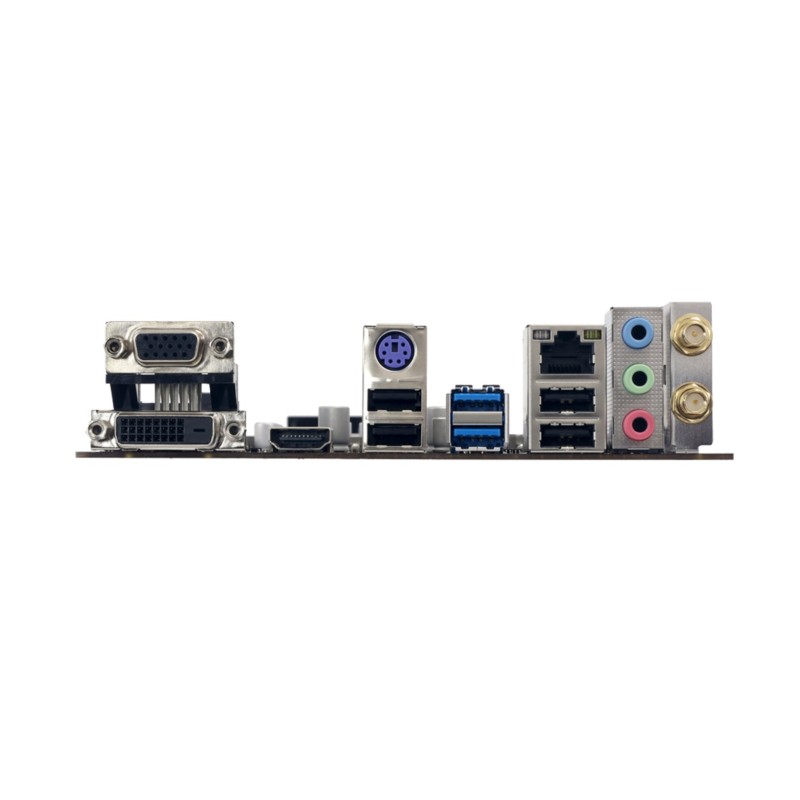

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

HDMI ports quantity: 1

DVI-D ports quantity: 1

PS/2 ports quantity: 1

USB 2.0 ports quantity: 4

VGA (D-Sub) ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 1
