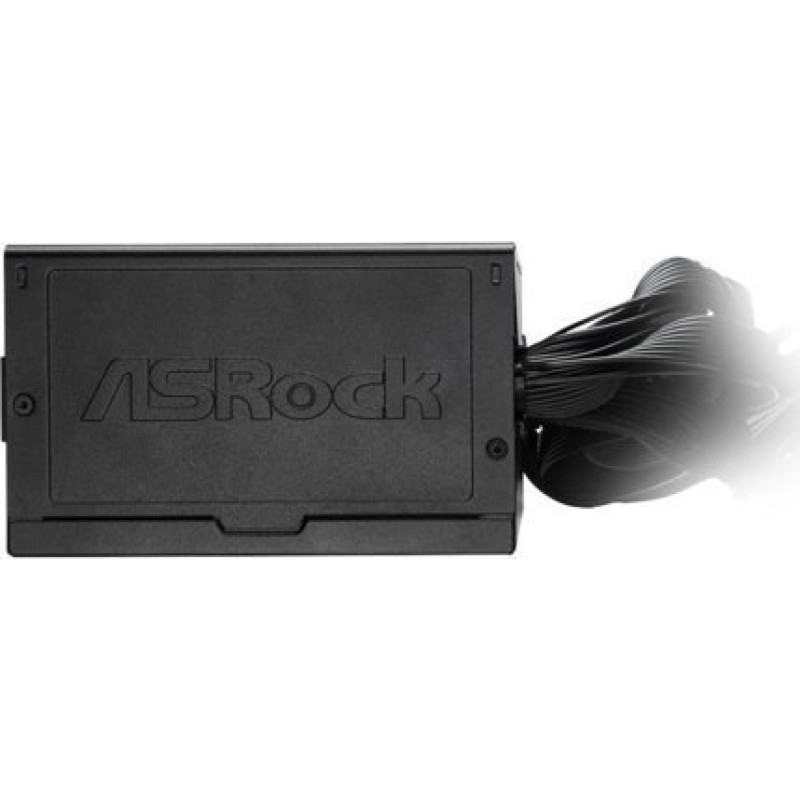

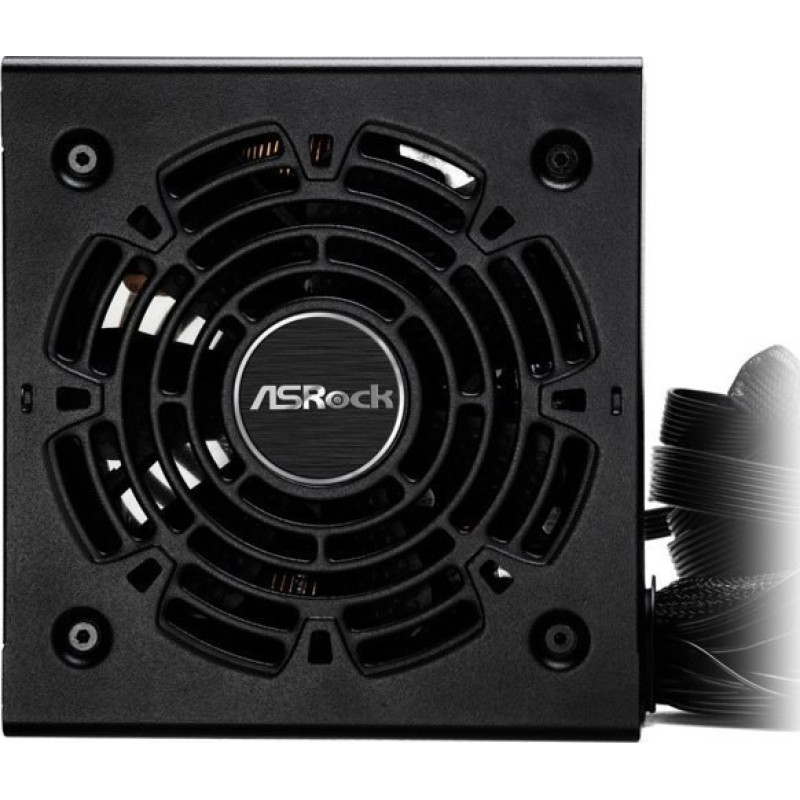

Zasilacz ASRock STEEL LEGEND 750W 80 Plus Gold

Περιγραφή

Technical details

Sustainability compliance: Yes

Sustainability certificates: ENERGY STAR, ErP

Design

Fan diameter: 12 cm

On/off switch: Yes

Number of fans: 1 fan(s)

Cooling type: Active

Fan location: Top

Product colour: Black

Power

Power Good signal delay range: 100 - 150 ms

Efficiency: 92.7%

AC input voltage: 100 - 240 V

Combined power (+12V): 650 W

Total power: 650 W

Power Factor Correction (PFC) type: Active

Power protection features: Short circuit, Over voltage, Over current, Over power, Overheating

Combined power (+3.3V): 120 W

AC input frequency: 50 - 60 Hz

Max output current (+5V): 20 A

Input current: 10/5 A

Power factor: 0.98

Max output current (+12V1): 32 A

Max output current (-12V): 0.3 A

Max output current (+5Vsb): 3 A

Combined power (+5V): 120 W

Max output current (+12V2): 28 A

Combined power (-12V): 3.6 W

Peak power: 720 W

Max output current (+3.3V): 20 A

Combined power (+5Vsb): 15 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Depth: 150 mm

Height: 86 mm

Width: 160 mm

Performance

ATX version: 3.1

80 PLUS certification: 80 PLUS Gold

Purpose: PC

Noise level: 19.9 dB

Mean time between failures (MTBF): 100000 h

Power supply unit (PSU) form factor: ATX

EPS version: 2.92

Packaging data

Package type: Box

Packaging content

Cables included: PATA, PCIe, Peripheral (Molex), SATA

Certificates

Compliance certificates: RoHS

Ports & interfaces

CPU P4 connector (4-pin): 1

SATA power cable length: 650, 950 mm, 800 mm, 500 mm

Motherboard power connector: 20+4 pin ATX

Peripheral (Molex) power cable length: 550

Cabling type: Fully-Modular

Number of PATA power connectors: 2

EPS power connector (4+4 pin): Yes

ATX power connector (20+4 pin): Yes

Number of SATA power connectors: 5

PCI Express power connectors (6+2 pin): 2

PCI Express connector: Yes

Peripheral (Molex) power connectors (4-pin): 1

Motherboard power cable length: 55 cm

Other features

Noise level (silent mode, <30%): 8.1 dB

Cable ties included: Yes

Noise level (full-load mode, 100%): 19.9 dB

Number of screws: 5

Noise level (quiet mode, 50%): 9.1 dB

Screws included: Yes

Logistics data

Warranty period: 10 year(s)

Safety warning

Warnings: The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations., Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock.
