GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Maximum number of SMP processors: 1

Maximum internal memory supported by processor: 192 GB

Processor manufacturer: Intel

Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3

Supported processor sockets: LGA 1700

Processor socket: LGA 1700

Graphics

On-board graphics card: No

HDCP: Yes

Maximum resolution: 4096 x 2304 pixels

Parallel processing technology support: Not supported

Features

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Product colour: Bronze

PC health monitoring: Water cooling, Temperature, Fan, Voltage

Audio chip: Realtek ALC897

Motherboard chipset family: Intel

Audio output channels: 7.1 channels

Motherboard chipset: Intel Z790 Express

Power source type: ATX

Motherboard form factor: ATX

Memory

Number of memory slots: 4

Memory channels: Dual-channel

Supported memory types: DDR5-SDRAM

Memory slots type: DIMM

Supported memory clock speed (max): 7600 MHz

ECC сompatibility: ECC & Non-ECC

Supported memory clock speeds: 6200, 6000, 4400, 5200, 4800, 5800, 5400, 5600, 7200, 6600, 7000, 6400, 7400, 7600, 6800

Supported memory module capacities: 16GB, 48GB, 2GB, 4GB, 1GB, 8GB, 32GB, 12GB

Maximum internal memory: 192 GB

Unbuffered memory: Yes

Weight & dimensions

Width: 305 mm

Depth: 244 mm

Height: 35 mm

Network

WLAN controller model: Intel Wi-Fi 6E AX211

Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11b

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth version: 5.3

Wi-Fi: Yes

Ethernet LAN: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth: Yes

Internal I/O

RGB LED pin header: Yes

EPS power connector (8-pin): Yes

12V power connector: Yes

CPU fan connector: Yes

Total number of SATA connectors: 4

TPM connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Number of EATX power connectors: 2

Front panel connector: Yes

Thunderbolt headers: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 2.0 connectors: 2

Number of SATA III connectors: 4

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

BIOS

Clear CMOS button: Yes

BIOS type: UEFI AMI

Desktop Management Interface (DMI) version: 2.7

Clear CMOS jumper: Yes

Packaging data

Package depth: 270 mm

Package width: 335 mm

Package height: 80 mm

Package weight: 1.81 kg

Packaging content

Batteries included: Yes

Antenna included: Yes

Cables included: SATA

Storage controllers

RAID levels: 10, 5, 1, 0

Number of storage drives supported: 7

Number of HDDs supported: 4

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID support: Yes

Rear panel I/O ports

HDMI version: 2.1

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Microphone in: Yes

Headphone outputs: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB connector type: USB Type-A, USB Type-C

WiFi-AP antenna jack: 2

HDMI ports quantity: 1

USB 2.0 ports quantity: 2

DisplayPort version: 1.2

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

S/PDIF out port: Yes

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 5.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 3.x) slots: 1

Battery

Number of battery cells: 1

Battery weight: 3 g

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Lithium weight per battery: 0.07 g

Logistics data

Products per shipping (inner) case: 1 pc(s)

Country of origin: China

Safety warning

Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

ASRock B760I LIGHTNING WIFI Motherboard

ProcessorProcessor manufacturer: IntelSupported processor sockets: LGA 1700Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™..

190,15€

Χωρίς ΦΠΑ:153,35€

Asrock B760M Pro RS Intel B760 LGA 1700 micro ATX

ProcessorCompatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9Maximum number of SMP processors: 1Processor manufacturer: Inte..

124,28€

Χωρίς ΦΠΑ:100,23€

Asrock B760M Steel Legend WiFi Intel B760 LGA 1700 micro ATX

ProcessorMaximum number of SMP processors: 1Processor manufacturer: IntelCompatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i..

159,16€

Χωρίς ΦΠΑ:128,35€

ASRock B760M-H2/M.2 motherboard

ProcessorCompatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5Maximum number of SMP processors: 1Processor m..

89,11€

Χωρίς ΦΠΑ:71,86€

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

ProcessorCompatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5Processor manufacturer: IntelMaximum number of..

82,04€

Χωρίς ΦΠΑ:66,16€

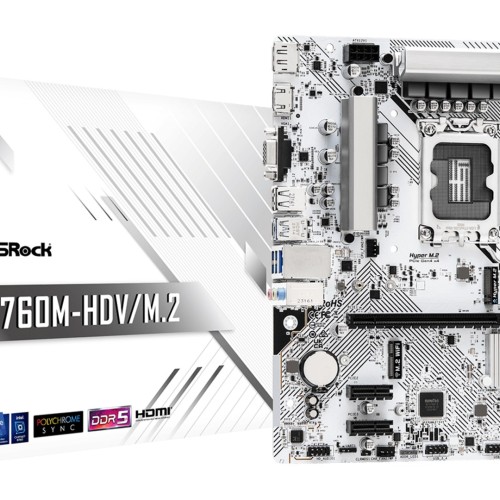

Asrock B760M-HDV/M.2 motherboard Intel B760 LGA 1700 micro ATX
