ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX

Περιγραφή

Processor

Compatible processor series: Intel® Pentium®, Intel® Core™ i7, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i9, Intel® Pentium® Gold

Processor manufacturer: Intel

Maximum number of SMP processors: 1

Processor socket: LGA 1700

Graphics

Number of displays supported: 3

Features

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Audio output channels: 7.1 channels

Motherboard chipset family: Intel

Motherboard chipset: Intel H610

Motherboard form factor: micro ATX

Memory

ECC сompatibility: Non-ECC

Maximum internal memory: 64 GB

Memory slots type: DIMM

Number of memory slots: 2

Supported memory clock speeds: 2933, 3000, 3200 MHz, 2666, 2400, 2800, 2133

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

Unbuffered memory: Yes

Weight & dimensions

Depth: 211 mm

Width: 244 mm

Height: 58 mm

Network

Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g

Wi-Fi: Yes

Bluetooth: Yes

Ethernet LAN: Yes

Bluetooth version: 5.0

Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

Ethernet interface type: Gigabit Ethernet

Internal I/O

12V power connector: Yes

ATX Power connector (24-pin): Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of chassis fan connectors: 2

Front panel audio connector: Yes

Number of COM connectors: 1

Number of SATA III connectors: 4

RGB LED pin header: Yes

S/PDIF out connector: Yes

TPM connector: Yes

EPS power connector (8-pin): Yes

CPU fan connector: Yes

USB 2.0 connectors: 2

BIOS

BIOS type: UEFI AMI

Packaging content

Drivers included: Yes

Cables included: SATA

Storage controllers

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

Headphone outputs: 1

PS/2 ports quantity: 2

Microphone in: Yes

Ethernet LAN (RJ-45) ports: 1

VGA (D-Sub) ports quantity: 1

HDMI version: 2.1

USB 2.0 ports quantity: 4

DisplayPort version: 1.4

DisplayPorts quantity: 1

HDMI ports quantity: 1

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 1

Number of M.2 (M) slots: 2

Other features

Weight: 815 g

Logistics data

Harmonized System (HS) code: 84733020

Safety warning

Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

ASRock B760I LIGHTNING WIFI Motherboard

ProcessorProcessor manufacturer: IntelSupported processor sockets: LGA 1700Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™..

193,30€

Χωρίς ΦΠΑ:155,89€

Asrock B760M Pro RS Intel B760 LGA 1700 micro ATX

ProcessorCompatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9Maximum number of SMP processors: 1Processor manufacturer: Inte..

126,34€

Χωρίς ΦΠΑ:101,89€

Asrock B760M Steel Legend WiFi Intel B760 LGA 1700 micro ATX

ProcessorMaximum number of SMP processors: 1Processor manufacturer: IntelCompatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i..

161,42€

Χωρίς ΦΠΑ:130,18€

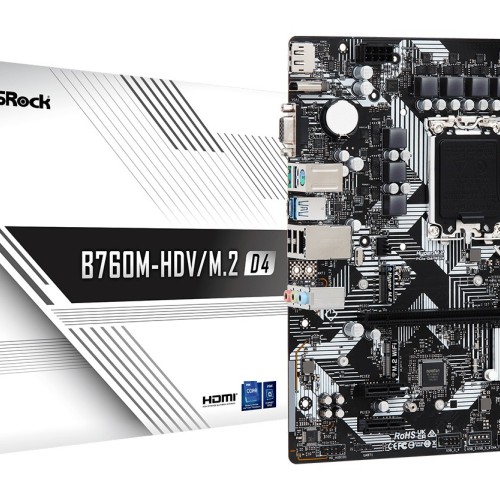

Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

ProcessorCompatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Core™ i5Processor manufacturer: IntelMaximum number of..

83,40€

Χωρίς ΦΠΑ:67,25€

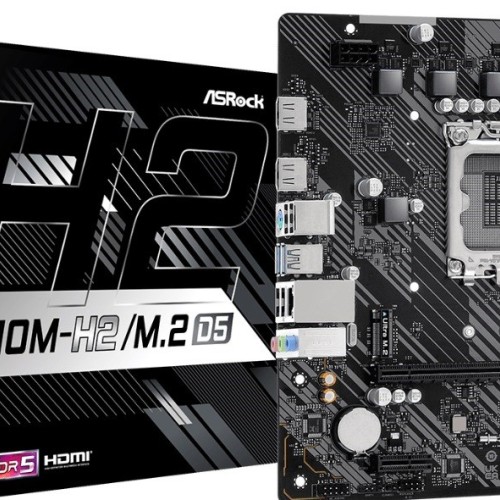

ASRock H610M-H2/M.2 D5 motherboard

ProcessorProcessor manufacturer: IntelCompatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5, Intel® Core™ i3Processor socket:..

66,84€

Χωρίς ΦΠΑ:53,90€

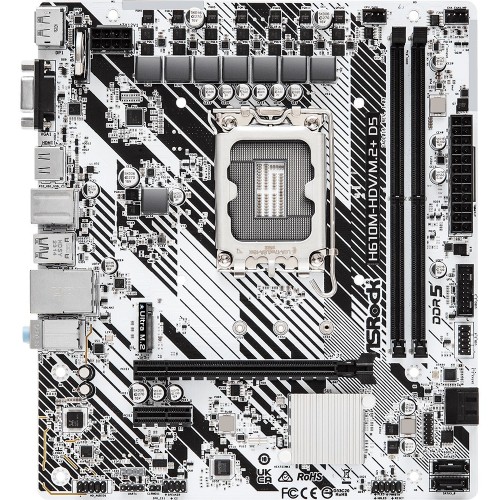

Asrock H610M-HDV/M.2+ D5 Intel H610 LGA 1700 micro ATX

ProcessorMaximum number of SMP processors: 1Compatible processor series: Intel® Pentium®, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Co..

66,84€

Χωρίς ΦΠΑ:53,90€

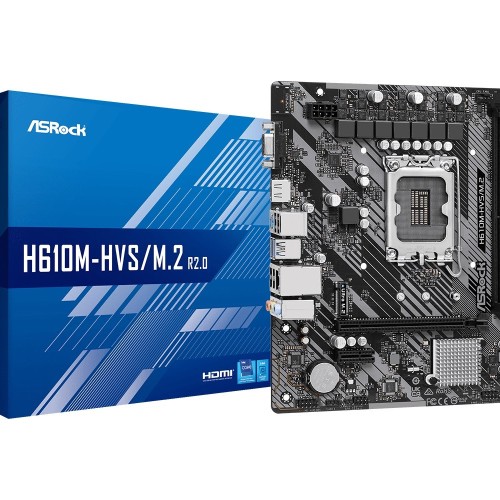

Asrock H610M-HVS/M.2 R2.0 Intel H610 LGA 1700 micro ATX

ProcessorCompatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Core™ i7, Intel® Core™ i9Processor ma..

65,67€

Χωρίς ΦΠΑ:52,96€

Asrock Z790 LiveMixer Intel Z790 LGA 1700 ATX

ProcessorProcessor manufacturer: IntelCompatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5Maximum number of SMP processors: ..

227,00€

Χωρίς ΦΠΑ:183,06€

Asrock Z790 PG SONIC Intel Z790 LGA 1700 ATX

ProcessorProcessor manufacturer: IntelCompatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5Maximum number of SMP processors: ..

244,02€

Χωρίς ΦΠΑ:196,79€

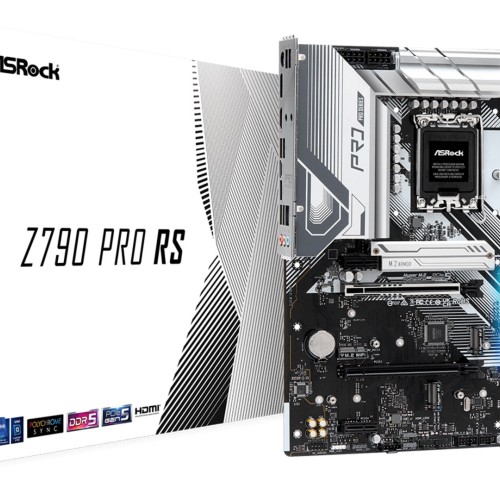

Asrock Z790 Pro RS Intel Z790 LGA 1700 ATX
