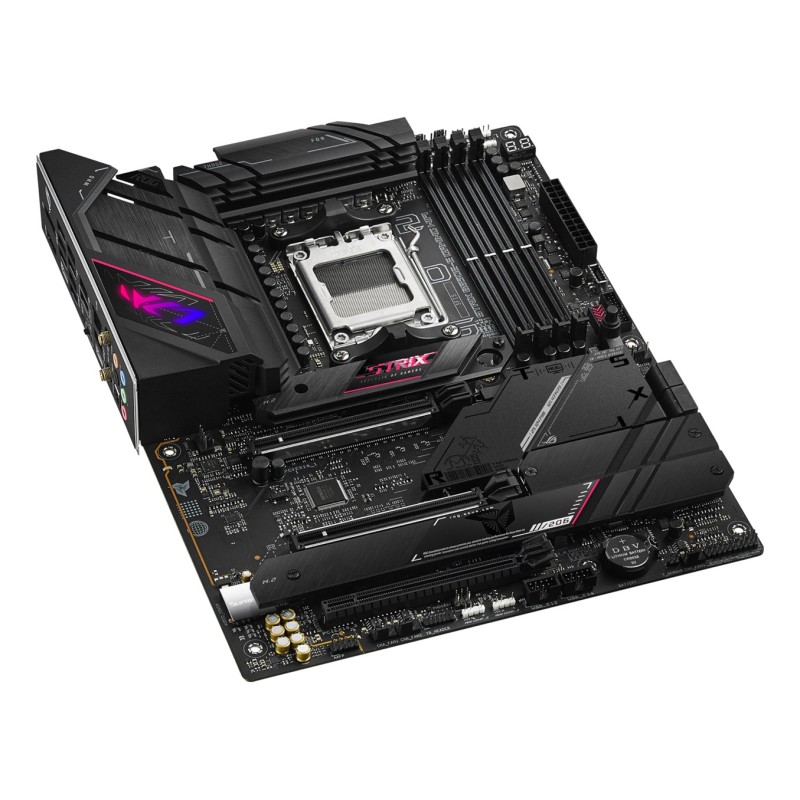

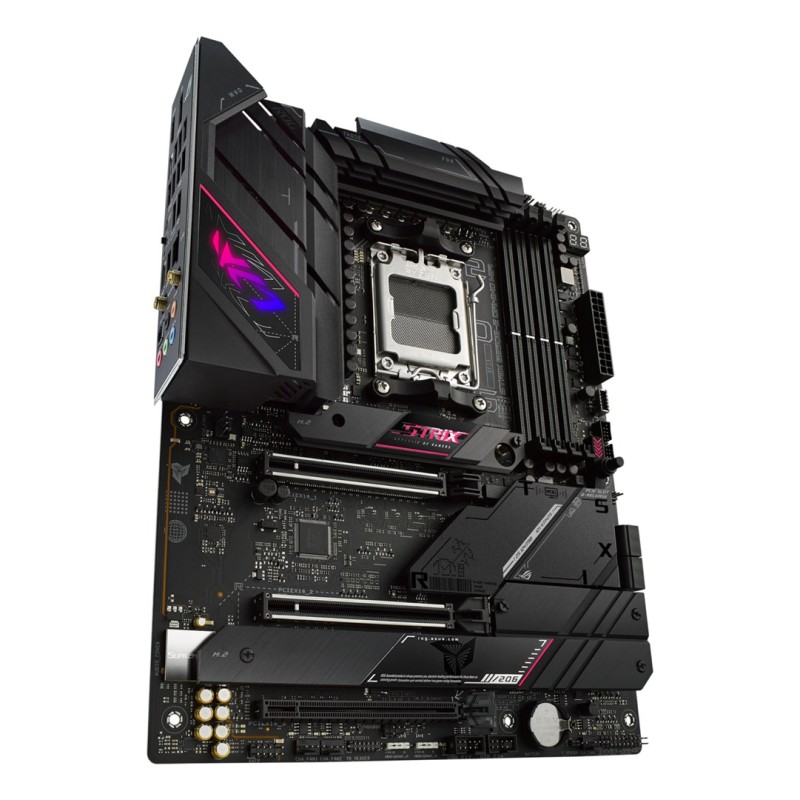

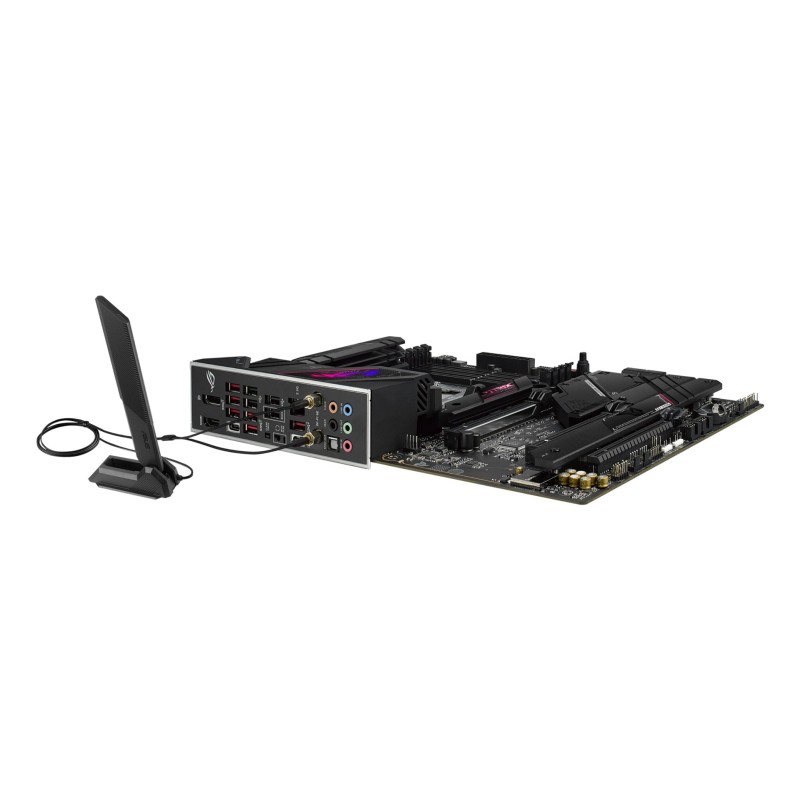

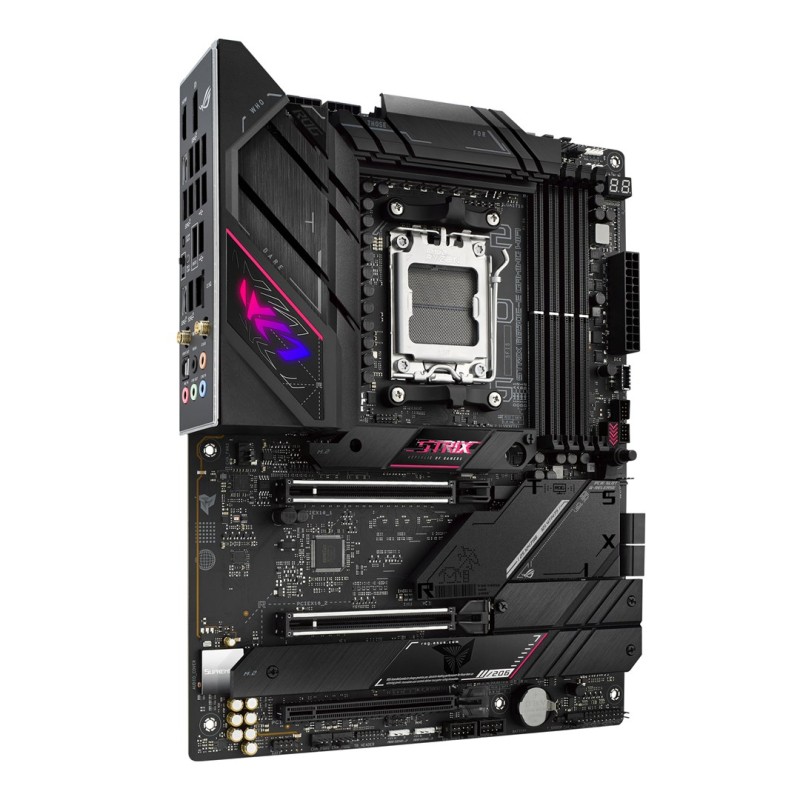

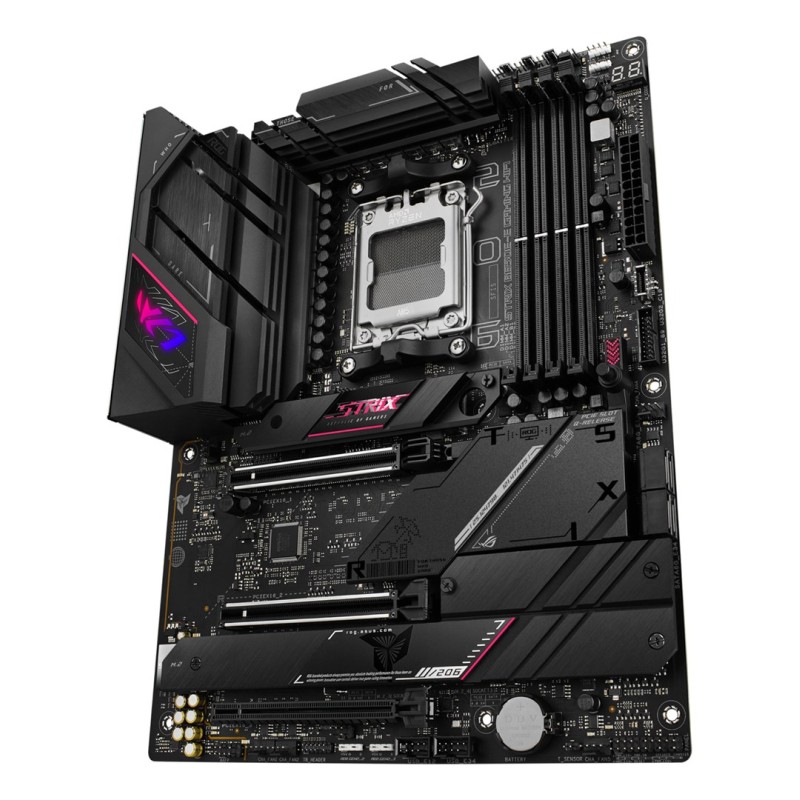

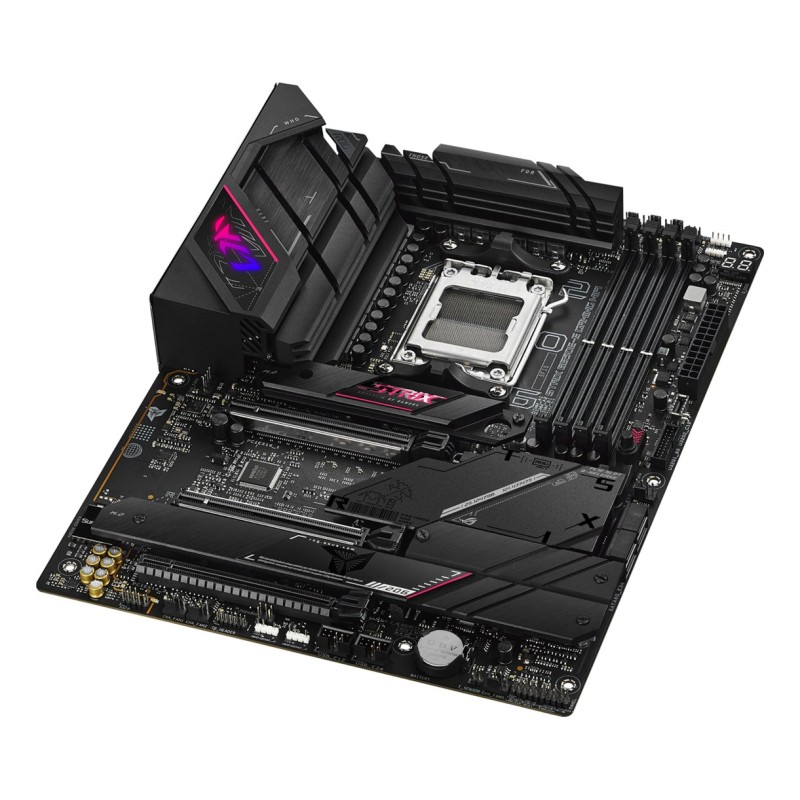

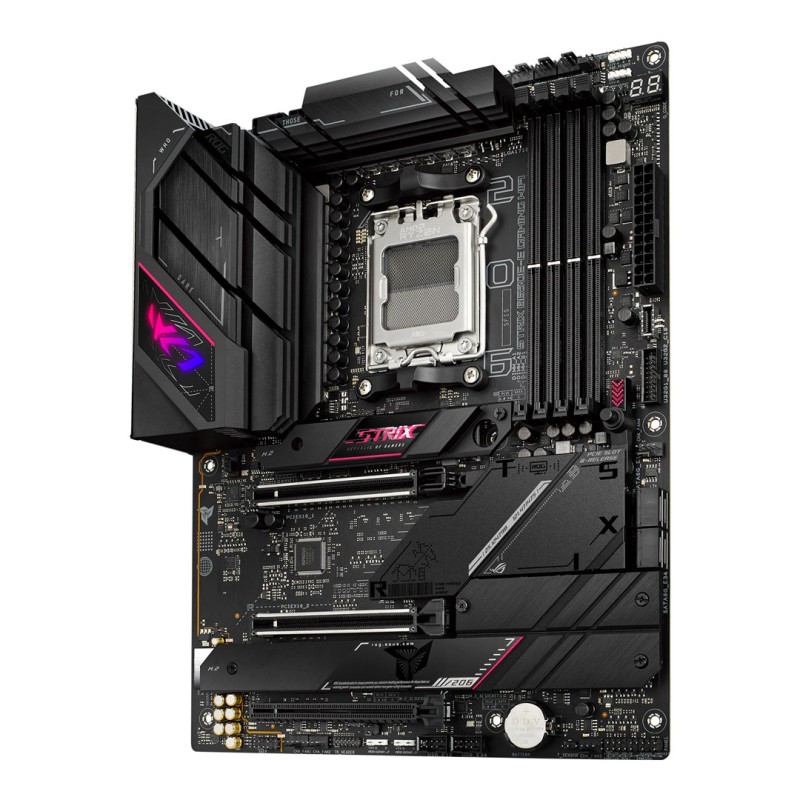

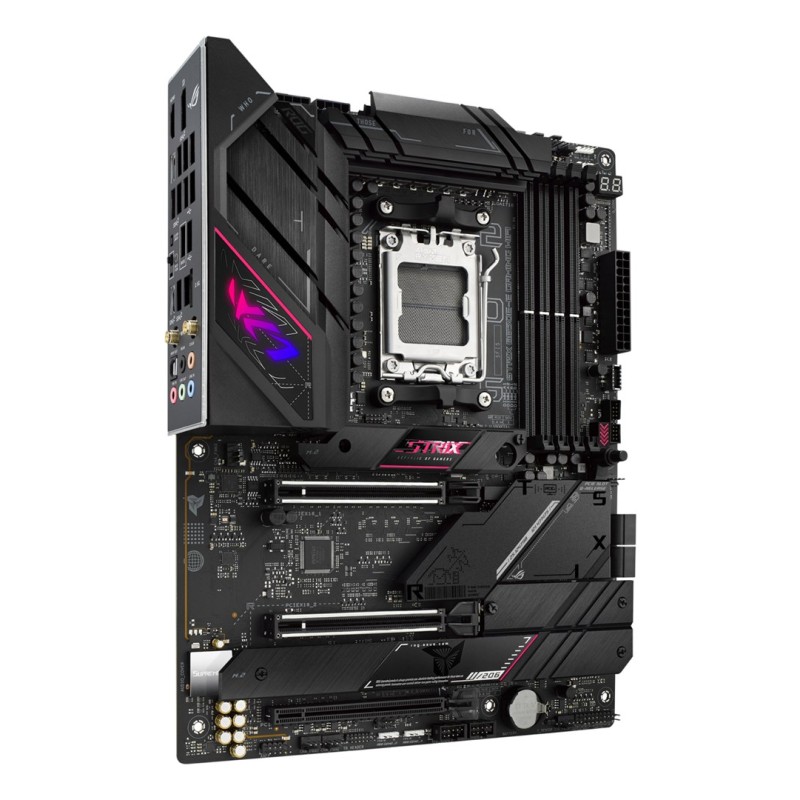

ASUS ROG STRIX B650E-E GAMING WIFI AMD B650 Socket AM5 ATX

Περιγραφή

Processor

Supported processor sockets: Socket AM5

Processor manufacturer: AMD

Compatible processor series: AMD Ryzen 7000 Series

Processor socket: Socket AM5

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Motherboard form factor: ATX

Windows operating systems supported: Windows 11 x64, Windows 10

Audio chip: Realtek ALC4080

Motherboard chipset: AMD B650

Power source type: ATX

Memory

Supported memory clock speeds: 5800, 5400, 6400, 6000, 6200, 5000, 5600, 5200, 4800

Memory channels: Dual-channel

Unbuffered memory: Yes

Maximum internal memory: 128 GB

ECC сompatibility: ECC & Non-ECC

Number of memory slots: 4

Memory slots type: DIMM

Supported memory types: DDR5-SDRAM

Supported memory clock speed (max): 6400 MHz

Weight & dimensions

Depth: 244 mm

Width: 305 mm

Network

Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac)

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Bluetooth: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.2

Ethernet LAN: Yes

Wi-Fi: Yes

Internal I/O

Number of SATA III connectors: 4

Number of chassis fan connectors: 5

Thunderbolt headers: 1

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

ATX Power connector (24-pin): Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

12V power connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Clear CMOS button: Yes

Packaging data

Package height: 77 mm

Package weight: 2.44 kg

Package depth: 273 mm

Package width: 343 mm

Packaging content

User guide: Yes

Cables included: SATA

Storage controllers

RAID levels: 1, 0, 10

RAID support: Yes

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: M.2, SATA III

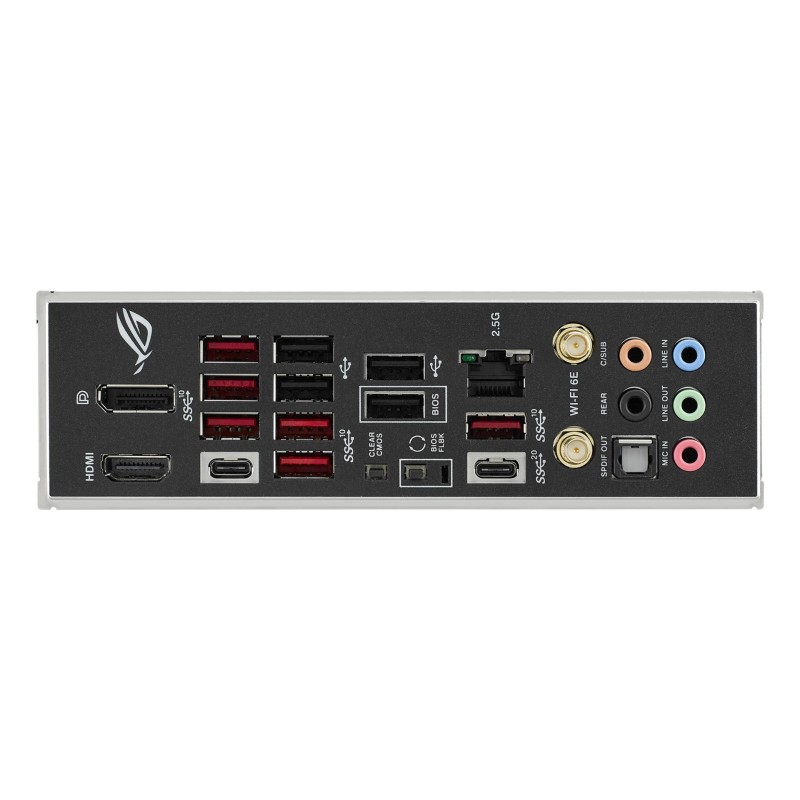

Rear panel I/O ports

S/PDIF out port: Yes

HDMI version: 2.1

DisplayPorts quantity: 1

DisplayPort version: 1.4

Ethernet LAN (RJ-45) ports: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6

USB 2.0 ports quantity: 4

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Headphone outputs: 1

Line-in: Yes

Microphone in: Yes

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

Number of M.2 (M) slots: 4

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 2

Other features

Back-to-BIOS button: Yes

Safety warning

Warnings: Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste.
