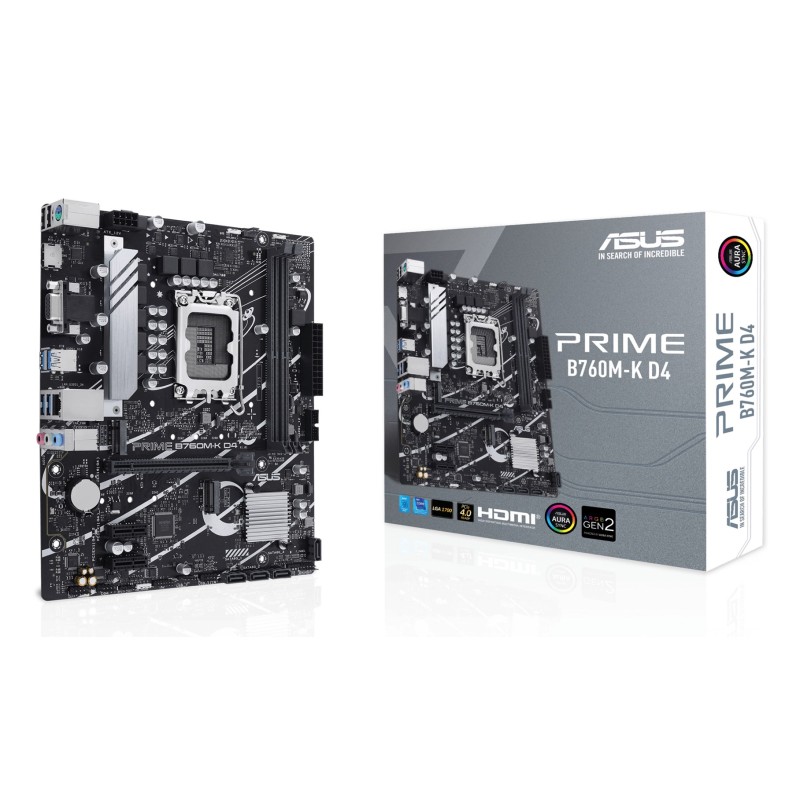

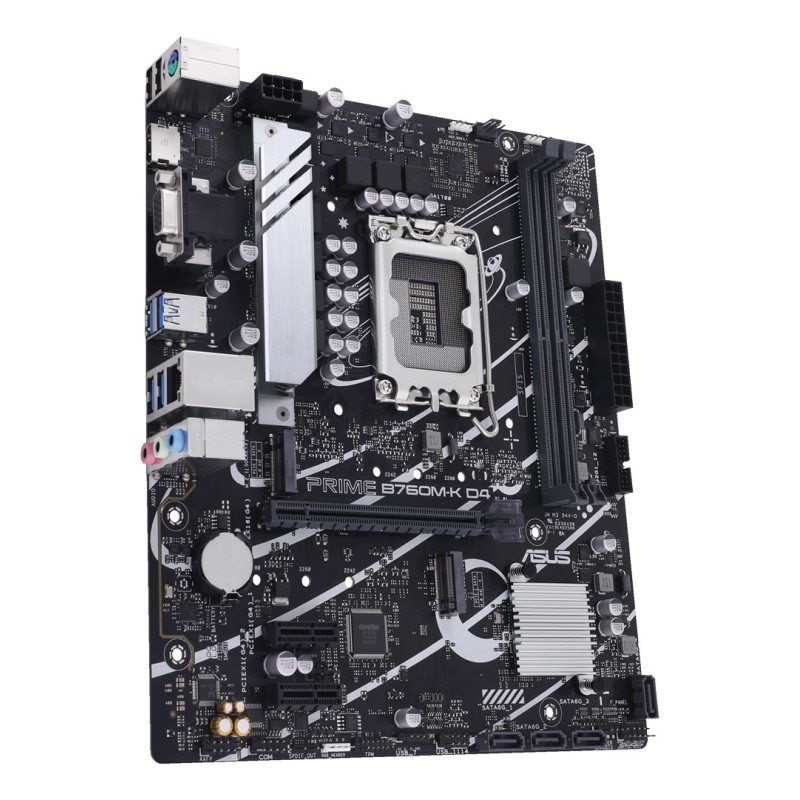

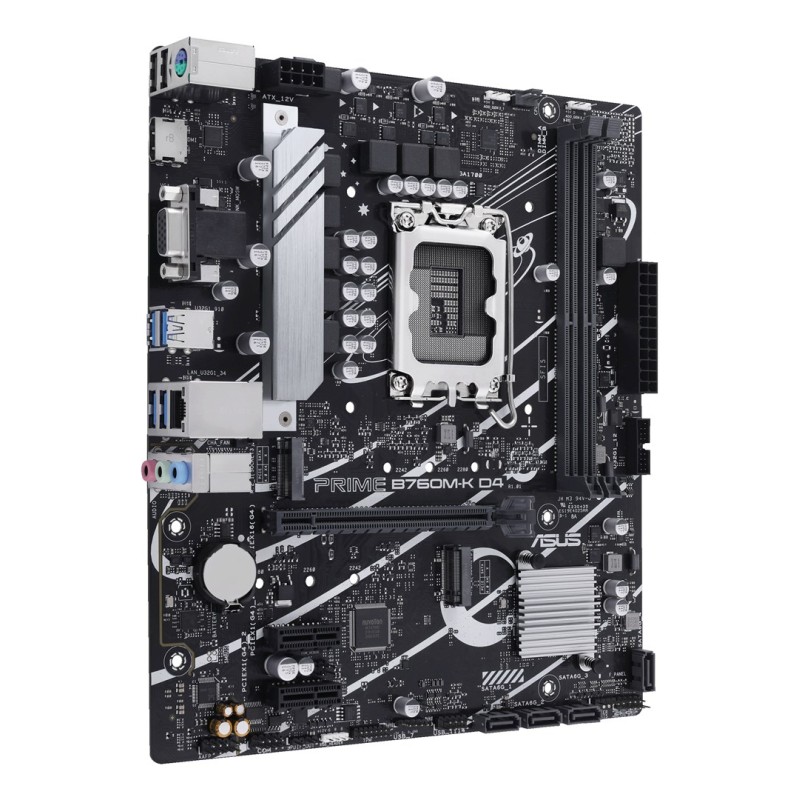

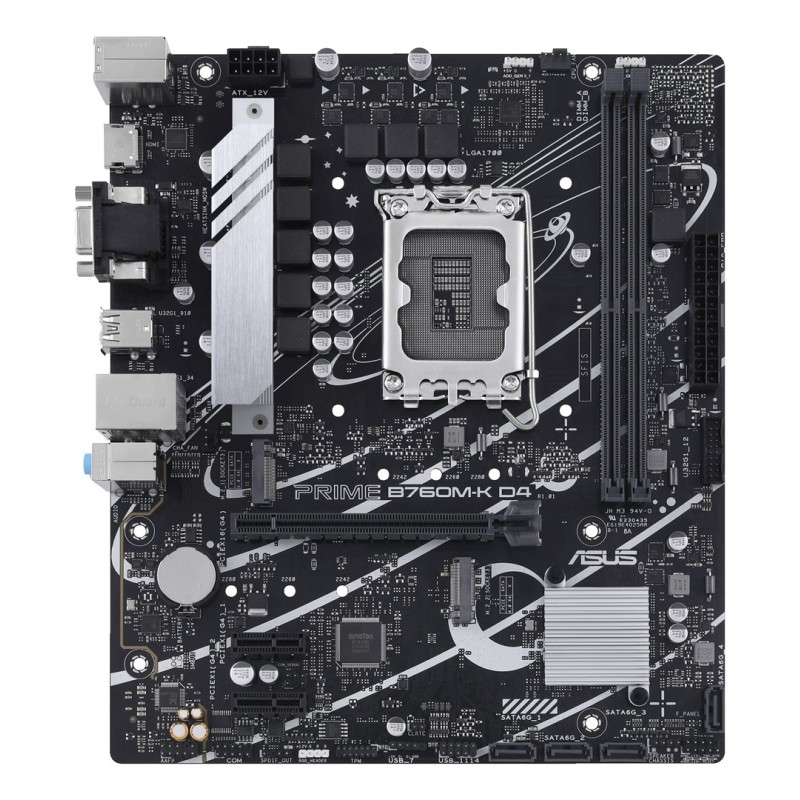

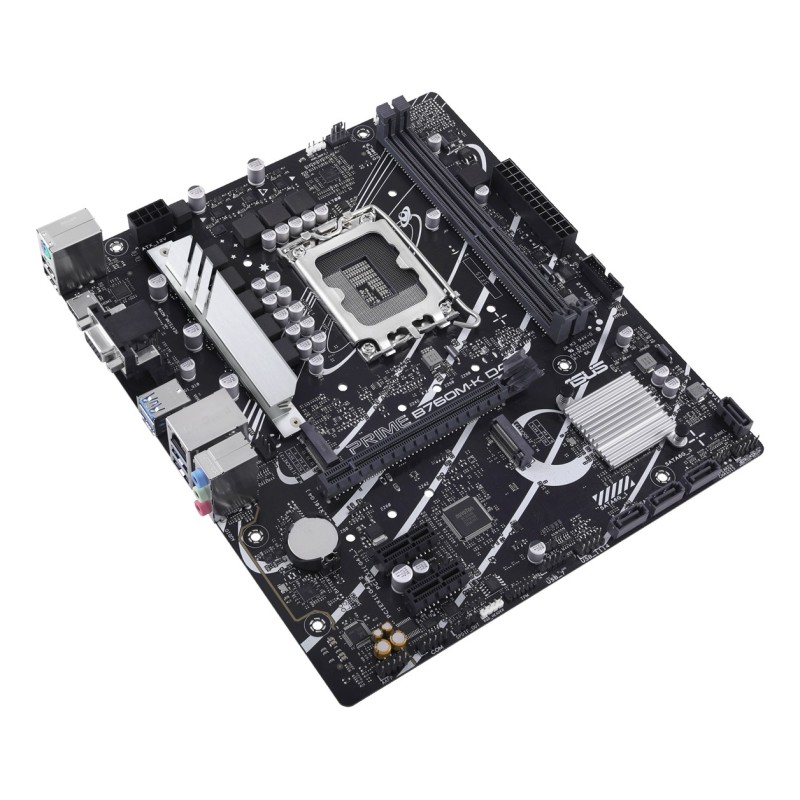

ASUS PRIME B760M-K D4 Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Processor socket: LGA 1700

Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3

Supported processor sockets: LGA 1700

Processor manufacturer: Intel

Graphics

Parallel processing technology support: Not supported

Features

Motherboard chipset: Intel B760

Audio output channels: 7.1 channels

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

Windows operating systems supported: Windows 11, Windows 10 x64

Memory

Supported memory clock speeds: 2933, 3600, 3400, 4000, 4800, 3000, 5333 MHz, 3200 MHz, 2666, 4266, 3333, 4600, 3466, 2400, 2800, 5066, 3733, 4400, 5000, 2133

Maximum internal memory: 64 GB

Unbuffered memory: Yes

Supported memory clock speed (max): 5333 MHz

Memory slots type: DIMM

Number of memory slots: 2

Supported memory types: DDR4-SDRAM

Memory channels: Dual-channel

ECC сompatibility: Non-ECC

Weight & dimensions

Height: 36 mm

Depth: 211 mm

Width: 244 mm

Network

Wake-on-LAN ready: Yes

Ethernet LAN: Yes

Wi-Fi: No

Ethernet interface type: 2.5 Gigabit Ethernet

Internal I/O

S/PDIF out connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

USB 2.0 connectors: 2

12V power connector: Yes

RGB LED pin header: Yes

ATX Power connector (24-pin): Yes

TPM connector: Yes

EPS power connector (8-pin): Yes

Number of COM connectors: 1

CPU fan connector: Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 1

BIOS

BIOS type: UEFI AMI

Packaging data

Package width: 270 mm

Package weight: 926.3 g

Package depth: 51.5 mm

Package height: 263 mm

Packaging content

Cables included: SATA

Storage controllers

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

Number of HDDs supported: 4

RAID levels: 0, 1, 10, 5

RAID support: Yes

Number of storage drives supported: 6

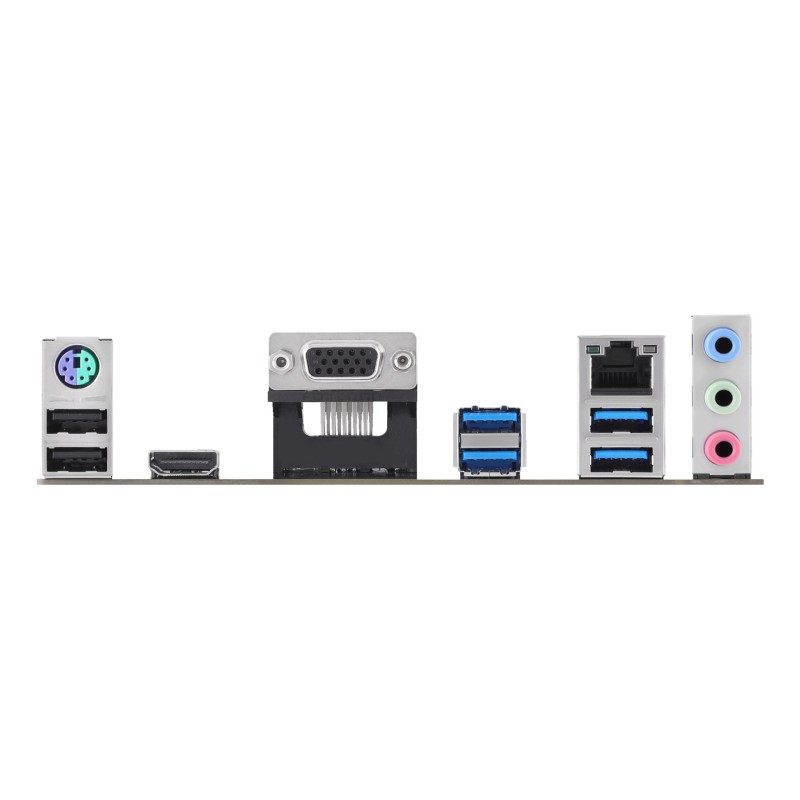

Rear panel I/O ports

VGA (D-Sub) ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

HDMI ports quantity: 1

USB connector type: USB Type-A

Microphone in: Yes

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 2

PS/2 ports quantity: 1

Expansion slots

PCI Express x1 (Gen 4.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

Other features

Weight: 528 g

Safety warning

Warnings: Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
