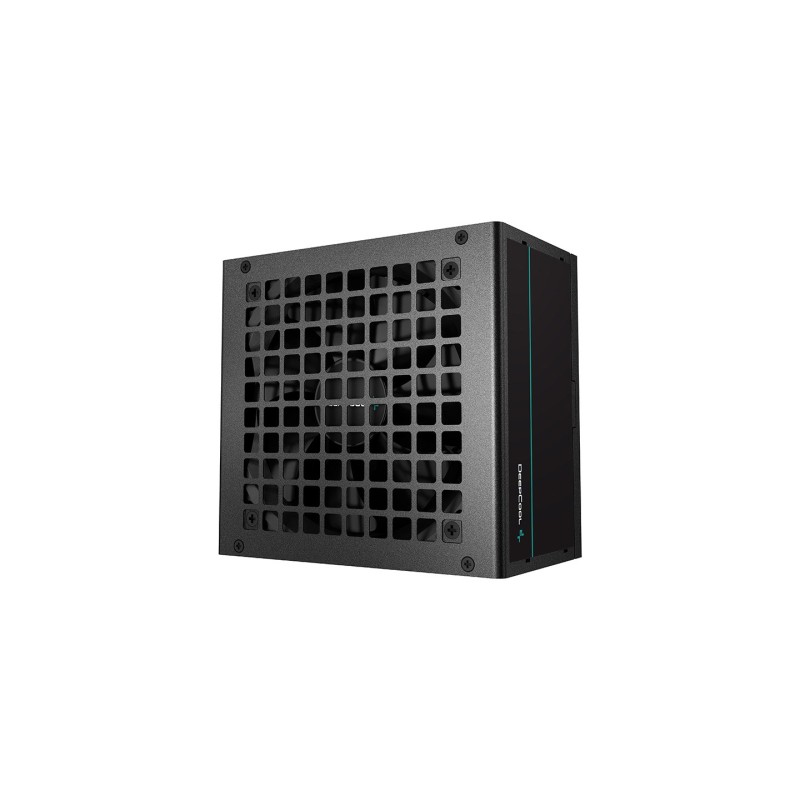

DeepCool PF400 power supply unit 400 W 20+4 pin ATX ATX Black

Περιγραφή

Design

On/off switch: Yes

Cooling type: Active

Product colour: Black

Number of fans: 1 fan(s)

Fan diameter: 12 cm

Power

Power protection features: Under voltage, Short circuit, Over voltage, Over power

Efficiency: 85%

AC input voltage: 220 - 240 V

Combined power (+5Vsb): 12.5 W

Max output current (+5V): 15 A

Total power: 400 W

AC input frequency: 50 Hz

Max output current (+5Vsb): 2.5 A

Combined power (-12V): 3.6 W

Combined power (+3.3V): 100 W

Hold time: 16 ms

Max output current (+3.3V): 15 A

Combined power (+12V): 384 W

Max output current (+12V): 32 A

Max output current (-12V): 0.3 A

Combined power (+5V): 100 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Height: 86 mm

Depth: 140 mm

Width: 150 mm

Performance

Purpose: PC/Server

Mean time between failures (MTBF): 100000 h

Power supply unit (PSU) form factor: ATX

80 PLUS certification: 80 PLUS

ATX version: 2.4

Packaging data

Package type: Box

Packaging content

Cables included: AC

Ports & interfaces

Motherboard power connector: 20+4 pin ATX

SATA power cable length: 750, 450, 900 mm, 600 mm

Motherboard power cable length: 55 cm

PCI Express power connectors (6+2 pin): 2

Number of SATA power connectors: 4

EPS power connector (4+4 pin): Yes

Cabling type: Non-Modular
