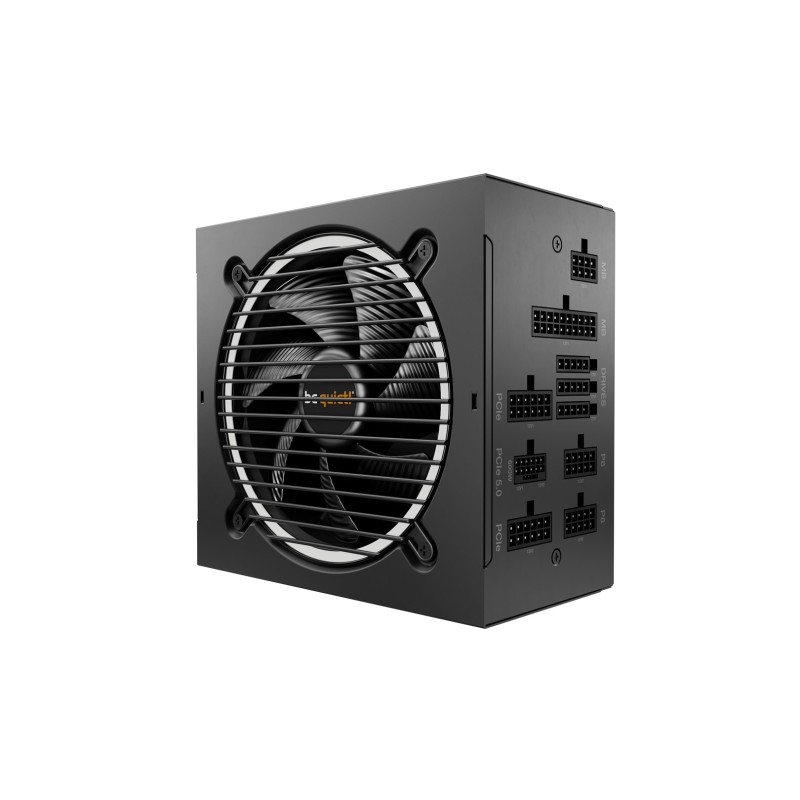

be quiet! Pure Power 12 M power supply unit 850 W 20+4 pin ATX ATX Black

Περιγραφή

Technical details

Sustainability compliance: Yes

Warranty period: 10 year(s)

Sustainability certificates: RoHS, ENERGY STAR, ErP

Design

Fan diameter: 12 cm

Fan location: Top

Cooling type: Active

Product colour: Black

On/off switch: Yes

Number of fans: 1 fan(s)

Power

Max output current (+12V): 70.9 A

Max output current (+5V): 22 A

Power Good signal delay range: 100 - 150 ms

Max output current (+3.3V): 22 A

Max output current (-12V): 0.3 A

Max output current (+5Vsb): 3 A

Peak power: 900 W

Power Factor Correction (PFC) type: Active

Input current: 12 / 6 A

AC input voltage: 100 - 240 V

Combined power (+3.3V): 120 W

Power protection features: Over current, Over power, Overheating, Short circuit, Over voltage

AC input frequency: 50 - 60 Hz

Power factor: 0.98

Combined power (+5V): 120 W

Total power: 850 W

Combined power (-12V): 3.6 W

Combined power (+5Vsb): 15 W

Combined power (+12V): 850 W

Efficiency: 93.2%

Max output current (+12V2): 36 A

Max output current (+12V1): 40 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Height: 86 mm

Depth: 150 mm

Width: 160 mm

Performance

Mean time between failures (MTBF): 100000 h

80 PLUS certification: 80 PLUS Gold

Power supply unit (PSU) form factor: ATX

Purpose: PC

ATX version: 3.0

Noise level: 25.7 dB

EPS version: 2.92

Packaging data

Package type: Box

Packaging content

Cables included: PATA, PCIe, Peripheral (Molex), SATA

Ports & interfaces

SATA power cable length: 650 mm, 800, 500 mm, 600 mm, 950 mm

Number of PATA power connectors: 2

Motherboard power connector: 20+4 pin ATX

Motherboard power cable length: 55 cm

Peripheral (Molex) power cable length: 550

ATX power connector (20+4 pin): Yes

PCI Express connector: Yes

EPS power connector (4+4 pin): Yes

Number of SATA power connectors: 6

PCI Express power connectors (6+2 pin): 4

Peripheral (Molex) power connectors (4-pin): 1

EPS power connector (8-pin): Yes

Cabling type: Fully-Modular

Other features

Noise level (quiet mode, 50%): 9.5 dB

Noise level (silent mode, <30%): 9.4 dB

Noise level (full-load mode, 100%): 25.7 dB

Number of screws: 5

Cable ties included: Yes

Screws included: Yes
