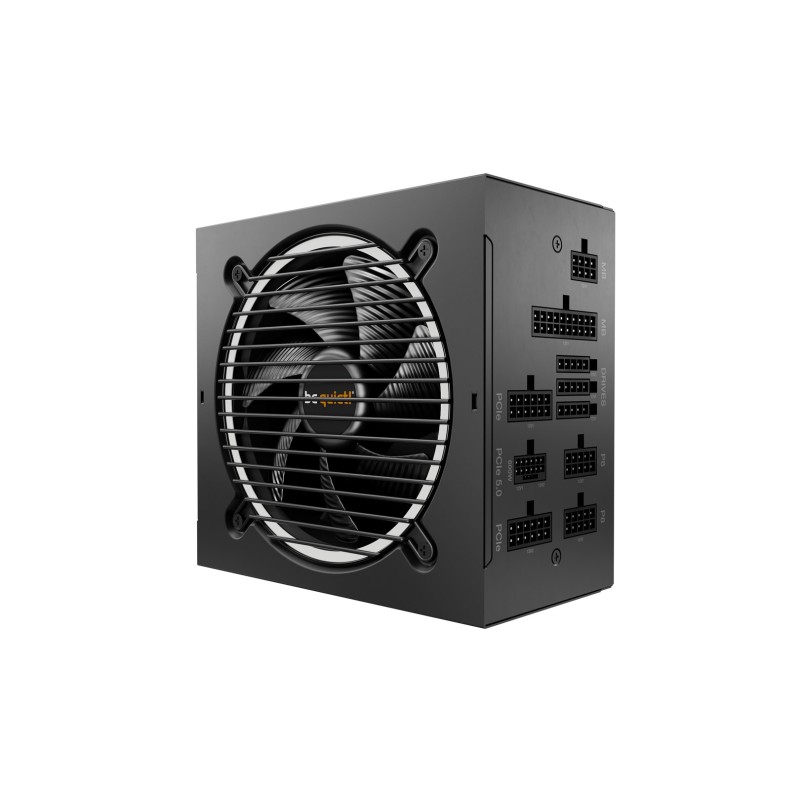

be quiet! PURE POWER 12 M | 1200W power supply unit 20+4 pin ATX ATX Black

Περιγραφή

Technical details

Sustainability certificates: ENERGY STAR, ErP, Triman

Sustainability compliance: Yes

Design

Cooling type: Active

Product colour: Black

On/off switch: Yes

Fan diameter: 12 cm

Number of fans: 1 fan(s)

Fan speed: 0 - 2700 RPM

Power

Power protection features: Short circuit, Over voltage, Overheating, Over power, Under voltage, Over current, Under power

Efficiency: 91.5%

Input current: 15 - 7.5 A

Total power: 1200 W

Power factor: 0.98

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Combined power (+3.3V): 120 W

Max output current (+3.3V): 22 A

Hold time: 19 ms

Combined power (+12V): 1200 W

Max output current (-12V): 0.3 A

Max output current (+12V2): 50 A

Max output current (+12V1): 55 A

Combined power (+5V): 120 W

Max output current (+5V): 22 A

Peak power: 1250 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Depth: 160 mm

Width: 150 mm

Weight: 1.92 kg

Height: 86 mm

Performance

Noise level: 34.3 dB

80 PLUS certification: 80 PLUS Gold

Purpose: PC

Mean time between failures (MTBF): 100000 h

EPS version: 2.92

ATX version: 3.1

Supported motherboard form factors: ATX

Silent mode: Yes

Power supply unit (PSU) form factor: ATX

Bearing technology: Rifle

Packaging data

Package depth: 284 mm

Package height: 100 mm

Package width: 220 mm

Package type: Box

Package weight: 3.19 kg

Packaging content

Cables included: AC, CPU, PATA, PCIe, SATA

Cable tie(s) included: Yes

Certificates

Compliance certificates: RoHS, CE, CCC, BSMI, WEEE, cTUVus, UKCA, Federal Communications Commission (FCC), CB

Ports & interfaces

EPS power connector (8-pin): Yes

CPU power connector (4+4 pin): Yes

PCI Express connector: Yes

PCI Express power connectors (6+2 pin): 4

Peripheral (Molex) power cable length: 950 mm, 800

SATA power cable length: 650 mm, 950 mm, 500 mm, 800

Number of PATA power connectors: 2

Number of SATA power connectors: 6

Cabling type: Fully-Modular

Motherboard power connector: 20+4 pin ATX

Motherboard power cable length: 55 cm

PCI Express power cable length: 60 cm

ATX power connector (20+4 pin): Yes

CPU power cable length: 60 cm

Logistics data

Shipping (inner) case length: 29.8 cm

Shipping (inner) case width: 42.6 cm

Products per shipping (inner) case: 4 pc(s)

Shipping (inner) case height: 24.3 cm

Shipping (inner) case net weight: 12.7 kg

Safety warning

Warnings: Do not open the case - risk of electric shock., Avoid contact of the product with water or other liquids., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
