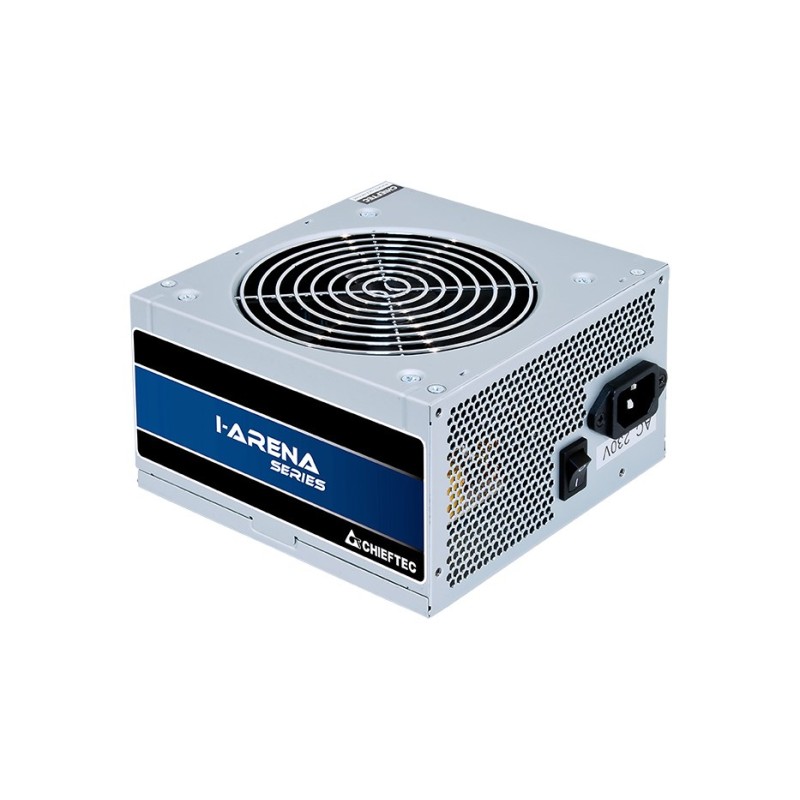

Chieftec GPB-500S power supply unit 500 W 20+4 pin ATX PS/2 Silver

Περιγραφή

Design

Number of fans: 1 fan(s)

Fan location: Top

On/off switch: Yes

Product colour: Silver

Fan diameter: 12 cm

Cooling type: Active

Power

Power protection features: Short circuit, Over voltage, Overload, Under voltage

Combined power (+12V): 456 W

Max output current (+12V1): 38 A

Combined power (-12V): 3.6 W

Efficiency: 85%

Power factor: 0.9

AC input voltage: 200 - 240 V

Max output current (+5V): 17 A

AC input frequency: 47 - 63 Hz

Input current: 4 A

Combined power (+5V): 110 W

Max output current (+3.3V): 18 A

Max output current (+5Vsb): 2.5 A

Total power: 500 W

Combined power (+3.3V): 110 W

Max output current (-12V): 0.3 A

Power Factor Correction (PFC) type: Active

Combined power (+5Vsb): 12.5 W

Weight & dimensions

Depth: 150 mm

Height: 87 mm

Width: 140 mm

Performance

Power supply unit (PSU) form factor: PS/2

RoHS compliance: Y

Purpose: PC

ATX version: 2.3

Packaging data

Package type: Box

Ports & interfaces

Number of SATA power connectors: 5

Peripheral (Molex) power connectors (4-pin): 3

PCI Express power connectors (6+2 pin): 1

Motherboard power connector: 20+4 pin ATX

Other features

Warranty card: Yes

Manual: Yes
