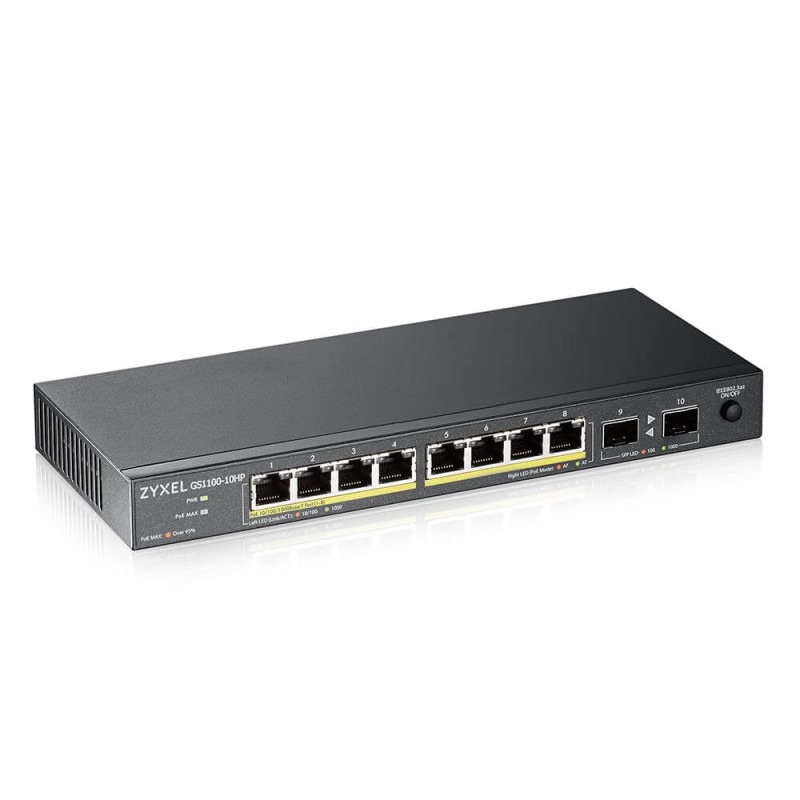

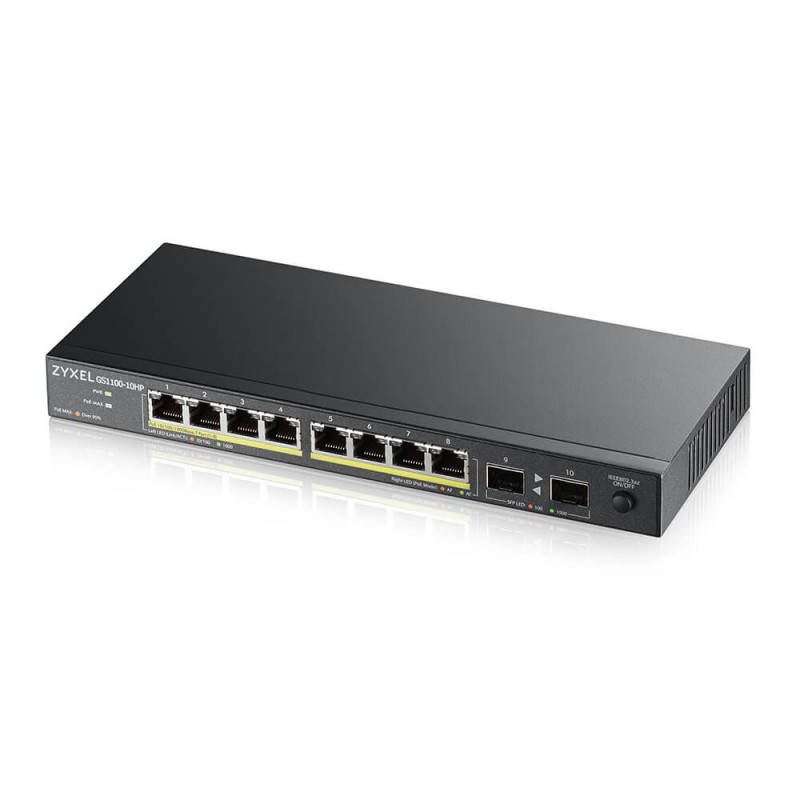

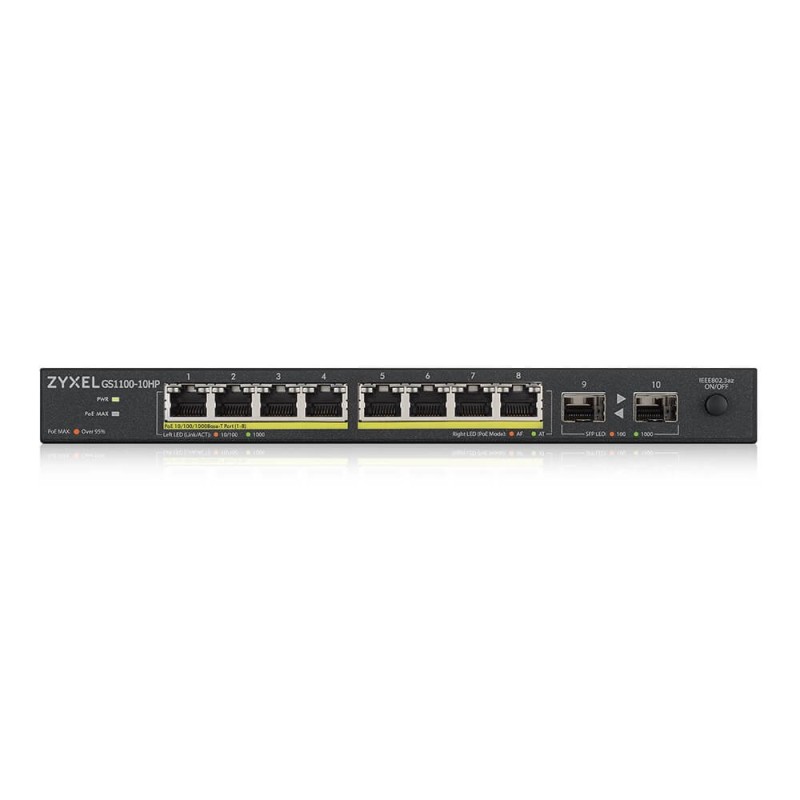

Zyxel GS1100-10HP v2 Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Περιγραφή

Technical details

Compliance certificates: RoHS

Design

Product colour: Black

LED indicators: Yes

Wall mountable: Yes

Power

AC input voltage: 100 - 240 V

AC input frequency: 50 - 60 Hz

Power source: AC/DC

Power consumption (max): 156.1 W

Power supply included: Yes

DC input voltage: 54 V

Operational conditions

Storage relative humidity (H-H): 10 - 95%

Operating relative humidity (H-H): 10 - 90%

Storage temperature (T-T): -40 - 70 °C

Operating temperature (T-T): 0 - 50 °C

Heat dissipation: 89 BTU/h

Management features

Switch type: Unmanaged

Weight & dimensions

Depth: 104 mm

Weight: 730 g

Height: 27 mm

Width: 250 mm

Network

Networking standards: IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p

Ethernet LAN data rates: 100,1000 Mbit/s

Auto MDI/MDI-X: Yes

10G support: No

Performance

Mean time between failures (MTBF): 1000070 h

Packaging data

Package height: 67 mm

Package width: 228 mm

Package weight: 1.97 kg

Package depth: 304 mm

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

SFP module slots quantity: 2

Basic switching RJ-45 Ethernet ports quantity: 8

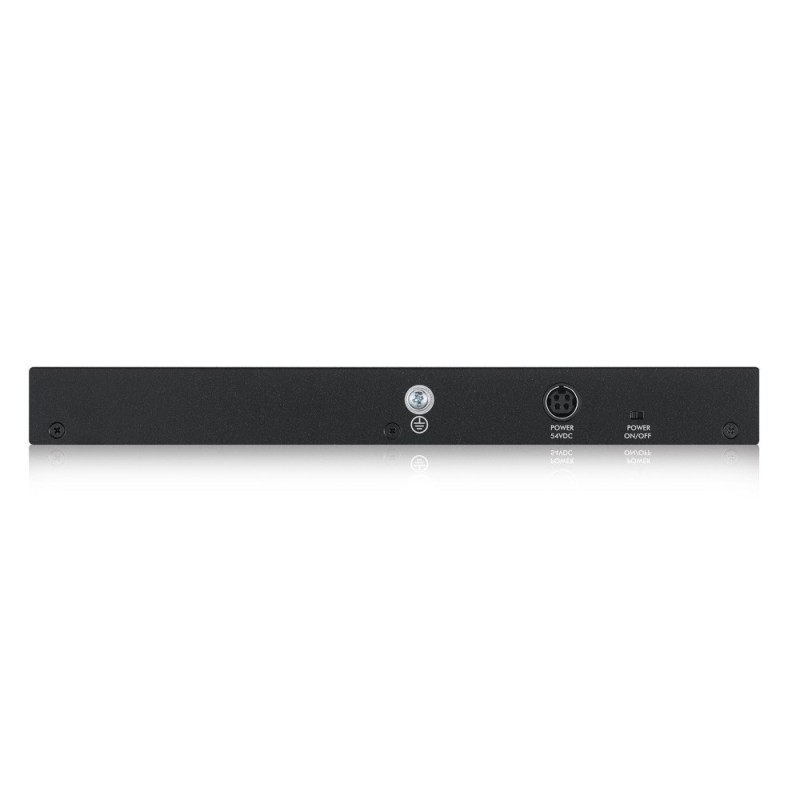

Power connector: DC-in jack

Logistics data

Harmonized System (HS) code: 85176990

Products per master (outer) case: 8 pc(s)

Master (outer) case width: 323 mm

Master (outer) case gross weight: 13.7 kg

Master (outer) case length: 558 mm

Master (outer) case height: 275 mm

Data transmission

MAC address table: 8000 entries

Jumbo frames support: Yes

Packet buffer memory: 0.256 MB

Forwarding rate: 14.88 Mpps

Jumbo frames: 9000

Switching capacity: 20 Gbit/s

Power over Ethernet (PoE)

Power over Ethernet (PoE): Yes

Total Power over Ethernet (PoE) budget: 130 W

Power over Ethernet (PoE) ports quantity: 8

Sustainability

Sustainability compliance: Yes

Sustainability certificates: RoHS
