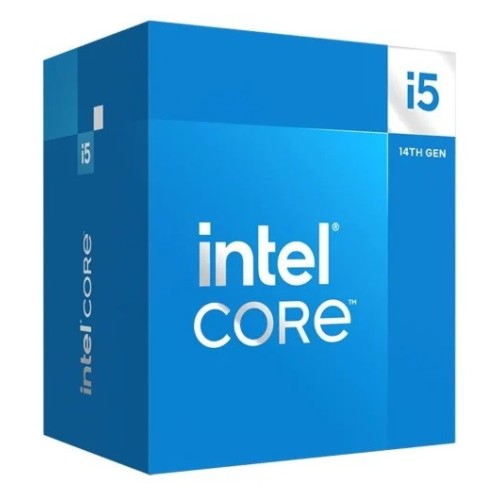

Intel Core i5-14500 processor 24 MB Smart Cache Box

Περιγραφή

Technical details

OpenCL version: 3.0

Status: Launched

Launch date: Q1'24

Processor

Bus type: DMI4

Memory bandwidth supported by processor (max): 76.8 GB/s

Processor cores: 14

Processor operating modes: 64-bit

Processor family: Intel® Core™ i5

Processor generation: Intel® Core™ i5 14th generation

Processor cache: 24 MB

Processor codename: Raptor Lake

Processor cache type: Smart Cache

Performance-core boost frequency: 5 GHz

Maximum number of DMI lanes: 8

Performance cores: 6

Processor threads: 20

Maximum turbo power: 154 W

Performance-core base frequency: 2.6 GHz

Box: Yes

Processor socket: LGA 1700

Efficient cores: 8

Processor model: i5-14500

Processor manufacturer: Intel

Processor base power: 65 W

Graphics

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 120 Hz

On-board graphics card dynamic frequency (max): 1550 MHz

Number of displays supported (on-board graphics): 4

On-board graphics card: Yes

On-board graphics card DirectX version: 12.0

On-board graphics card OpenGL version: 4.5

On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz

On-board graphics card maximum resolution (DisplayPort): 7680 x 4320 pixels

On-board graphics card maximum resolution (HDMI): 4096 x 2160 pixels

On-board graphics card outputs supported: Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1

Discrete graphics card model: Not available

On-board graphics card model: Intel UHD Graphics 770

On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz

Number of execution units: 32

On-board graphics card maximum resolution (eDP - Integrated Flat Panel): 5120 x 3200 pixels

Discrete graphics card: No

On-board graphics card base frequency: 300 MHz

Features

PCI Express configurations: 1x16+1x4, 2x8+1x4

Execute Disable Bit: Yes

Market segment: Desktop

Idle States: Yes

Supported instruction sets: AVX 2.0, SSE4.2, SSE4.1

Thermal Monitoring Technologies: Yes

PCI Express slots version: 4.0, 5.0

Embedded options available: Yes

Direct Media Interface (DMI) Revision: 4.0

CPU configuration (max): 1

Use conditions: PC/Client/Tablet, Workstation

Scalability: 1S

Maximum number of PCI Express lanes: 20

Memory

Maximum internal memory supported by processor: 192 GB

Memory types supported by processor: DDR4-SDRAM, DDR5-SDRAM

Memory bandwidth (max): 76.8 GB/s

Memory channels: Dual-channel

Operational conditions

Tjunction: 100 °C

Weight & dimensions

Processor package size: 45 x 37.5 mm

Processor special features

Intel VT-x with Extended Page Tables (EPT): Yes

Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes

Intel® OS Guard: Yes

Intel 64: Yes

Intel® One-Click Recovery: Yes

Intel® Volume Management Device (VMD): Yes

Intel Virtualization Technology for Directed I/O (VT-d): Yes

Intel Virtualization Technology (VT-x): Yes

Intel Turbo Boost Max Technology 3.0: No

Intel® Quick Sync Video Technology: Yes

Intel® Active Management Technology (Intel® AMT): Yes

Intel® Threat Detection Technology (TDT): Yes

Intel® vPro™ Platform Eligibility: Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes

Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: Yes

Intel® Speed Shift Technology: Yes

Intel® Control-flow Enforcement Technology (CET): Yes

Intel® Hyper Threading Technology (Intel® HT Technology): Yes

Intel vPro® Enterprise Platform Eligibility: Yes

Intel® Clear Video HD Technology (Intel® CVT HD): Yes

Intel® AES New Instructions (Intel® AES-NI): Yes

Intel vPro® Essentials Platform Eligibility: Yes

Intel® Boot Guard: Yes

Enhanced Intel SpeedStep Technology: Yes

Intel® Secure Key: Yes

Intel Trusted Execution Technology: Yes

Intel® Total Memory Encryption - Multi Key: Yes

Mode-based Execute Control (MBE): Yes

Intel® Standard Manageability (ISM): Yes

Intel® Hardware Shield Eligibility: Yes

Intel® Thread Director: Yes

Intel® Remote Platform Erase (RPE): Yes

Intel® Turbo Boost Technology: 2.0

Intel Stable Image Platform Program (SIPP): Yes

Other features

Graphics output: eDP 1.4b, DP 1.4a, HDMI 2.1

Maximum internal memory: 192 GB

Safety warning

Warnings: Do not dispose of the processors in the normal rubbish bin - they require special disposal due to their potential environmental impact.
