MSI MPG B550 Gaming Plus AMD B550 Socket AM4 ATX

Περιγραφή

Processor

Compatible processor series: 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen 5

Processor socket: Socket AM4

Maximum number of SMP processors: 1

Processor manufacturer: AMD

Graphics

Maximum graphics card memory: 16000 MB

Parallel processing technology support: 2-Way CrossFireX

Maximum resolution: 4096 x 2160 pixels

Features

Motherboard form factor: ATX

Audio chip: Realtek ALC892

PC health monitoring: Temperature, Fan, CPU

Motherboard chipset: AMD B550

Motherboard chipset family: AMD

Audio output channels: 7.1 channels

Number of mounting holes: 9

Harmonized System (HS) code: 84733020

Memory

Supported memory clock speeds: 3000, 2933, 3600, 3200 MHz, 4266, 2667, 3733, 4400, 3066, 2400, 2800, 3866, 2133, 3466, 4133, 4000, 1866

Number of memory slots: 4

Unbuffered memory: Yes

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Supported memory types: DDR4-SDRAM

Memory slots type: DIMM

Weight & dimensions

Depth: 244 mm

Height: 65 mm

Width: 305 mm

Network

LAN controller: Realtek 8111H

Wi-Fi: No

Ethernet LAN: Yes

Ethernet interface type: Gigabit Ethernet

Internal I/O

USB 2.0 connectors: 2

Number of SATA III connectors: 6

Number of chassis fan connectors: 6

12V power connector: Yes

RGB LED pin header: Yes

CPU fan connector: Yes

TPM connector: Yes

Chassis intrusion connector: Yes

Front panel audio connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

ATX Power connector (24-pin): Yes

BIOS

Clear CMOS jumper: Yes

BIOS type: UEFI AMI

Packaging content

Drivers included: Yes

Cables included: SATA

Storage controllers

RAID levels: 0, 10, 1

Supported storage drive types: HDD & SSD

Supported storage drive interfaces: SATA III

Rear panel I/O ports

S/PDIF out port: Yes

PS/2 ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

DisplayPorts quantity: 1

HDMI ports quantity: 1

Digital audio optical out: 1

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

Number of M.2 (M) slots: 2

Other features

Weight: 1 kg

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asrock A520M-HDV Socket AM4 micro ATX

ProcessorCompatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ ..

53,80€

Χωρίς ΦΠΑ:43,39€

Asrock B450M Pro4 R2.0 AMD B450 Socket AM4 micro ATX

ProcessorCompatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen™ 5Processor manufacturer: AMDProcessor socket: Socket AM4GraphicsGraphics ..

67,39€

Χωρίς ΦΠΑ:54,35€

Asrock B550 Phantom Gaming 4 Socket AM4 ATX AMD B550

ProcessorCompatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ ..

93,54€

Χωρίς ΦΠΑ:75,44€

Asrock B550 Phantom Gaming-ITX/a Socket AM4 mini ITX AMD B550

ProcessorCompatible processor series: 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen ..

195,92€

Χωρίς ΦΠΑ:158,00€

Asrock B550 Pro4 Socket AM4 ATX AMD B550

ProcessorCompatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ ..

99,79€

Χωρίς ΦΠΑ:80,48€

Asrock B550M Phantom Gaming 4 Socket AM4 micro ATX AMD B550

ProcessorMaximum number of SMP processors: 1Processor socket: Socket AM4Processor manufacturer: AMDCompatible processor series: AMD Ryzen™ 7, AMD Ryze..

89,85€

Χωρίς ΦΠΑ:72,46€

Asrock B550M Pro4 Socket AM4 micro ATX AMD B550

ProcessorMaximum number of SMP processors: 1Compatible processor series: 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen 5, 3rd Generation AMD R..

99,79€

Χωρίς ΦΠΑ:80,48€

ASUS PRIME B550-PLUS AMD B550 Socket AM4 ATX

ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM4Compatible processor series: AMD Ryzen 3000 SeriesSupported processor sockets: Socket ..

112,12€

Χωρίς ΦΠΑ:90,42€

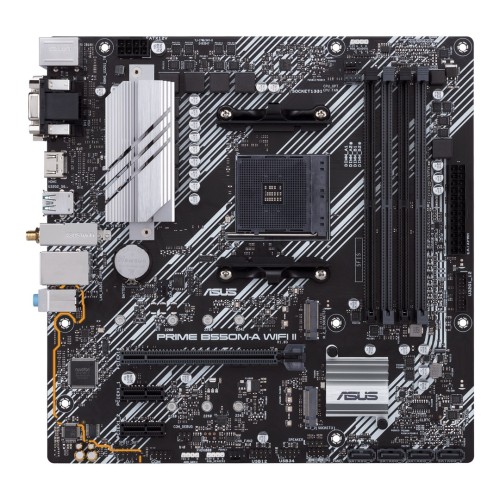

ASUS PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX

ProcessorProcessor socket: Socket AM4Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 3000 SeriesSupported processor sockets: Socket AM4P..

103,15€

Χωρίς ΦΠΑ:83,18€

ASUS PRIME B550M-K AMD B550 Socket AM4 micro ATX

ProcessorCompatible processor series: 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ ..

118,52€

Χωρίς ΦΠΑ:95,58€

ASUS ROG STRIX B550-A GAMING AMD B550 Socket AM4 ATX

ProcessorProcessor manufacturer: AMDCompatible processor series: AMD Ryzen™ 3Processor socket: Socket AM4GraphicsParallel processing technology suppor..

135,86€

Χωρίς ΦΠΑ:109,57€

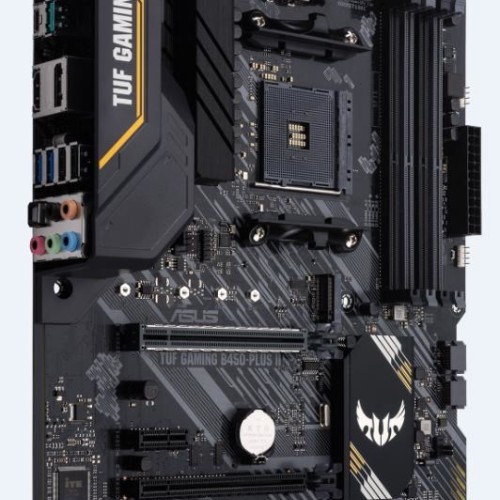

ASUS TUF GAMING B450-PLUS II AMD B450 Socket AM4 ATX
