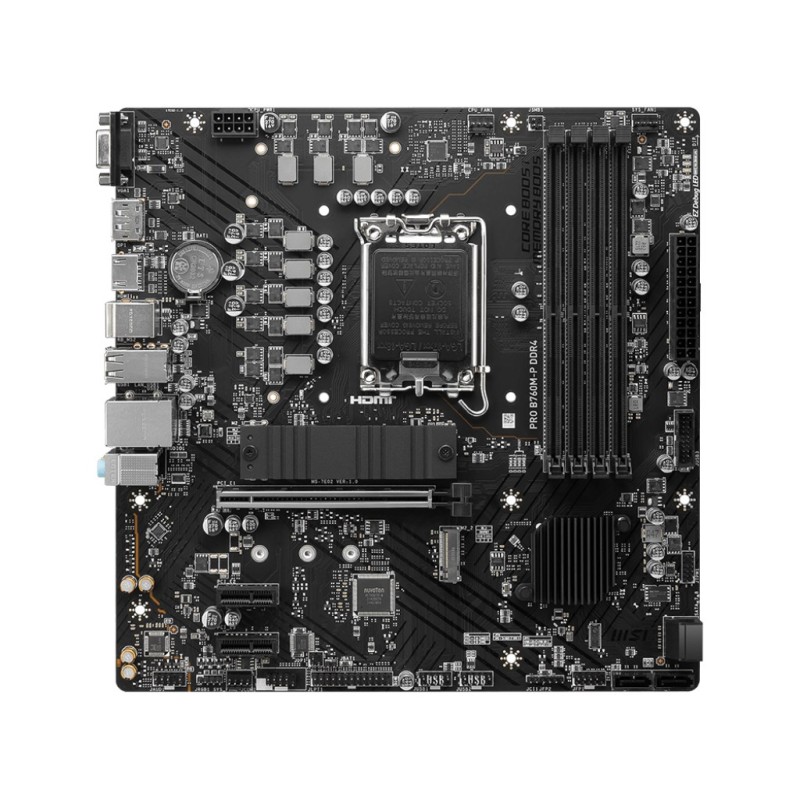

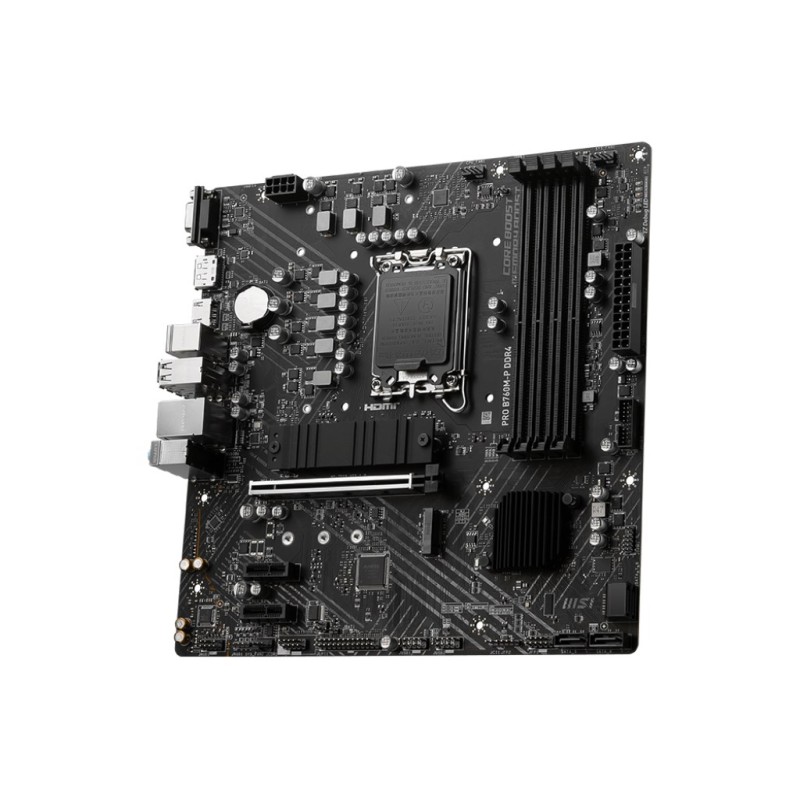

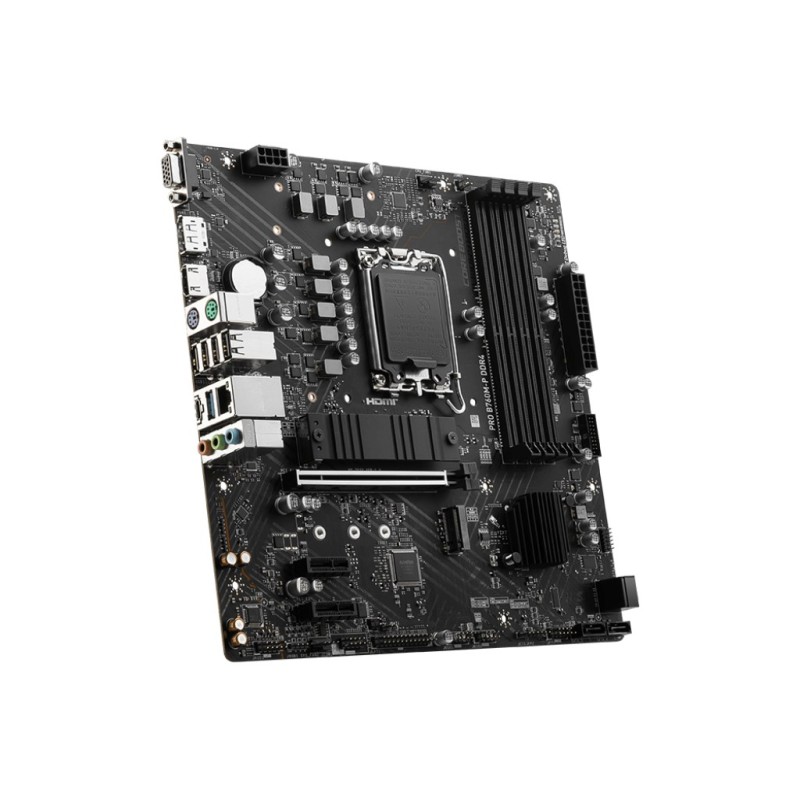

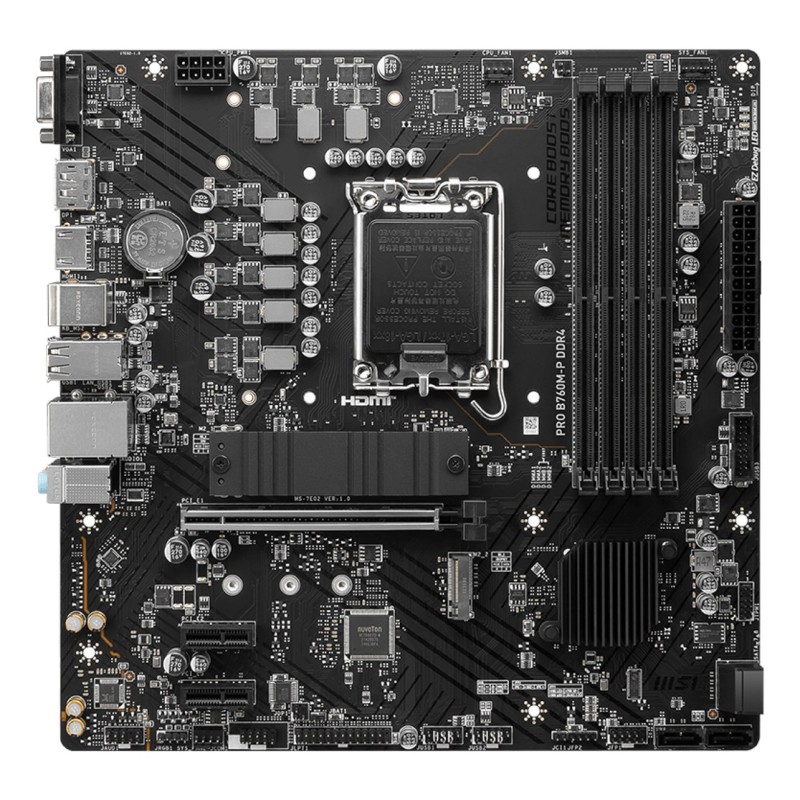

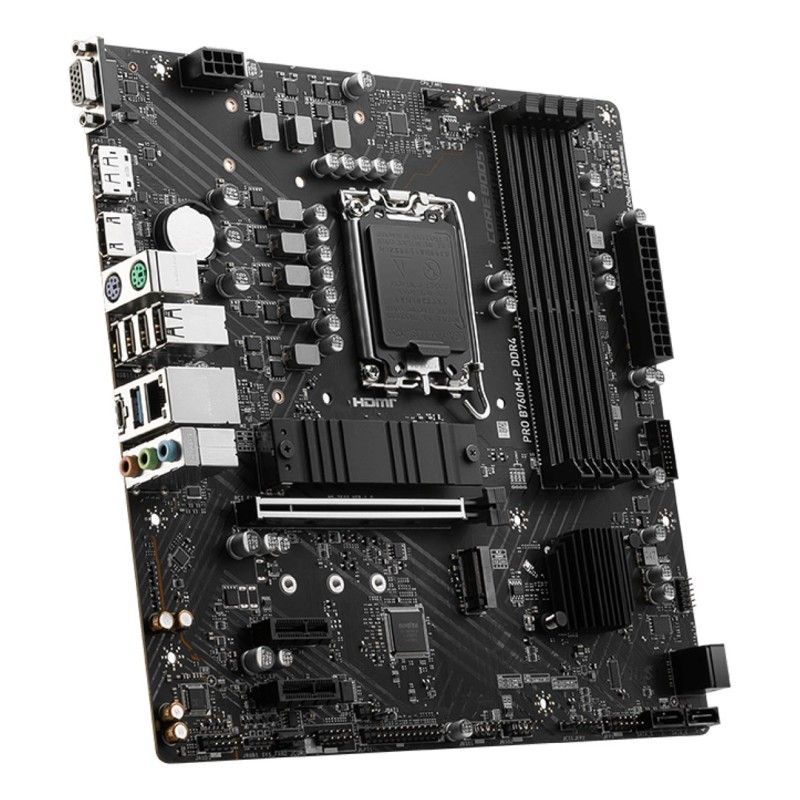

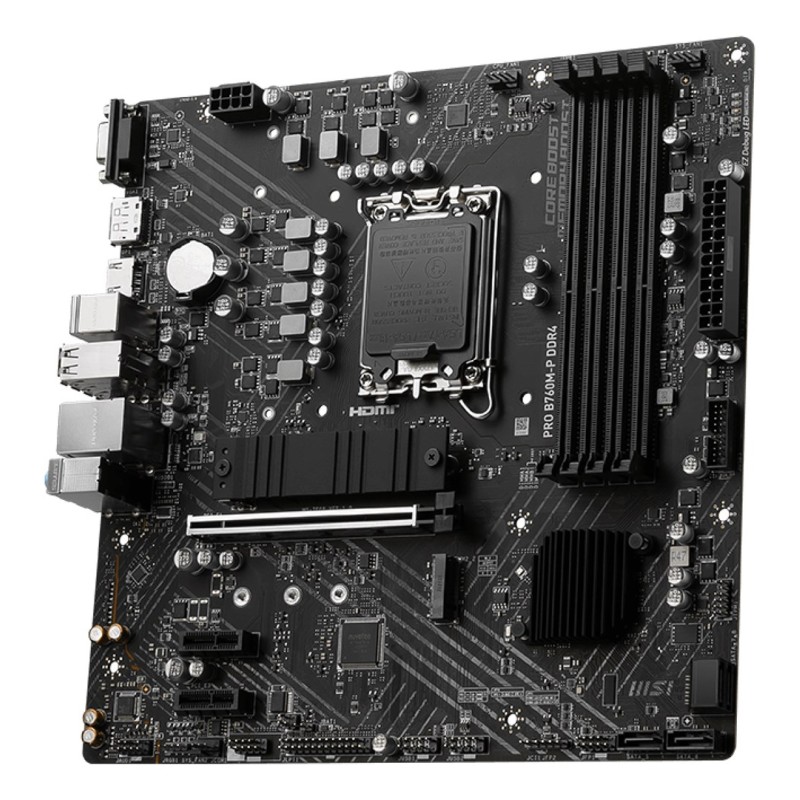

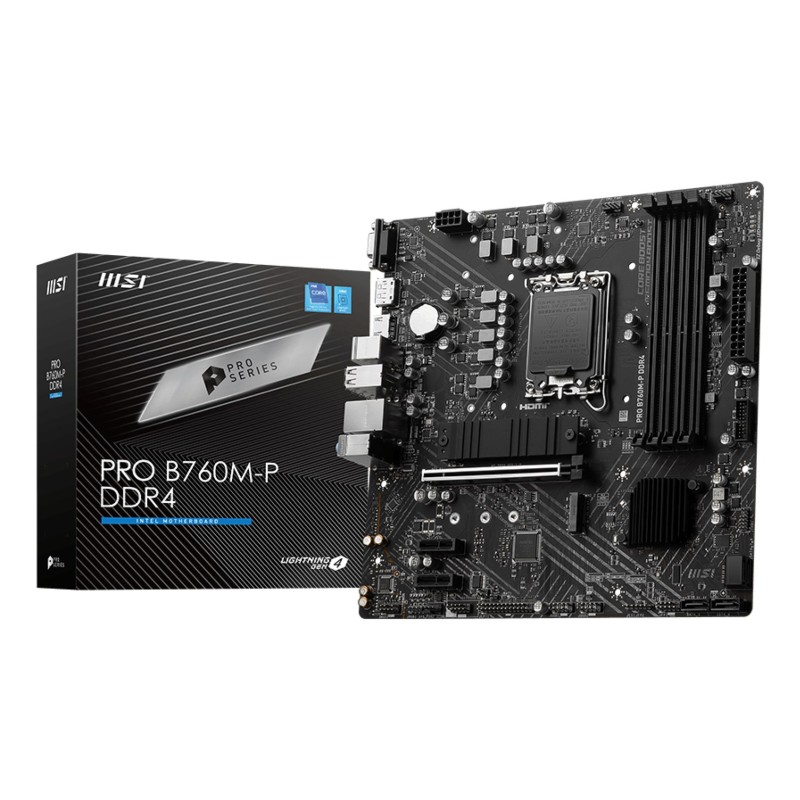

MSI PRO B760M-P DDR4 motherboard Intel B760 LGA 1700 micro ATX

Περιγραφή

Processor

Maximum number of SMP processors: 1

Processor socket: LGA 1700

Compatible processor series: Intel® Pentium® Gold, Intel® Celeron®

Processor manufacturer: Intel

Supported processor sockets: LGA 1700

Graphics

On-board graphics card: No

Features

Windows operating systems supported: Windows 10, Windows 11

Motherboard chipset family: Intel

Motherboard form factor: micro ATX

Audio output channels: 7.1 channels

Motherboard chipset: Intel B760

Product colour: Black

Power source type: ATX

Audio chip: Realtek ALC897

Memory

Memory slots type: DIMM

Number of memory slots: 4

Supported memory types: DDR4-SDRAM

Supported memory clock speed (max): 4800 MHz

ECC сompatibility: Non-ECC

Supported memory clock speeds: 3200 MHz, 2666, 4266, 3733, 4400, 2133, 4200, 4600, 2400, 3400, 4000, 4800, 3800, 3333, 2933, 3600, 3466

Memory channels: Dual-channel

Maximum internal memory: 128 GB

Weight & dimensions

Depth: 243.8 mm

Width: 243.8 mm

Network

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: No

Internal I/O

RGB LED pin header: Yes

Number of SATA III connectors: 4

USB 2.0 connectors: 4

ATX Power connector (24-pin): Yes

Front panel connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Front panel audio connector: Yes

CPU fan connector: Yes

TPM connector: Yes

BIOS

BIOS type: UEFI AMI

Storage controllers

RAID levels: 1, 5, 10, 0

Supported storage drive interfaces: M.2, SATA III

RAID support: Yes

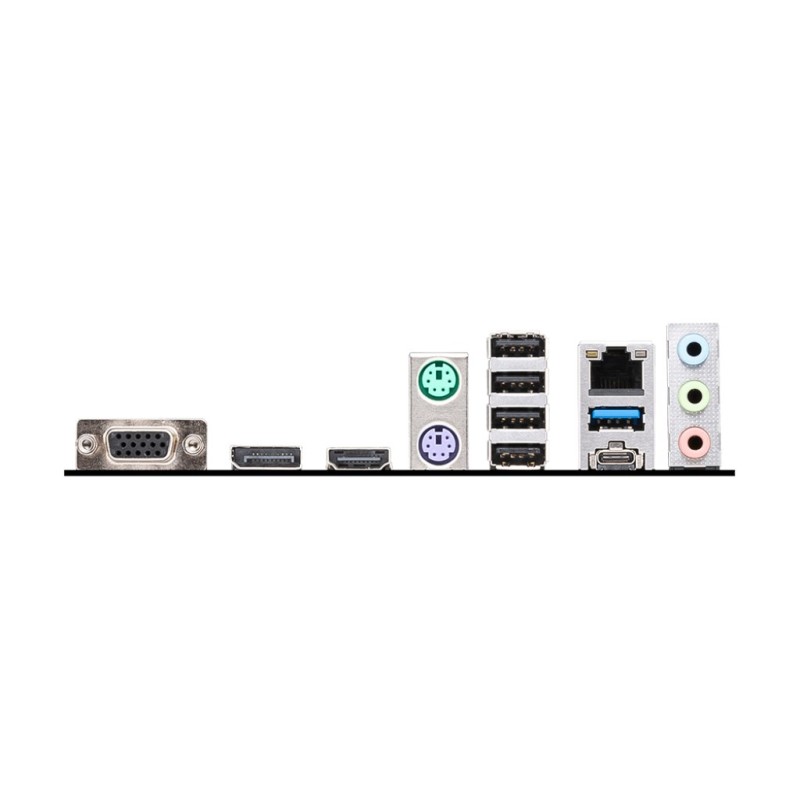

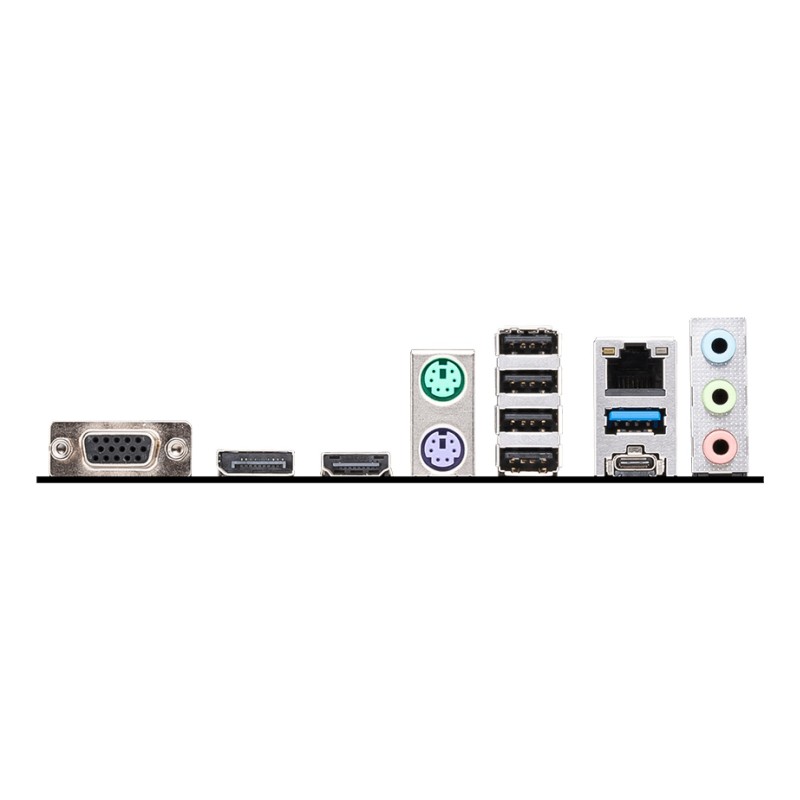

Rear panel I/O ports

DisplayPorts quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

DisplayPort version: 1.4

HDMI version: 1.4

HDMI ports quantity: 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2

Number of M.2 (M) slots: 2

PCI Express x16 slots: 2

Safety warning

Warnings: Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.
