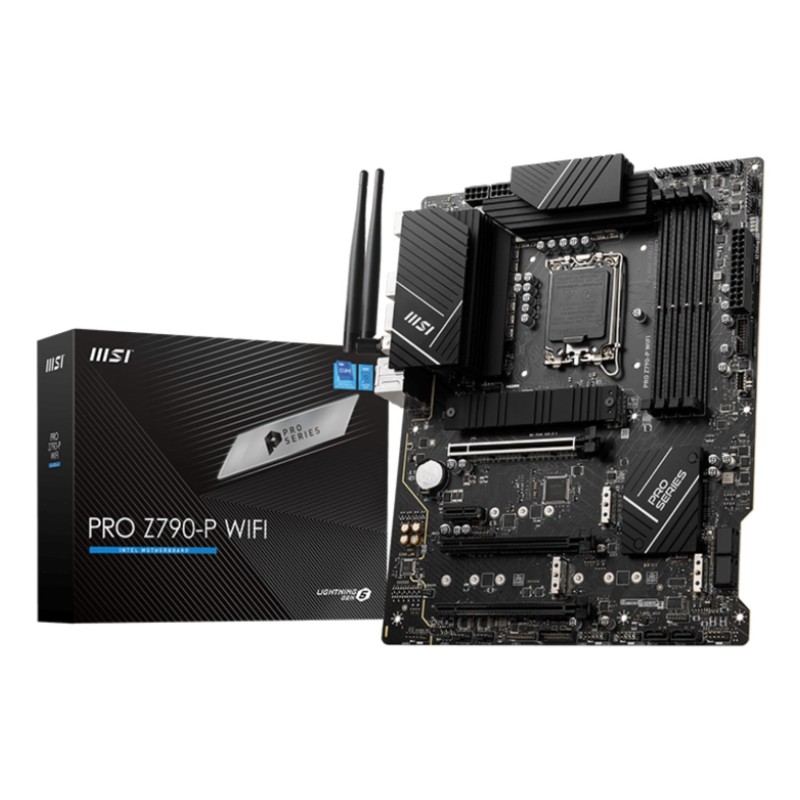

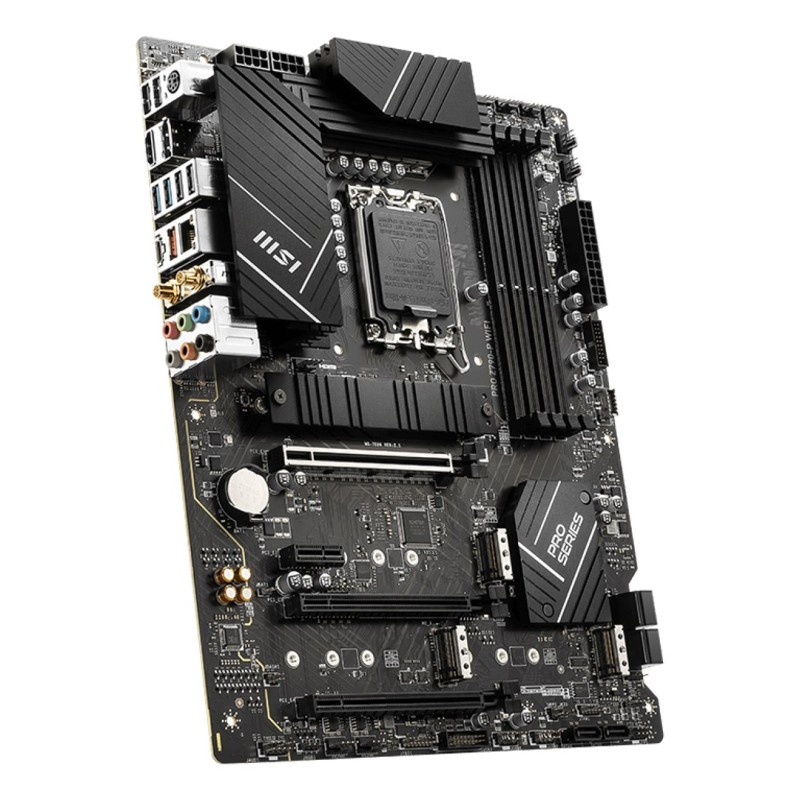

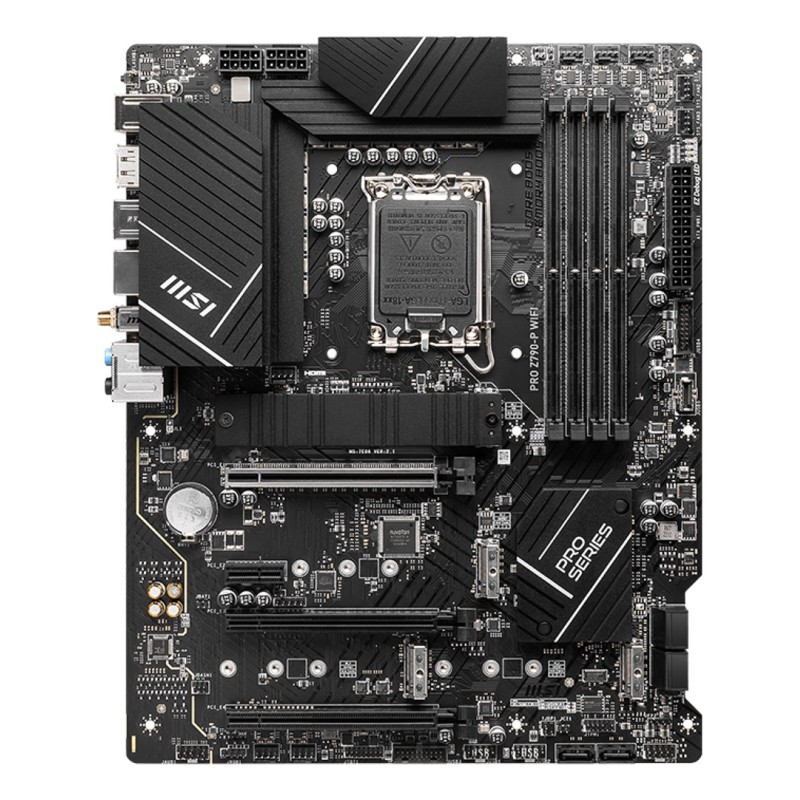

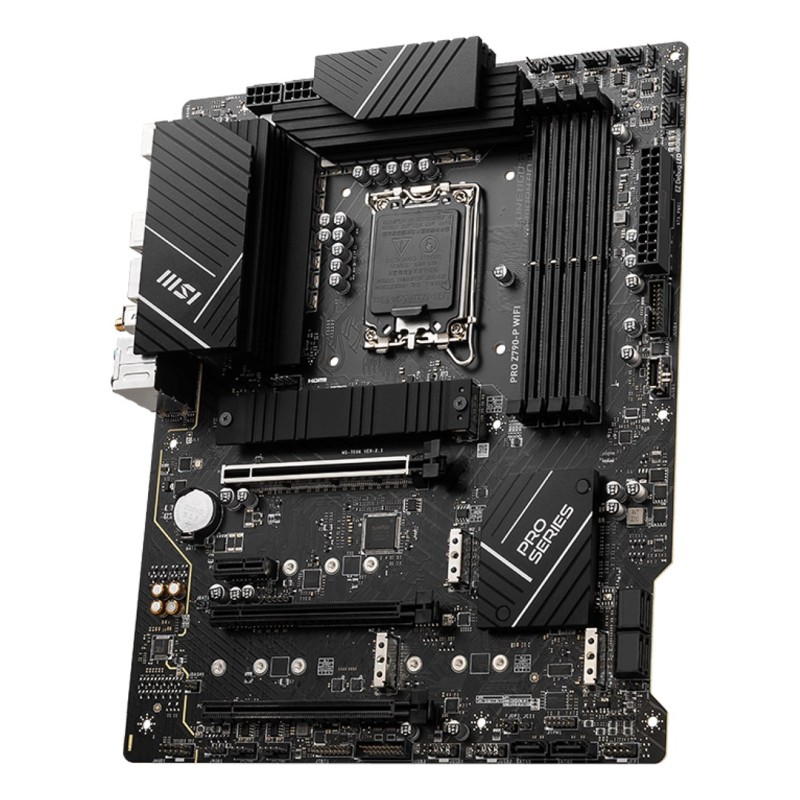

MSI PRO Z790-P WIFI motherboard Intel Z790 LGA 1700 ATX

Περιγραφή

Processor

Supported processor sockets: LGA 1700

Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold

Processor manufacturer: Intel

Processor socket: LGA 1700

Graphics

On-board graphics card: No

Parallel processing technology support: Not supported

Features

Motherboard chipset family: Intel

Motherboard chipset: Intel Z790

Motherboard form factor: ATX

Audio chip: Realtek ALC897

Windows operating systems supported: Windows 10 x64, Windows 11 x64

Product colour: Black

Audio output channels: 7.1 channels

Memory

Supported memory clock speeds: 5800, 5400, 6800, 5200, 6400 MHz, 6600, 5000, 6000, 7000, 4800

Maximum internal memory: 128 GB

Supported memory types: DDR5-SDRAM

ECC сompatibility: Non-ECC

Supported memory clock speed (max): 7000 MHz

Number of memory slots: 4

Weight & dimensions

Width: 304.8 mm

Depth: 243.8 mm

Network

Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

Wi-Fi: Yes

Bluetooth: Yes

Ethernet interface type: 2.5 Gigabit Ethernet

Bluetooth version: 5.3

Internal I/O

TPM connector: Yes

Number of SATA III connectors: 6

Front panel audio connector: Yes

USB 2.0 connectors: 4

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4

Front panel connector: Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

RGB LED pin header: Yes

BIOS

BIOS type: UEFI AMI

Packaging content

Cables included: SATA

Storage controllers

RAID levels: 1, 10, 5, 0

Supported storage drive types: HDD & SSD

RAID support: Yes

Supported storage drive interfaces: M.2, PCI Express

Internal storage capacity: 10 GB

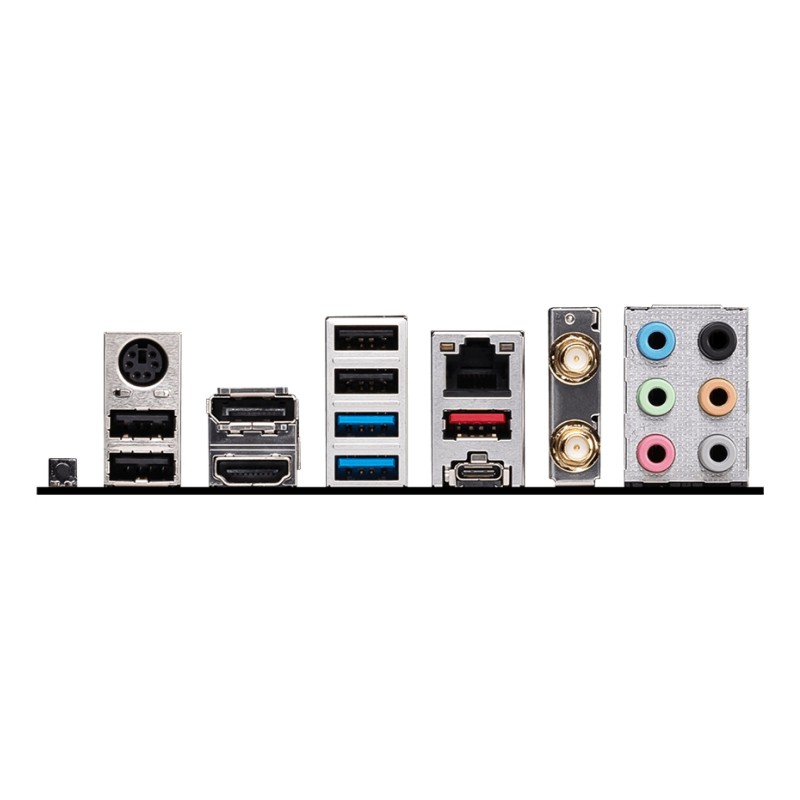

Rear panel I/O ports

Ethernet LAN (RJ-45) ports: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

DisplayPorts quantity: 1

HDMI ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

S/PDIF out port: Yes

HDMI version: 2.1

DisplayPort version: 1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2x2 Type-C ports quantity: 1

Expansion slots

Number of M.2 (M) slots: 4

Safety warning

Warnings: Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage.
