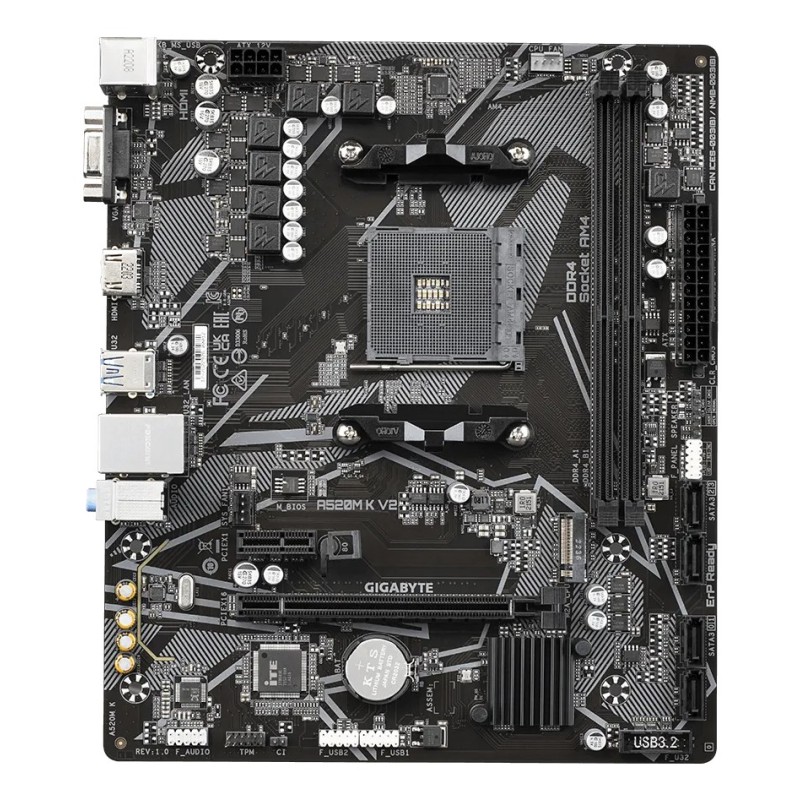

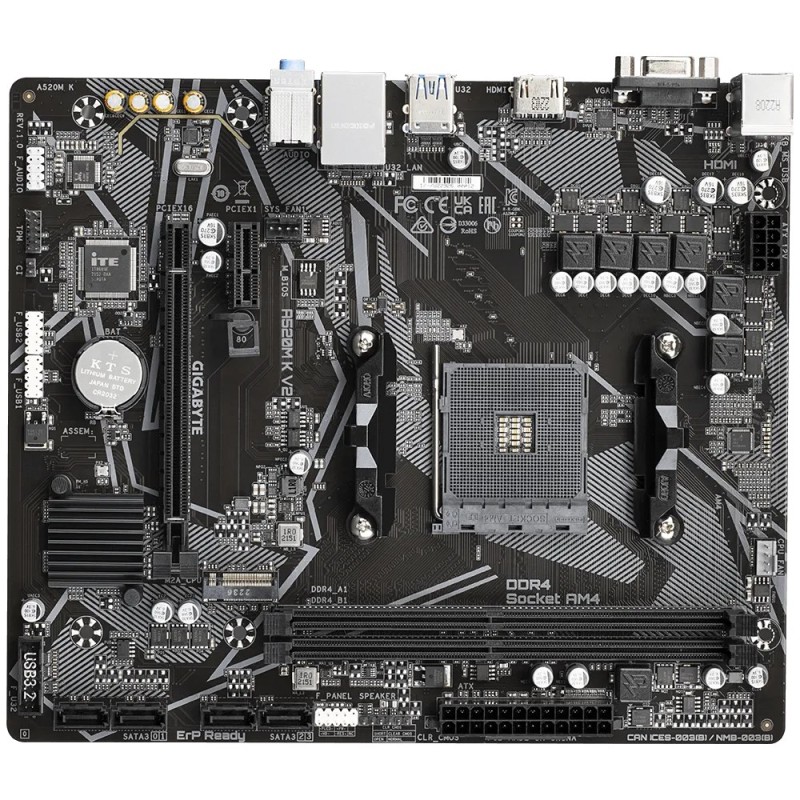

GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1

Περιγραφή

Technical details

Warranty period: 3 year(s)

Processor

Processor socket: Socket AM4

Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series

Processor manufacturer: AMD

Supported processor sockets: Socket AM4

Graphics

HDCP: Yes

Parallel processing technology support: Not supported

Maximum resolution: 4096 x 2160 pixels

Features

Motherboard chipset: AMD A520

Audio output channels: 7.1 channels

PC health monitoring: Temperature, Fan, Voltage

Windows operating systems supported: Windows 11 x64, Windows 10 x64

Motherboard form factor: micro ATX

Motherboard chipset family: AMD

Memory

Supported memory clock speeds: 2133, 4600, 2933, 3600, 2667, 3733, 4400, 3400, 3866, 3200 MHz, 4266, 5100 MHz, 3466, 2400, 4133, 4000, 4800

Unbuffered memory: Yes

Maximum internal memory: 64 GB

Memory channels: Dual-channel

Number of memory slots: 2

Memory slots type: DIMM

Supported memory types: DDR4-SDRAM

Supported memory clock speed (max): 5100 MHz

ECC сompatibility: ECC & Non-ECC

Weight & dimensions

Depth: 198 mm

Height: 35 mm

Width: 233 mm

Network

Ethernet interface type: Gigabit Ethernet

Ethernet LAN: Yes

Wi-Fi: No

Internal I/O

EPS power connector (8-pin): Yes

USB 2.0 connectors: 2

Front panel connector: Yes

TPM connector: Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Number of SATA III connectors: 4

Chassis intrusion connector: Yes

CPU fan connector: Yes

Front panel audio connector: Yes

12V power connector: Yes

ATX Power connector (24-pin): Yes

BIOS

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

Packaging data

Package depth: 235 mm

Package weight: 675 g

Package height: 52 mm

Package width: 265 mm

Packaging content

Cables included: SATA

Batteries included: Yes

Storage controllers

Supported storage drive types: HDD & SSD

RAID support: Yes

RAID levels: 10, 1, 0

Number of storage drives supported: 5

Supported storage drive interfaces: M.2, SATA III

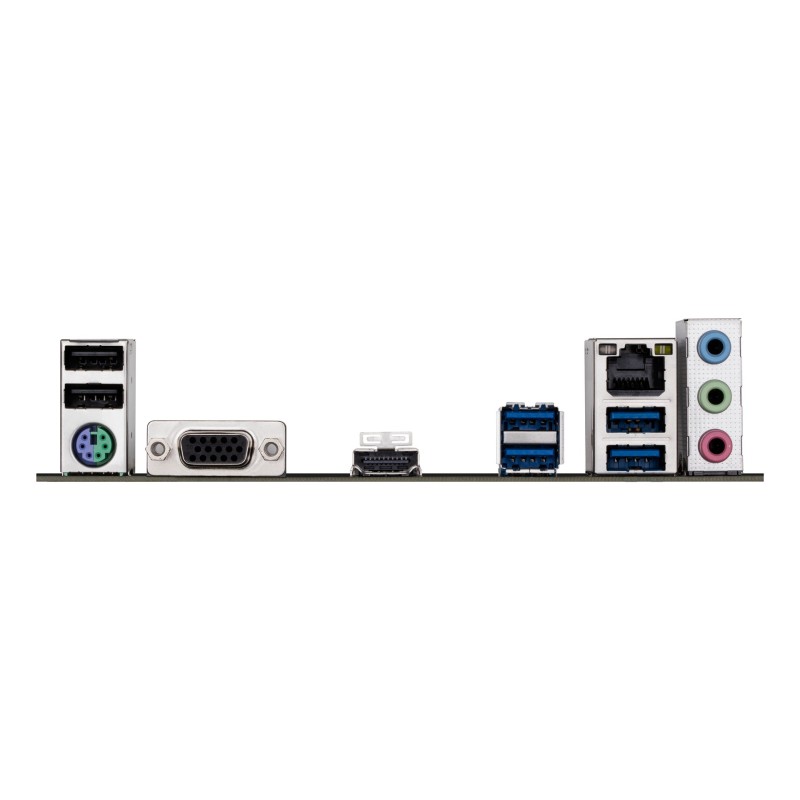

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

VGA (D-Sub) ports quantity: 1

Microphone in: Yes

USB connector type: USB Type-A

USB 2.0 ports quantity: 2

Headphone outputs: 3

HDMI version: 2.1

HDMI ports quantity: 1

PS/2 ports quantity: 1

Ethernet LAN (RJ-45) ports: 1

Expansion slots

PCI Express x16 slots: 1

PCI Express x1 slots: 1

Number of M.2 (M) slots: 1

Battery

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Number of battery cells: 1

Battery weight: 3 g

Lithium weight per battery: 0.07 g

Logistics data

Country of origin: China

Products per shipping (inner) case: 1 pc(s)

Safety warning

Warnings: Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations., Store away from water and sources of moisture.

Τρόποι Αποστολής

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Σχετικά Προϊόντα

Asrock A520M Pro4 Socket AM4 micro ATX

ProcessorProcessor manufacturer: AMDProcessor socket: Socket AM4Compatible processor series: 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen 5, ..

79,50€

Χωρίς ΦΠΑ:64,11€

Asrock A520M-HDV Socket AM4 micro ATX

ProcessorCompatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ ..

55,48€

Χωρίς ΦΠΑ:44,75€

Asrock A520M-ITX/ac Socket AM4 micro ATX

ProcessorCompatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ ..

105,62€

Χωρίς ΦΠΑ:85,18€

Asrock B450 Pro4 R2.0 Socket AM4 ATX AMD B450

ProcessorCompatible processor series: 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™..

77,32€

Χωρίς ΦΠΑ:62,36€

Asrock B450M Pro4 R2.0 AMD B450 Socket AM4 micro ATX

ProcessorCompatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen™ 5Processor manufacturer: AMDProcessor socket: Socket AM4GraphicsGraphics ..

69,48€

Χωρίς ΦΠΑ:56,03€

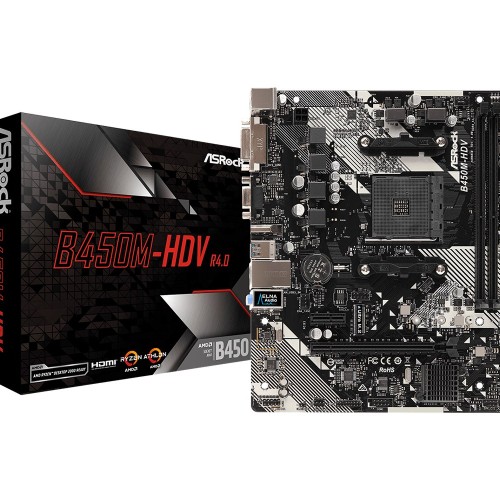

Asrock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX
